AFAM chain kit for Yamaha XT 660 Z Tenere ABS 11-12 520 XMR3 chain kit

AFAM chain kit for Yamaha XT 660 Z Tenere ABS 11-12 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - Mention of manufacturer is for compatibility purposes only!

Components of the chain kit Yamaha XT 660 Z Tenere ABS DM02 2011-2012

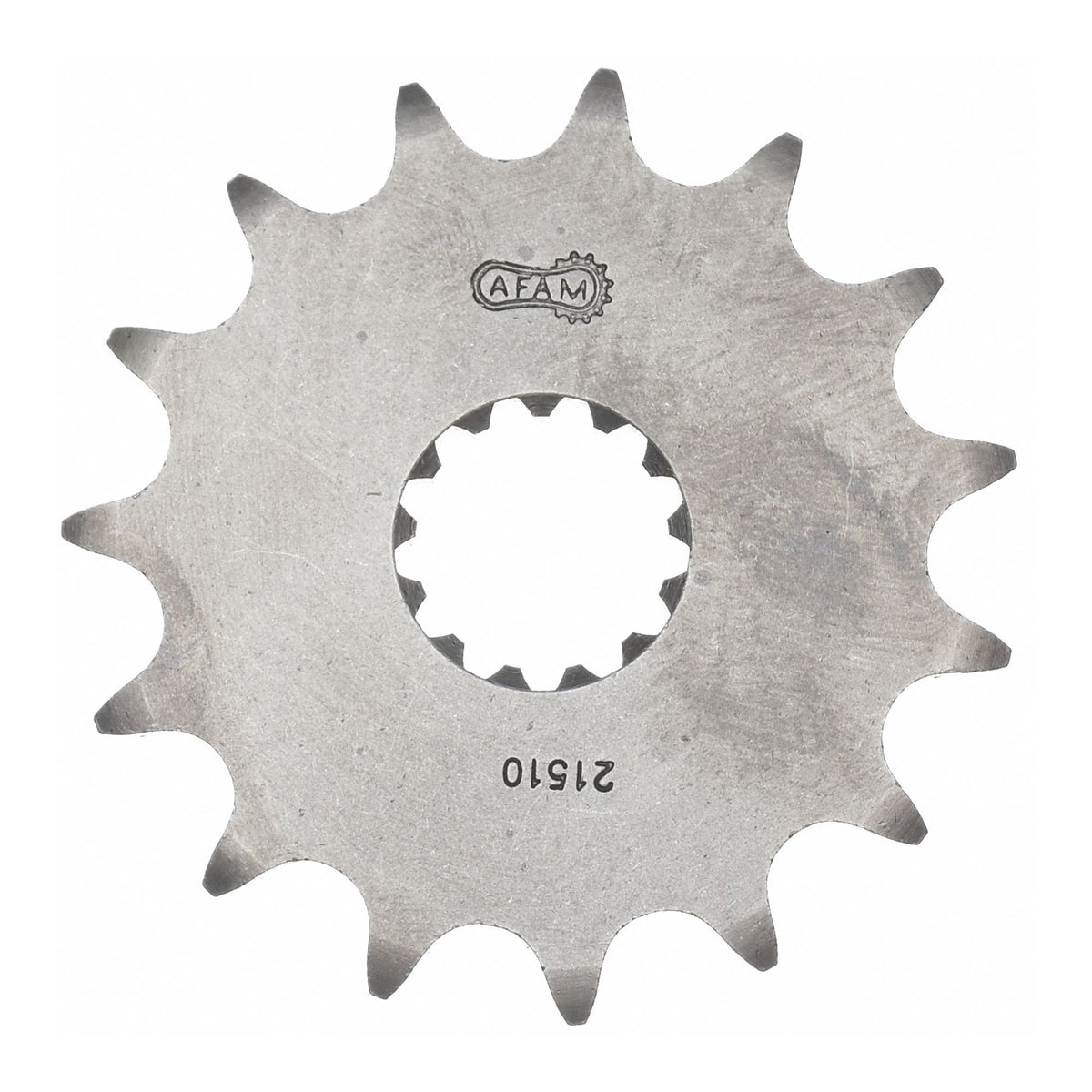

• Front sprocket: AFAM front sprocket #520 15 teeth - a21510.15
• Chain: AFAM chain 520 XMR3 Xs-Ring 110 w. rivet link - a520xmr3.110

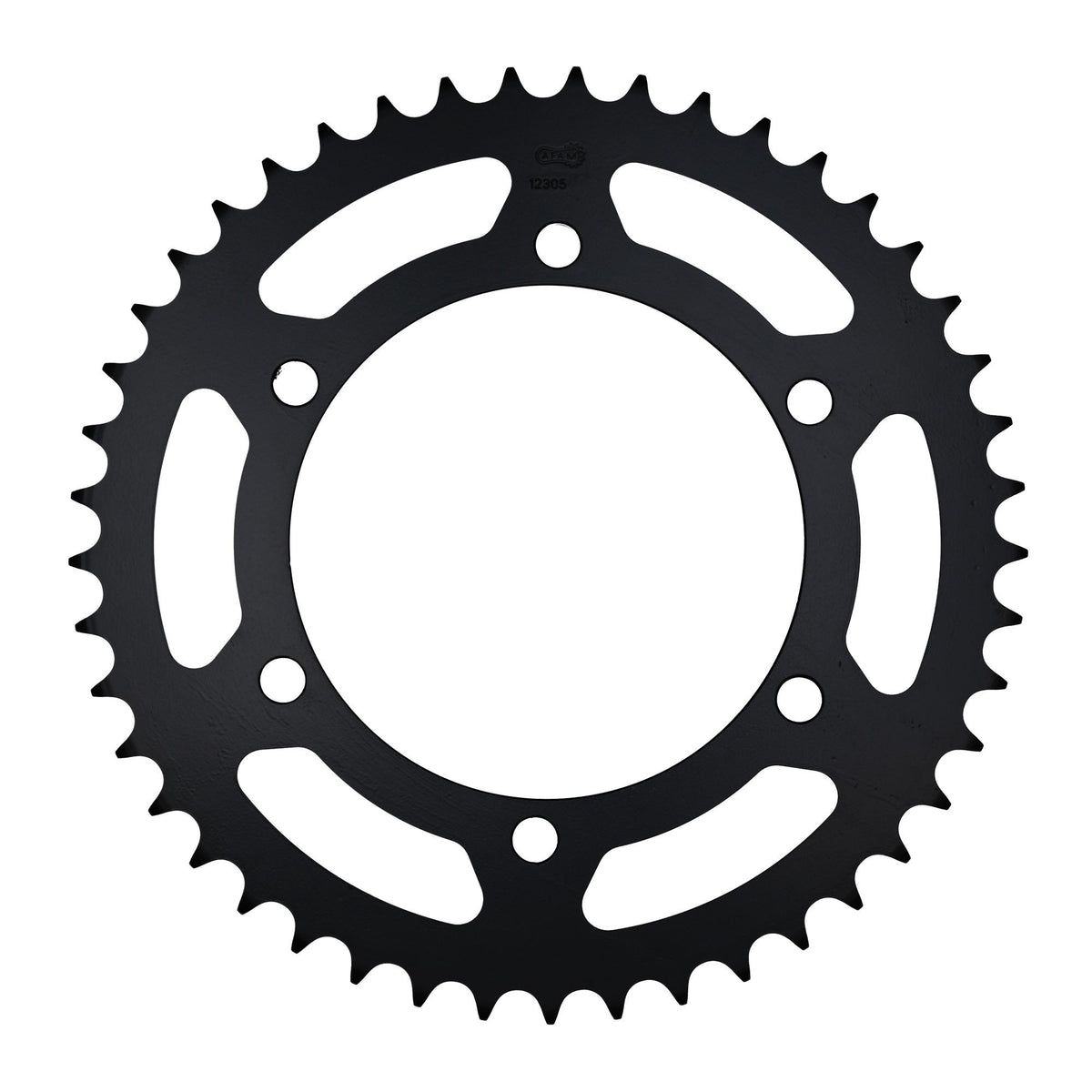

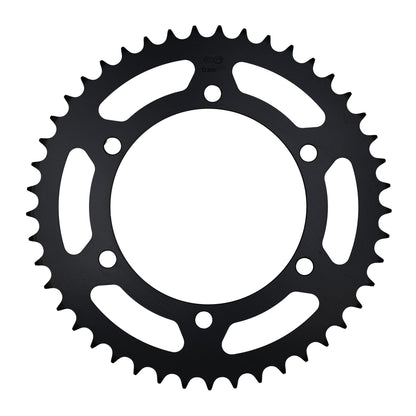

• Rear sprocket: AFAM steel rear sprocket #520 45 teeth - a12305.45
• Gear ratio front sprocket-chain-rear sprocket: 15-110-45

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-54613

Suitable for

Yamaha 501 - 750 cc XT 660 Z Tenere ABS DM02 2011
Yamaha 501 - 750 cc XT 660 Z Tenere ABS DM02 2012
