AFAM chain kit for Yamaha XTZ 750 Super Tenere H 89-97 520 XHR2G chain kit

AFAM chain kit for Yamaha XTZ 750 Super Tenere H 89-97 520 XHR2G chain set

Chain kit or chain set for the assigned model as per the product name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha XTZ 750 Super Tenere H 3LD 1989-1997

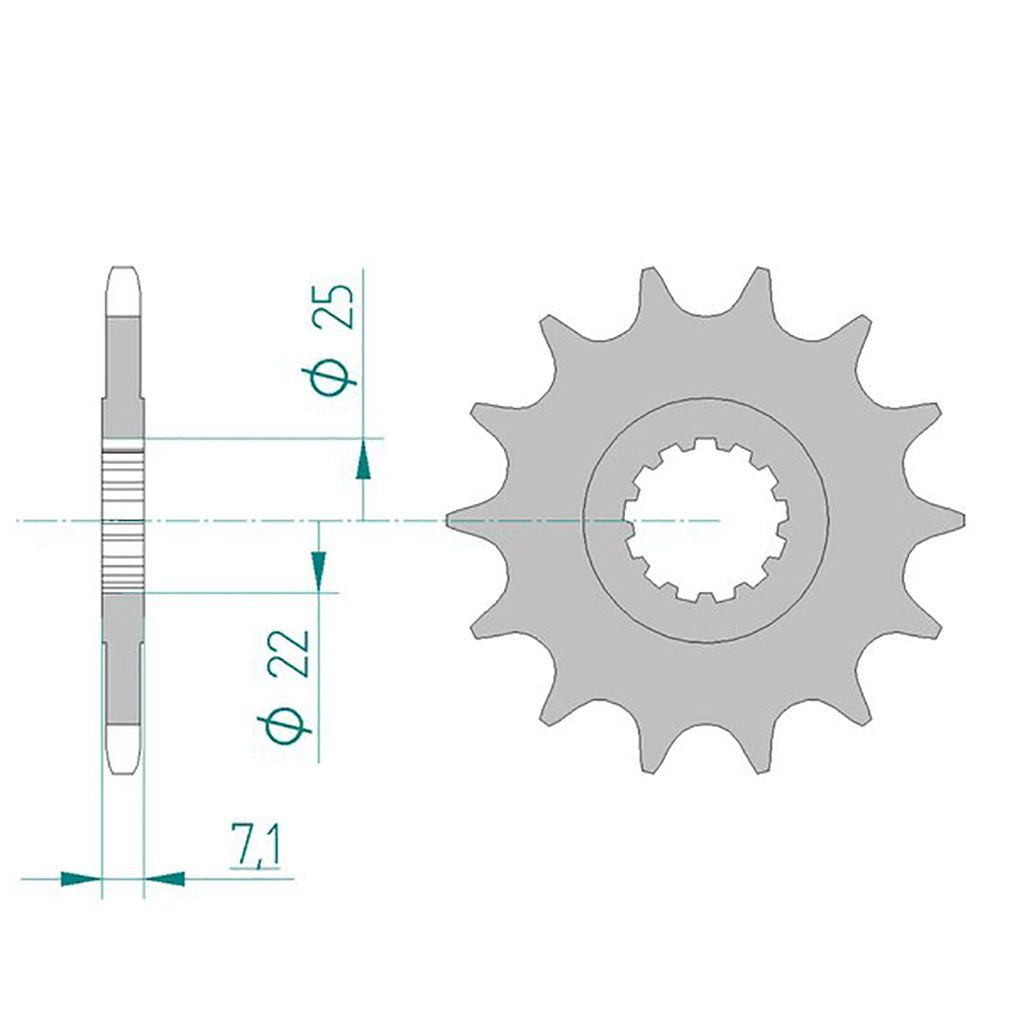

• Front sprocket: AFAM sprocket #520 16 teeth - a21601.16
• Chain: AFAM chain 520 XHR2-G Xs-ring 112 with rivet link - a520xhr2.g.112

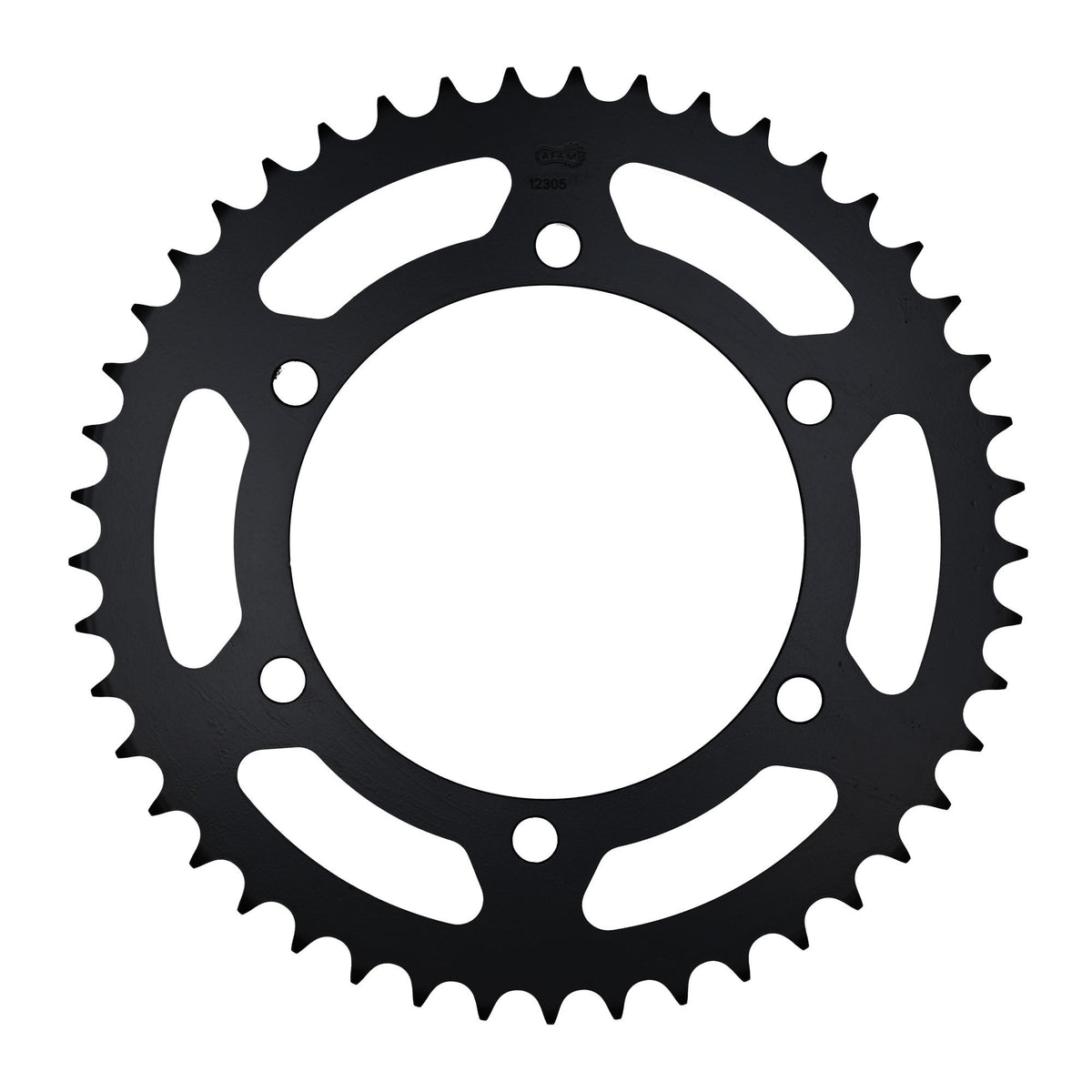

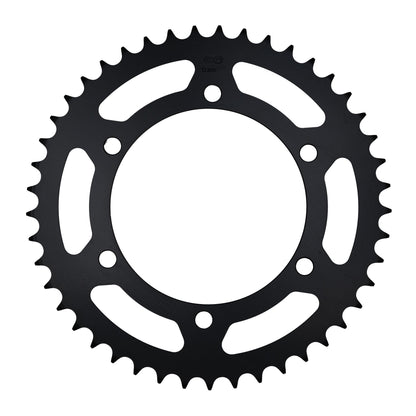

• Rear sprocket: AFAM STEEL rear sprocket #520 46 teeth - a12305.46
• Gear ratio sprocket-chain-rear sprocket: 16-112-46

AFAM 520 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-35356

Suitable for

Yamaha 501 - 750 cc XTZ 750 Super Tenere H 3LD 1989
Yamaha 501 - 750 cc XTZ 750 Super Tenere H 3LD 1990
Yamaha 501 - 750 cc XTZ 750 Super Tenere H 3LD 1991
Yamaha 501 - 750 cc XTZ 750 Super Tenere H 3LD 1992
Yamaha 501 - 750 cc XTZ 750 Super Tenere H 3LD 1993
Yamaha 501 - 750 cc XTZ 750 Super Tenere H 3LD 1994
Yamaha 501 - 750 cc XTZ 750 Super Tenere H 3LD 1995
Yamaha 501 - 750 cc XTZ 750 Super Tenere H 3LD 1996
Yamaha 501 - 750 cc XTZ 750 Super Tenere H 3LD 1997
