AFAM chain kit for Yamaha XV 250 Virago (flat handlebar) 89-96 520 XMR3 chain kit

AFAM Chain Kit for Yamaha XV 250 Virago (Flat Handlebar) 89-96 520 XMR3 Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha XV 250 Virago (Flat Handlebar) 3LW 1989-1996

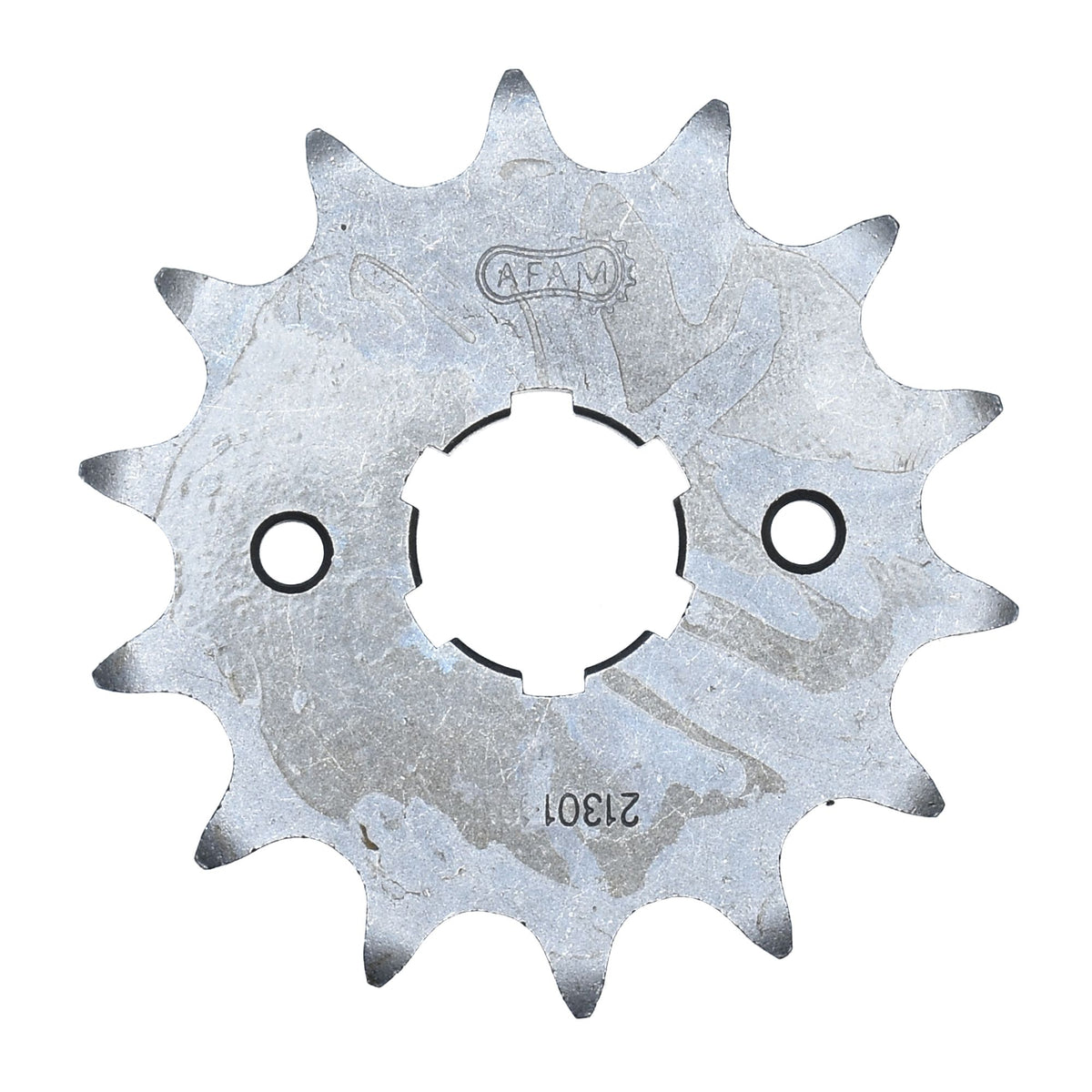

• Sprocket: AFAM sprocket #520 16 teeth - a21301.16
• Chain: AFAM chain 520 XMR3 Xs-ring 114 with rivet link - a520xmr3.114

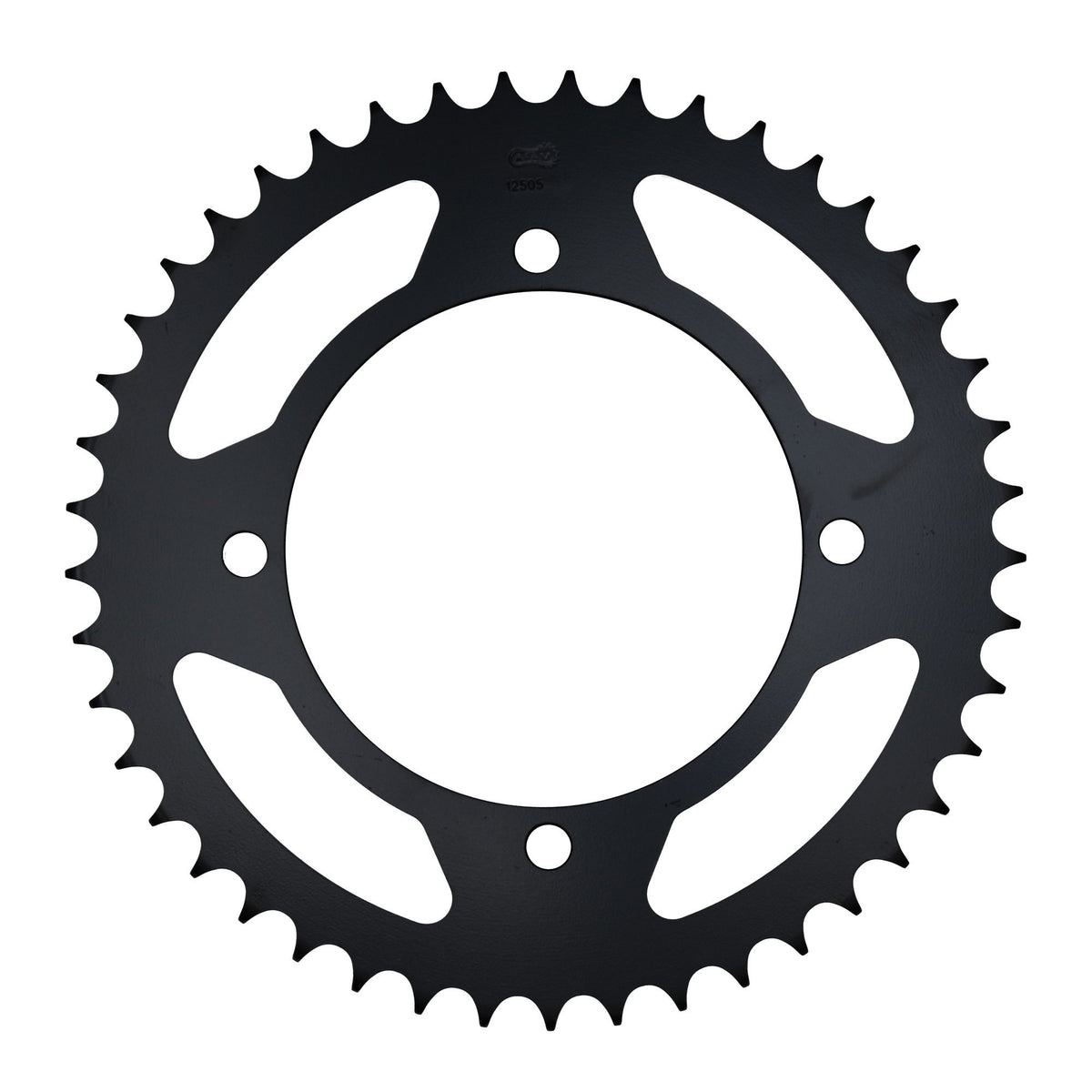

• Rear sprocket: AFAM rear sprocket STEEL #520 45 teeth - a12505.45
• Transmission ratio sprocket-chain-rear sprocket: 16-114-45

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51627

Suitable for

Yamaha 126 - 250 cc XV 250 Virago (Flat Handlebar) 3LW 1989
Yamaha 126 - 250 cc XV 250 Virago (Flat Handlebar) 3LW 1990
Yamaha 126 - 250 cc XV 250 Virago (Flat Handlebar) 3LW 1991
Yamaha 126 - 250 cc XV 250 Virago (Flat Handlebar) 3LW 1992
Yamaha 126 - 250 cc XV 250 Virago (Flat Handlebar) 3LW 1993
Yamaha 126 - 250 cc XV 250 Virago (Flat Handlebar) 3LW 1994
Yamaha 126 - 250 cc XV 250 Virago (Flat Handlebar) 3LW 1995
Yamaha 126 - 250 cc XV 250 Virago (Flat Handlebar) 3LW 1996
