AFAM chain kit for Yamaha YS 125 UBS 17-20 428 XMRG chain kit

AFAM Chain Kit for Yamaha YS 125 UBS 17-20 428 XMRG Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha YS 125 UBS RE33 2017-2020

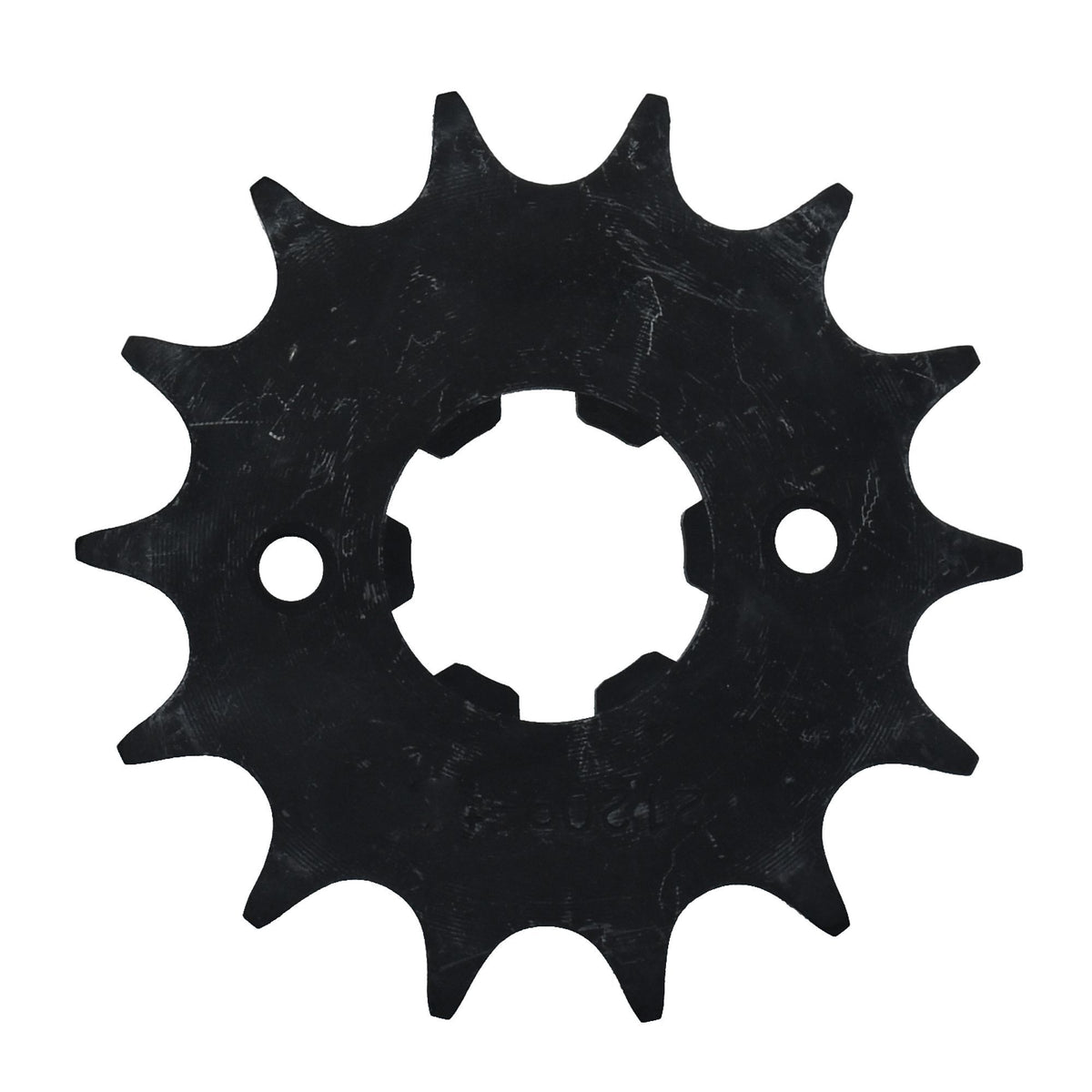

• Sprocket: AFAM Sprocket #428 14 teeth - a21209.14
• Chain: AFAM Chain 428 XMR-G Xs-Ring 126 w. clip link - a428xmr.g.126

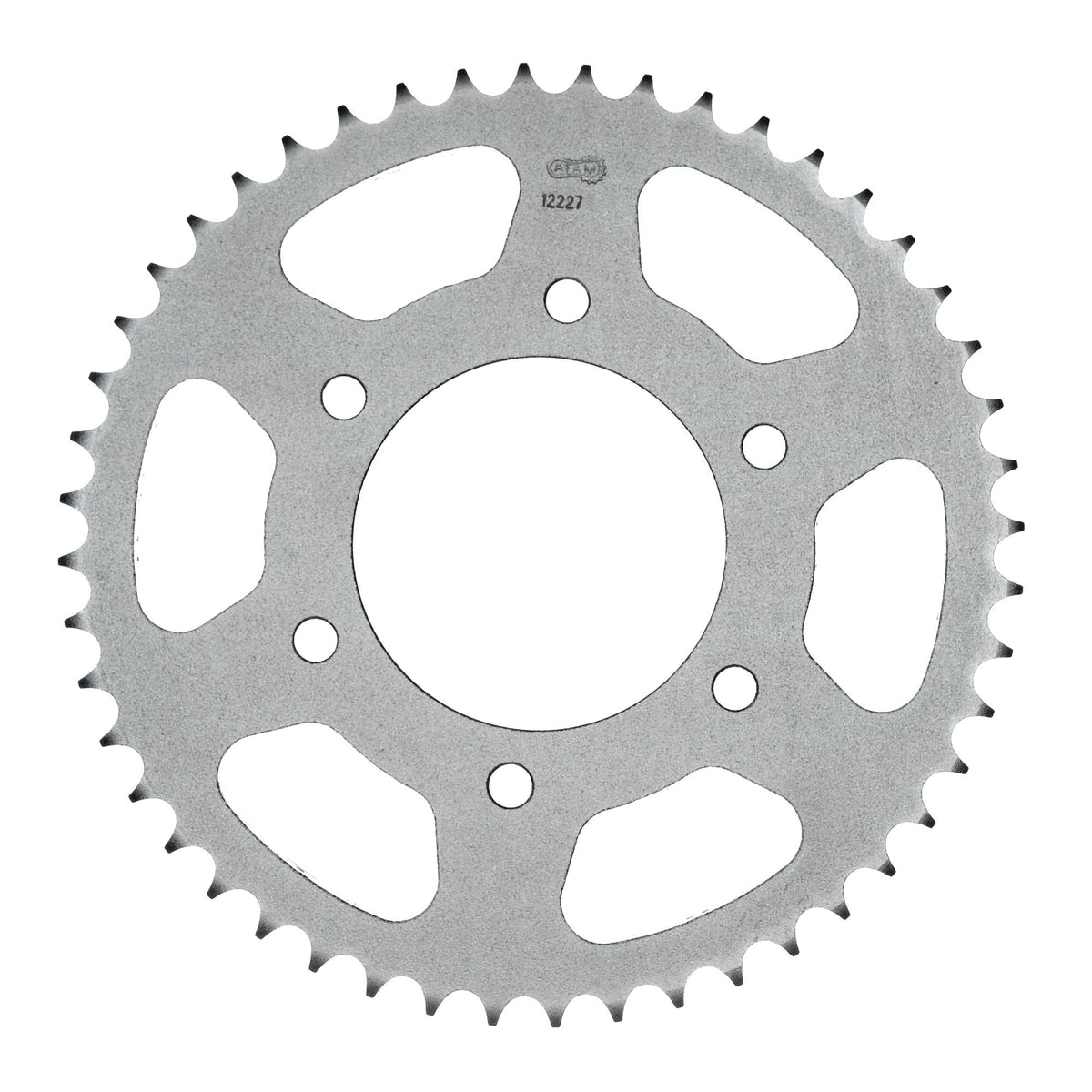

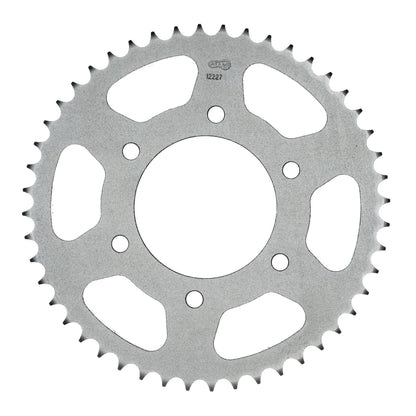

• Chain wheel: AFAM Chain wheel STEEL #428 - a12227.43
• Gear ratio sprocket-chain-chain wheel: 14-126-43

AFAM 428 XMR-G

Reinforced chain with smooth running properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 250 cc

Technical data:
Pitch: 428
Pin length: 20.10 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.03 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-38540

Suitable for

Yamaha 101 - 125 cc YS 125 UBS RE33 2017
Yamaha 101 - 125 cc YS 125 UBS RE33 2018
Yamaha 101 - 125 cc YS 125 UBS RE33 2019
Yamaha 101 - 125 cc YS 125 UBS RE33 2020
