AFAM chain kit for Yamaha YX 600 Radian 88-90 530 XHR2G chain kit

AFAM chain kit for Yamaha YX 600 Radian 88-90 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha YX 600 Radian 1UJ/1UL 1988-1990

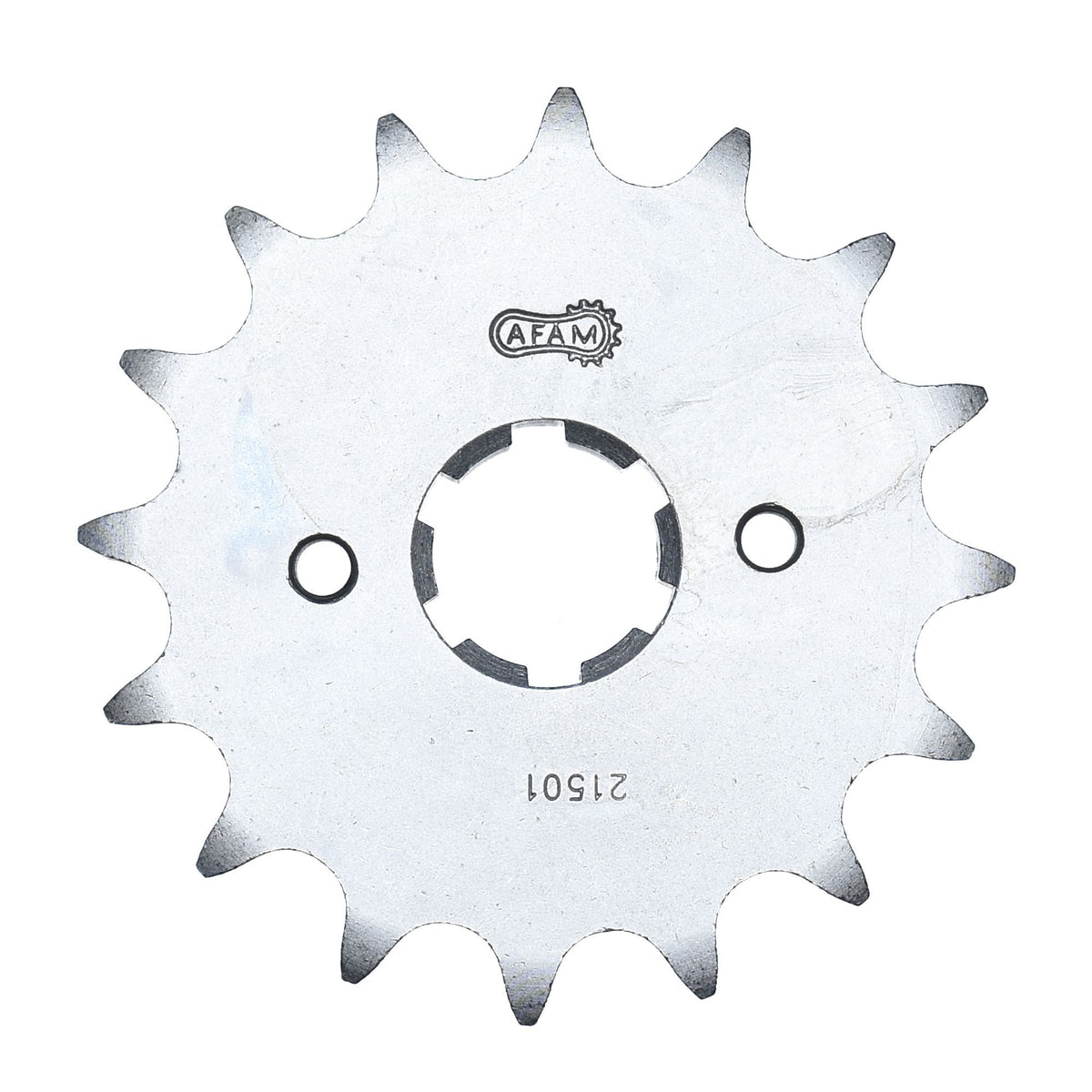

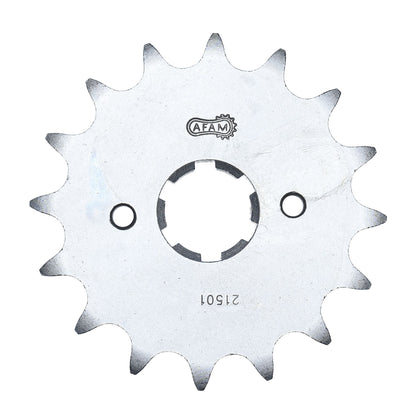

• Sprocket: AFAM sprocket #530 16 teeth - a21501.16
• Chain: AFAM chain 530 XHR2-G Xs-ring 104 w. rivet link - a530xhr2.g.104

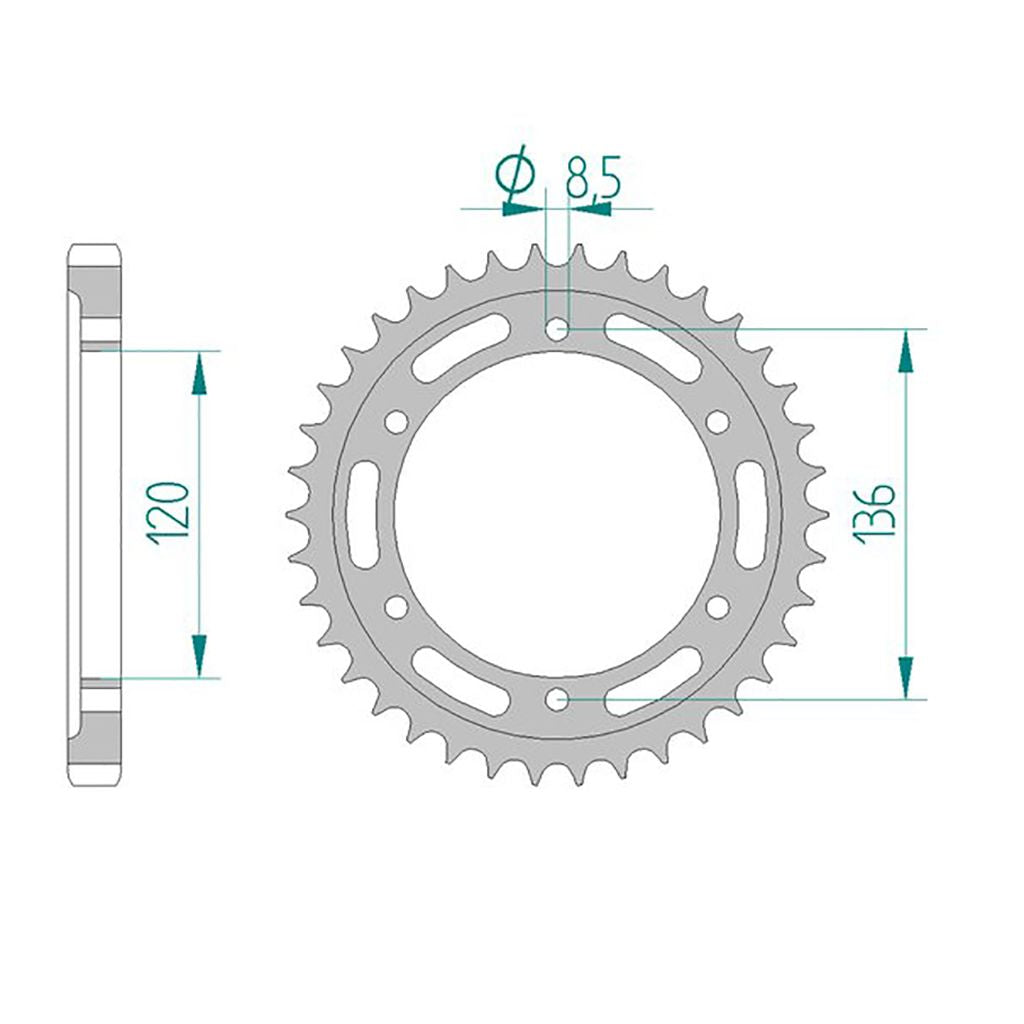

• Rear sprocket: Esjot rear sprocket 12504-45 STEEL #530 45 teeth - a12504.45
• Gear ratio sprocket-chain-rear sprocket: 16-104-45

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered goods are accessories/spare parts from a third-party manufacturer, which were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-34334

Suitable for

Yamaha 501 - 750 cc YX 600 Radian 1UJ/1UL 1988
Yamaha 501 - 750 cc YX 600 Radian 1UJ/1UL 1989
Yamaha 501 - 750 cc YX 600 Radian 1UJ/1UL 1990
