AFAM chain kit for Yamaha YZ 125 1984 520 MR2G chain kit

AFAM chain kit for Yamaha YZ 125 1984 520 MR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless stated otherwise: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha YZ 125 43M 1984-1984

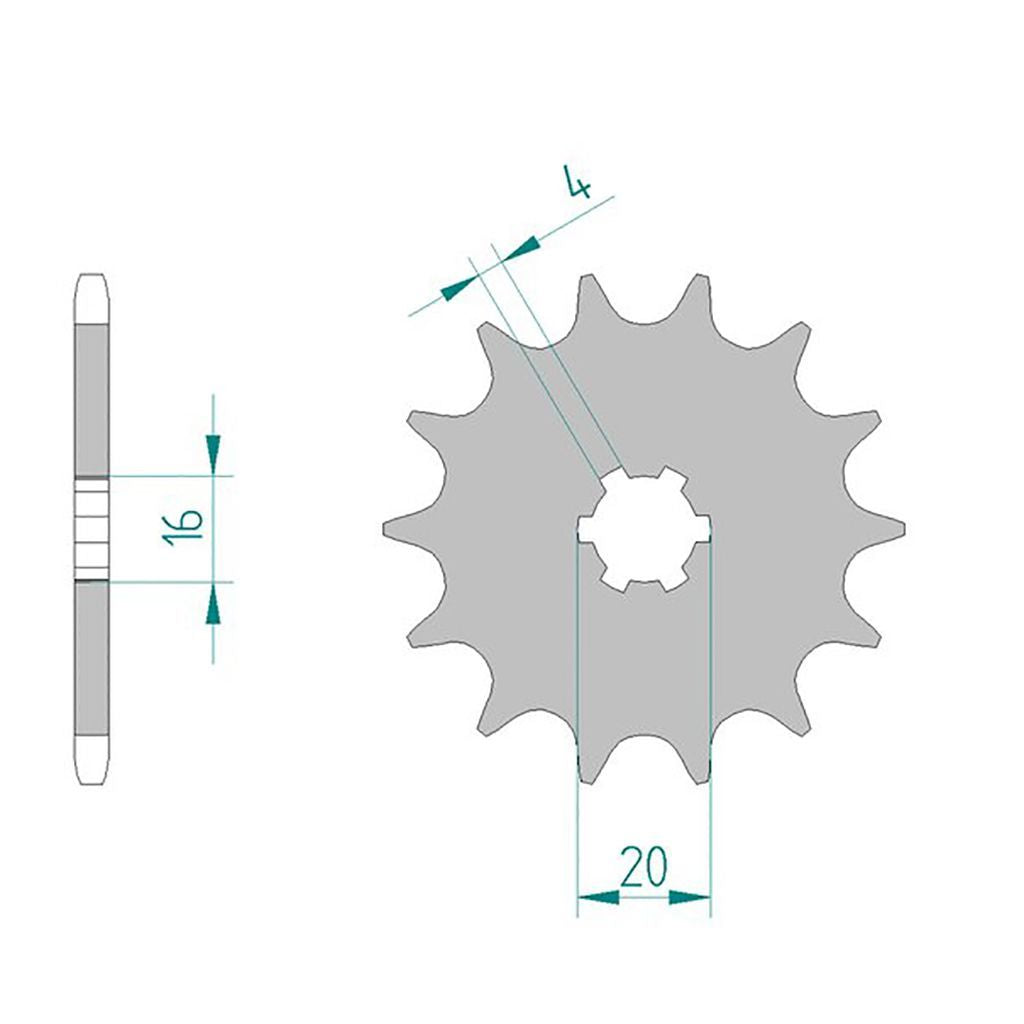

• Sprocket: AFAM sprocket #520 12 teeth - a30200.12
• Chain: AFAM chain 520 MR2-G w. clip link - a520mr2.g.112

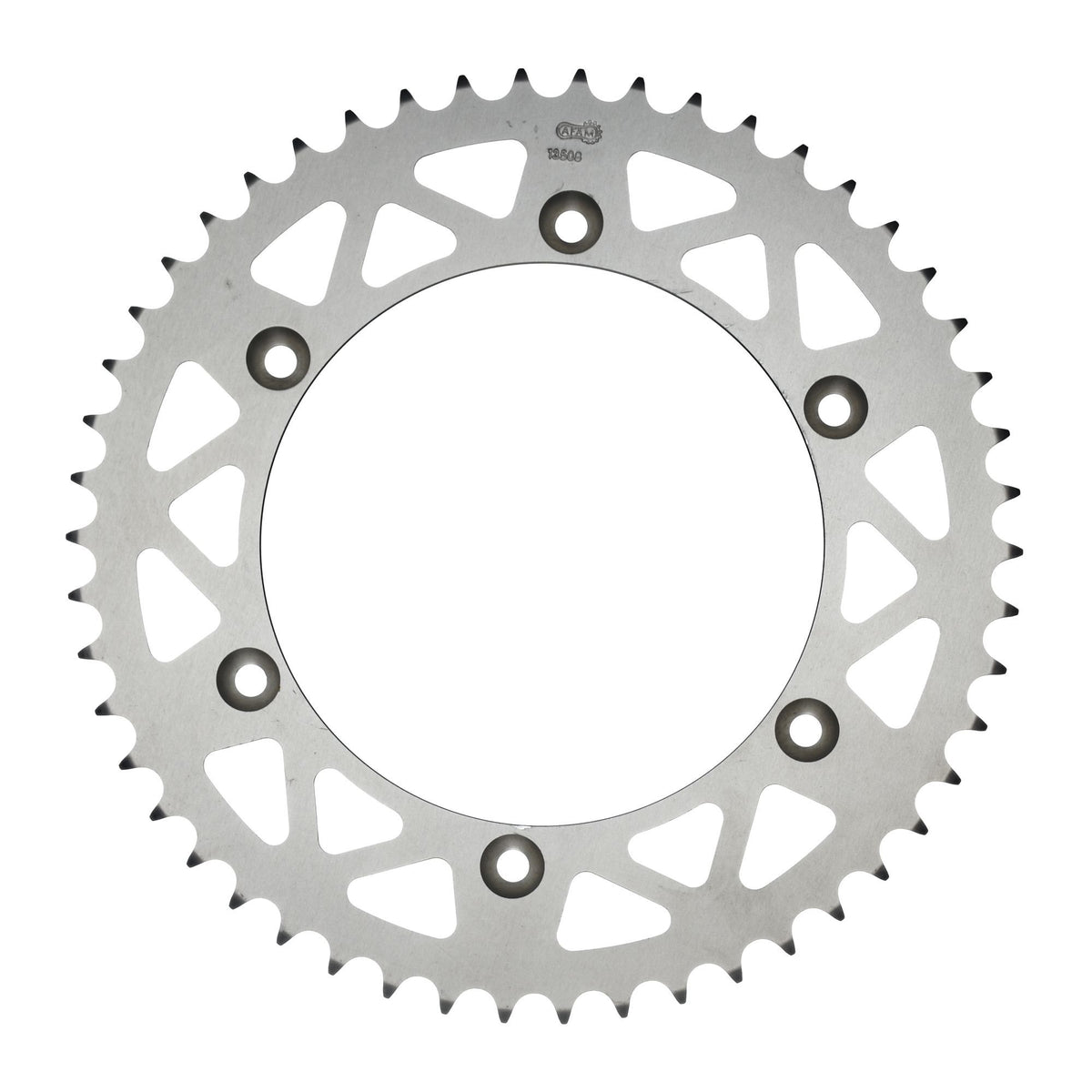

• Rear sprocket: AFAM rear sprocket ALU #520 50 teeth - a13508n.50
• Gear ratio sprocket-chain-rear sprocket: 12-112-50

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, offroad and moto-cross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless stated otherwise: The offered goods are an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-53252

Suitable for

Yamaha 101 - 125 cc YZ 125 43M 1984
