AFAM chain kit for Yamaha YZ 125 1986 520 XMR3 chain kit

AFAM chain kit for Yamaha YZ 125 1986 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

Components of the chain kit Yamaha YZ 125 1LX 1986-1986

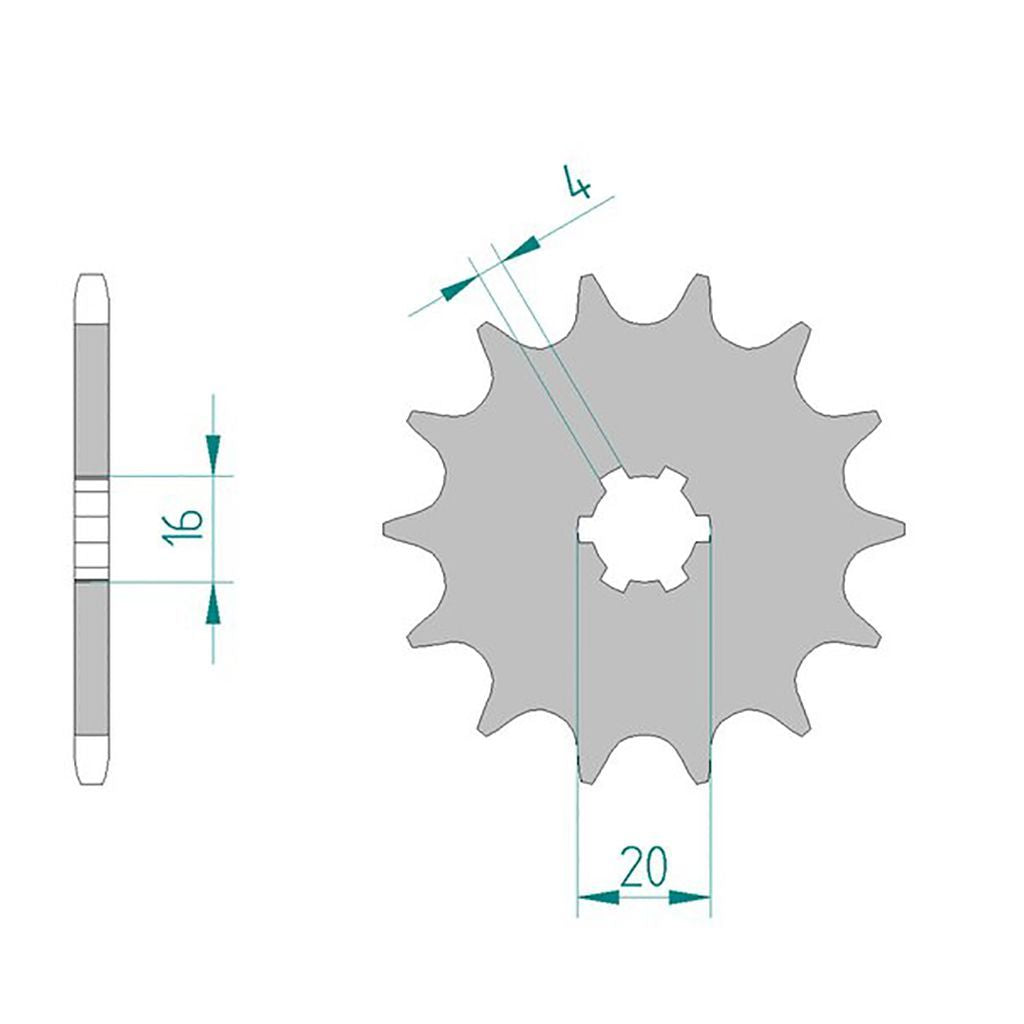

• Front sprocket: AFAM front sprocket #520 13 teeth - a30200.13
• Chain: AFAM chain 520 XMR3 Xs-ring 112 links w. rivet link - a520xmr3.112

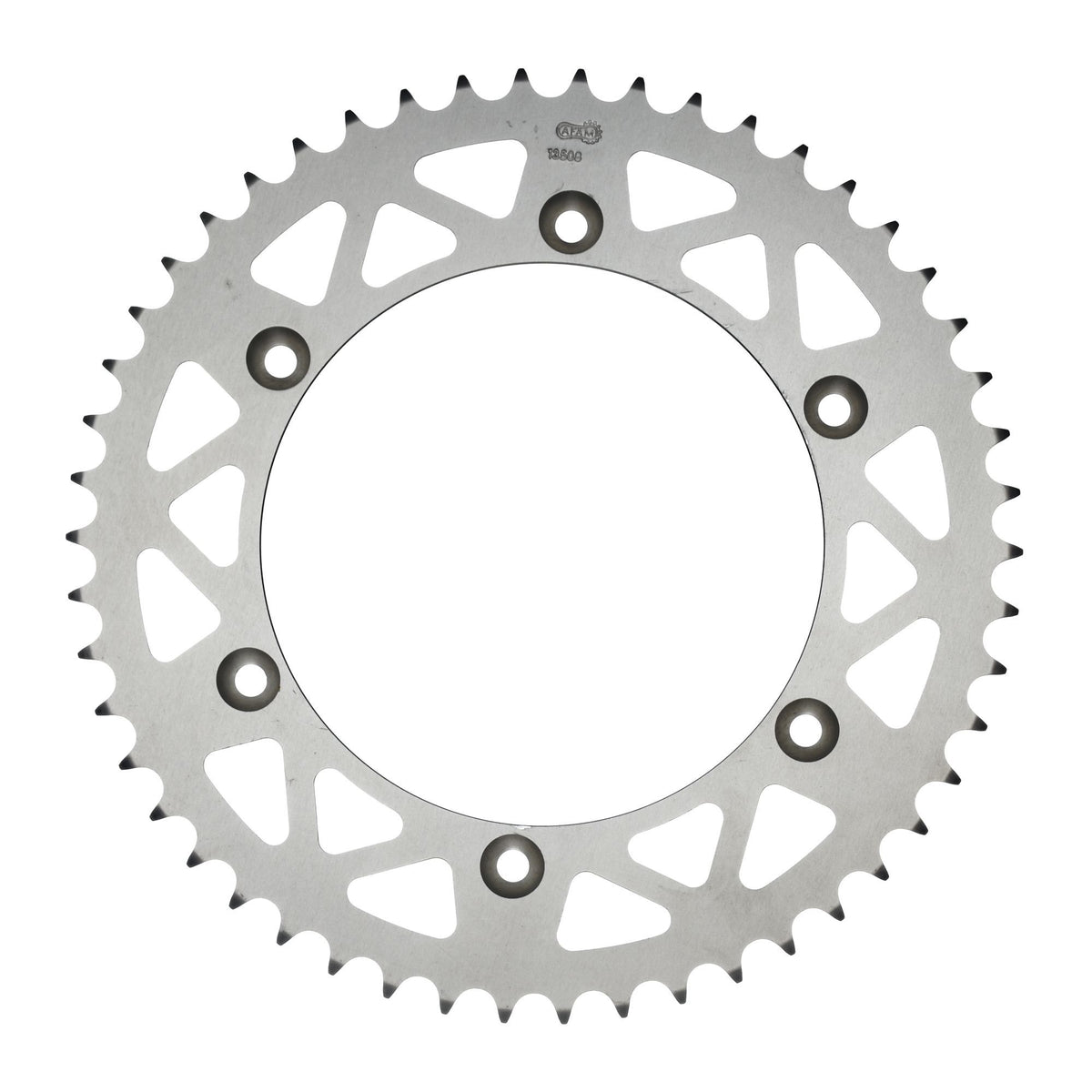

• Rear sprocket: AFAM rear sprocket ALU #520 50 teeth - a13508n.50
• Gear ratio front sprocket-chain-rear sprocket: 13-112-50

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-53217

Suitable for

Yamaha 101 - 125 cc YZ 125 1LX 1986
