AFAM chain kit for Yamaha YZ 125 2000 520 M chain kit

AFAM chain kit for Yamaha YZ 125 2000 520 M chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility representation purposes only!

Components of the chain kit Yamaha YZ 125 CE05C 2000-2000

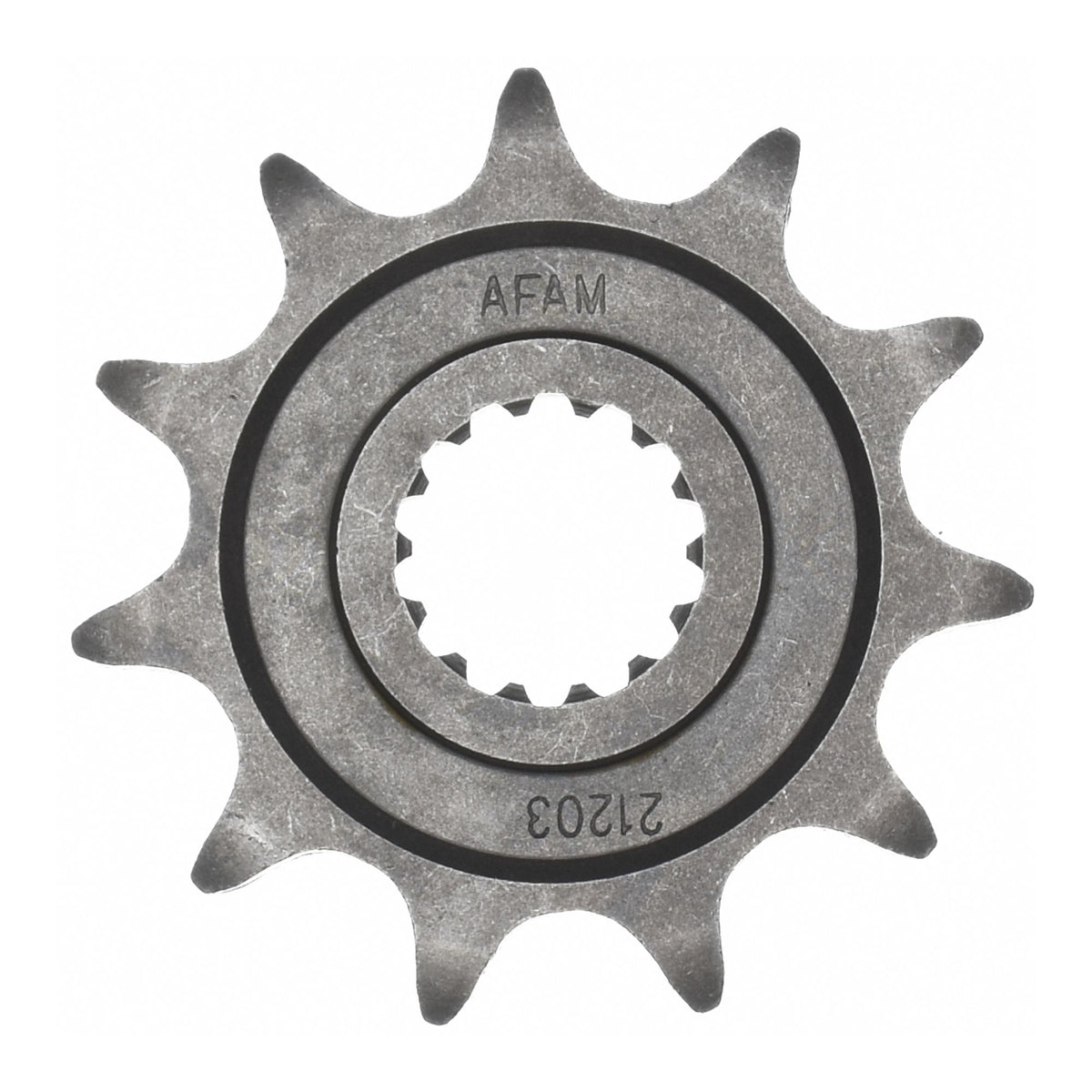

• Front sprocket: AFAM front sprocket #520 13 teeth - a21203.13

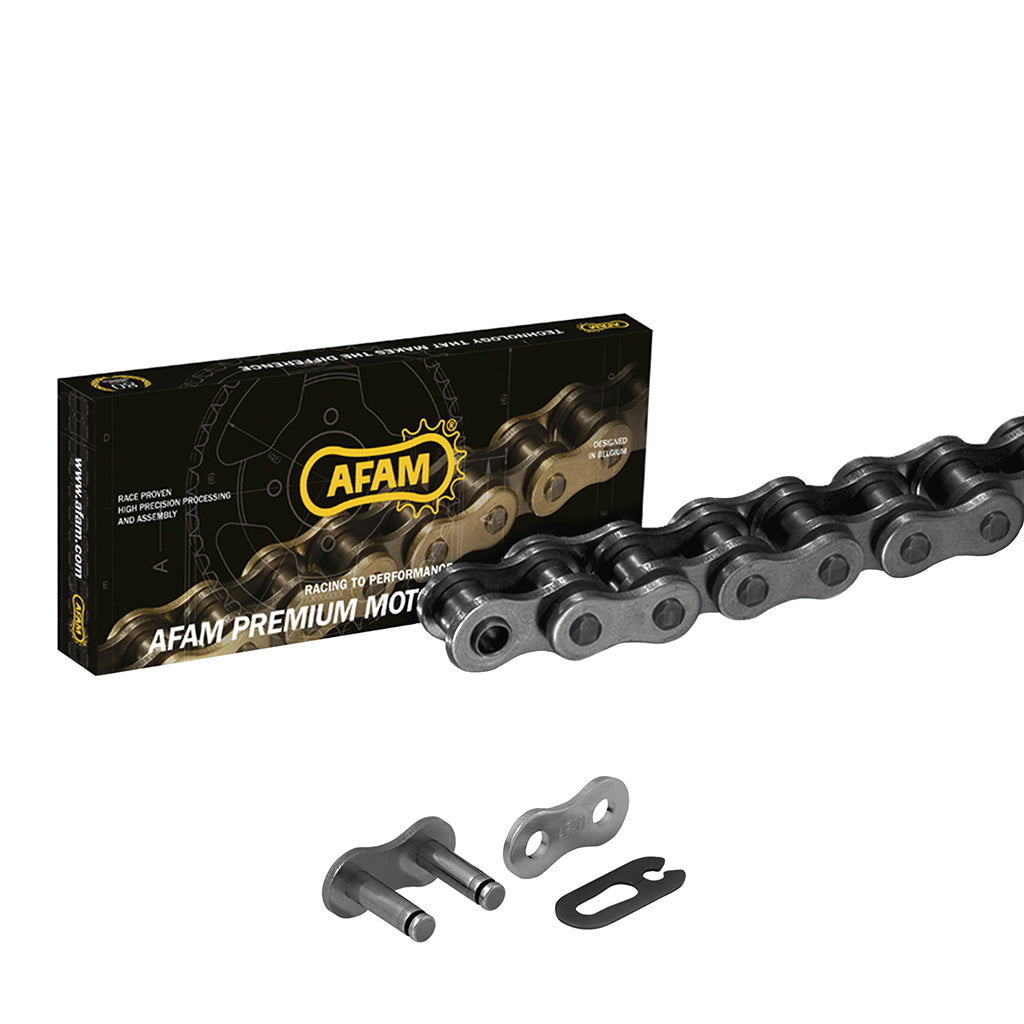

• Chain: AFAM chain 520 M 112 with clip master link - a520m.112

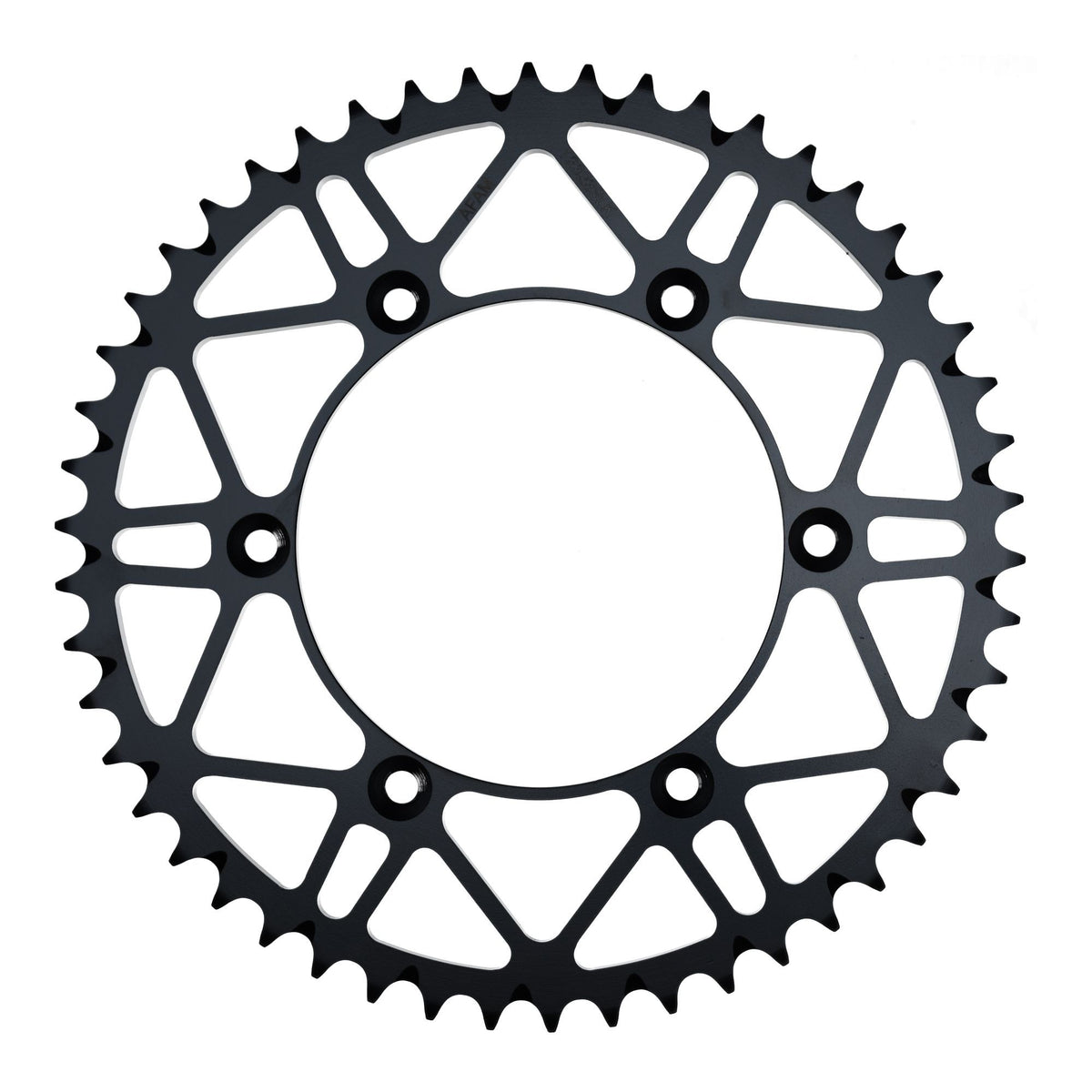

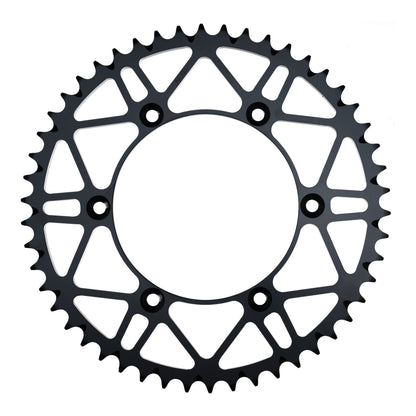

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 48 T - a12323slk.48
• Gear ratio sprocket-chain-rear sprocket: 13-112-48

AFAM 520 M

Affordable and simple standard chain
Without O-rings
Color: Steel
Application by displacement: up to 250 cc / street and off-road

Technical data:
Pitch: 520
Pin length: 16.6 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 31.00 kN
Weight per 100 links: 1.42 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51511

Fits

Yamaha 101 - 125 cc YZ 125 CE05C 2000
