AFAM chain kit for Yamaha YZ 125 2001 520 XMR3 chain kit

AFAM Chain Kit for Yamaha YZ 125 2001 520 XMR3 Chain Set

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha YZ 125 CE08C 2001-2001

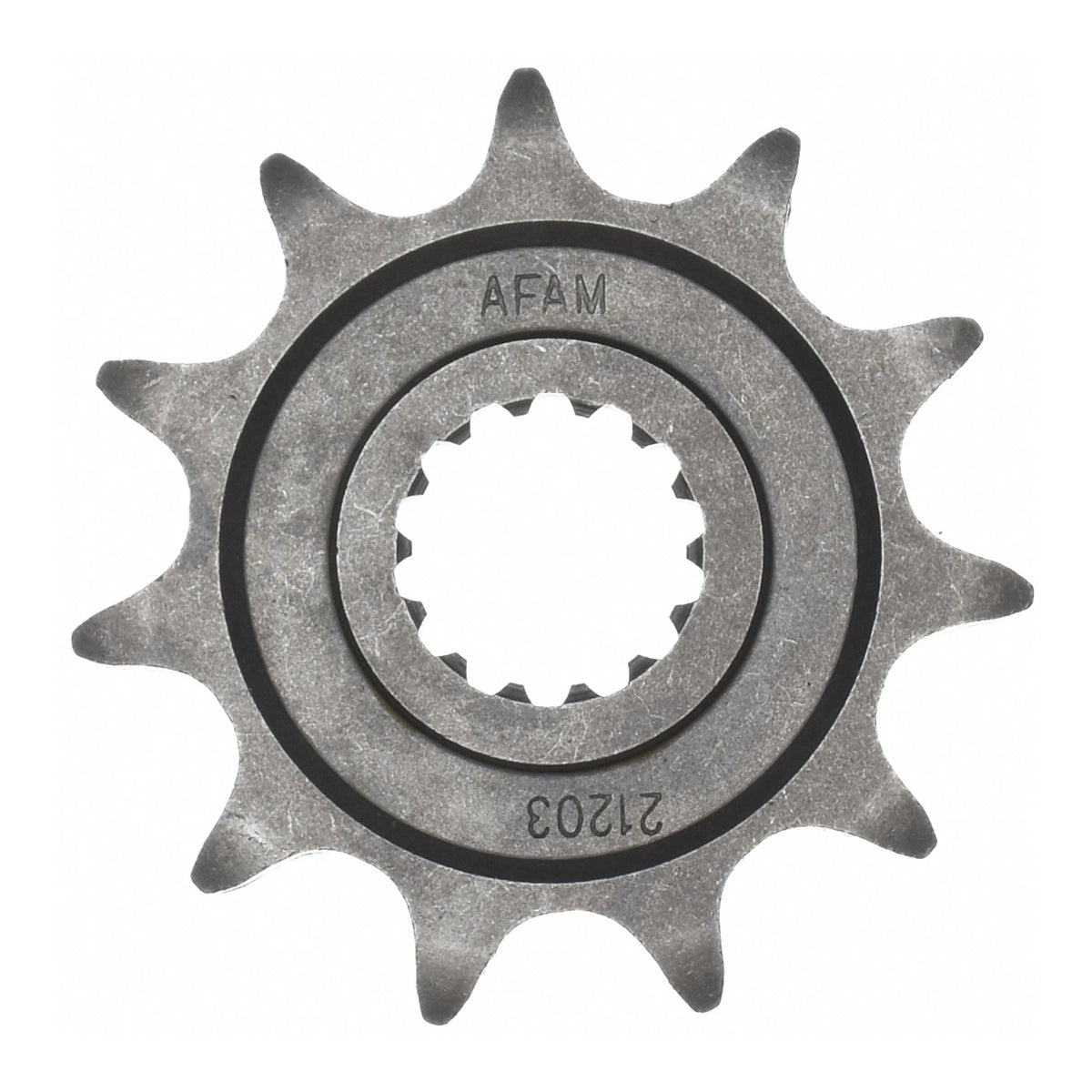

• Front sprocket: AFAM front sprocket #520 13 teeth - a21203.13
• Chain: AFAM chain 520 XMR3 Xs-ring 112 links w. rivet link - a520xmr3.112
• Rear sprocket: Esjot rear sprocket 10304-48 12323 STEEL #520 48 teeth - a10304.48
• Gear ratio front sprocket-chain-rear sprocket: 13-112-48

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The goods offered are accessories/spare parts from a third-party manufacturer and were not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-53325

Fits

Yamaha 101 - 125 cc YZ 125 CE08C 2001
