AFAM chain kit for Yamaha YZ 125 2003 520 M chain kit

AFAM chain kit for Yamaha YZ 125 2003 520 M chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Yamaha YZ 125 CE10C 2003-2003

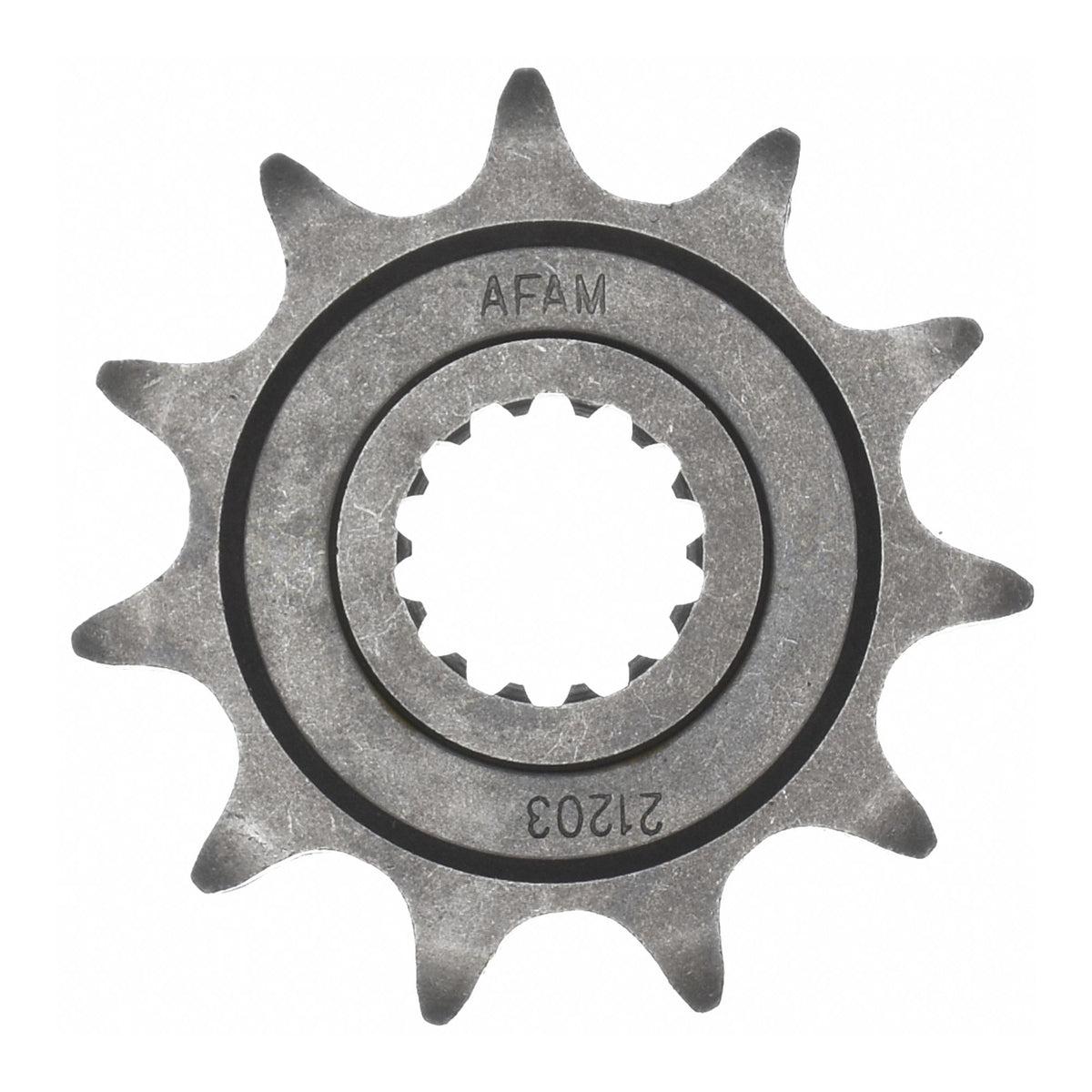

• Sprocket: AFAM sprocket #520 13 teeth - a21203.13
• Chain: AFAM chain 520 M 112 with clip master link - a520m.112

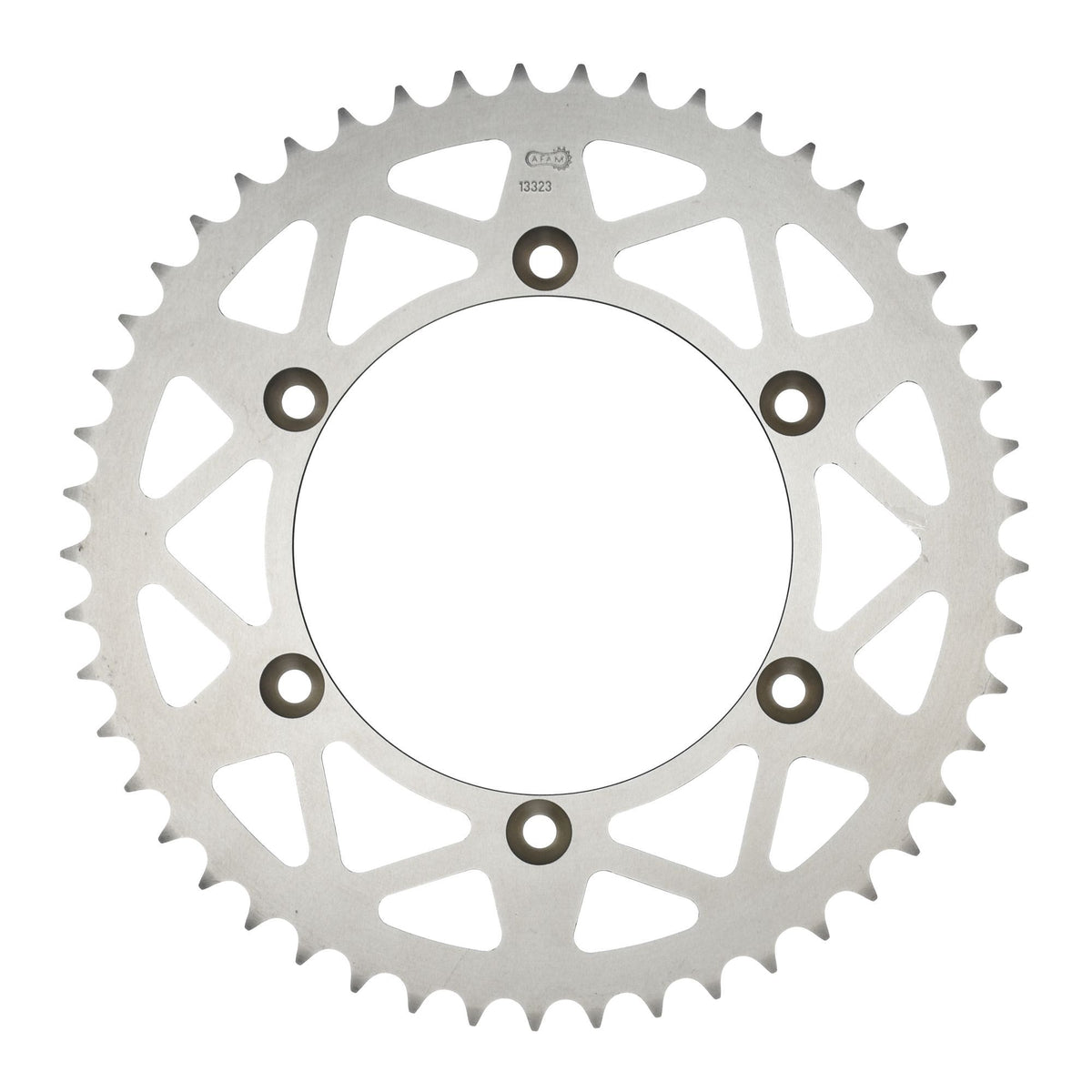

• Rear sprocket: AFAM rear sprocket ALU #520 49 teeth - a13323n.49
• Gear ratio sprocket-chain-rear sprocket: 13-112-49

AFAM 520 M

Affordable and simple standard chain
Without O-rings
Color: Steel
Application by displacement: up to 250 cc / street and off-road

Technical data:
Pitch: 520
Pin length: 16.6 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 31.00 kN
Weight per 100 links: 1.42 kg

Unless otherwise stated: The offered goods are accessories/spare parts from a third-party manufacturer and were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51530

Fits

Yamaha 101 - 125 cc YZ 125 CE10C 2003
