AFAM chain kit for Yamaha YZ 125 2003 520 XMR3 chain kit

AFAM Chain Kit for Yamaha YZ 125 2003 520 XMR3 Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit for Yamaha YZ 125 CE10C 2003-2003

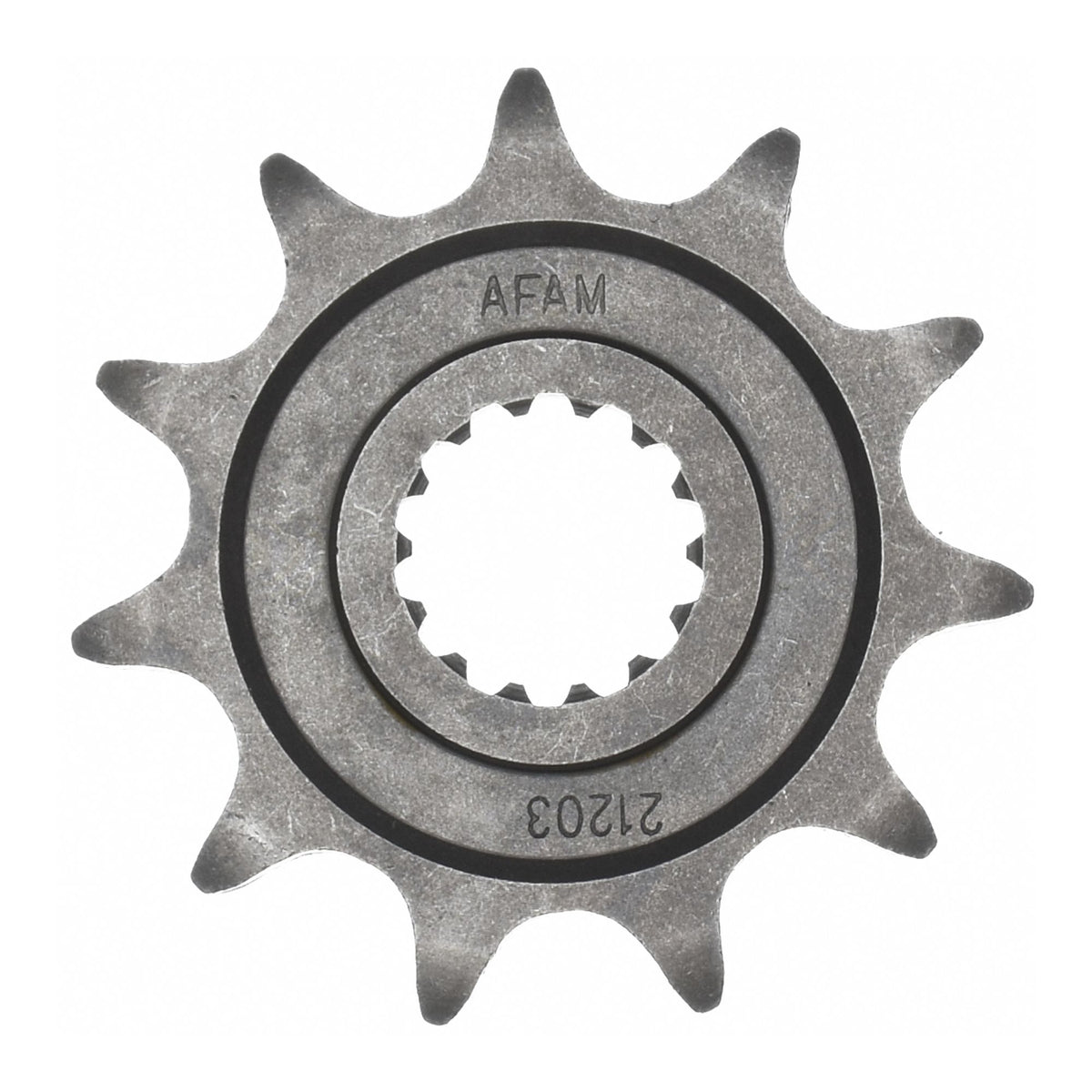

• Sprocket: AFAM sprocket #520 13 teeth - a21203.13
• Chain: AFAM chain 520 XMR3 Xs-Ring 112 with rivet link - a520xmr3.112

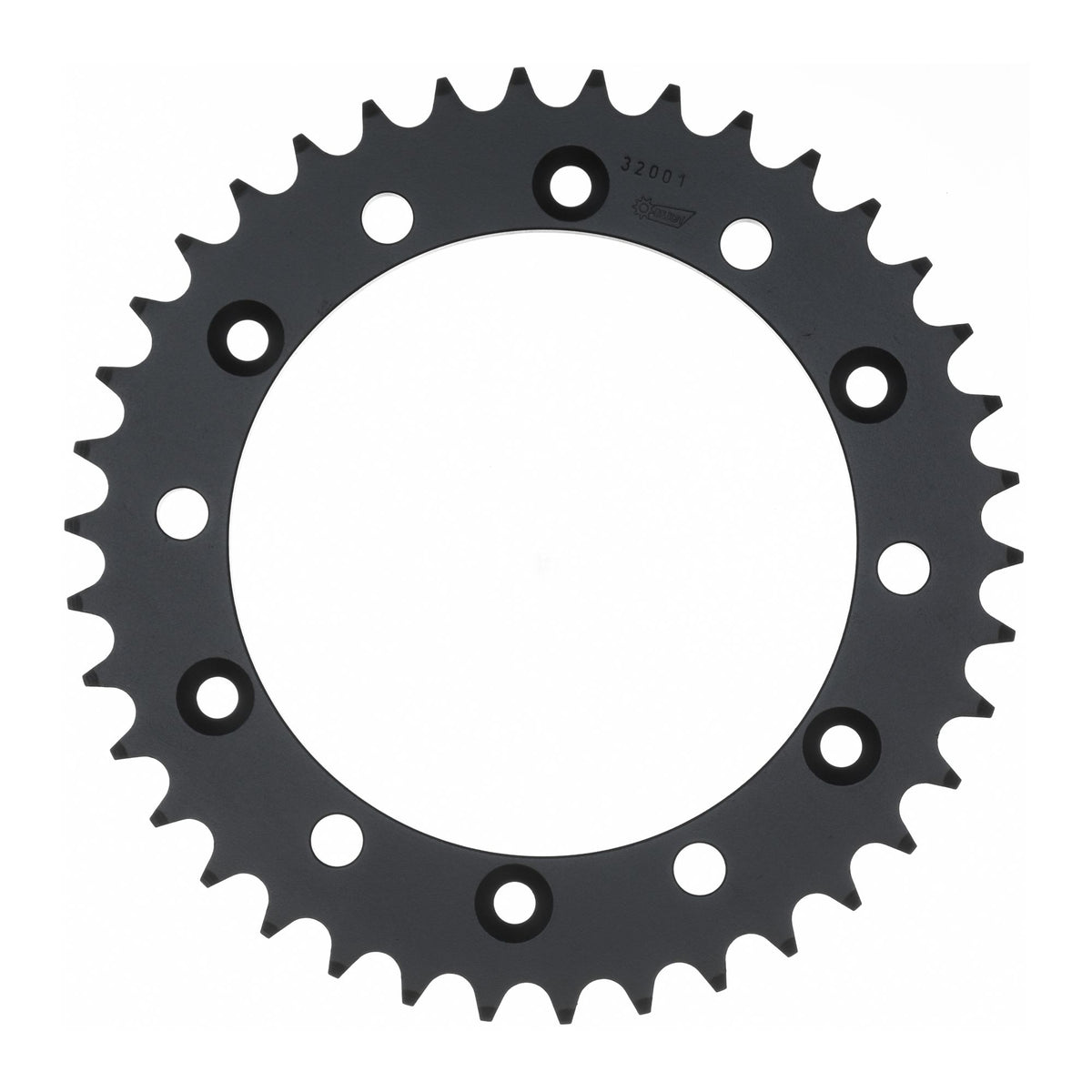

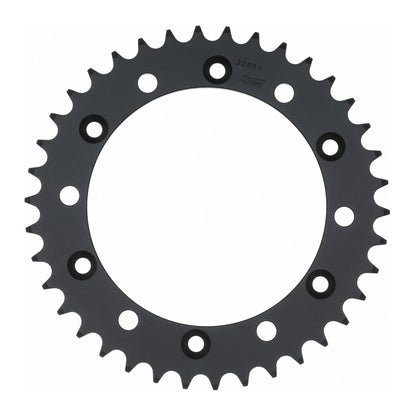

• Rear sprocket: Esjot rear sprocket 10304-49 12323 STEEL #520 49 teeth - a10304.49
• Transmission ratio sprocket-chain-rear sprocket: 13-112-49

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-33808

Suitable for

Yamaha 101 - 125 cc YZ 125 CE10C 2003
