AFAM chain kit for Yamaha YZ 125 2004 520 M chain kit

AFAM chain kit for Yamaha YZ 125 2004 520 M chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha YZ 125 CE13C 2004-2004

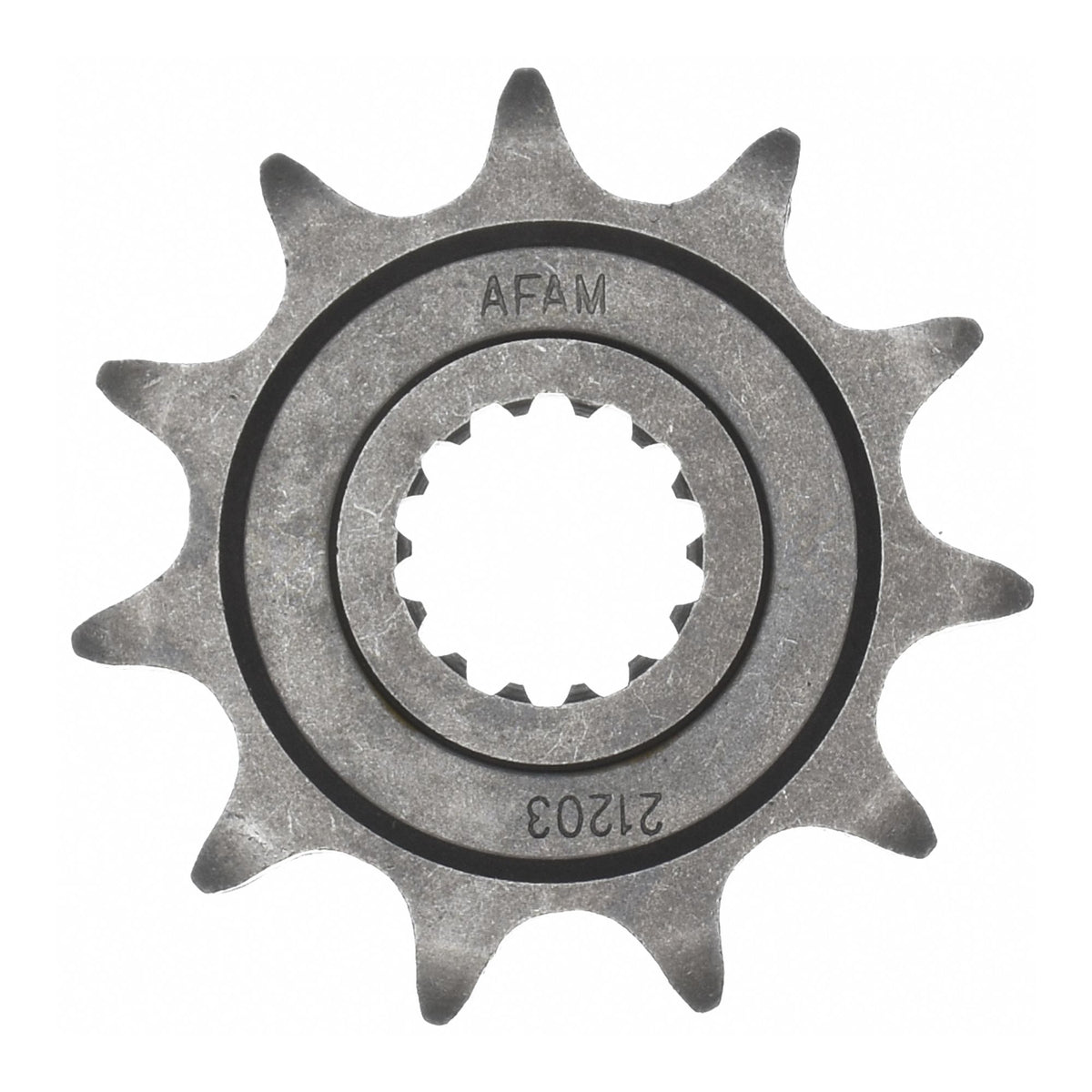

• Front sprocket: AFAM sprocket #520 13 teeth - a21203.13
• Chain: AFAM chain 520 M 112 with clip link - a520m.112
• Rear sprocket: Esjot rear sprocket 10304-49 12323 STEEL #520 49 teeth - a10304.49
• Gear ratio sprocket-chain-rear sprocket: 13-112-49

AFAM 520 M

Affordable and simple standard chain
Without O-rings
Color: Steel
Application by displacement: up to 250 cc / street and off-road

Technical data:
Pitch: 520
Pin length: 16.6 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 31.00 kN
Weight per 100 links: 1.42 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-30366

Suitable for

Yamaha 101 - 125 cc YZ 125 CE13C 2004
