AFAM chain kit for Yamaha YZ 125 2004 520 M chain kit

AFAM chain kit for Yamaha YZ 125 2004 520 M chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility representation only!

Components of the chain kit Yamaha YZ 125 CE13C 2004-2004

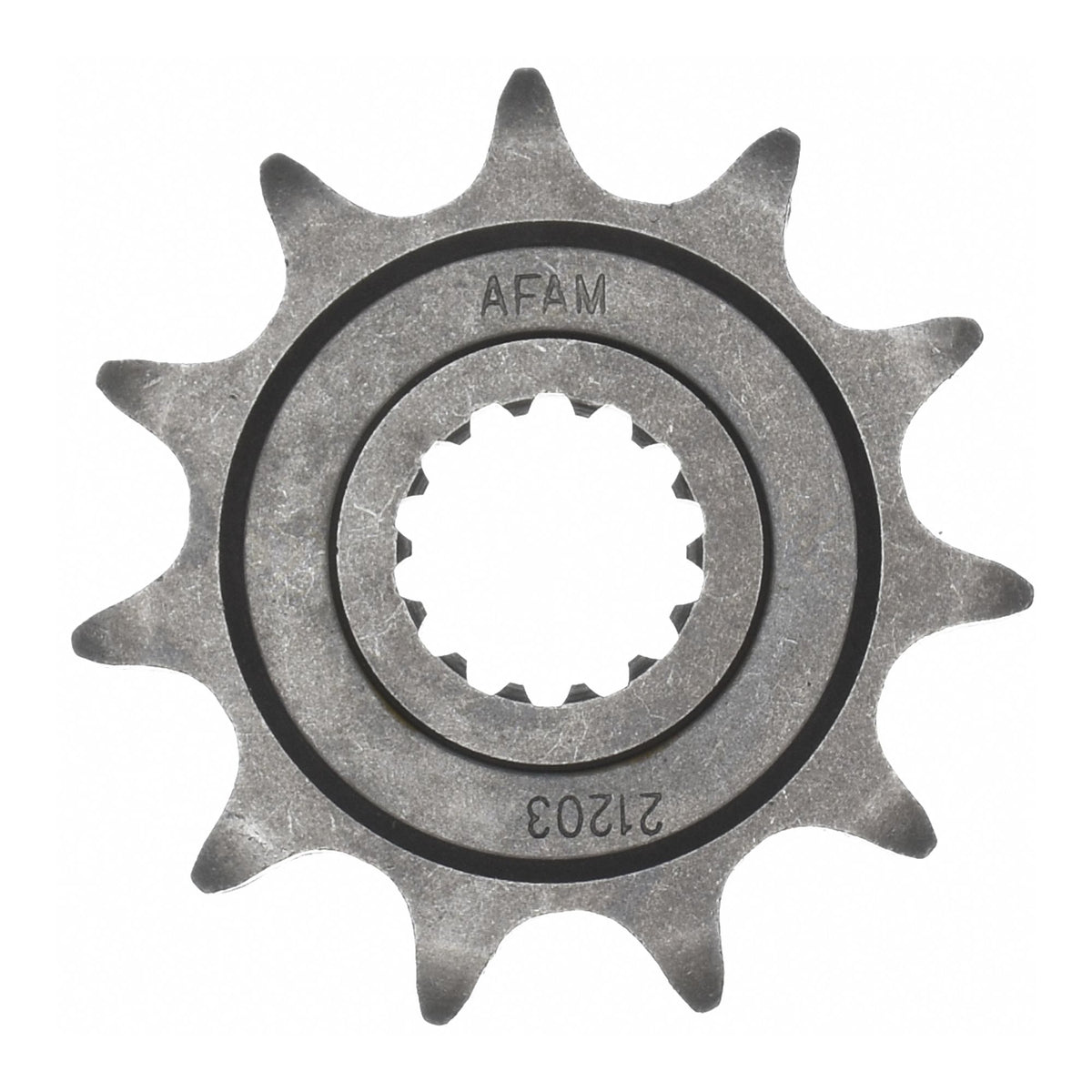

• Front sprocket: AFAM sprocket #520 13 teeth - a21203.13
• Chain: AFAM chain 520 M 112 with clip link - a520m.112

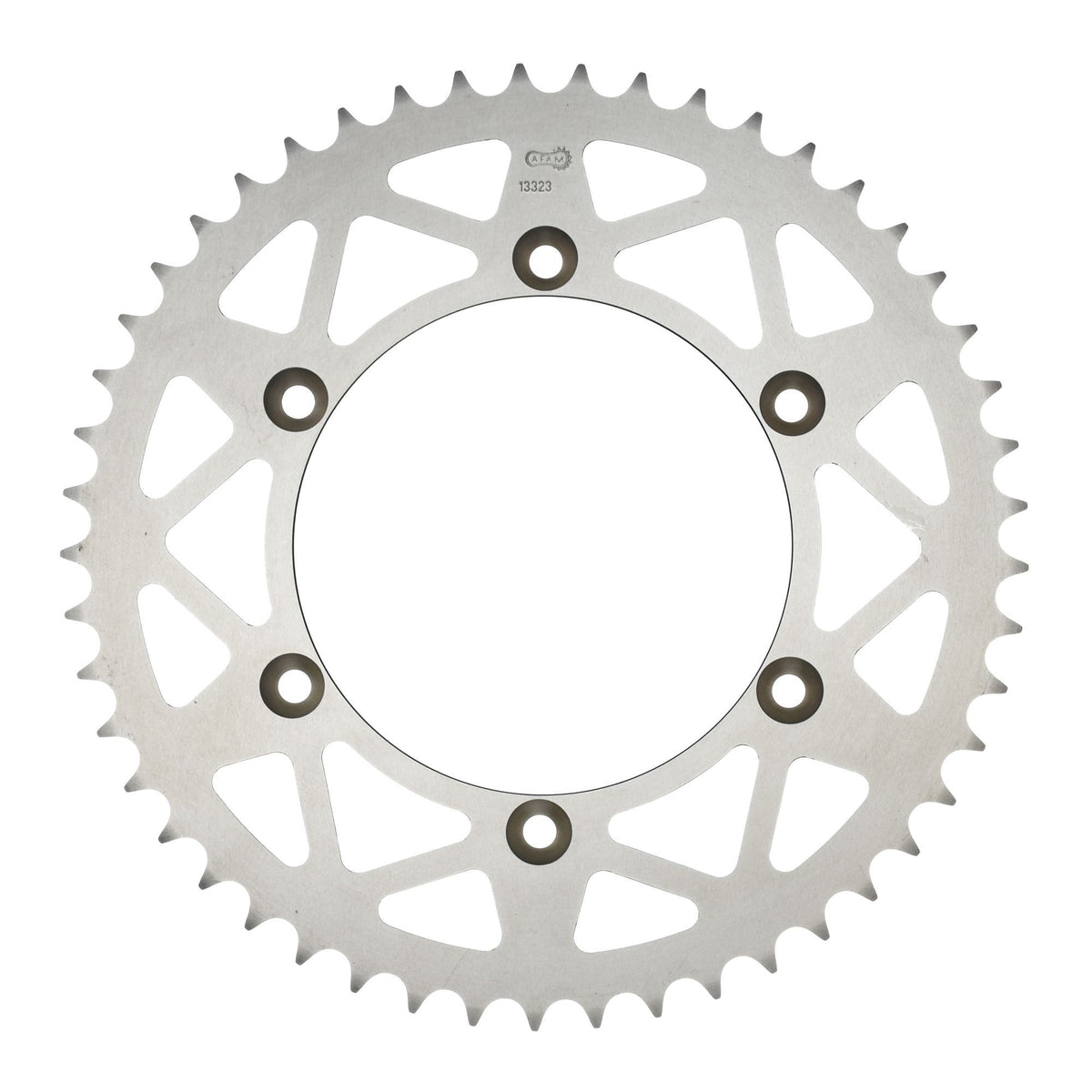

• Rear sprocket: AFAM sprocket ALU #520 49 teeth - a13323n.49
• Gear ratio sprocket-chain-rear sprocket: 13-112-49

AFAM 520 M

Affordable and simple standard chain
Without O-rings
Color: Steel
Application by displacement: up to 250 cc / road and off-road

Technical data:
Pitch: 520
Pin length: 16.6 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 31.00 kN
Weight per 100 links: 1.42 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-30367

Suitable for

Yamaha 101 - 125 cc YZ 125 CE13C 2004
