AFAM chain kit for Yamaha YZ 125 2004 520 XMR3 chain kit

AFAM Chain Kit for Yamaha YZ 125 2004 520 XMR3 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility representation only!

Components of the chain kit Yamaha YZ 125 CE13C 2004-2004

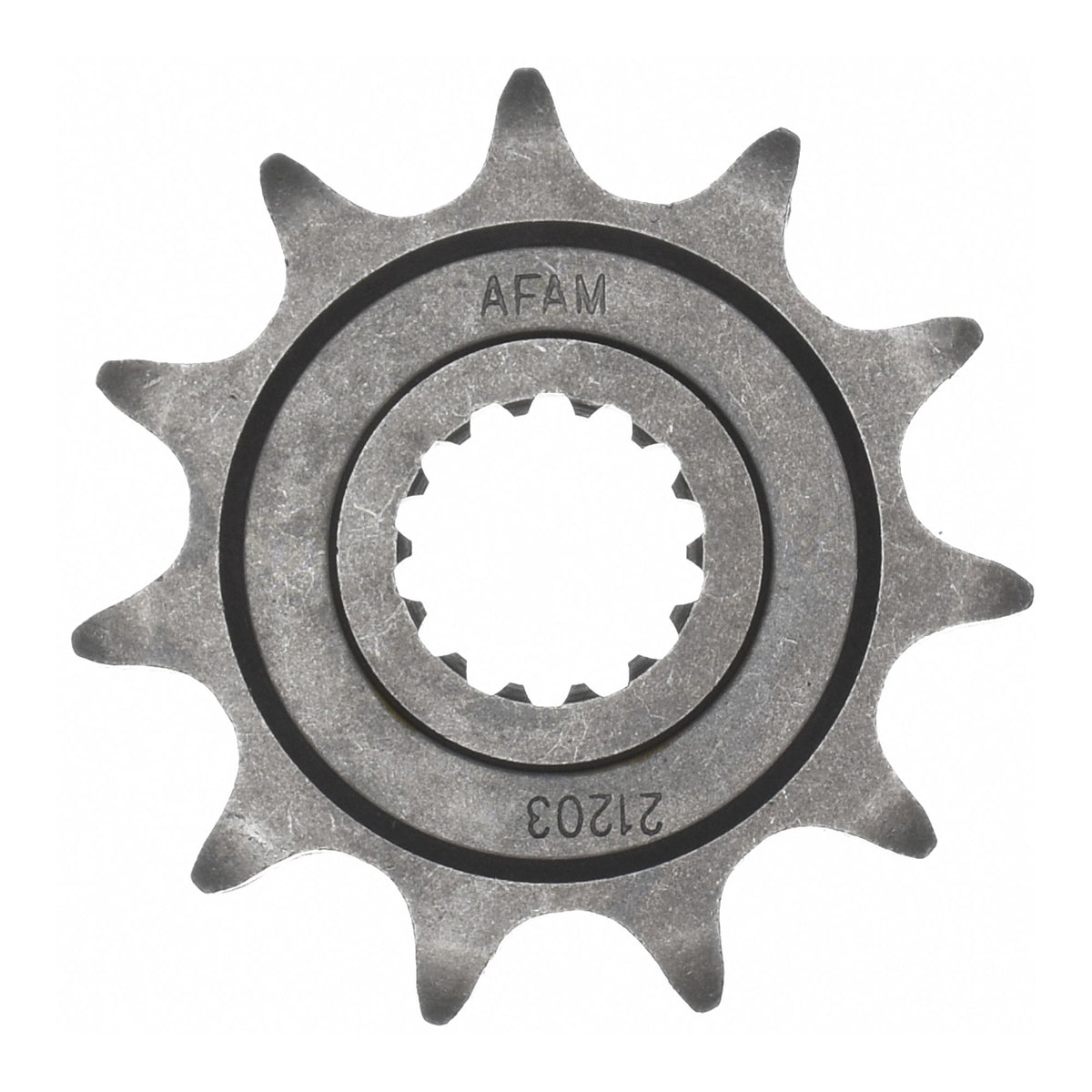

• Front sprocket: AFAM front sprocket #520 13 teeth - a21203.13
• Chain: AFAM chain 520 XMR3 Xs-Ring 112 links w. rivet link - a520xmr3.112

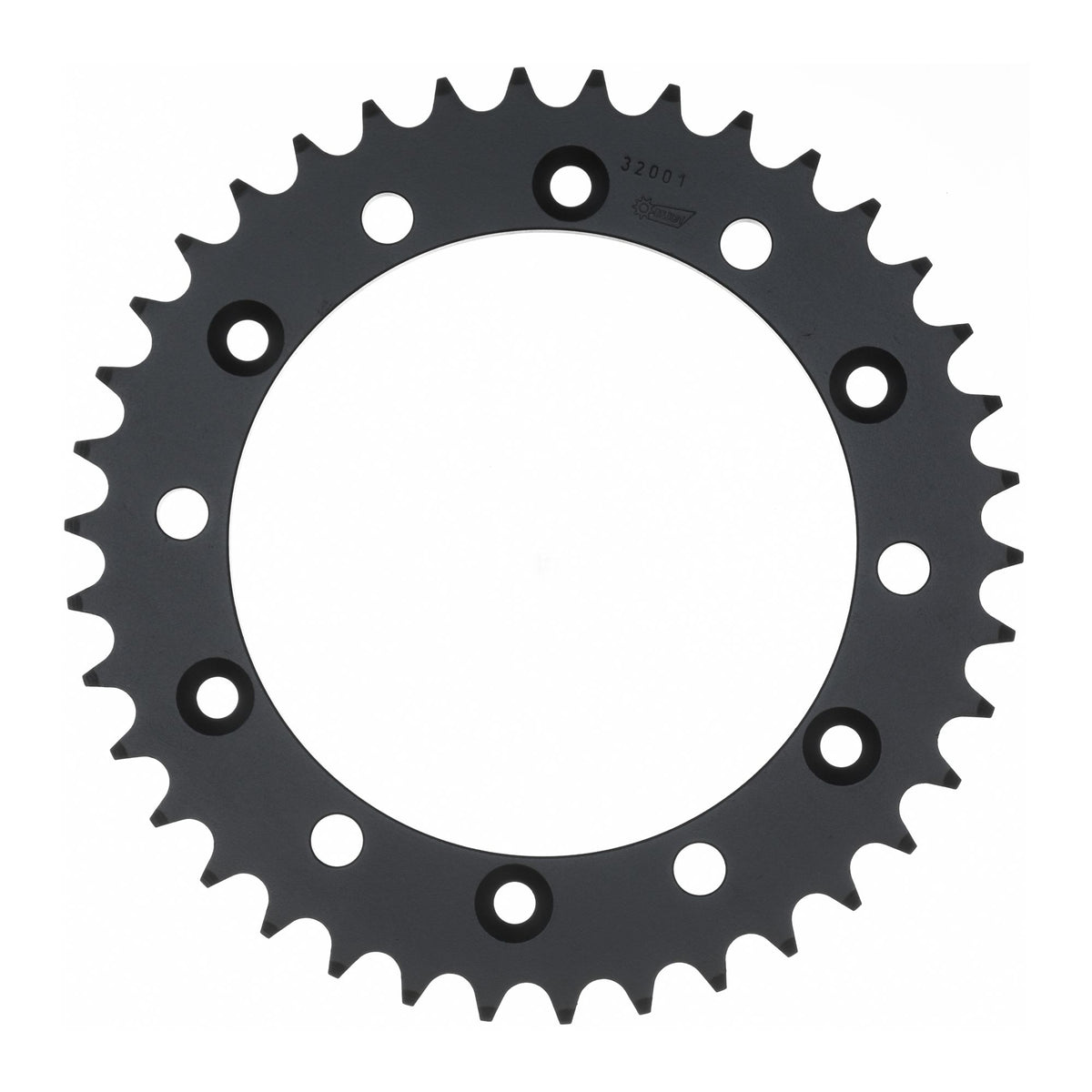

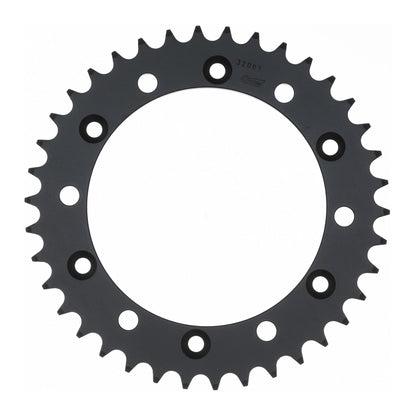

• Rear sprocket: Esjot rear sprocket 10304-49 12323 STEEL #520 49 teeth - a10304.49
• Transmission ratio front sprocket-chain-rear sprocket: 13-112-49

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-18108

Suitable for

Yamaha 101 - 125 ccm YZ 125 CE13C 2004
