AFAM chain kit for Yamaha YZ 250 00-01 520 M chain kit

AFAM chain kit for Yamaha YZ 250 00-01 520 M chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the Yamaha YZ 250 CG08C 2000-2001 chain kit

• Front sprocket: AFAM front sprocket #520 14 teeth - a27500.14

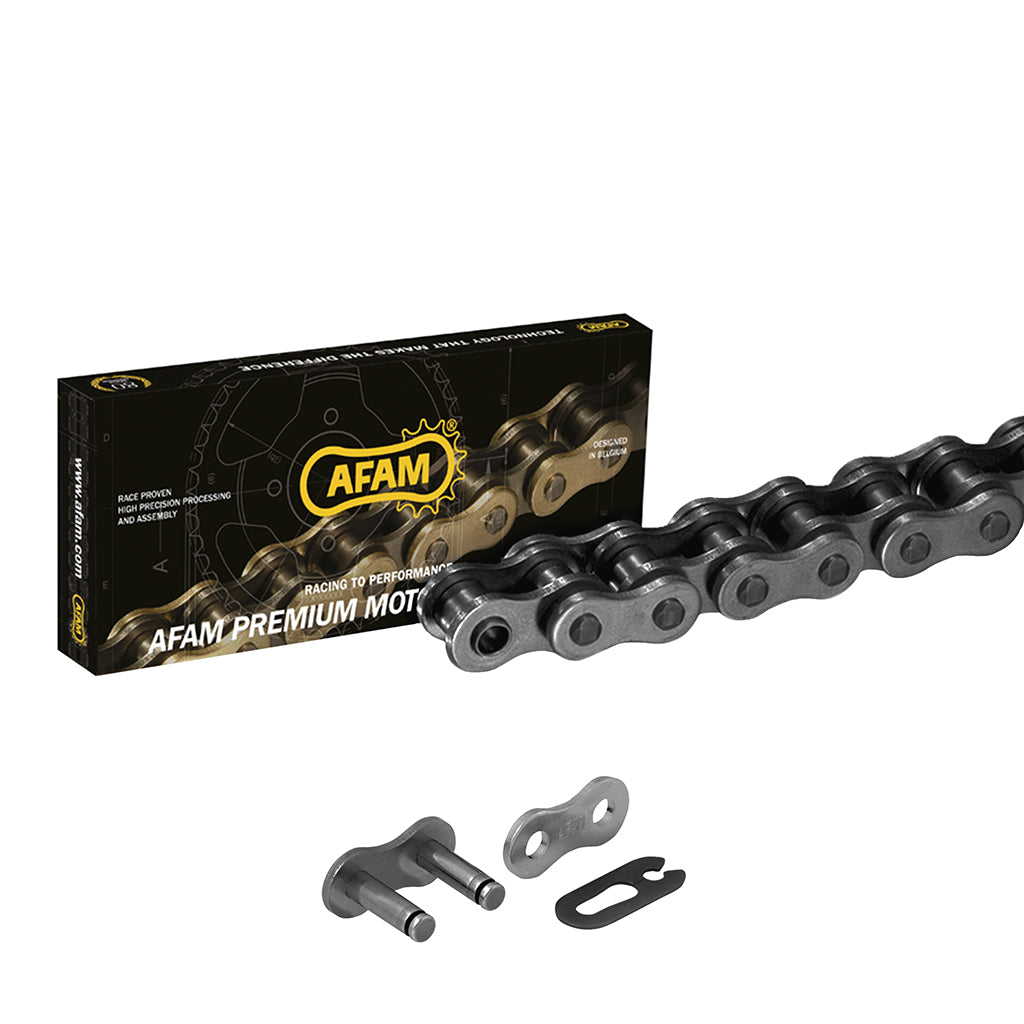

• Chain: AFAM chain 520 M 114 with clip master link - a520m.114

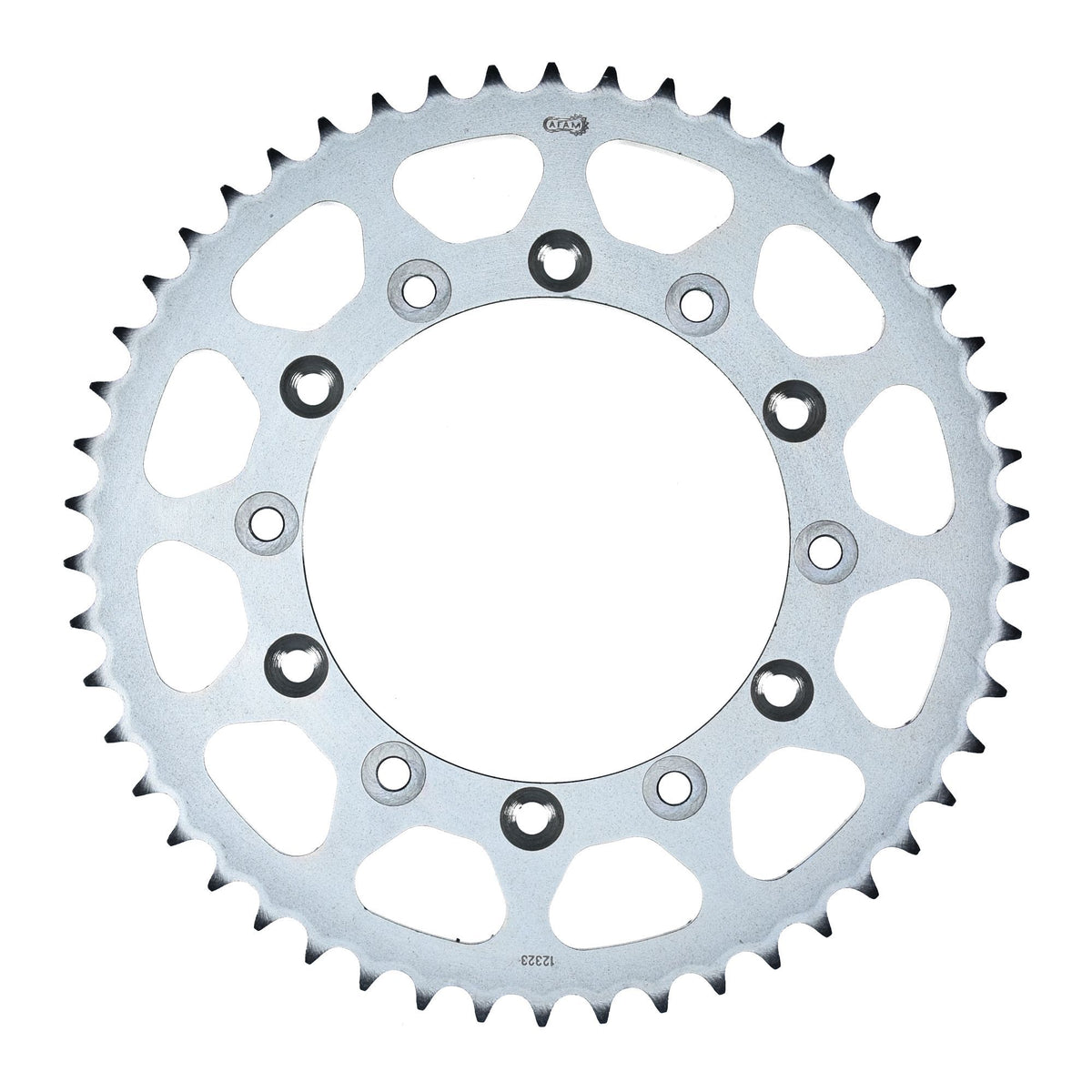

• Rear sprocket: Esjot rear sprocket 10304-50 12323 STEEL #520 50 teeth - a10304.50
• Gear ratio front sprocket-chain-rear sprocket: 14-114-50

AFAM 520 M

Affordable and simple standard chain
Without O-rings
Color: Steel
Application by displacement: up to 250 cc / street and off-road

Technical specifications:
Pitch: 520
Pin length: 16.6 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 31.00 kN
Weight per 100 links: 1.42 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-51689

Suitable for

Yamaha 126 - 250 cc YZ 250 CG08C 2000
Yamaha 126 - 250 cc YZ 250 CG08C 2001
