AFAM chain kit for Yamaha YZ 250 1983 520 XMR3 chain kit

AFAM Chain Kit for Yamaha YZ 250 1983 520 XMR3 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Yamaha YZ 250 24Y 1983-1983

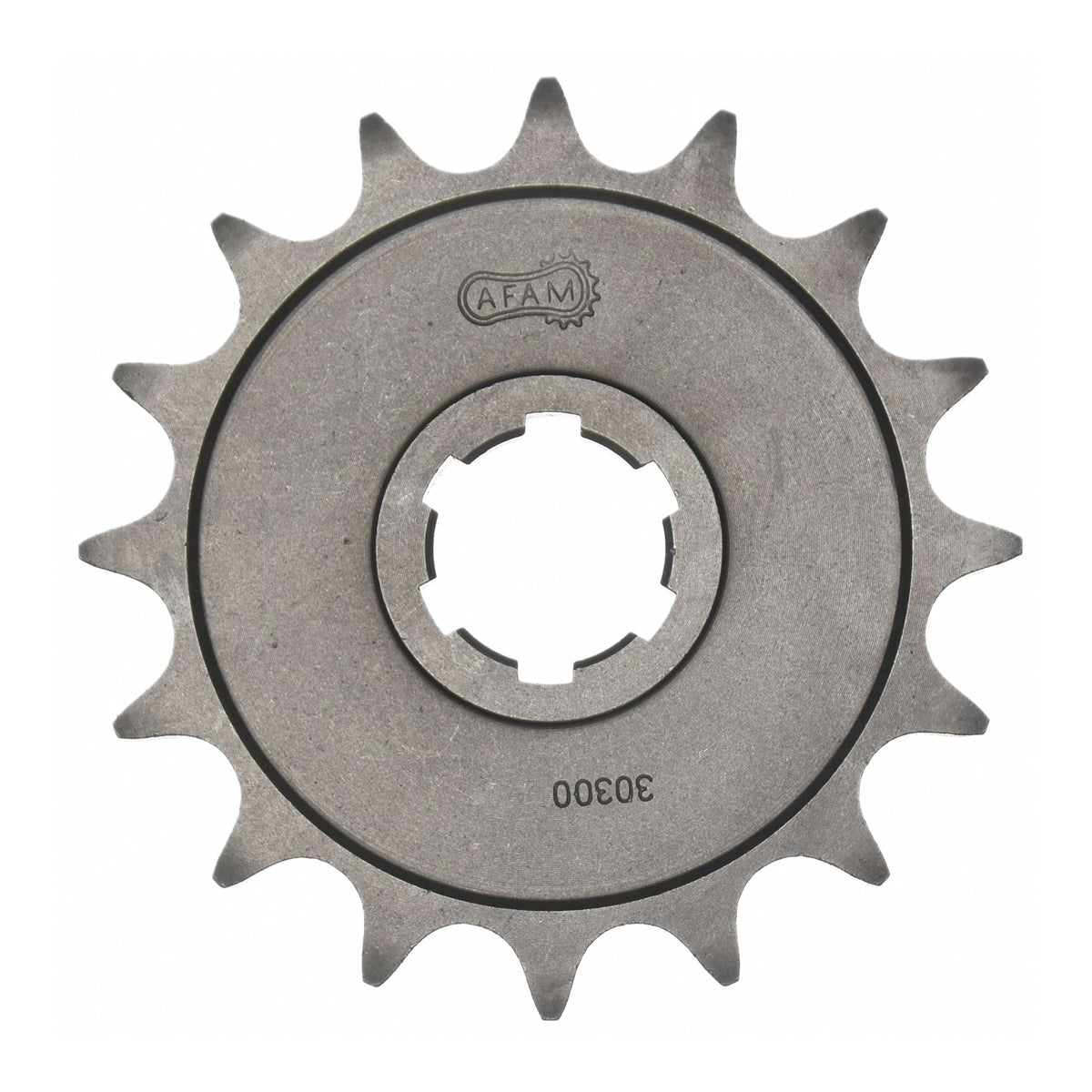

• Front sprocket: AFAM front sprocket #520 13 teeth - a30300.13
• Chain: AFAM chain 520 XMR3 Xs-Ring 112 with rivet master link - a520xmr3.112

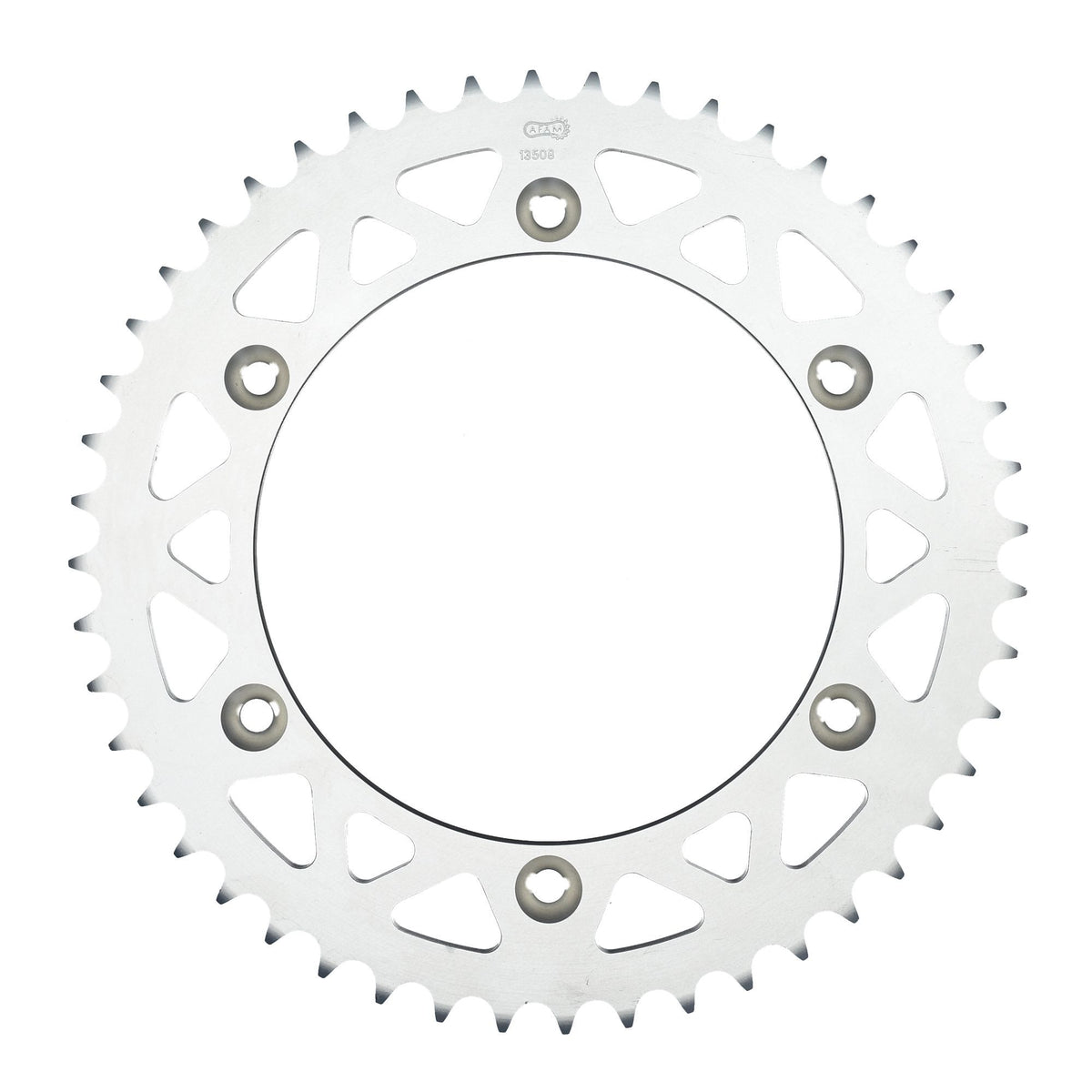

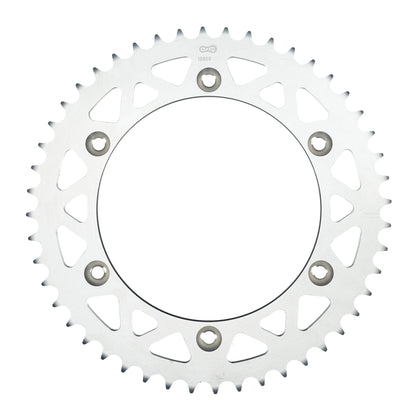

• Rear sprocket: AFAM rear sprocket ALU #520 48 teeth - a13508n.48
• Gear ratio front sprocket-chain-rear sprocket: 13-112-48

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-51646

Suitable for

Yamaha 126 - 250 cc YZ 250 24Y 1983
