AFAM chain kit for Yamaha YZ 250 1992 520 MR2G chain kit

AFAM chain kit for Yamaha YZ 250 1992 520 MR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only for compatibility purposes!

Components of the chain kit for Yamaha YZ 250 4DA 1992-1992

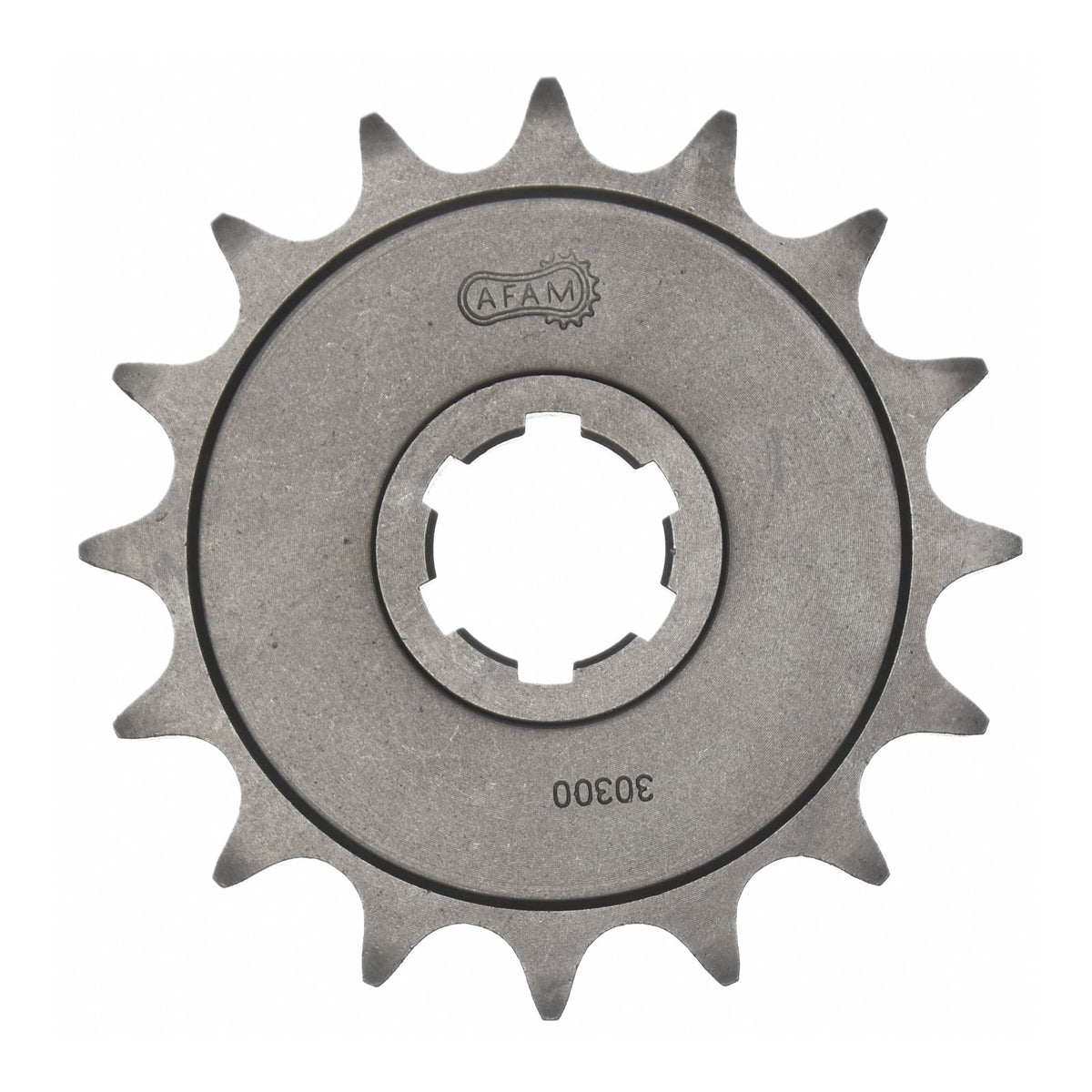

• Front sprocket: AFAM front sprocket #520 14 teeth - a30300.14
• Chain: AFAM chain 520 MR2-G w. clip link - a520mr2.g.116

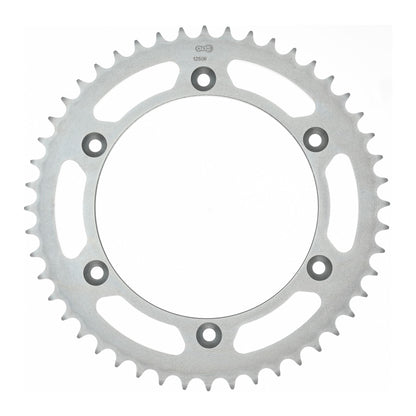

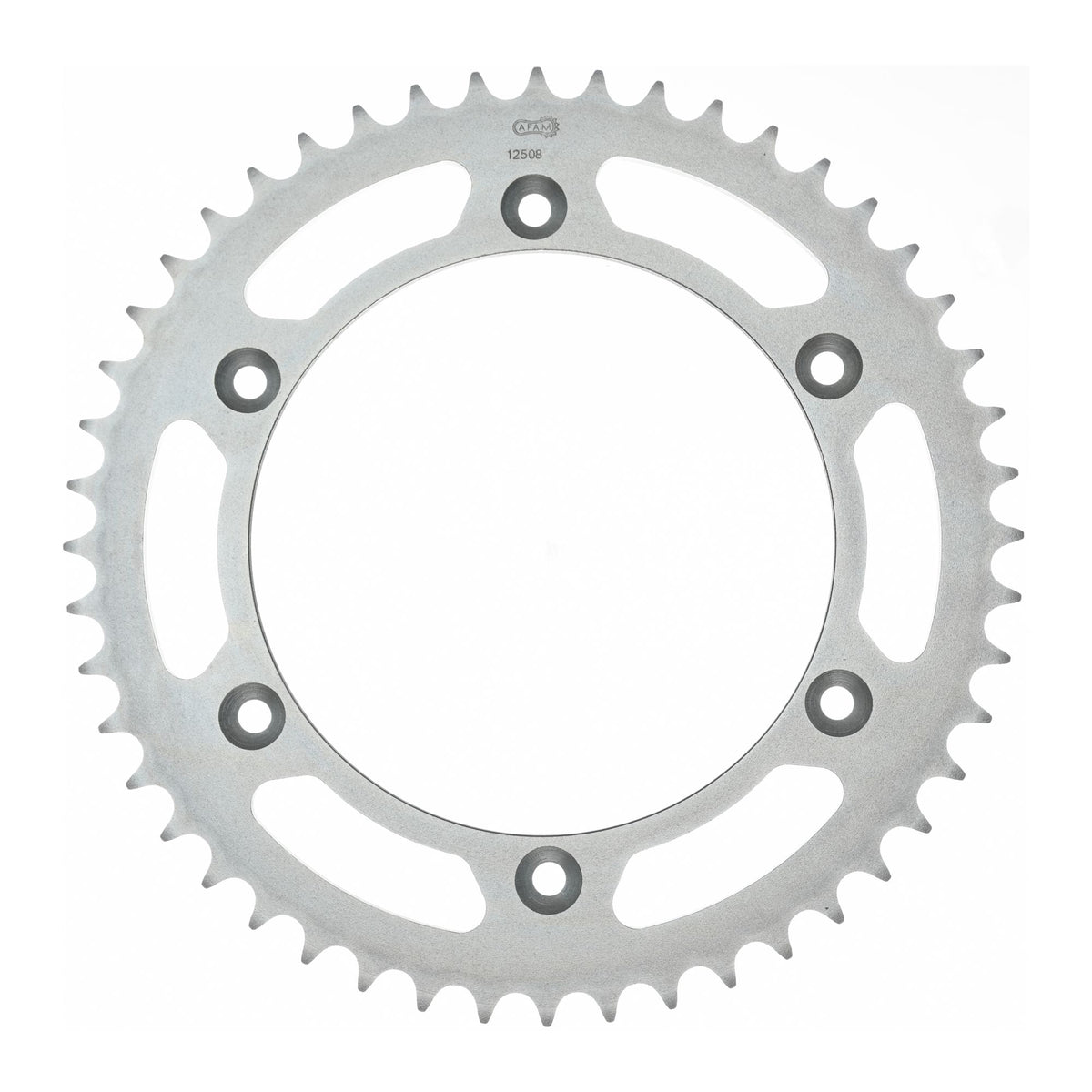

• Rear sprocket: AFAM steel rear sprocket #520 49 teeth - a12508.49
• Transmission ratio sprocket-chain-rear sprocket: 14-116-49

AFAM 520 MR2-G

Reinforced chain
Without sealing rings
Color: Gold
Application by engine displacement: up to 250 cc / road, off-road and moto-cross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Link plate thickness: inner: 2.0 mm
Link plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-34104

Suitable for

Yamaha 126 - 250 ccm YZ 250 4DA 1992
