AFAM chain kit for Yamaha YZ 250 2002 520 MR2G chain kit

AFAM chain kit for Yamaha YZ 250 2002 520 MR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility identification only!

Components of the chain kit Yamaha YZ 250 CG12C 2002-2002

• Front sprocket: AFAM sprocket #520 14 teeth - a27500.14
• Chain: AFAM chain 520 MR2-G with clip link - a520mr2.g.114

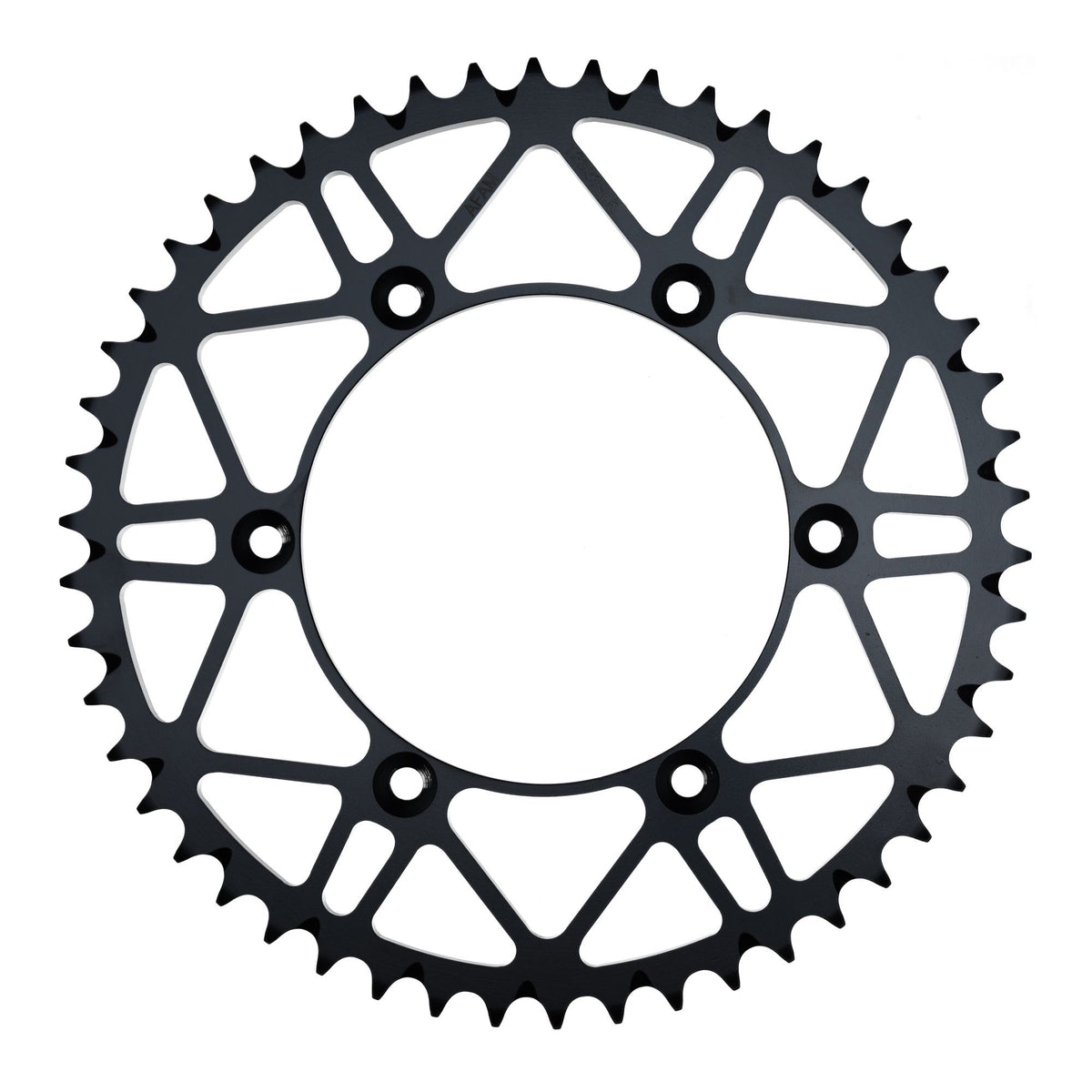

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 49T - a12323slk.49
• Gear ratio sprocket-chain-rear sprocket: 14-114-49

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, off-road, and moto-cross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-27668

Suitable for

Yamaha 126 - 250 cc YZ 250 CG12C 2002
