AFAM chain kit for Yamaha YZ 250 2002 520 MR2G chain kit

AFAM chain kit for Yamaha YZ 250 2002 520 MR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility representation only!

Components of the Yamaha YZ 250 CG12C 2002-2002 chain kit

• Front sprocket: AFAM sprocket #520 14 teeth - a27500.14
• Chain: AFAM chain 520 MR2-G with clip link - a520mr2.g.114

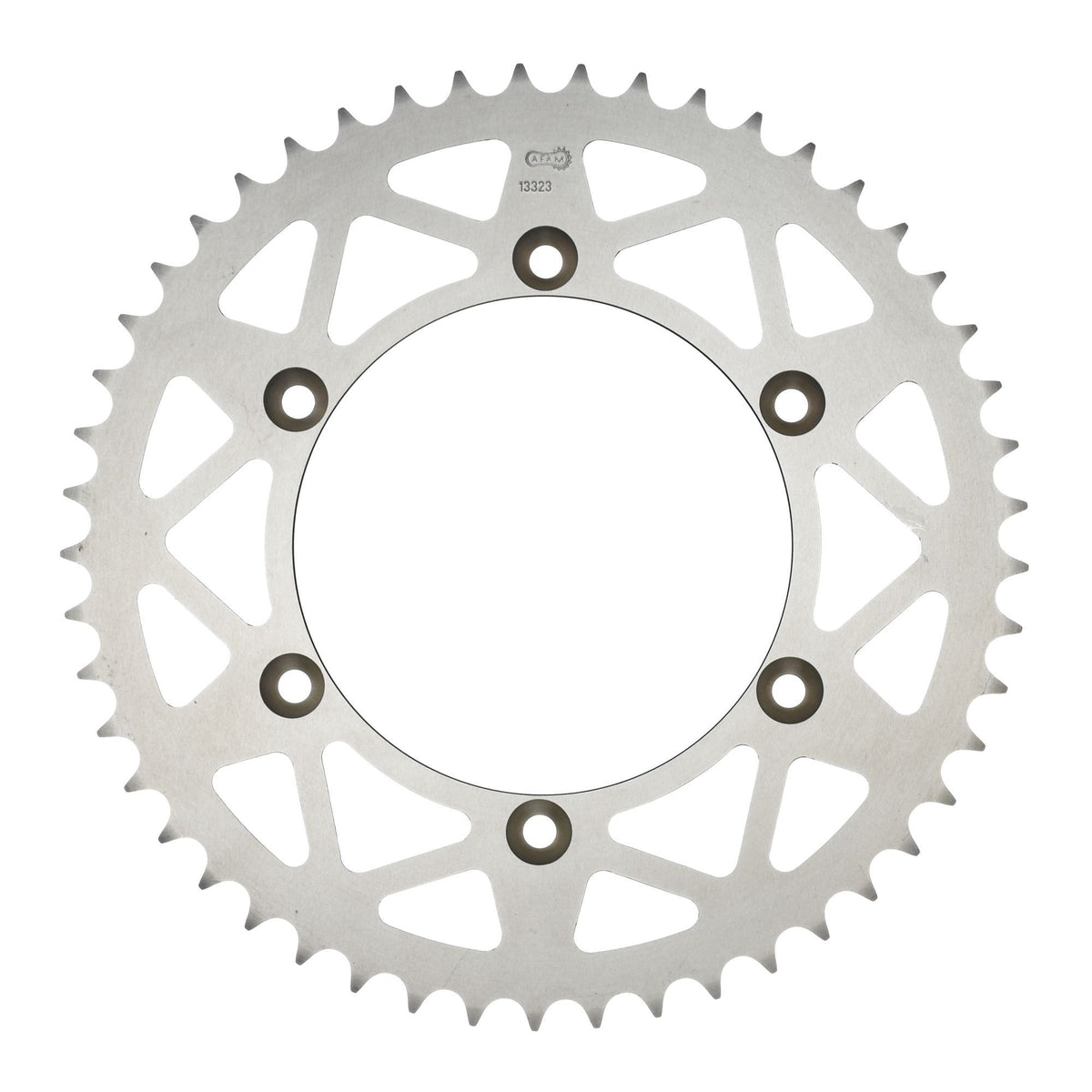

• Rear sprocket: AFAM rear sprocket ALU #520 49 teeth - a13323n.49
• Gear ratio sprocket-chain-rear sprocket: 14-114-49

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / road, off-road and moto-cross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-39097

Suitable for

Yamaha 126 - 250 cc YZ 250 CG12C 2002
