AFAM chain kit for Yamaha YZ 250 2003 520 M chain kit

AFAM chain kit for Yamaha YZ 250 2003 520 M chain kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Yamaha YZ 250 CG13C 2003-2003

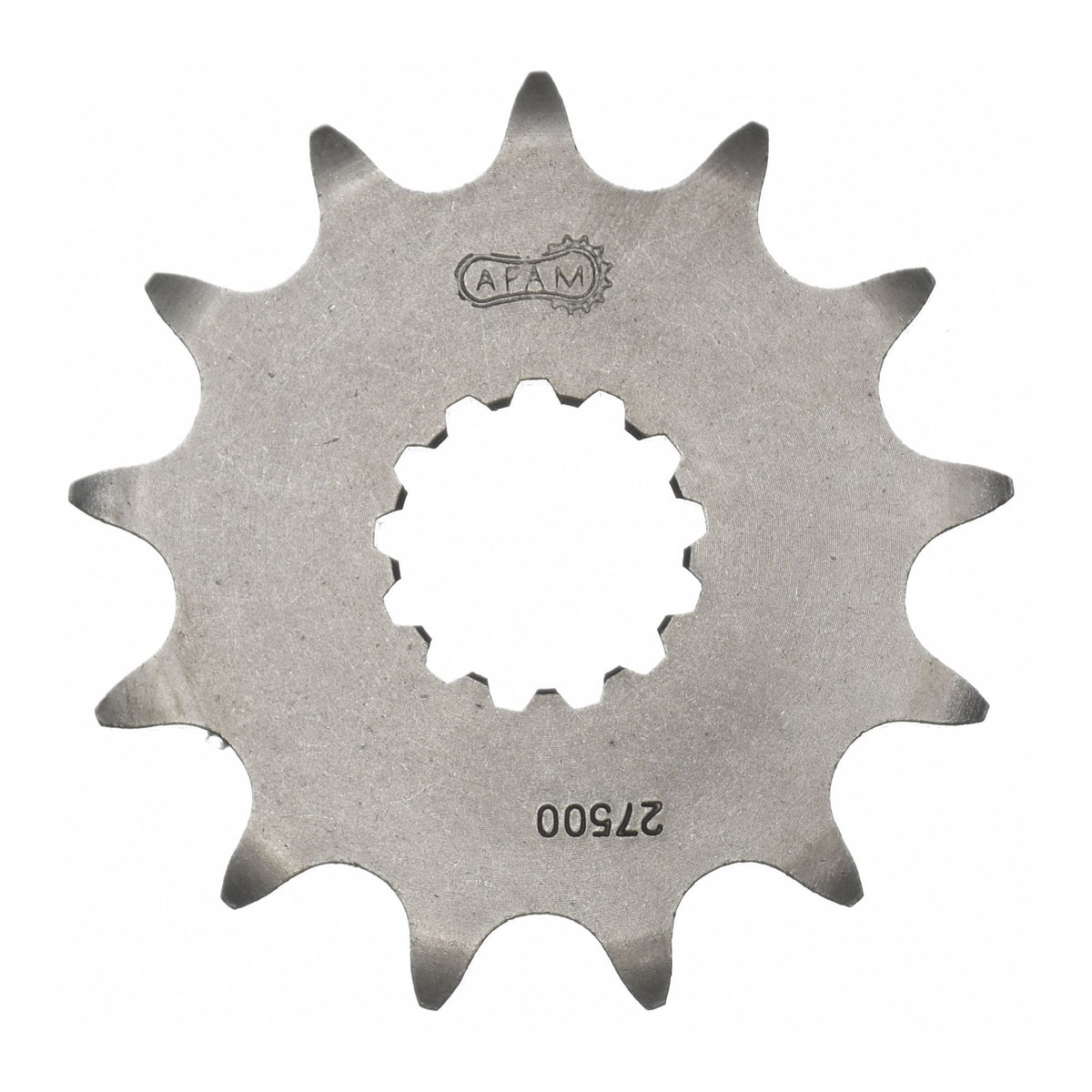

• Sprocket: AFAM sprocket #520 14 teeth - a27500.14

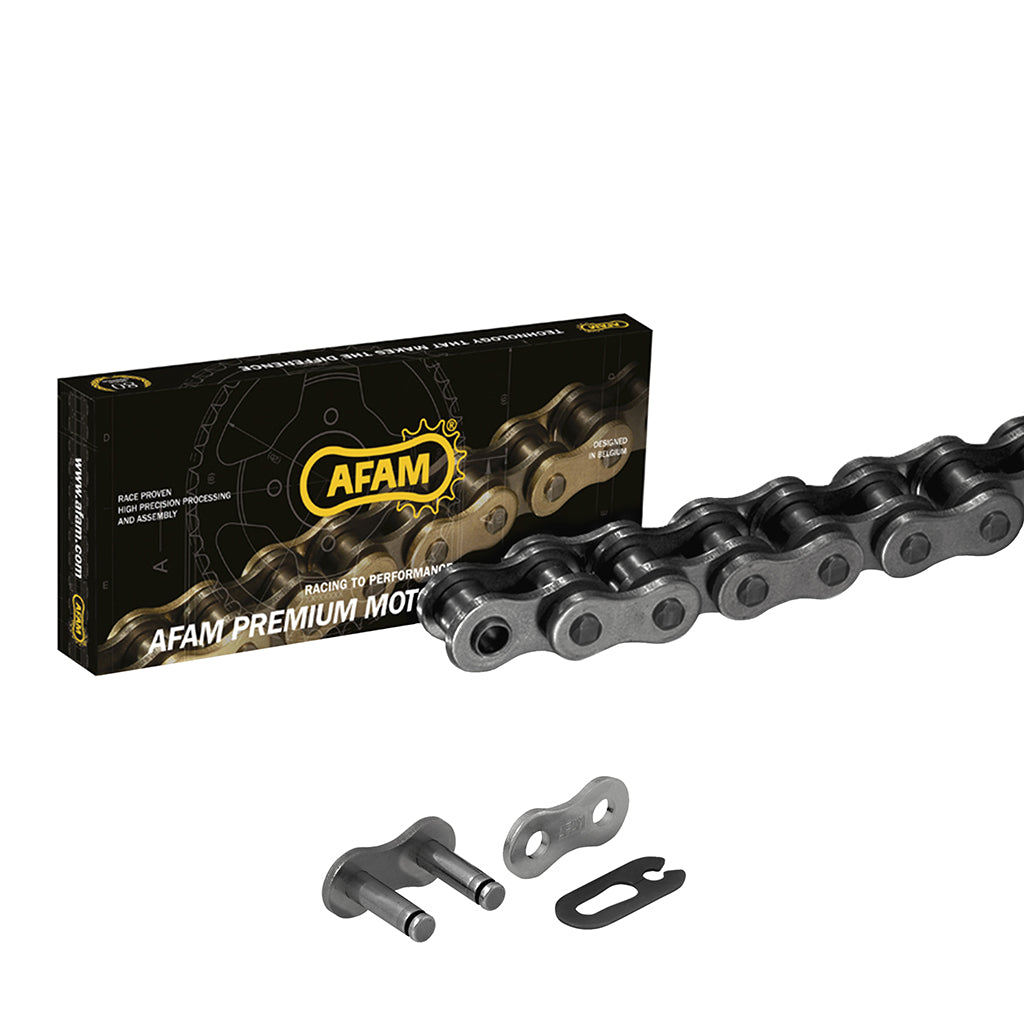

• Chain: AFAM chain 520 M 114 with clip connecting link - a520m.114

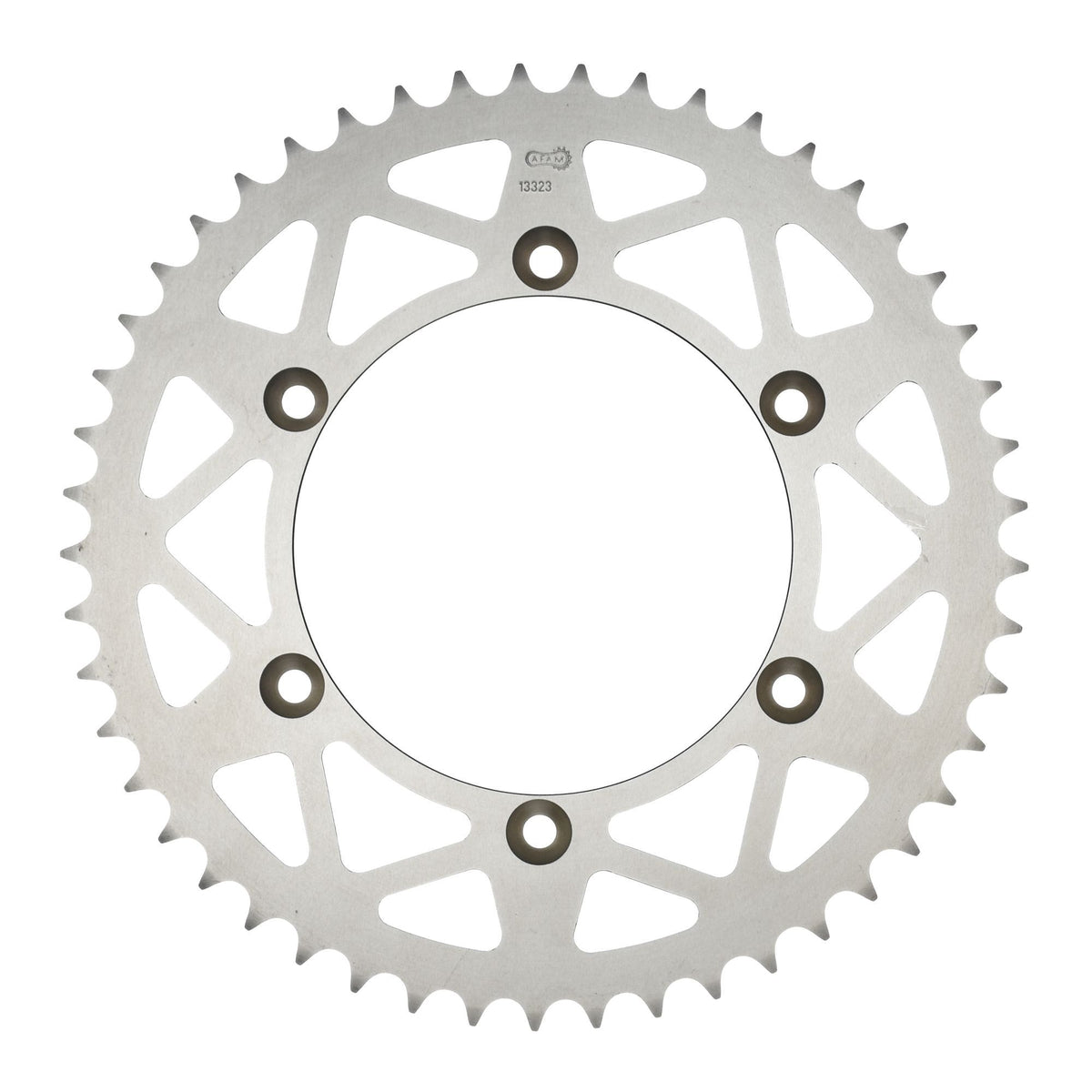

• Rear sprocket: AFAM rear sprocket ALU #520 49 teeth - a13323n.49
• Gear ratio sprocket-chain-rear sprocket: 14-114-49

AFAM 520 M

Affordable and simple standard chain
Without O-rings
Color: Steel
Application by displacement: up to 250 cc / road and off-road

Technical data:
Pitch: 520
Pin length: 16.6 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 31.00 kN
Weight per 100 links: 1.42 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-51700

Suitable for

Yamaha 126 - 250 cc YZ 250 CG13C 2003
