AFAM chain kit for Yamaha YZ 250 94-96 520 XMR3 chain kit

AFAM chain kit for Yamaha YZ 250 94-96 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the product name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Yamaha YZ 250 1994-1996

• Front sprocket: AFAM front sprocket #520 13 teeth - a30300.13
• Chain: AFAM chain 520 XMR3 Xs-Ring 114 w. rivet link - a520xmr3.114

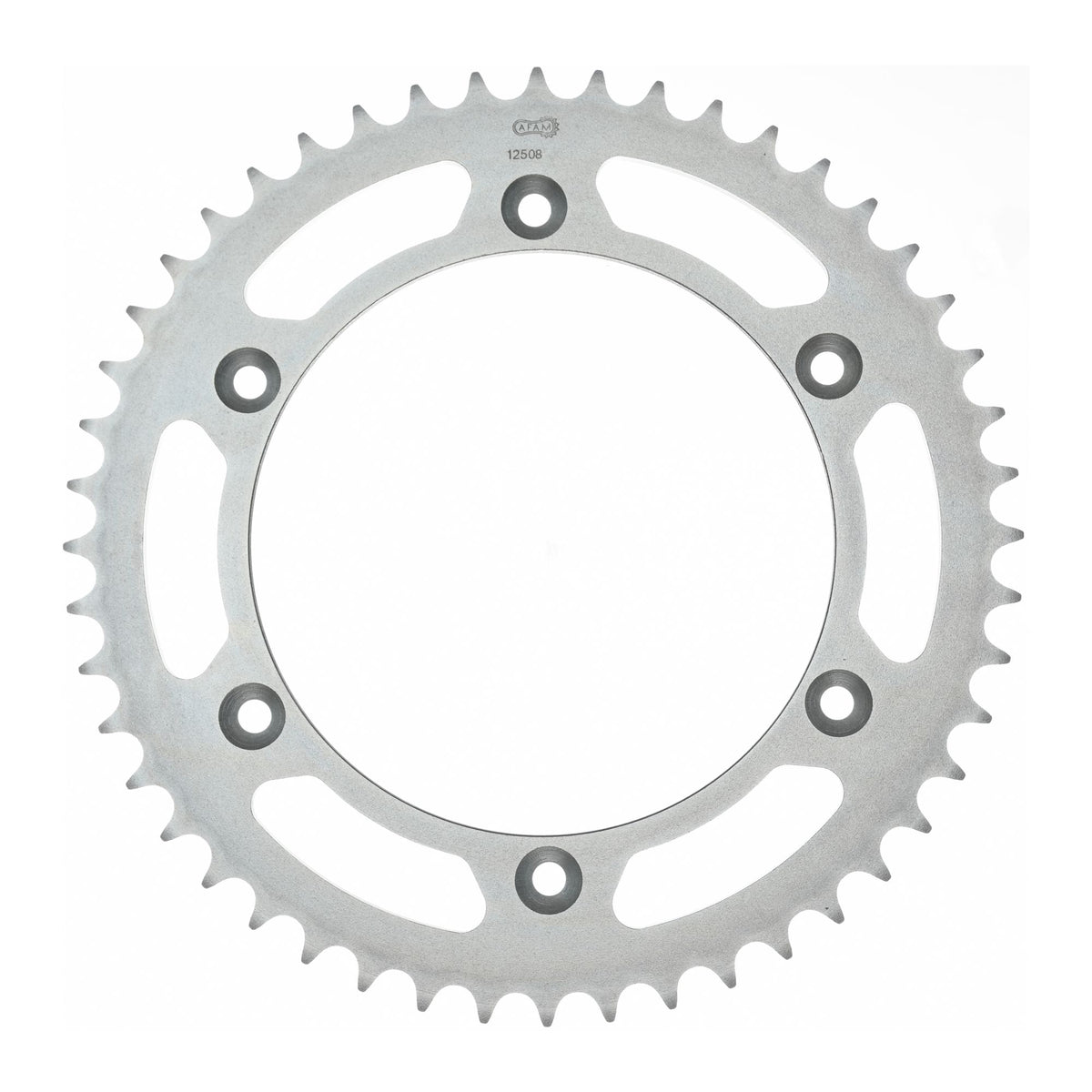

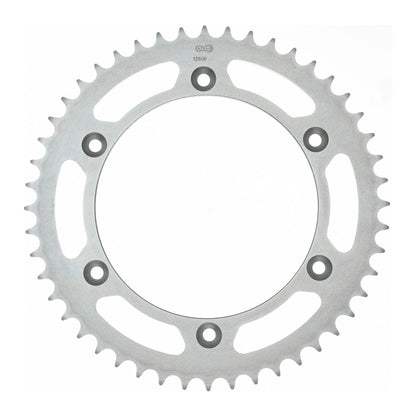

• Rear sprocket: AFAM rear sprocket STEEL #520 49 teeth - a12508.49
• Gear ratio sprocket-chain-rear sprocket: 13-114-49

AFAM 520 XMR3

Reinforced chain with smooth running properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The goods offered are accessories/spare parts from a third-party manufacturer and were not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-28980

Suitable for

Yamaha 126 - 250 cc YZ 250 1994
Yamaha 126 - 250 cc YZ 250 1995
Yamaha 126 - 250 cc YZ 250 1996
