AFAM chain kit for Yamaha YZ 250 F 07-09 520 XMR3 chain kit

AFAM Chain kit for Yamaha YZ 250 F 07-09 520 XMR3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha YZ 250 F CG27C 2007-2009

• Front sprocket: AFAM sprocket #520 13 teeth - a21309.13
• Chain: AFAM chain 520 XMR3 Xs-Ring 112 with rivet link - a520xmr3.112

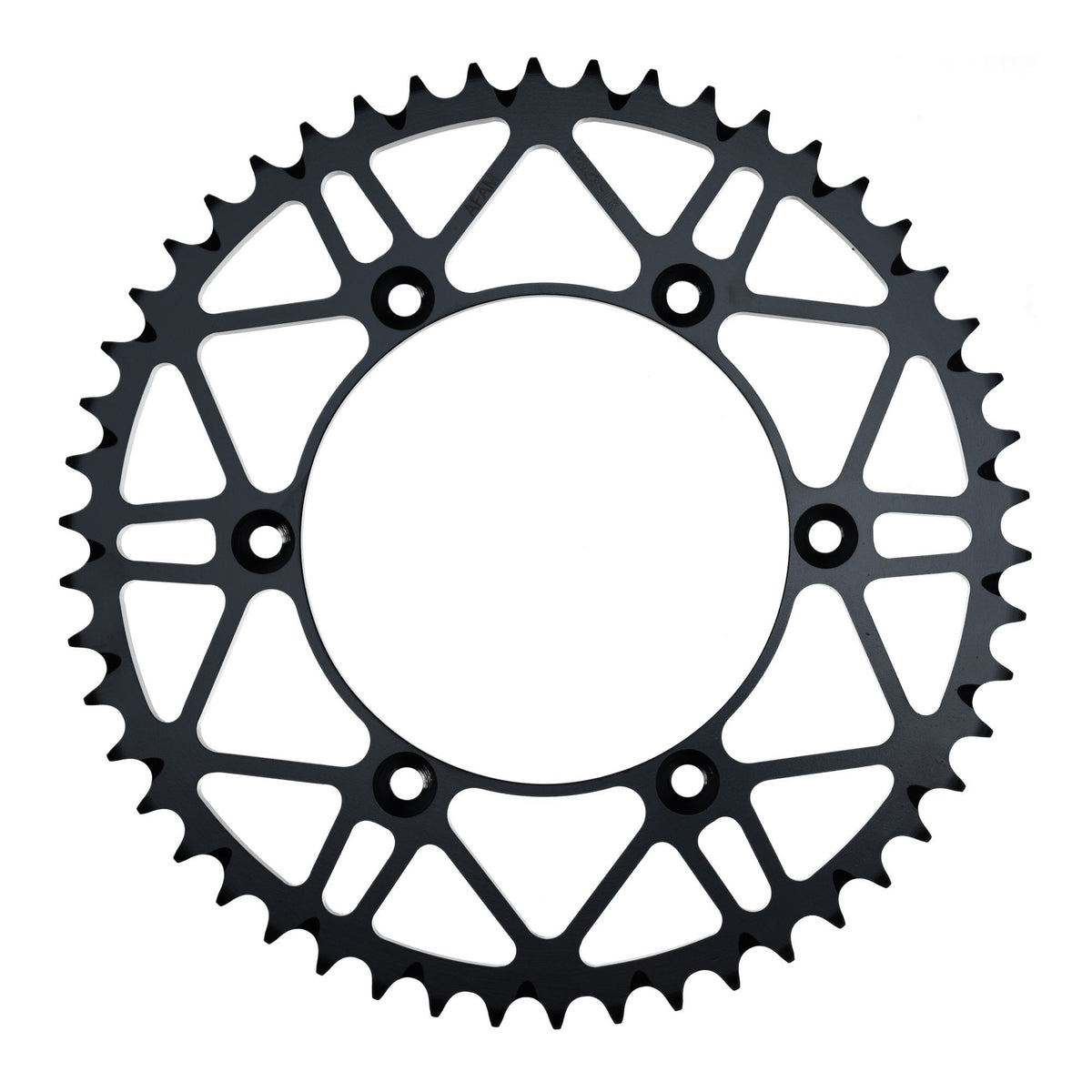

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 49 teeth - a12323slk.49
• Gear ratio sprocket-chain-rear sprocket: 13-112-49

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-39298

Fits

Yamaha 126 - 250 cc YZ 250 F CG27C 2007
Yamaha 126 - 250 cc YZ 250 F CG27C 2008
Yamaha 126 - 250 cc YZ 250 F CG27C 2009
