AFAM chain kit for Yamaha YZ 250 F 10-13 520 M chain kit

AFAM chain kit for Yamaha YZ 250 F 10-13 520 M chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer name mentioned for compatibility purposes only!

Components of the chain kit Yamaha YZ 250 F CG33C 2010-2013

• Front sprocket: AFAM sprocket #520 13 teeth - a21309.13
• Chain: AFAM chain 520 M 114 with clip connecting link - a520m.114

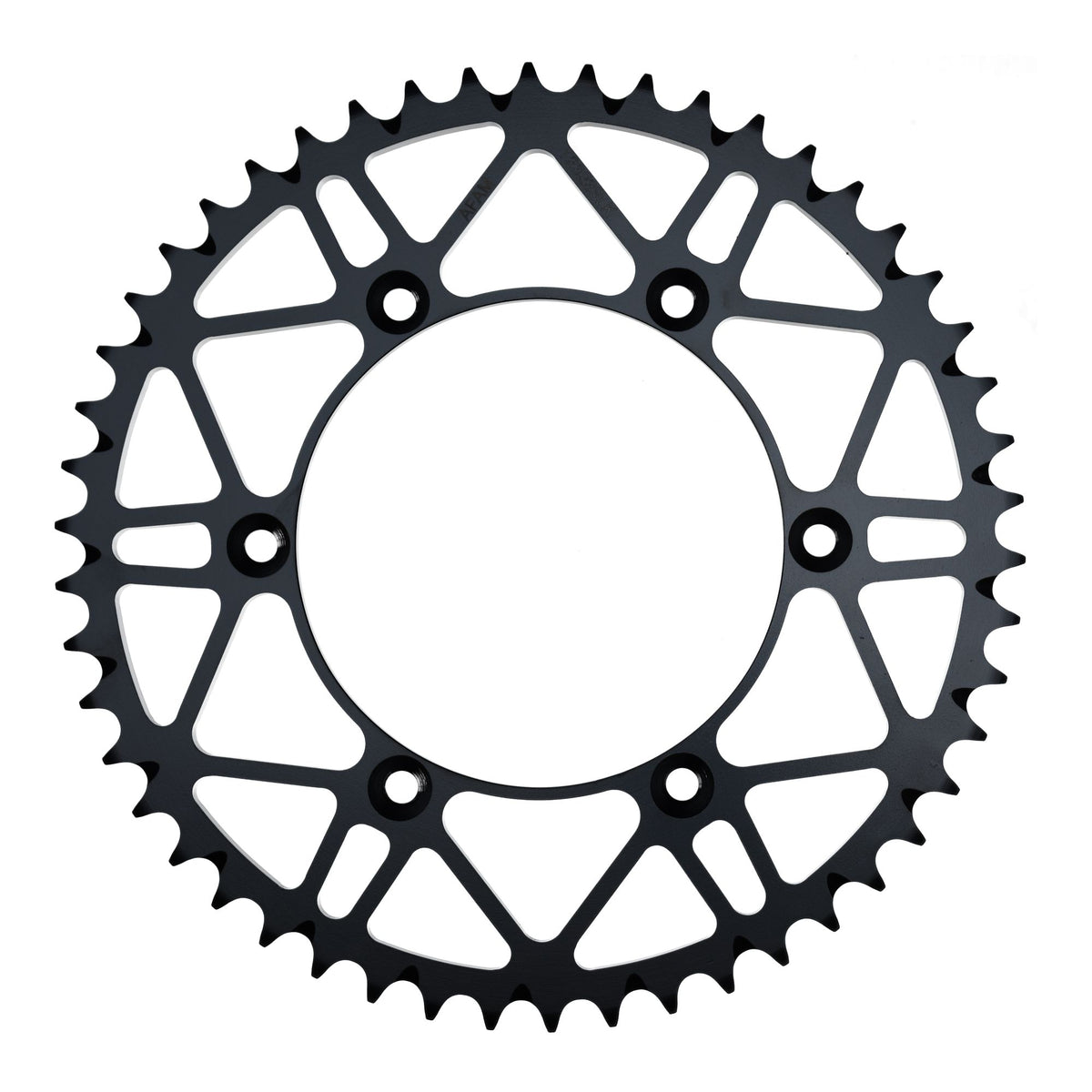

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 51 T - a12323slk.51
• Gear ratio front sprocket-chain-rear sprocket: 13-114-51

AFAM 520 M

Affordable and simple standard chain
Without O-rings
Color: Steel
Application by displacement: up to 250 cc / street and offroad

Technical data:
Pitch: 520
Pin length: 16.6 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 31.00 kN
Weight per 100 links: 1.42 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51762

Fits

Yamaha 126 - 250 cc YZ 250 F CG33C 2010
Yamaha 126 - 250 cc YZ 250 F CG33C 2011
Yamaha 126 - 250 cc YZ 250 F CG33C 2012
Yamaha 126 - 250 cc YZ 250 F CG33C 2013
