AFAM chain kit for Yamaha YZ 250 F 10-13 520 XMR3 chain kit

AFAM chain kit for Yamaha YZ 250 F 10-13 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha YZ 250 F CG33C 2010-2013

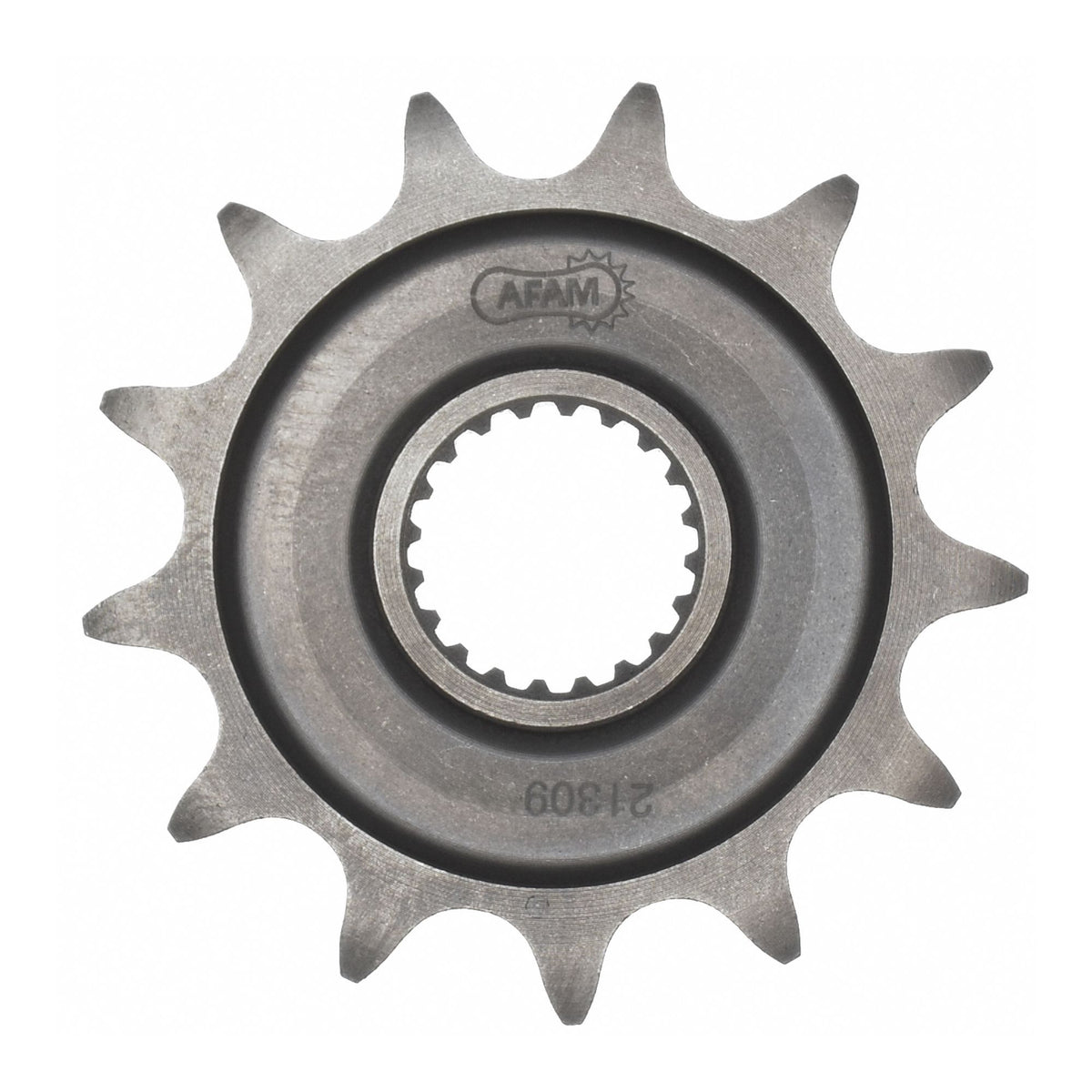

• Sprocket: AFAM sprocket #520 13 teeth - a21309.13
• Chain: AFAM chain 520 XMR3 Xs-ring 114 with rivet link - a520xmr3.114

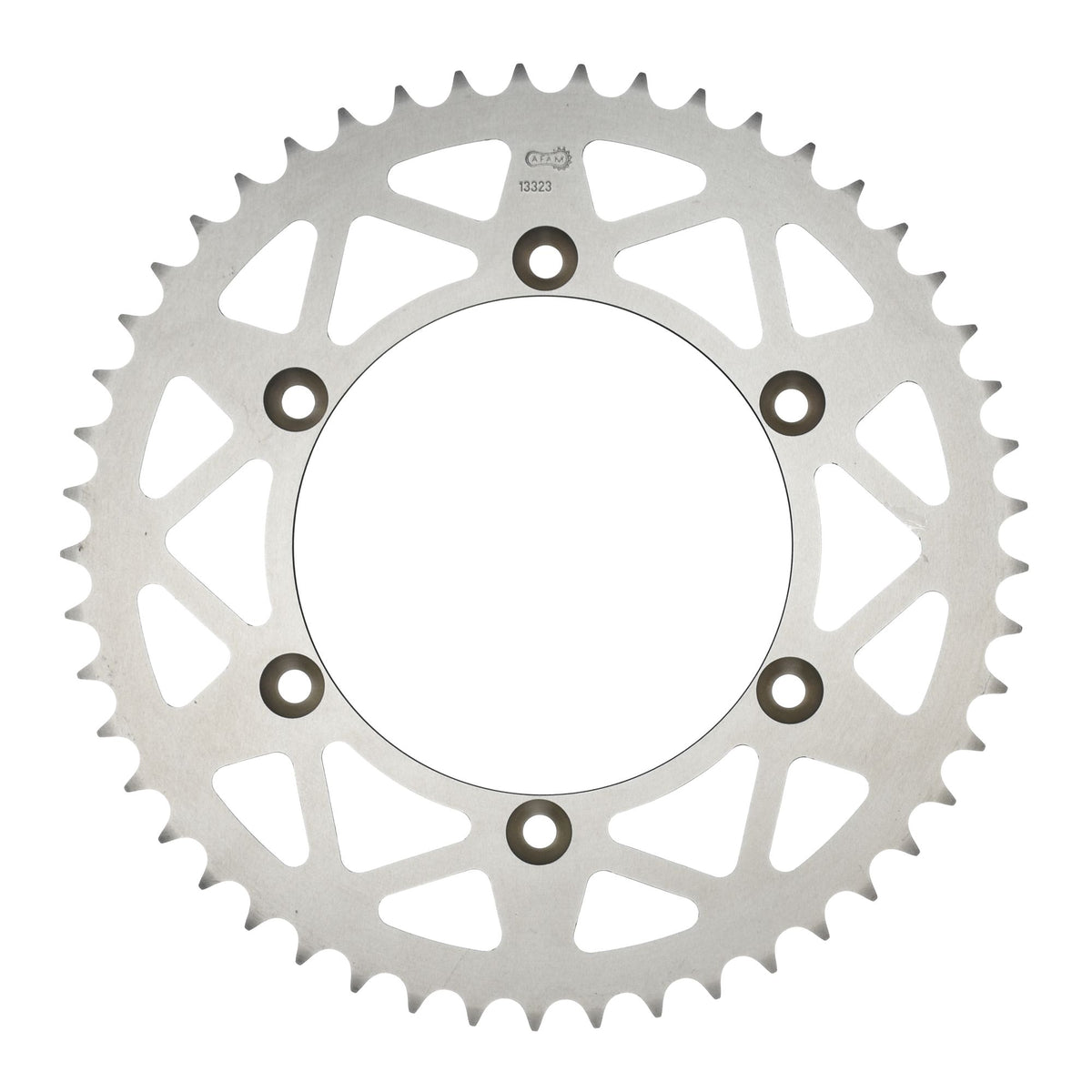

• Rear sprocket: AFAM rear sprocket ALU #520 51 teeth - a13323n.51
• Gear ratio sprocket-chain-rear sprocket: 13-114-51

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-34354

Suitable for

Yamaha 126 - 250 cc YZ 250 F CG33C 2010
Yamaha 126 - 250 cc YZ 250 F CG33C 2011
Yamaha 126 - 250 cc YZ 250 F CG33C 2012
Yamaha 126 - 250 cc YZ 250 F CG33C 2013
