AFAM chain kit for Yamaha YZ 250 F 17-18 520 XMR3 chain kit

AFAM Chain Kit for Yamaha YZ 250 F 17-18 520 XMR3 Chain Set

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha YZ 250 F CG39C 2017-2018

• Front sprocket: AFAM front sprocket #520 13 teeth - a21309.13
• Chain: AFAM chain 520 XMR3 Xs-ring 114 with rivet link - a520xmr3.114

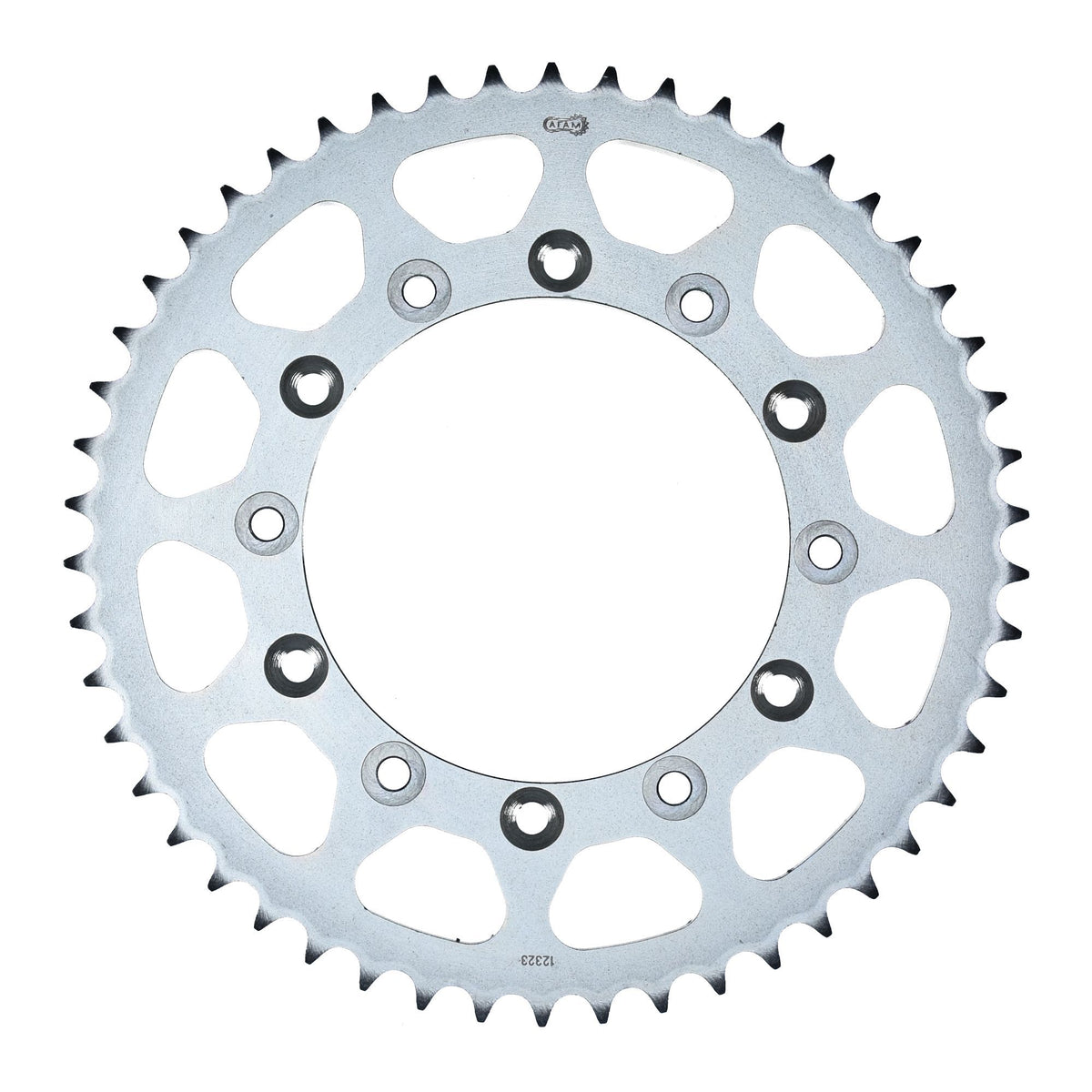

• Rear sprocket: Esjot rear sprocket 10304-50 12323 STEEL #520 50 teeth - a10304.50
• Gear ratio front sprocket-chain-rear sprocket: 13-114-50

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51774

Fits

Yamaha 126 - 250 cc YZ 250 F CG39C 2017
Yamaha 126 - 250 cc YZ 250 F CG39C 2018
