AFAM chain kit for Yamaha YZ 250 F 2004 520 M chain kit

AFAM chain kit for Yamaha YZ 250 F 2004 520 M chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Yamaha YZ 250 F CG18C 2004-2004

• Sprocket: AFAM sprocket #520 13 teeth - a21309.13
• Chain: AFAM chain 520 M 112 with clip link - a520m.112

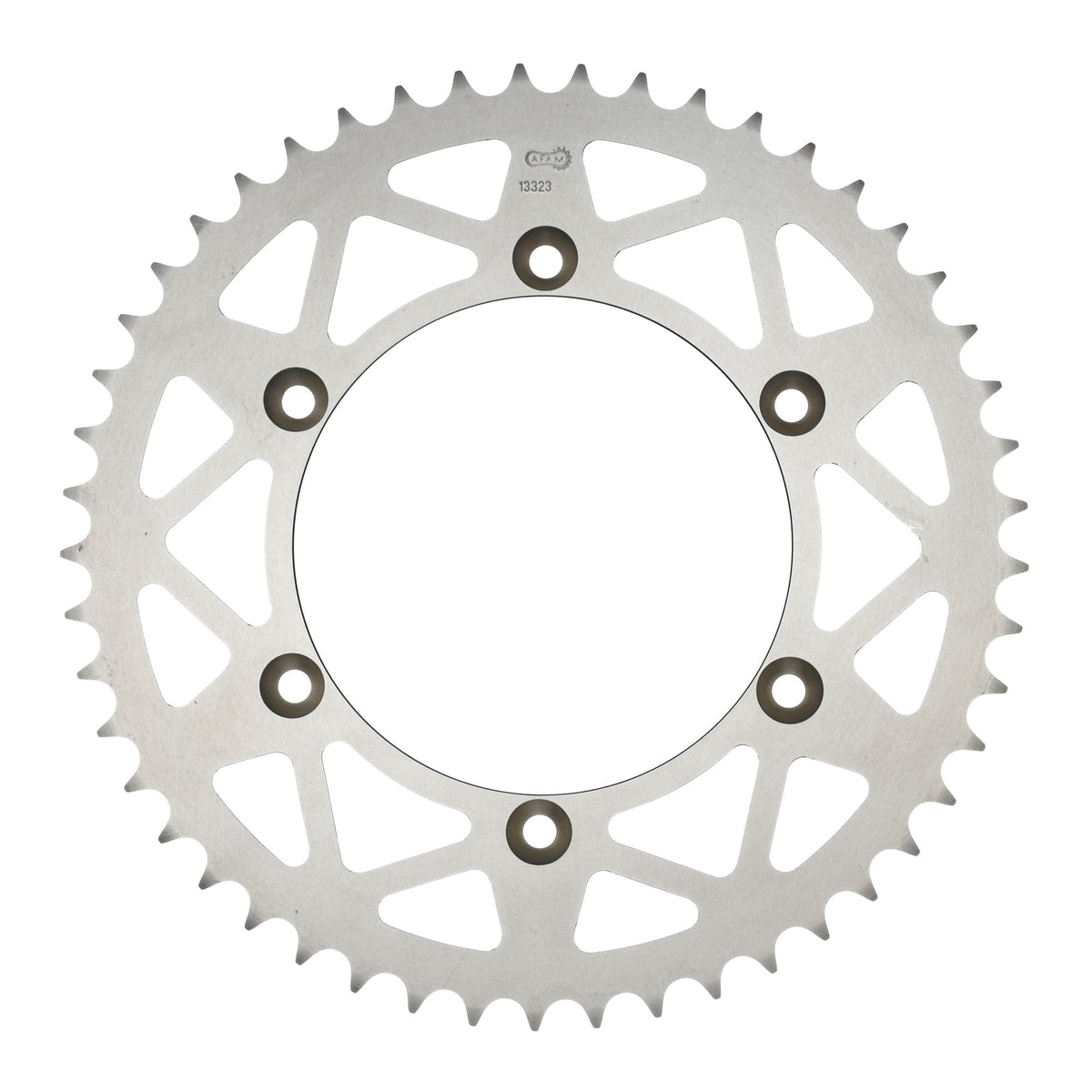

• Rear sprocket: AFAM rear sprocket ALU #520 48 teeth - a13323n.48
• Transmission ratio sprocket-chain-rear sprocket: 13-112-48

AFAM 520 M

Affordable and simple standard chain
Without O-rings
Color: Steel
Application by engine displacement: up to 250 cc / road and off-road

Technical specifications:
Pitch: 520
Pin length: 16.6 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 31.00 kN
Weight per 100 links: 1.42 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-53704

Suitable for

Yamaha 126 - 250 cc YZ 250 F CG18C 2004
