AFAM chain kit for Yamaha YZ 250 F 2005 520 MR2G chain kit

AFAM chain kit for Yamaha YZ 250 F 2005 520 MR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to indicate compatibility!

Components of the chain kit Yamaha YZ 250 F CG21C 2005-2005

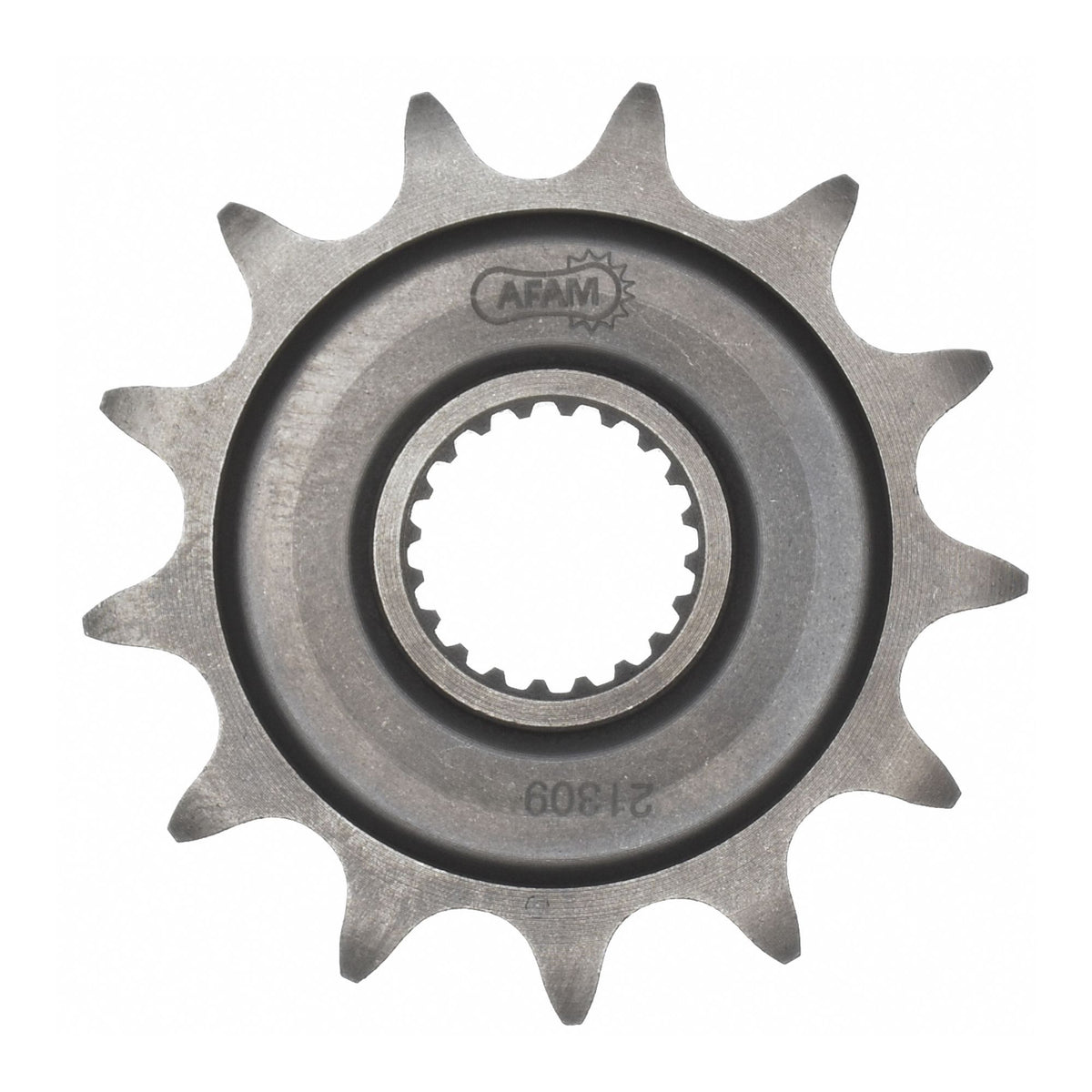

• Front sprocket: AFAM front sprocket #520 13 teeth - a21309.13
• Chain: AFAM chain 520 MR2-G w. clip master link - a520mr2.g.112

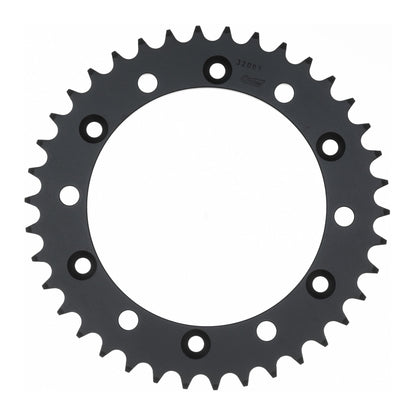

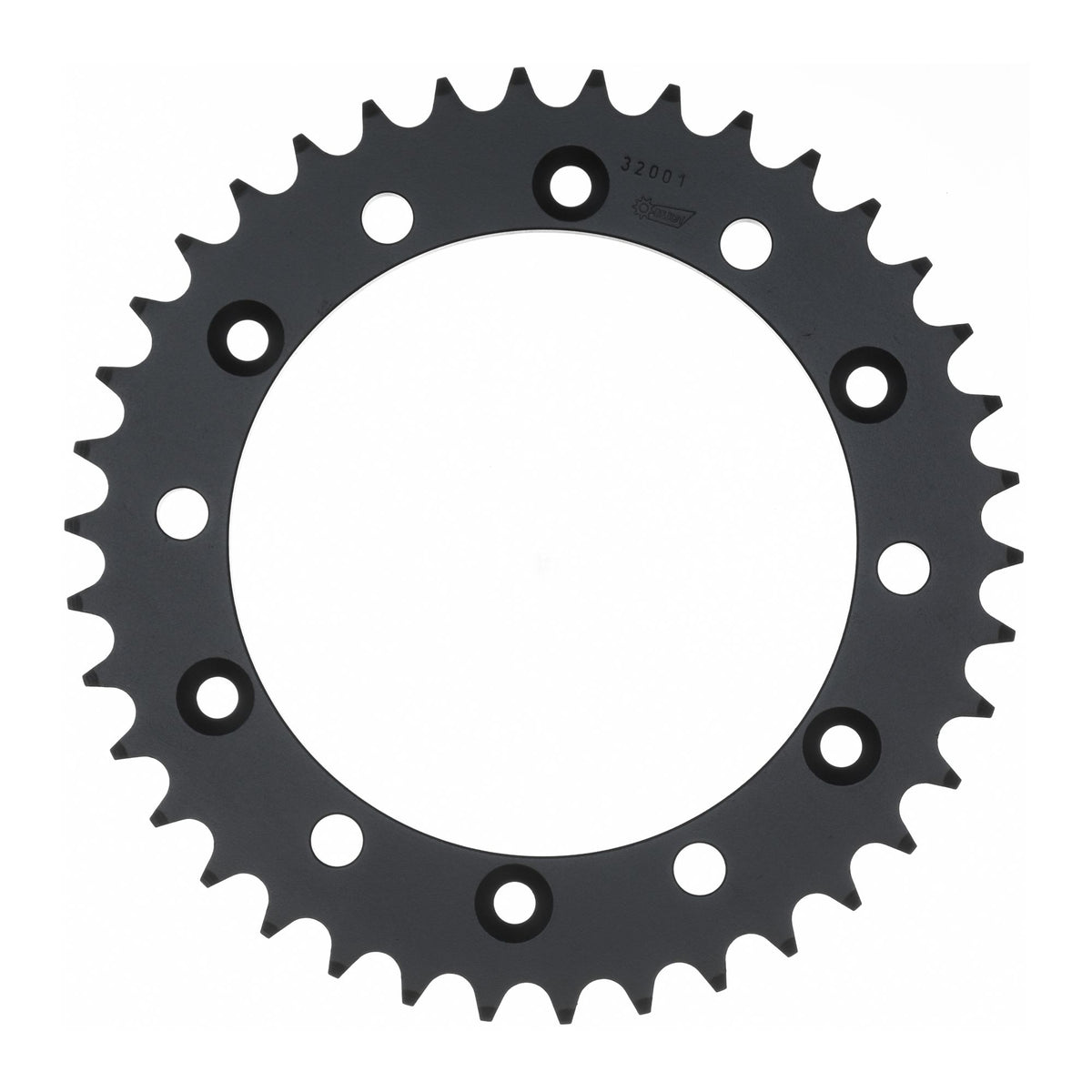

• Rear sprocket: Esjot rear sprocket 10304-49 12323 STEEL #520 49 teeth - a10304.49
• Gear ratio front sprocket-chain-rear sprocket: 13-112-49

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / road, off-road and moto-cross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-34286

Suitable for

Yamaha 126 - 250 cc YZ 250 F CG21C 2005
