AFAM chain kit for Yamaha YZ 250 F 2006 520 MR2G chain kit

AFAM Chain kit for Yamaha YZ 250 F 2006 520 MR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit for Yamaha YZ 250 F CG25C 2006-2006

• Sprocket: AFAM sprocket #520 13 teeth - a21309.13
• Chain: AFAM chain 520 MR2-G with clip link - a520mr2.g.112

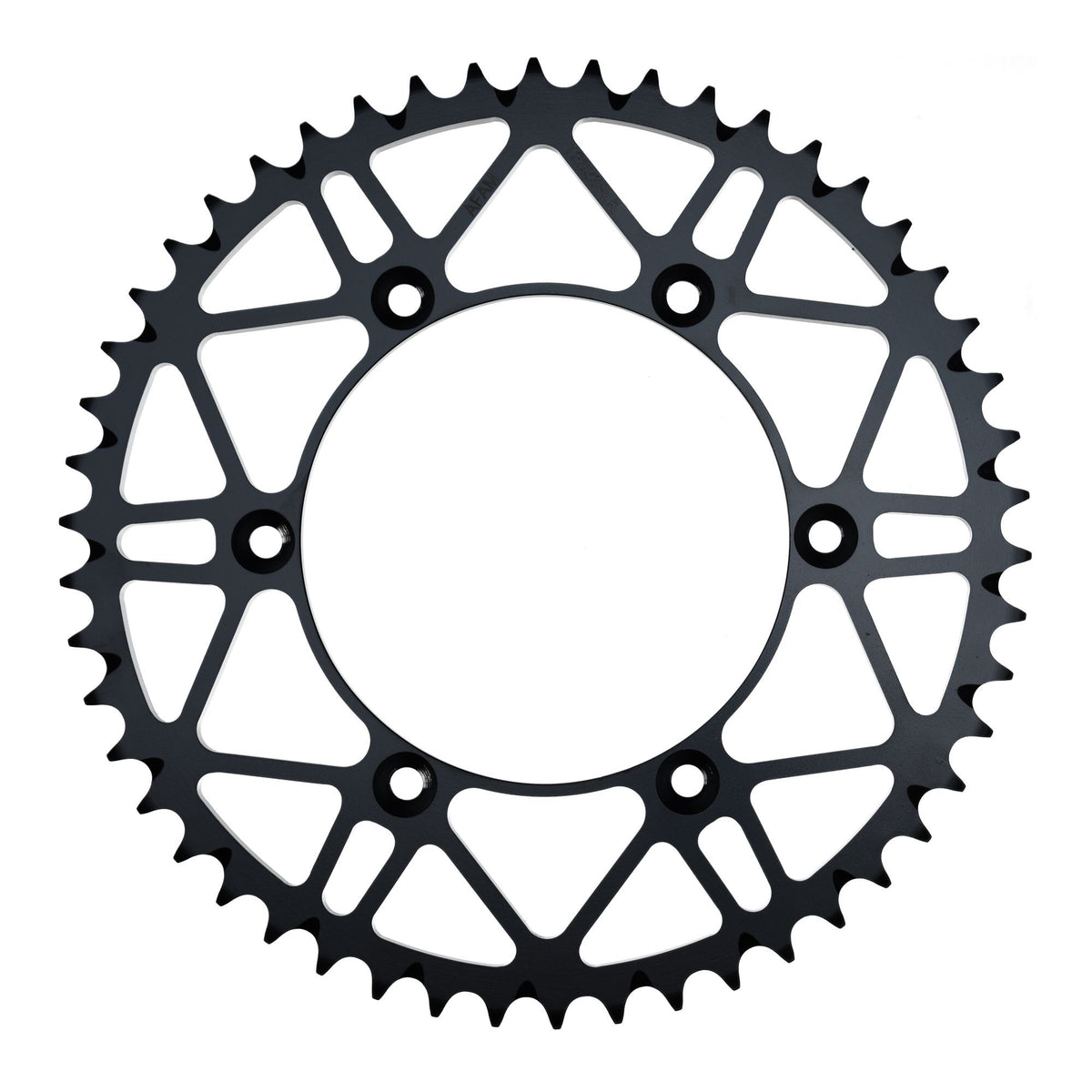

• Chain wheel: AFAM steel chain wheel #520 with mud grooves 49 T - a12323slk.49
• Gear ratio sprocket-chain-chain wheel: 13-112-49

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, off-road and moto-cross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-53720

Suitable for

Yamaha 126 - 250 cc YZ 250 F CG25C 2006
