AFAM chain kit for Yamaha YZ 450 F 07-09 520 XMR3 chain kit

AFAM chain kit for Yamaha YZ 450 F 07-09 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha YZ 450 F CJ10C 2007-2009

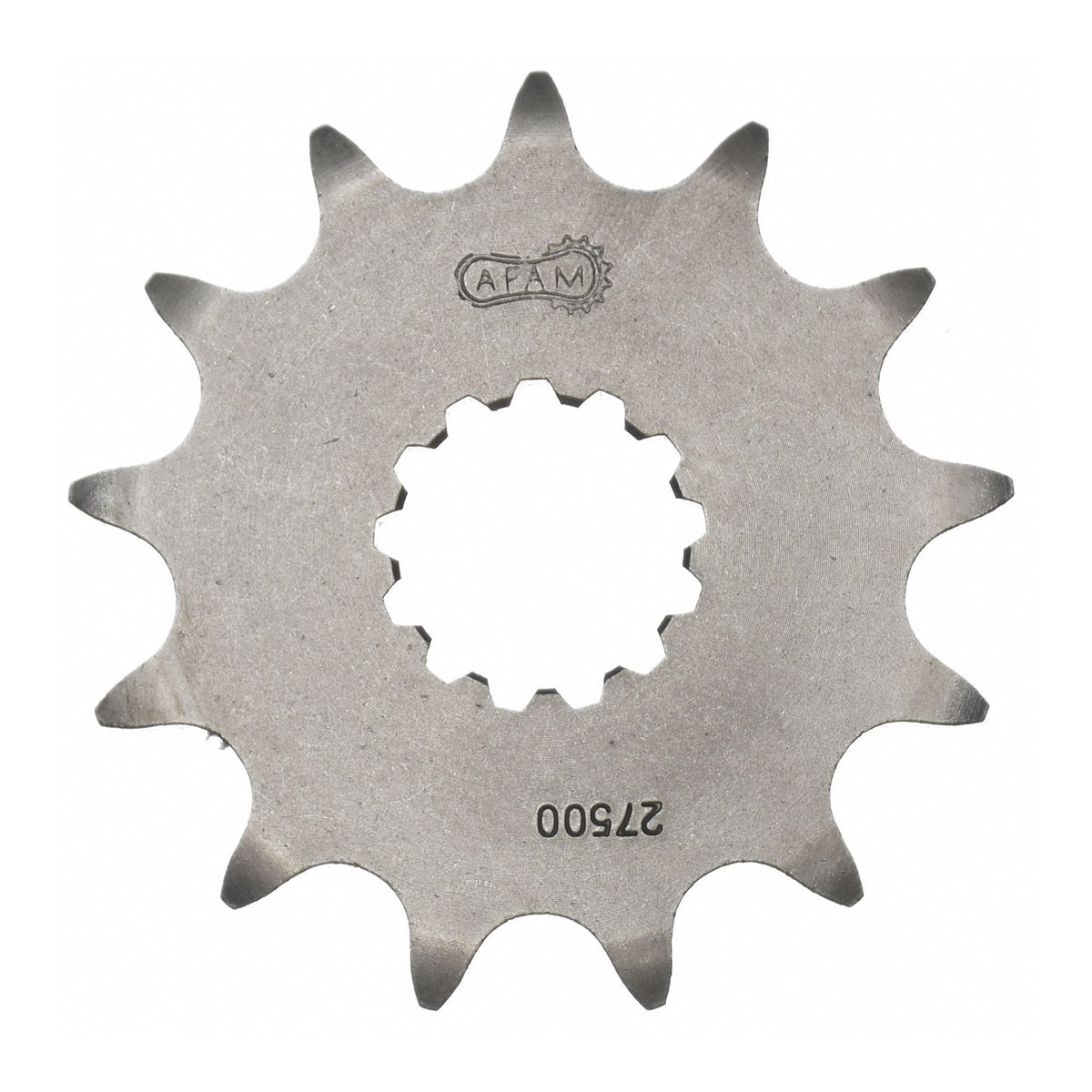

• Sprocket: AFAM sprocket #520 13 teeth - a27500.13
• Chain: AFAM chain 520 XMR3 Xs-Ring 114 w. rivet link - a520xmr3.114

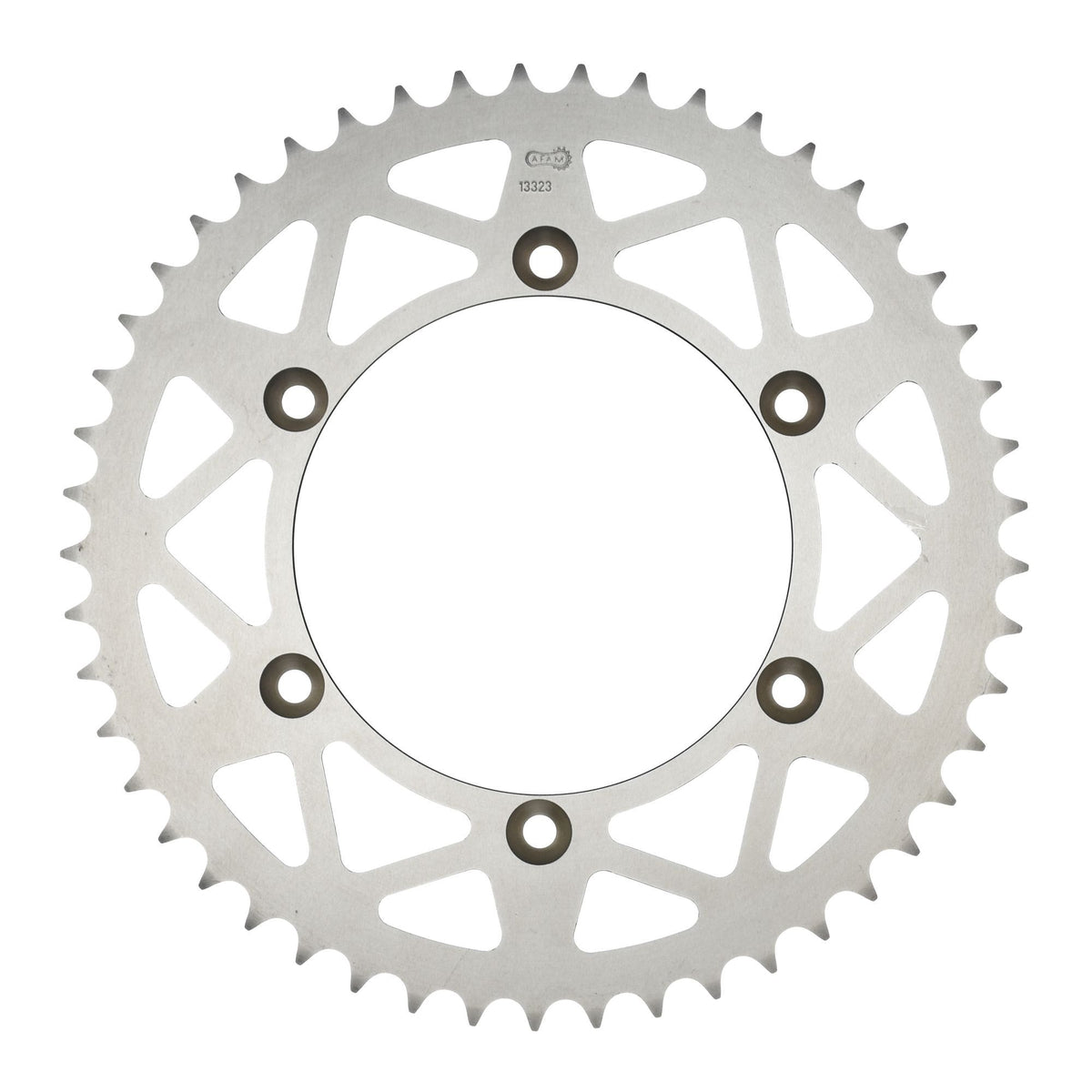

• Rear sprocket: AFAM rear sprocket ALU #520 49 teeth - a13323n.49
• Gear ratio sprocket-chain-rear sprocket: 13-114-49

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 ccm / road

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer that was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-48358

Suitable for

Yamaha 251 - 500 ccm YZ 450 F CJ10C 2007
Yamaha 251 - 500 ccm YZ 450 F CJ10C 2008
Yamaha 251 - 500 ccm YZ 450 F CJ10C 2009
