AFAM chain kit for Yamaha YZ 450 F 2014 520 MR2G chain kit

AFAM chain kit for Yamaha YZ 450 F 2014 520 MR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha YZ 450 F CJ18C 2014-2014

• Front sprocket: AFAM front sprocket #520 13 teeth - a27500.13
• Chain: AFAM chain 520 MR2-G w. clip link - a520mr2.g.114

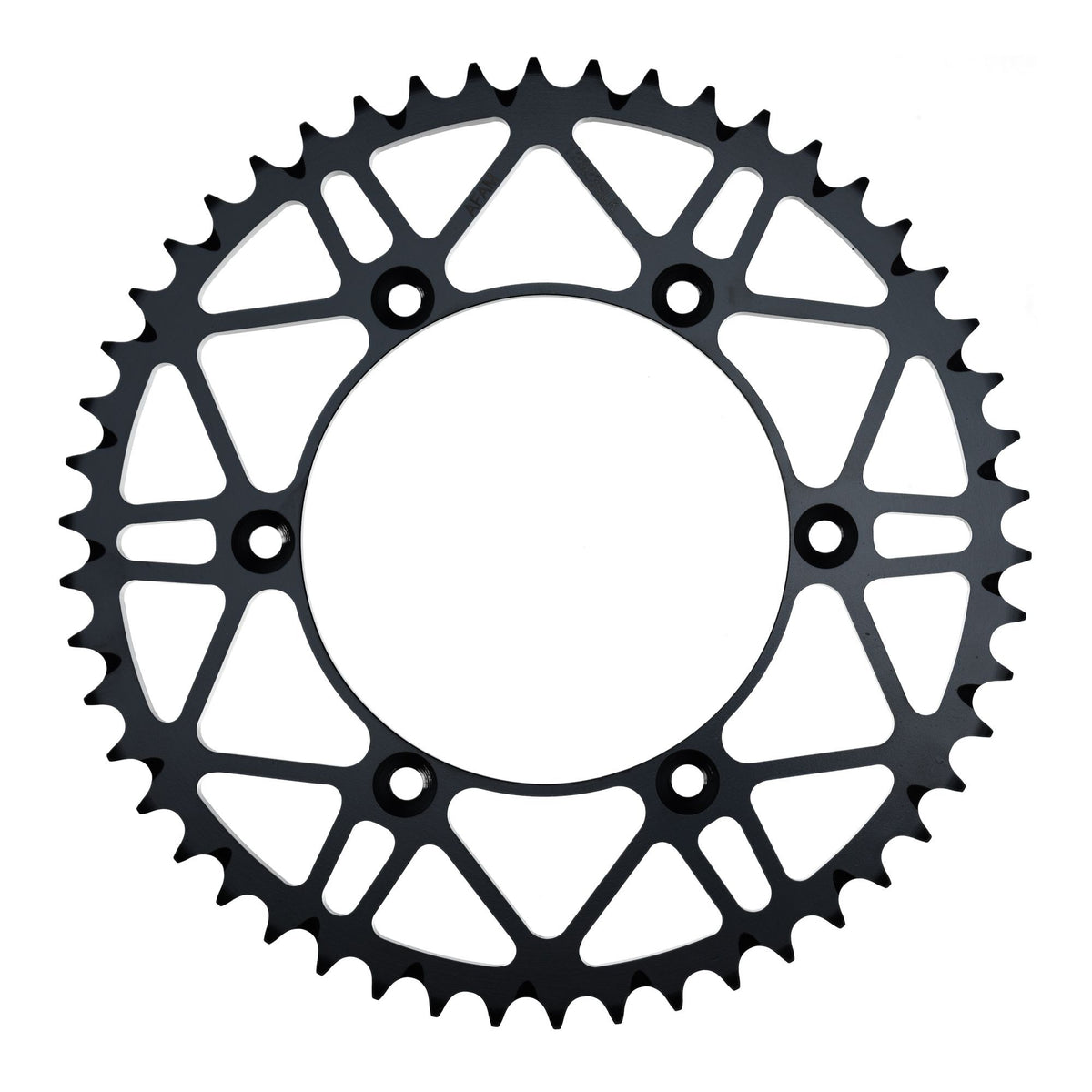

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 49T - a12323slk.49
• Gear ratio front sprocket-chain-rear sprocket: 13-114-49

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, off-road and moto-cross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-54158

Fits

Yamaha 251 - 500 cc YZ 450 F CJ18C 2014
