AFAM chain kit for Yamaha YZ 450 F 2015 520 XMR3 chain kit

AFAM chain kit for Yamaha YZ 450 F 2015 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless stated otherwise: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha YZ 450 F CJ18C 2015-2015

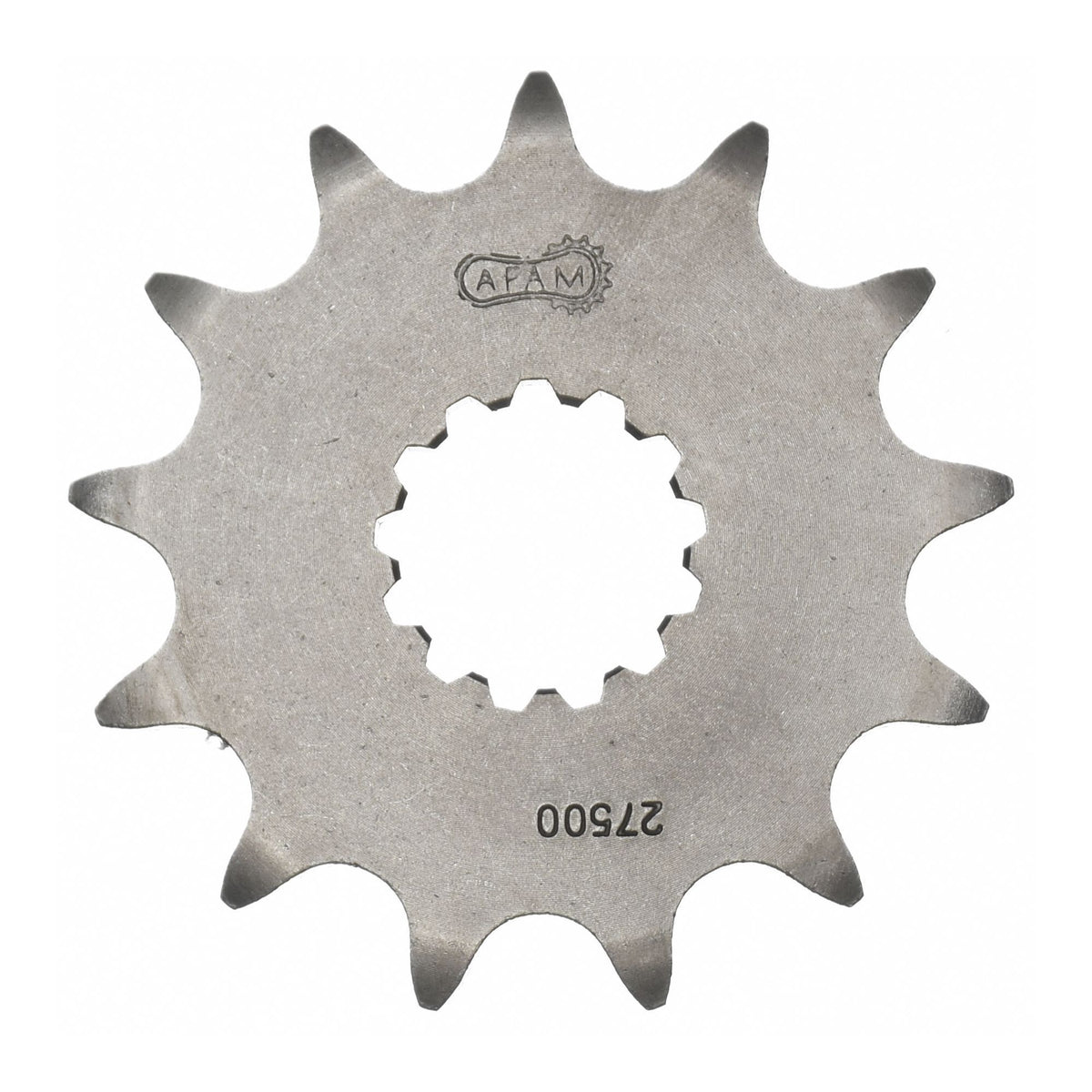

• Front sprocket: AFAM sprocket #520 13 teeth - a27500.13
• Chain: AFAM chain 520 XMR3 Xs-Ring 114 with rivet link - a520xmr3.114

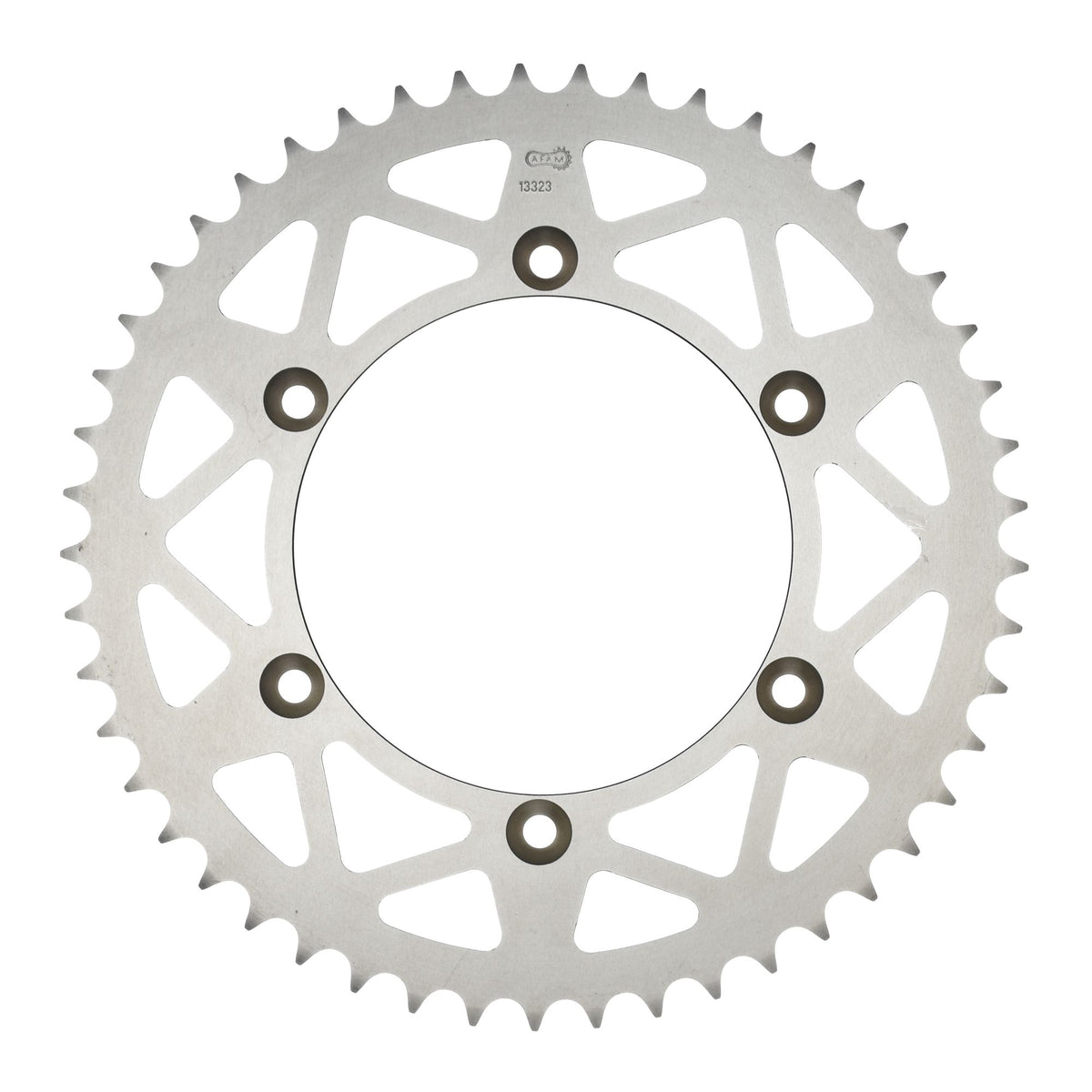

• Rear sprocket: AFAM sprocket ALU #520 48 teeth - a13323n.48
• Gear ratio sprocket-chain-rear sprocket: 13-114-48

AFAM 520 XMR3

Reinforced chain with smooth running properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless stated otherwise: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-54164

Suitable for

Yamaha 251 - 500 cc YZ 450 F CJ18C 2015
