AFAM chain kit for Yamaha YZ 490 1984 520 XMR3 chain kit

AFAM chain kit for Yamaha YZ 490 1984 520 XMR3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Yamaha YZ 490 43R 1984-1984

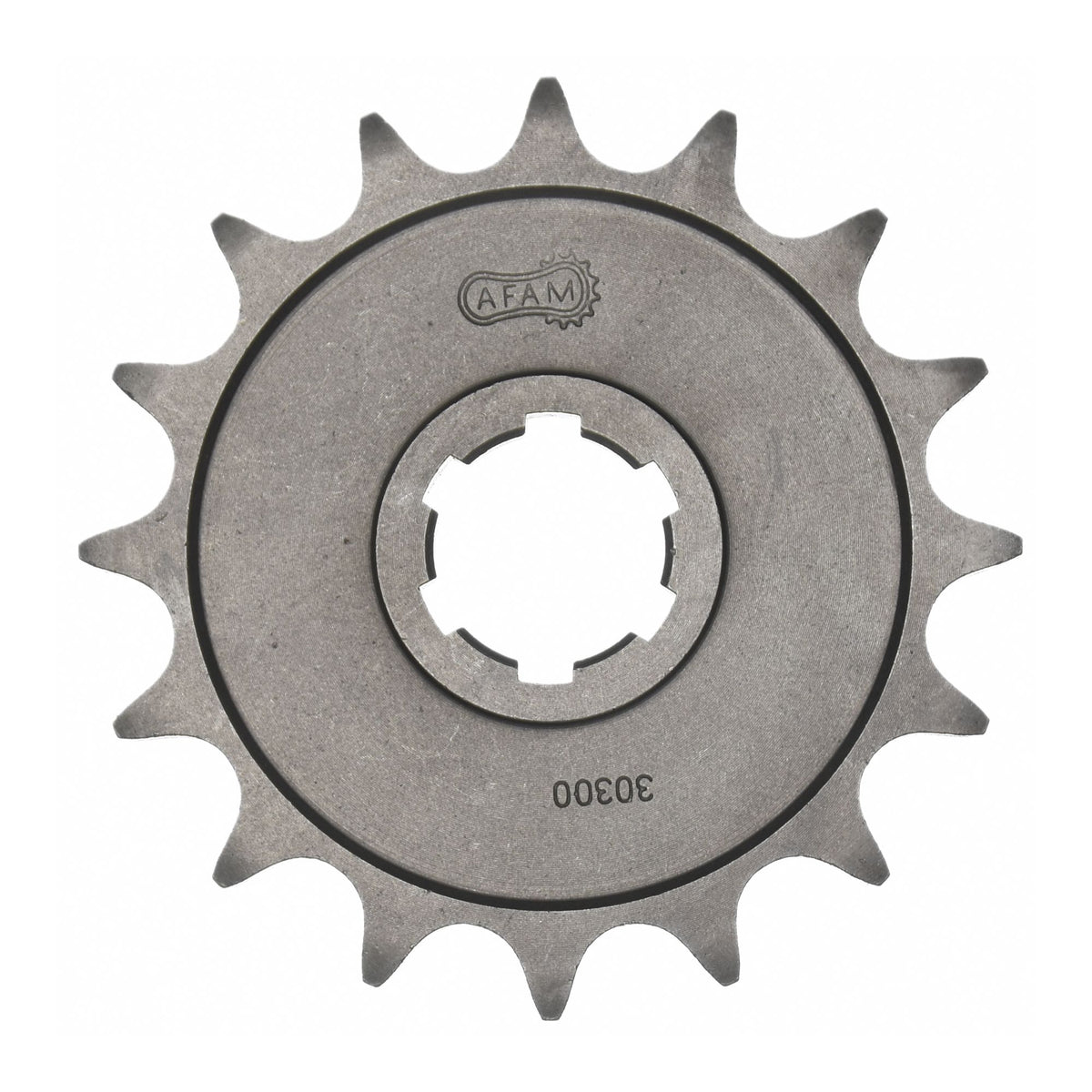

• Front sprocket: AFAM sprocket #520 14 teeth - a30300.14
• Chain: AFAM chain 520 XMR3 XS-ring 114 with rivet link - a520xmr3.114

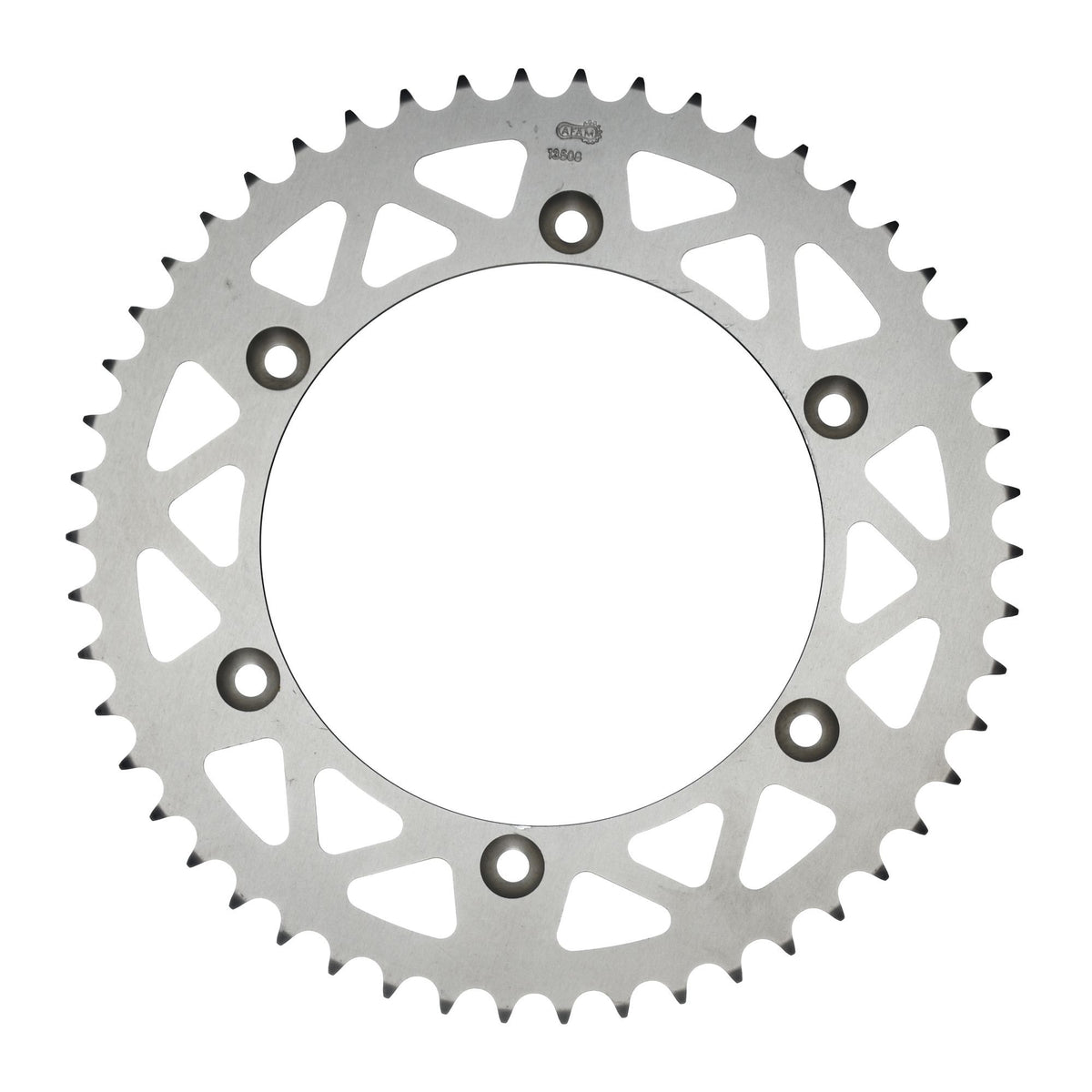

• Rear sprocket: AFAM sprocket ALU #520 50 teeth - a13508n.50
• Gear ratio front sprocket-chain-rear sprocket: 14-114-50

AFAM 520 XMR3

Reinforced chain with smooth running properties
XS-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-54233

Suitable for

Yamaha 251 - 500 cc YZ 490 43R 1984
