AFAM chain kit for Yamaha YZ 80 1984 428 XMRG chain kit

AFAM chain kit for Yamaha YZ 80 1984 428 XMRG chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Yamaha YZ 80 43K 1984-1984

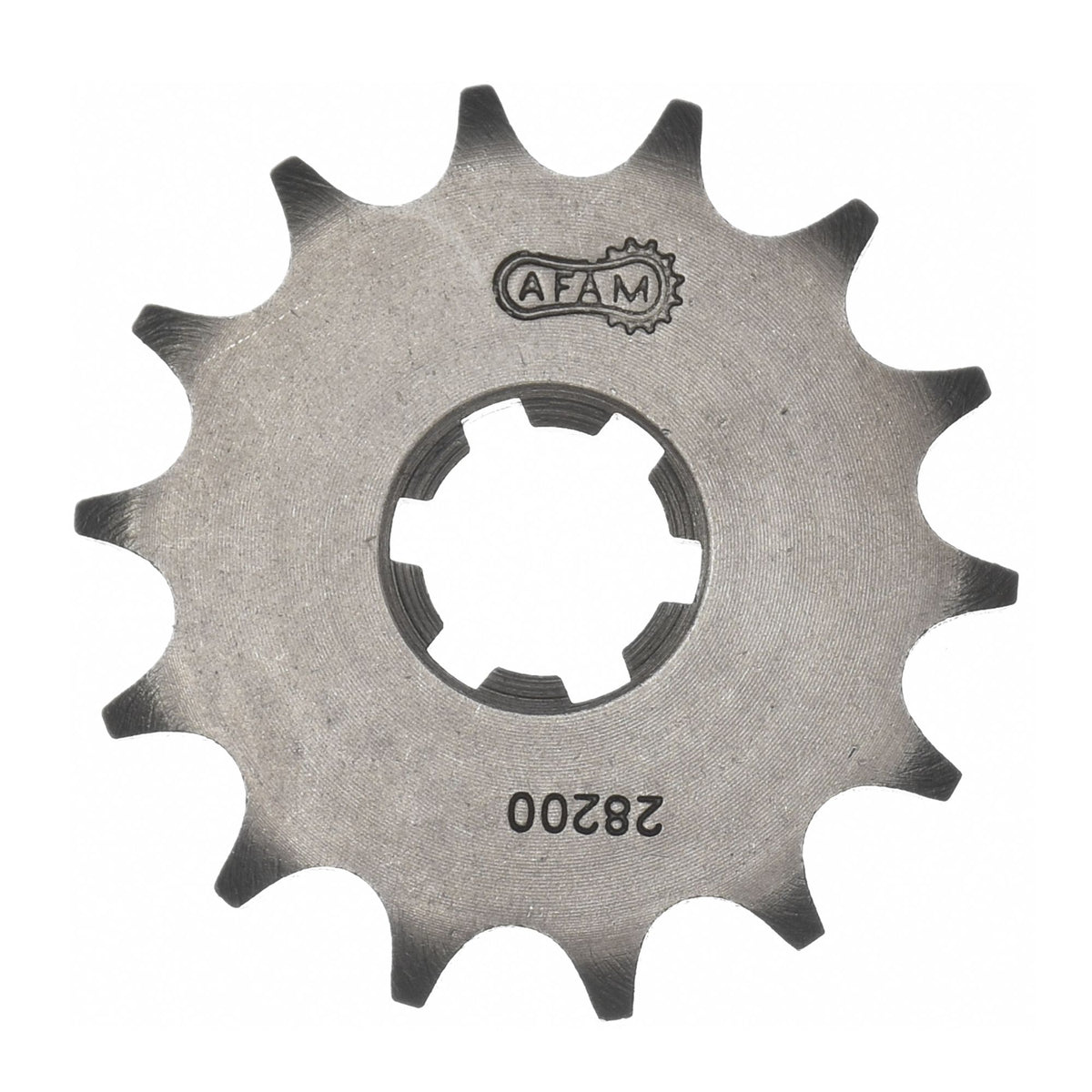

• Front sprocket: AFAM sprocket #428 15 teeth - a28200.15
• Chain: AFAM chain 428 XMR-G Xs-ring 114 with clip link - a428xmr.g.114

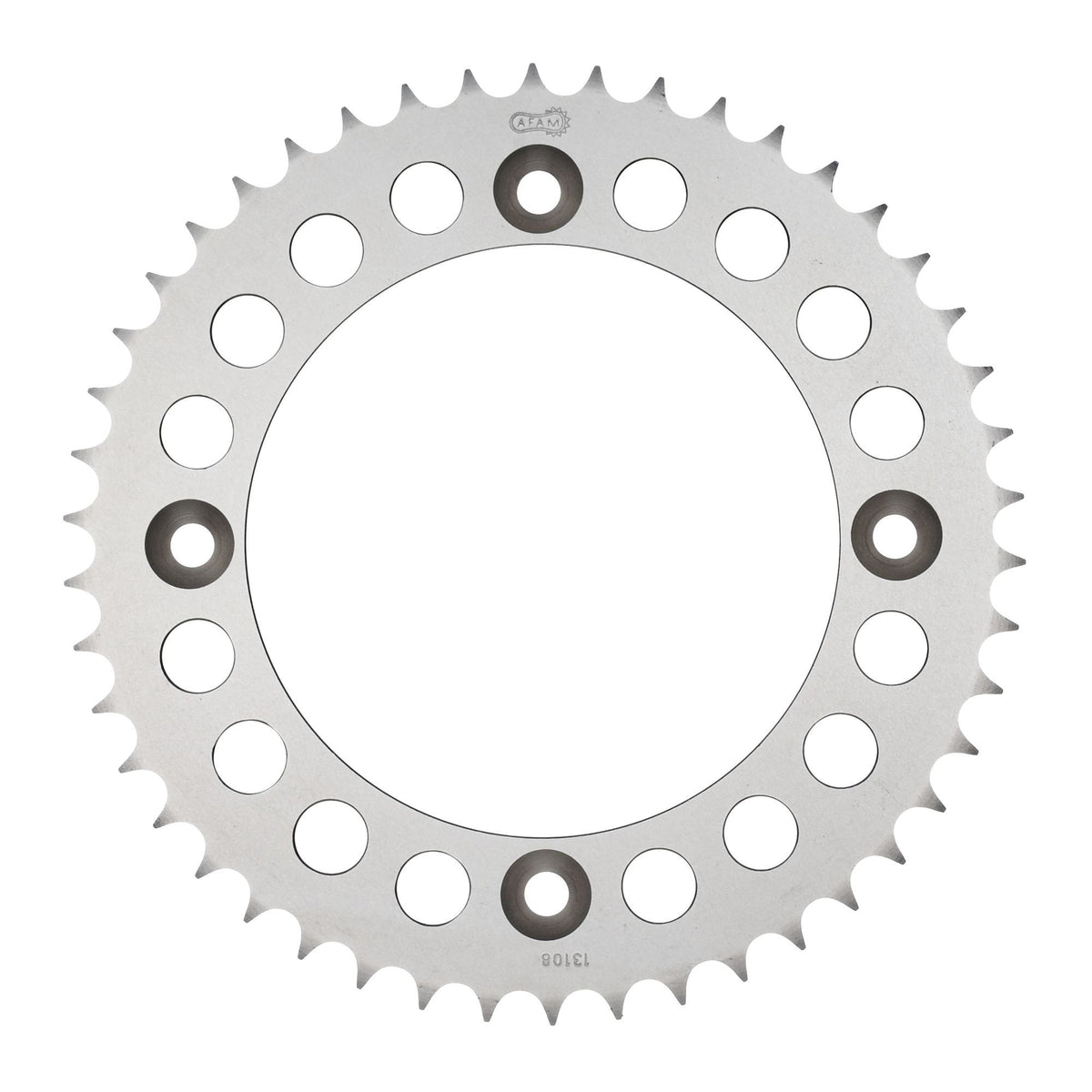

• Rear sprocket: AFAM rear sprocket ALU #428 46 teeth - a13108.46
• Gear ratio sprocket-chain-rear sprocket: 15-114-46

AFAM 428 XMR-G

Reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by engine displacement: up to 250 cc

Technical data:
Pitch: 428
Pin length: 20.10 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.03 kg

Unless otherwise stated: The product offered is a third-party accessory/spare part, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-44458

Suitable for

Yamaha 0 - 100 cc YZ 80 43K 1984
