AFAM chain kit for Yamaha YZF 1000 Thunder Ace 96-01 530 XHR2G chain kit

AFAM chain kit for Yamaha YZF 1000 Thunder Ace 96-01 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to show compatibility!

Components of the chain kit for Yamaha YZF 1000 Thunder Ace 4VD 1996-2001 output 72kW=98HP conversion 530

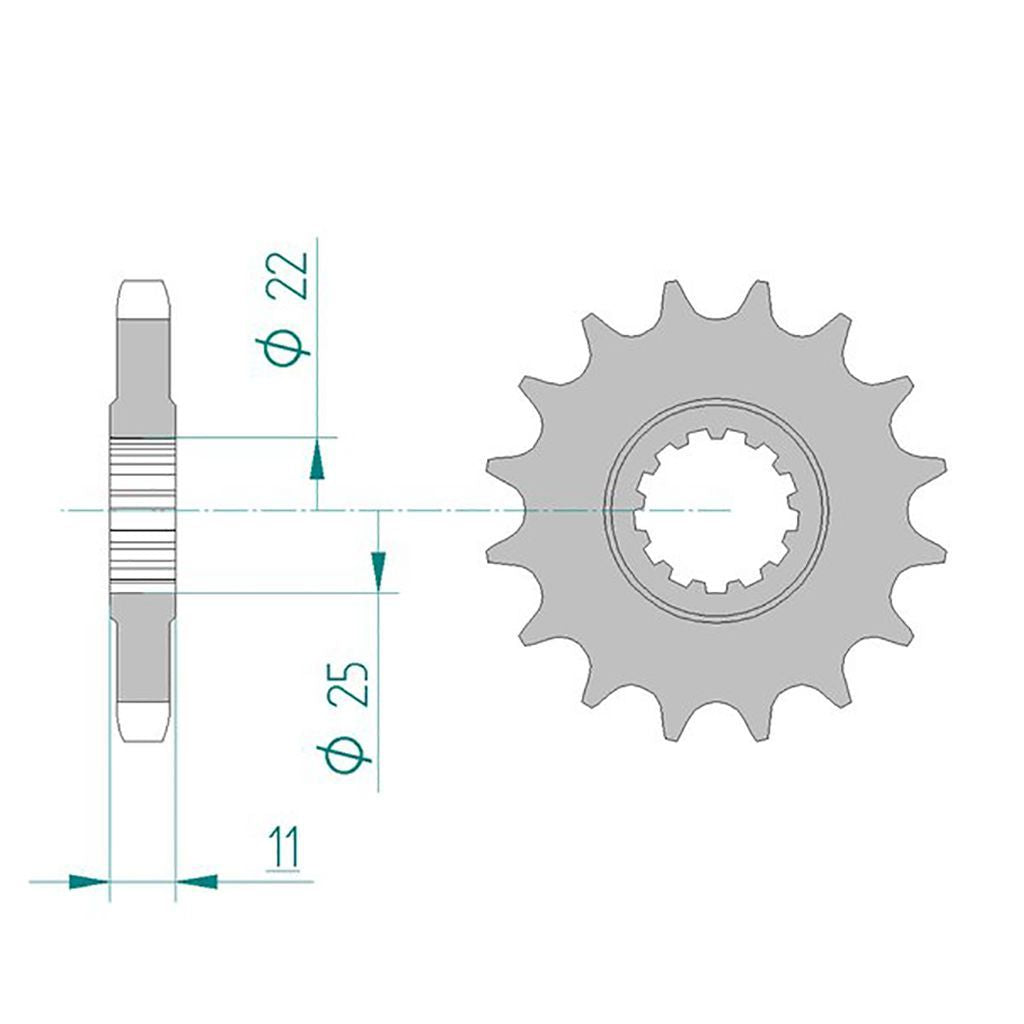

• Front sprocket: AFAM front sprocket #530 17 teeth - a21602.17
• Chain: AFAM chain 530 XHR2-G Xs-ring 110 with rivet link - a530xhr2.g.110

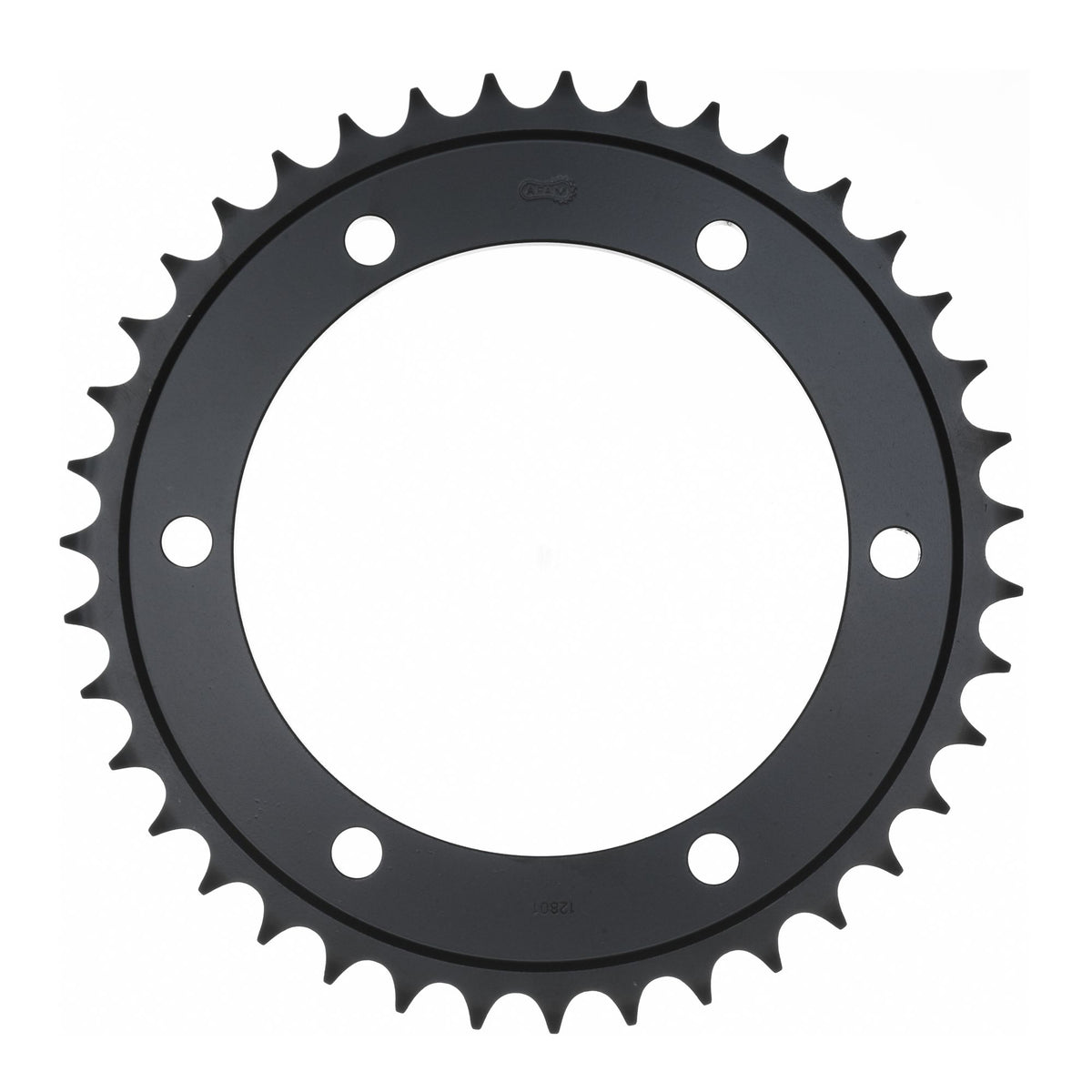

• Rear sprocket: AFAM rear sprocket STEEL #530 47 teeth - a12801.47
• Transmission ratio front sprocket-chain-rear sprocket: 17-110-47 output 72kW=98HP conversion 530

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-51395

Suitable for

Yamaha 751 - 1000 cc YZF 1000 Thunder Ace 4VD 1996
Yamaha 751 - 1000 cc YZF 1000 Thunder Ace 4VD 1997
Yamaha 751 - 1000 cc YZF 1000 Thunder Ace 4VD 1998
Yamaha 751 - 1000 cc YZF 1000 Thunder Ace 4VD 1999
Yamaha 751 - 1000 cc YZF 1000 Thunder Ace 4VD 2000
Yamaha 751 - 1000 cc YZF 1000 Thunder Ace 4VD 2001
