DID chain kit for Aprilia RS 125 ABS 21-24 428 HD chain kit

DID chain set for Aprilia RS 125 ABS 21-24 428 HD chain kit

Chain kit or chain set for the specified model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

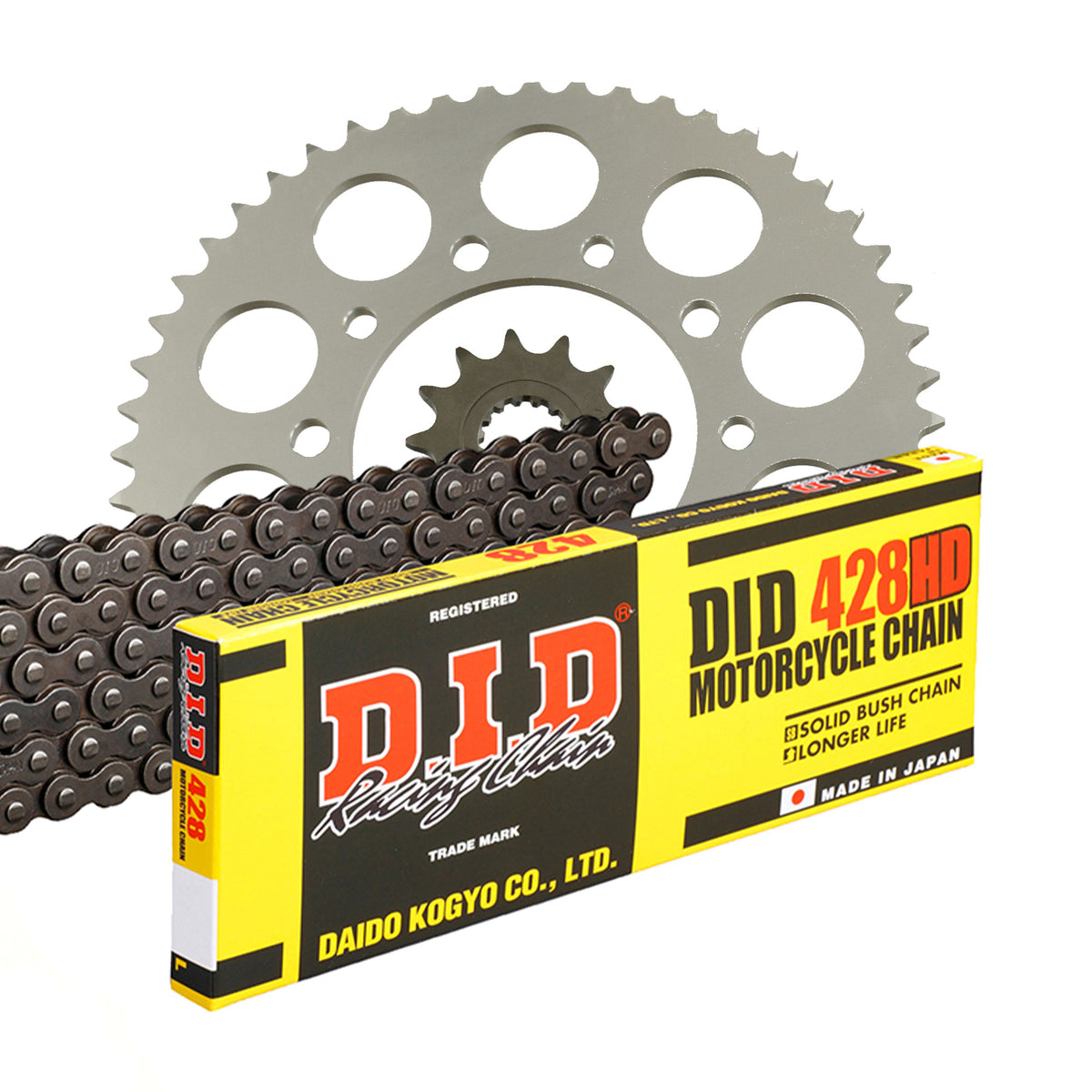

Components of the chain kit Aprilia RS 125 ABS XAA 2021-2024

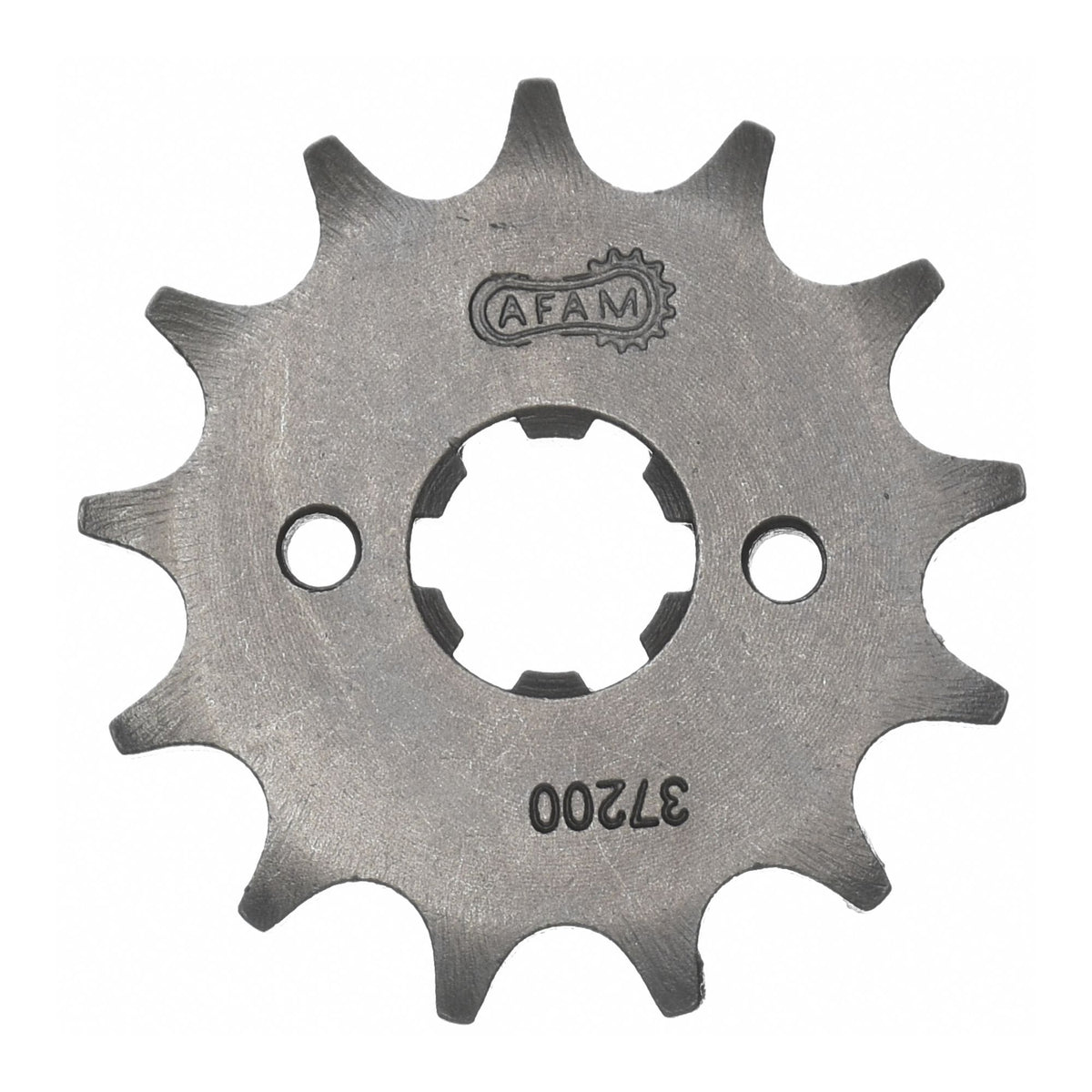

• Front sprocket: AFAM sprocket #428 13 teeth - a37200.13

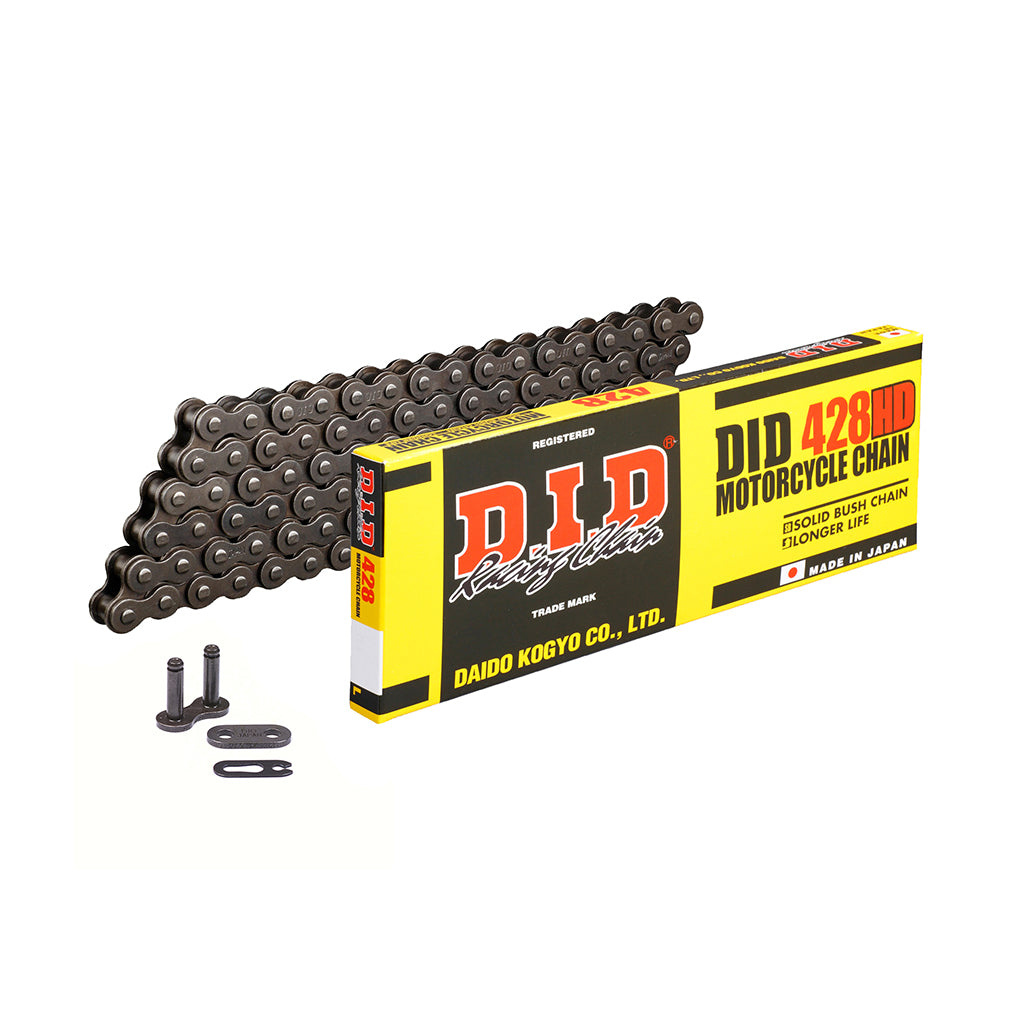

• Chain: DID chain 428 HD 136 with clip link - d6242801136

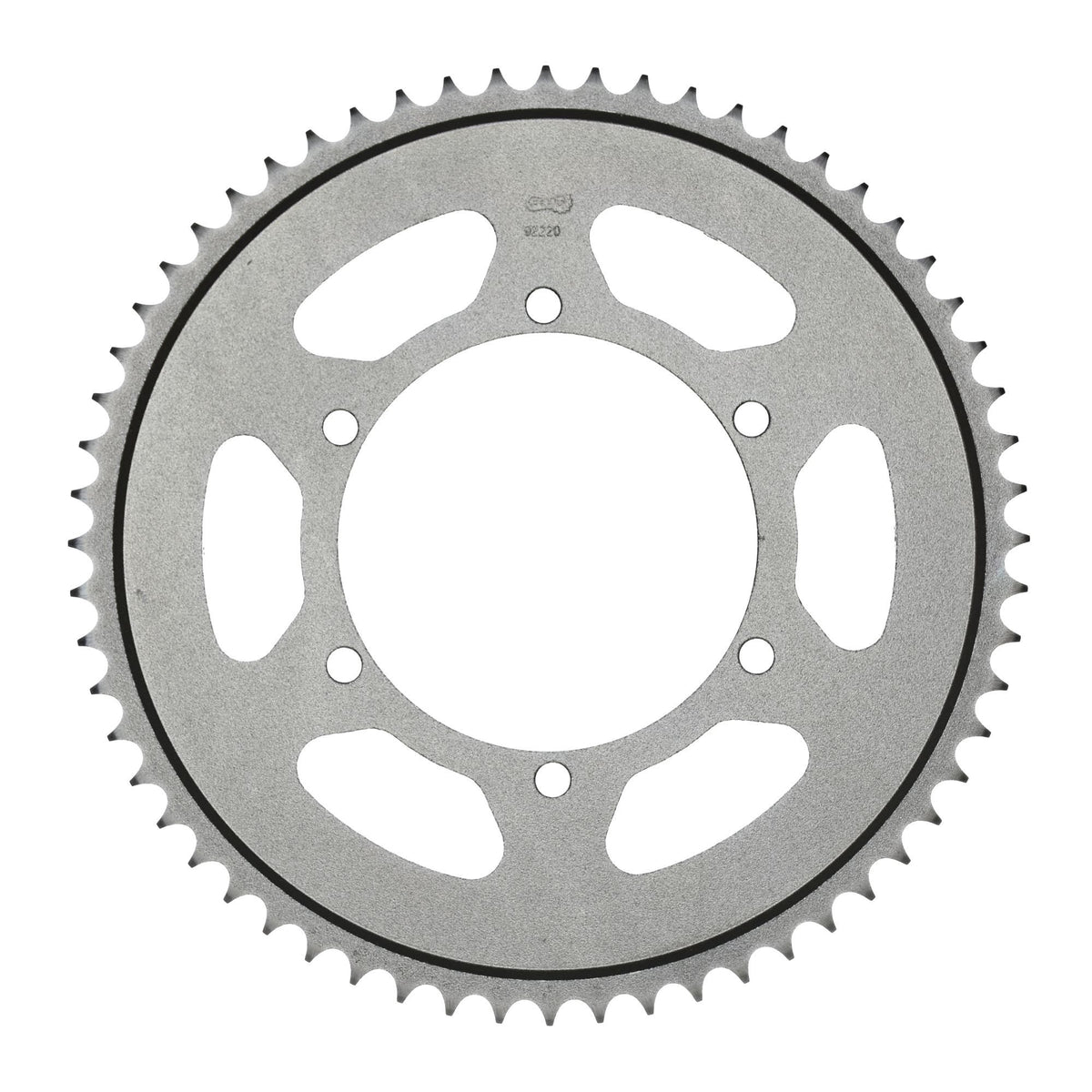

• Rear sprocket: AFAM steel sprocket #428 58 teeth - a92220.58
• Gear ratio front sprocket-chain-rear sprocket: 13-136-58

DID 428 HD

Slightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical specifications:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-78302

Suitable for

Aprilia 101 - 125 cc RS 125 ABS XAA 2021
Aprilia 101 - 125 cc RS 125 ABS XAA 2022
Aprilia 101 - 125 cc RS 125 ABS XAA 2023
Aprilia 101 - 125 cc RS 125 ABS XAA 2024
