DID chain kit for Aprilia RS 660 Extrema 23-24 520 ZVMX chain kit

DID chain kit for Aprilia RS 660 Extrema 23-24 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

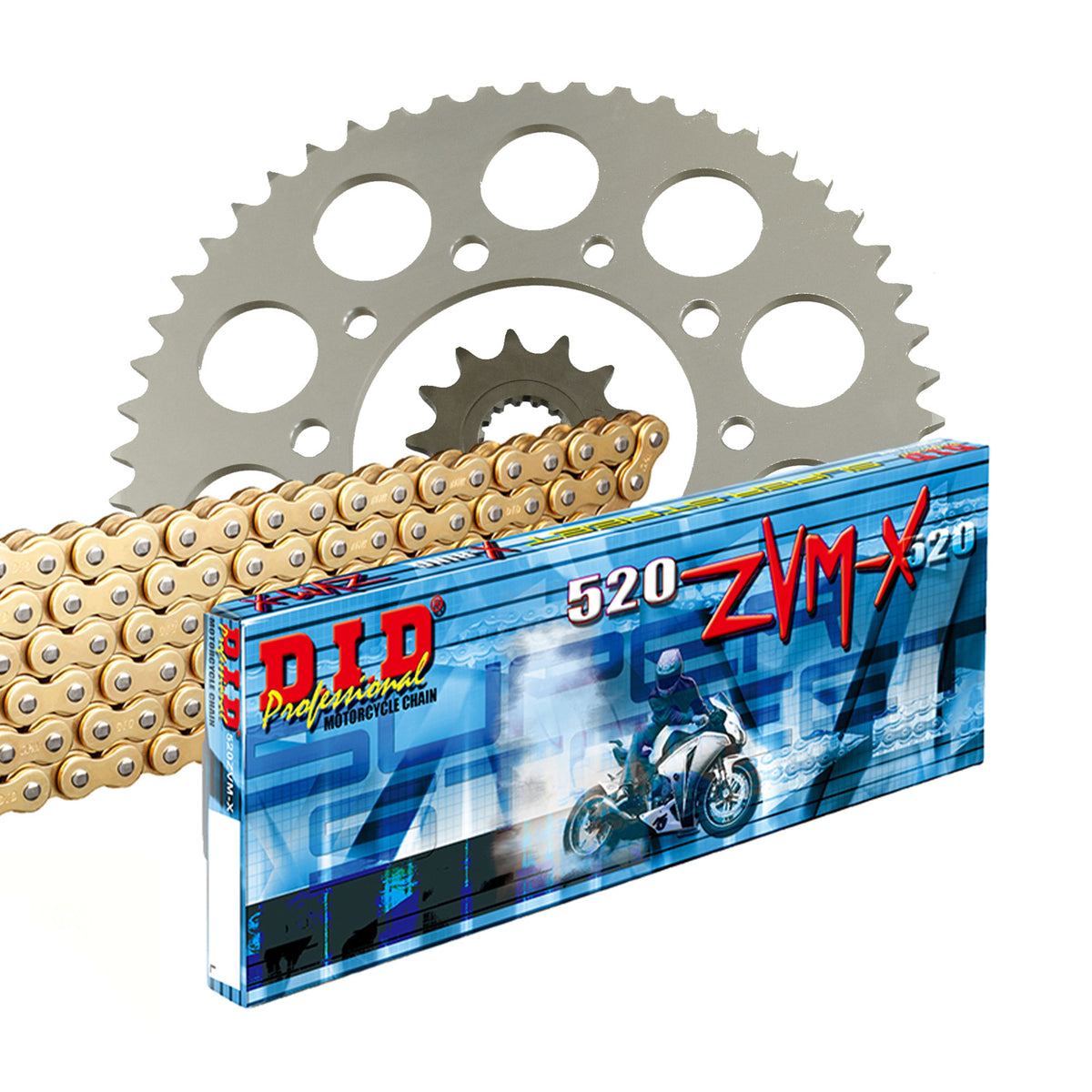

Components of the chain kit Aprilia RS 660 Extrema KSR00 2023-2024

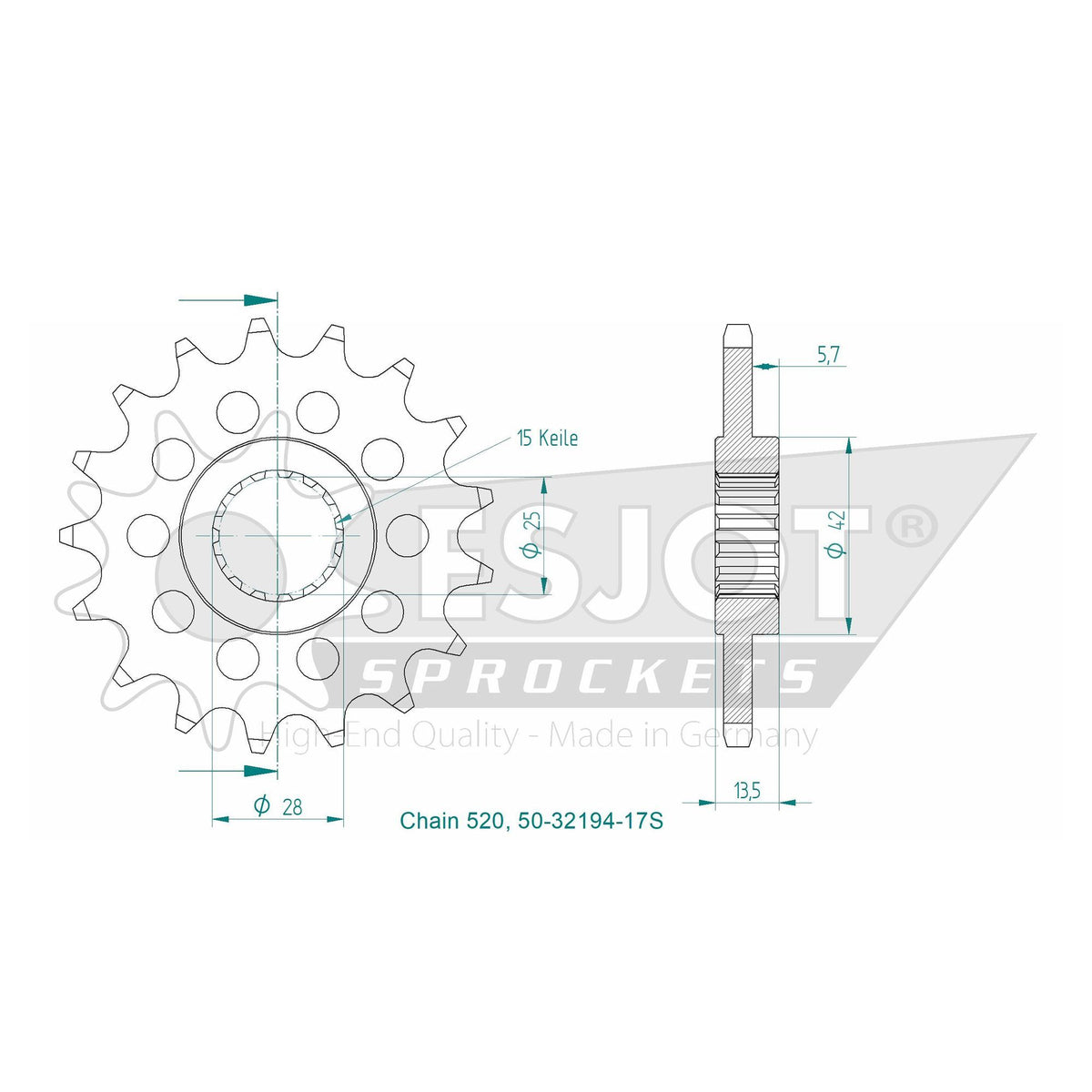

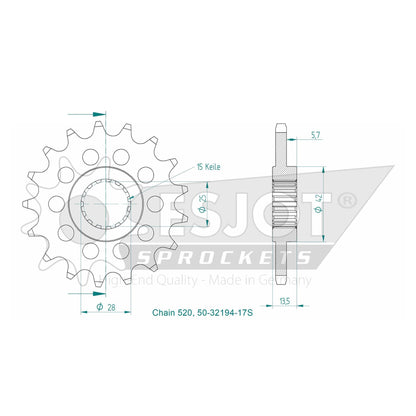

• Front sprocket: AFAM front sprocket 50-32194-17S #520 17 teeth - e5032194.17

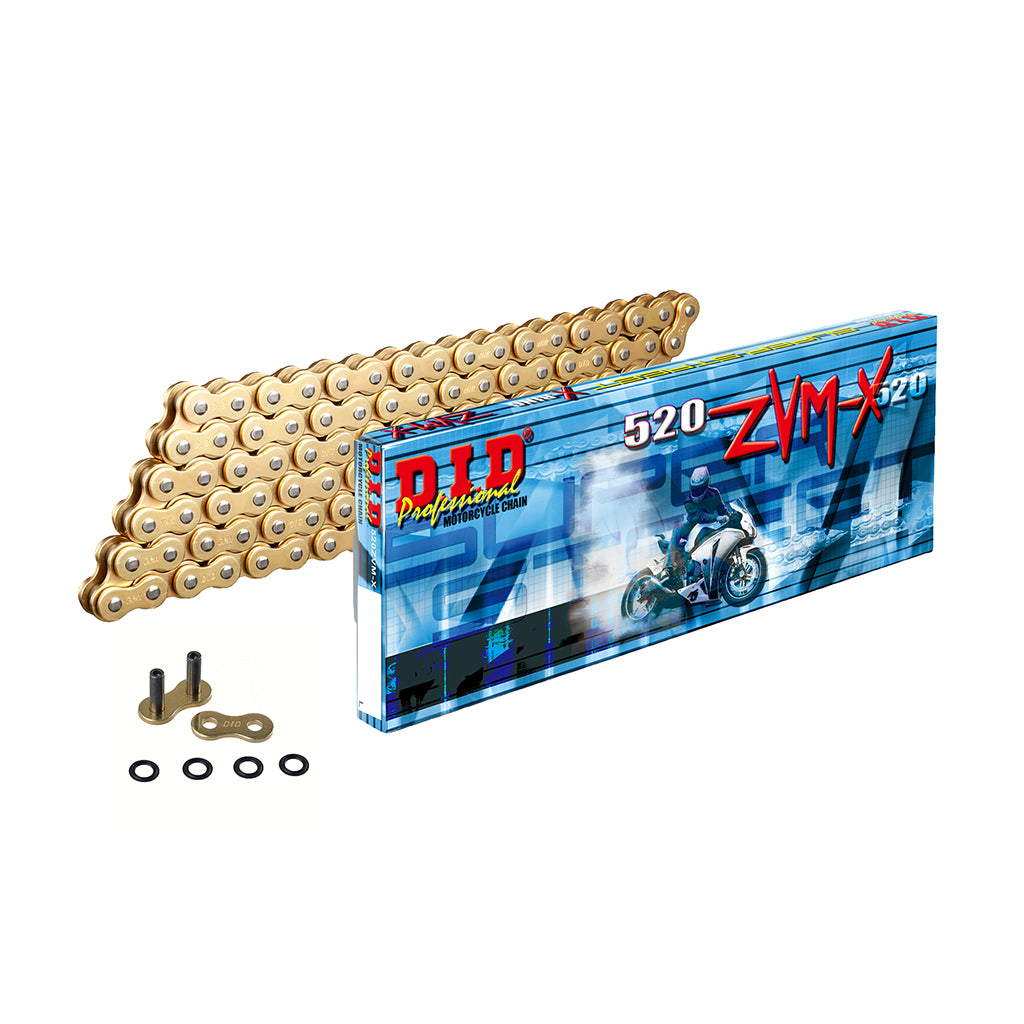

• Chain: DID chain 520 ZVM-X G&G 110 w. rivet link - d6252029110

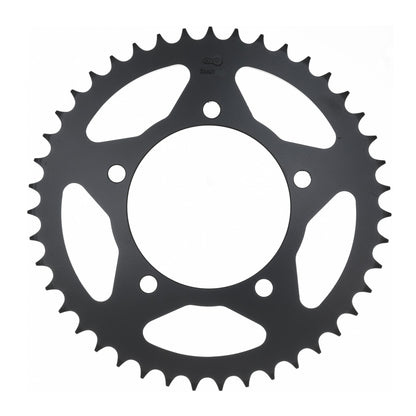

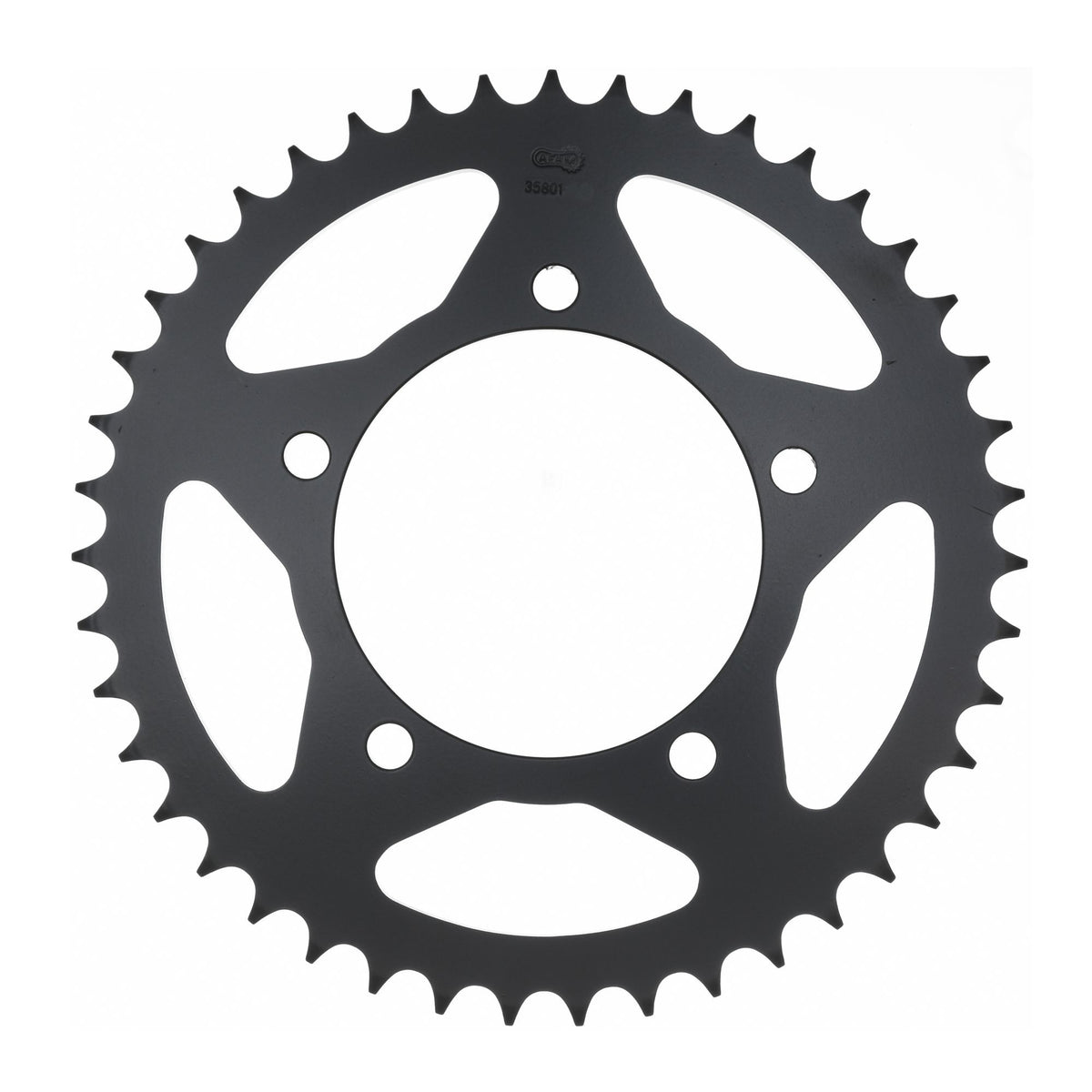

• Rear sprocket: AFAM steel sprocket #520 43 teeth - a35801.43
• Gear ratio front sprocket-chain-rear sprocket: 17-110-43

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-78490

Suitable for

Aprilia 501 - 750 cc RS 660 Extrema KSR00 2023
Aprilia 501 - 750 cc RS 660 Extrema KSR00 2024
