DID chain set for Aprilia RS 660 Factory 2025 520 ZVMX chain kit

DID chain kit for Aprilia RS 660 Factory 2025 520 ZVMX chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

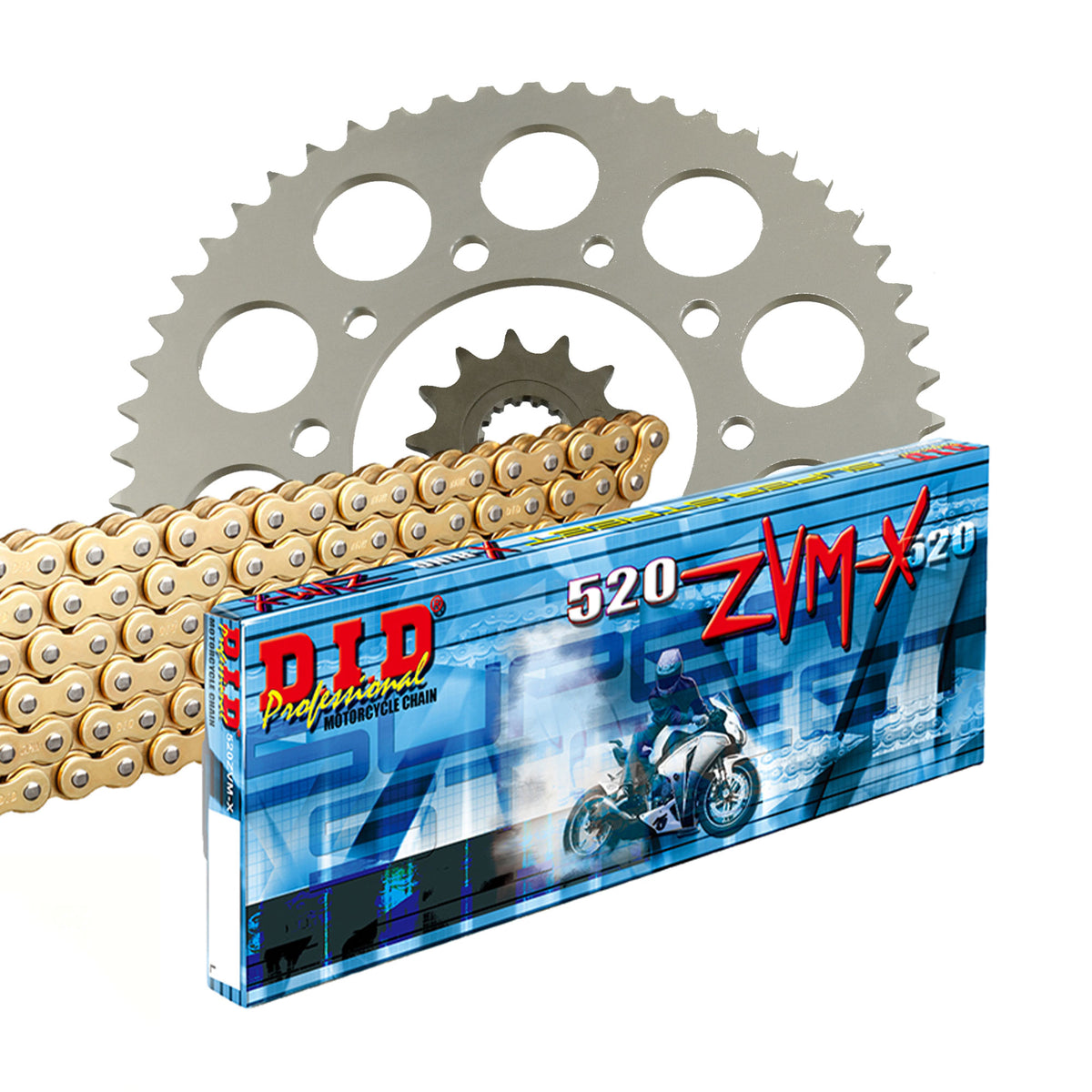

Components of the Aprilia RS 660 Factory XGH00 2025-2025 chain kit

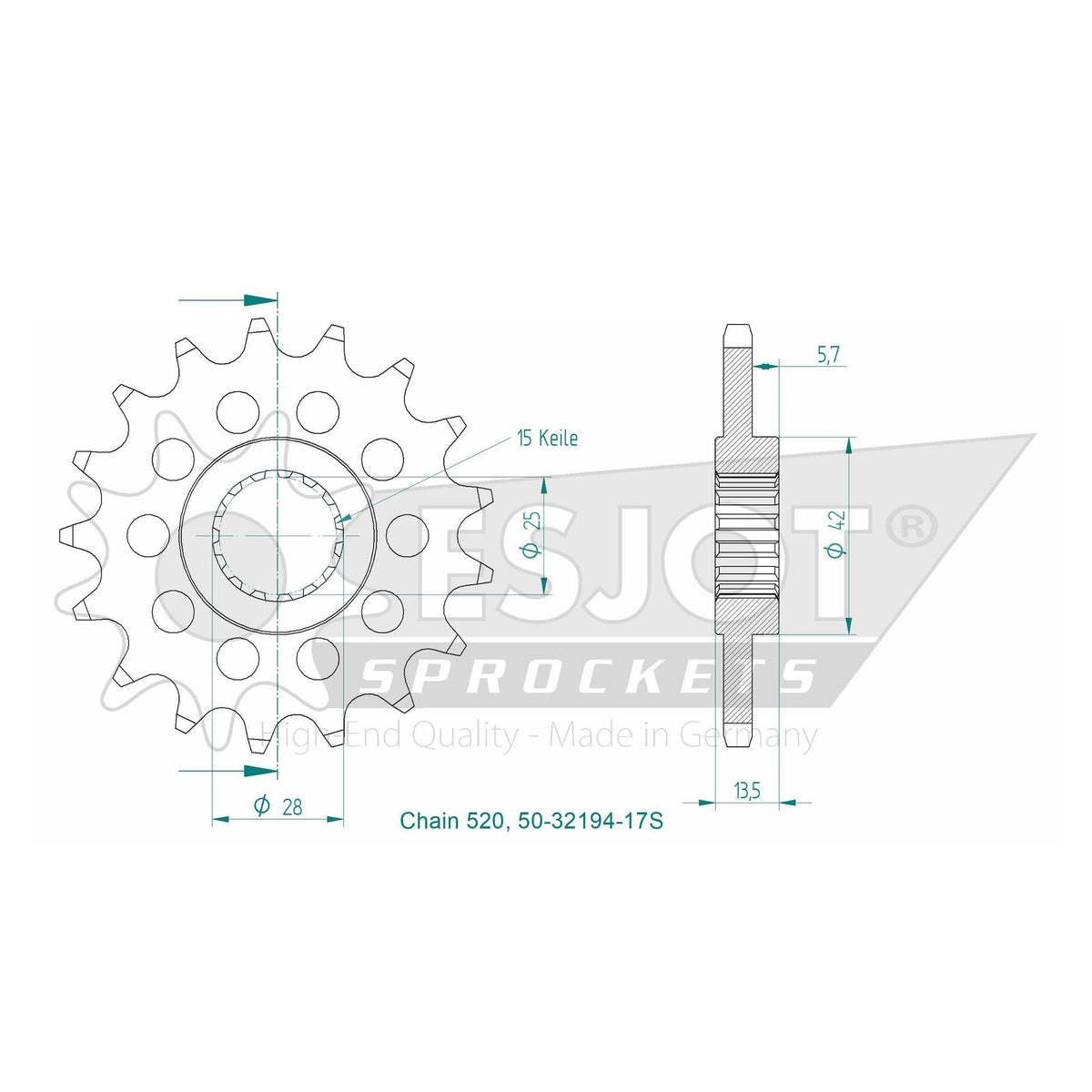

• Front sprocket: AFAM front sprocket 50-32194-17S #520 17 teeth - e5032194.17

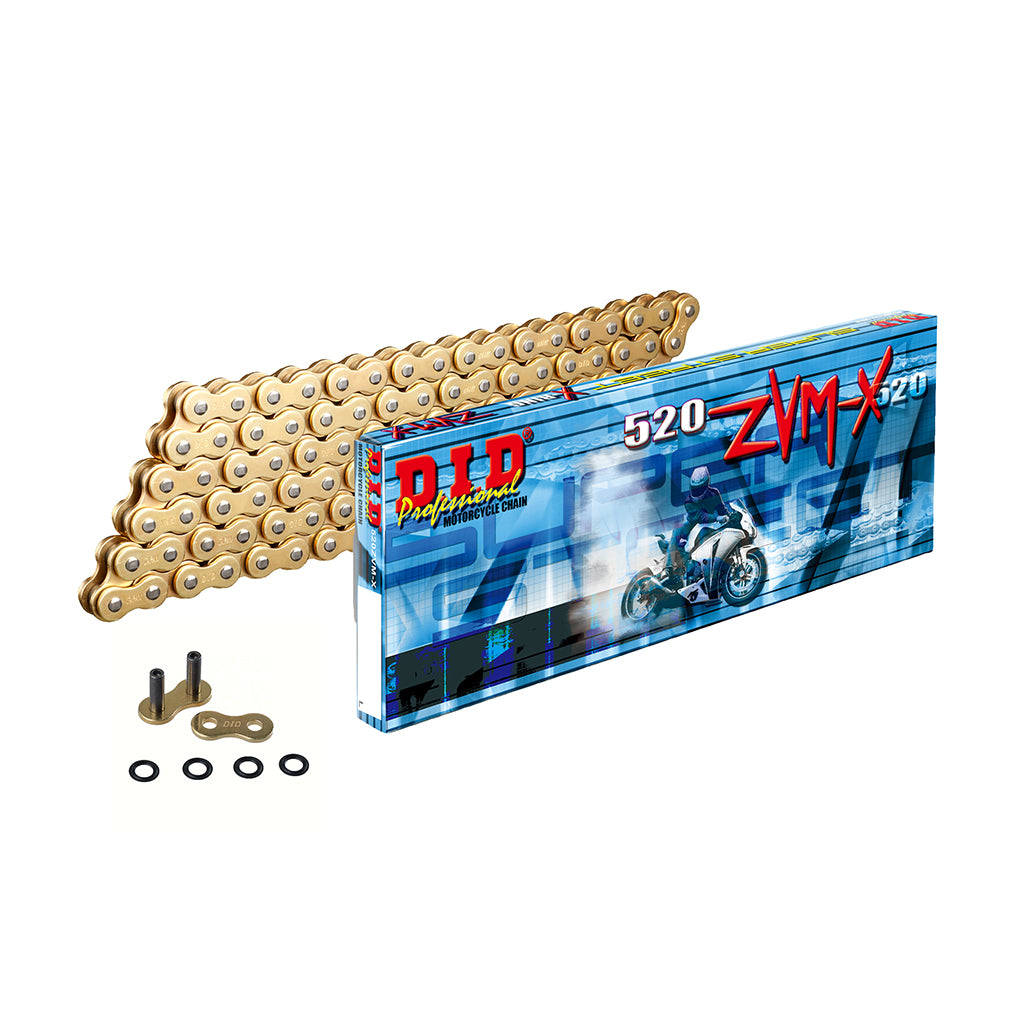

• Chain: DID chain 520 ZVM-X G&G 110 w. rivet link - d6252029110

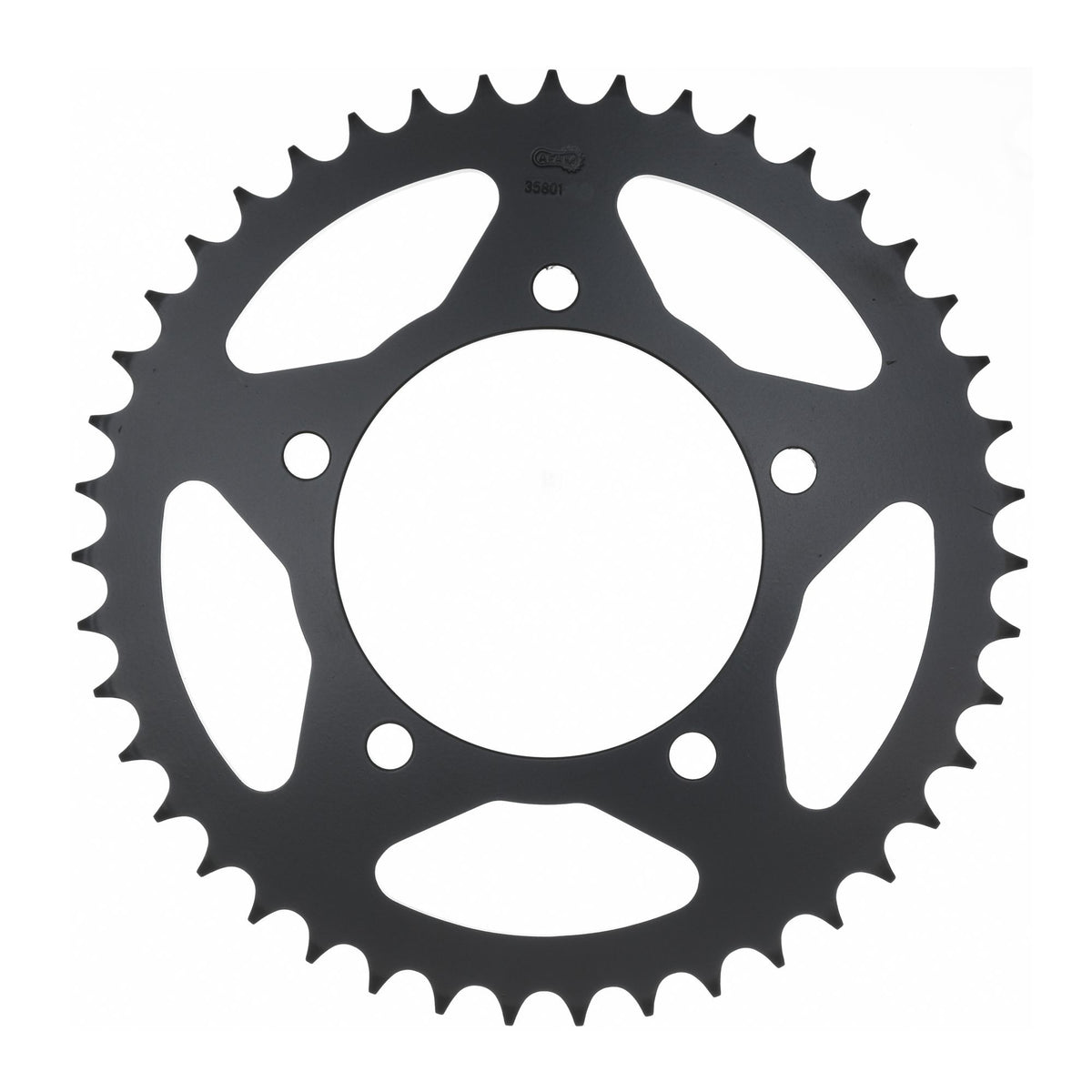

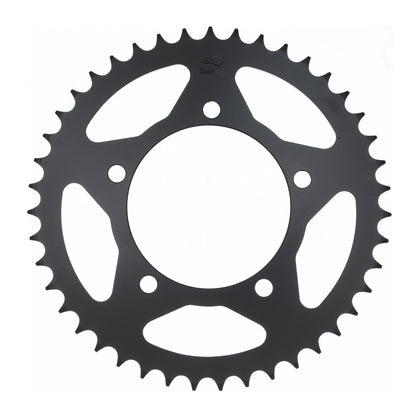

• Rear sprocket: AFAM rear sprocket steel #520 43 teeth - a35801.43
• Gear ratio front sprocket-chain-rear sprocket: 17-110-43

DID 520 ZVM-X

Extra reinforced chain, versatile application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-78480

Suitable for

Aprilia 501 - 750 cc RS 660 Factory XGH00 2025
