DID chain set for Aprilia RSV4 1100 2025 525 VX3 chain kit

DID Chain kit for Aprilia RSV4 1100 2025 525 VX3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

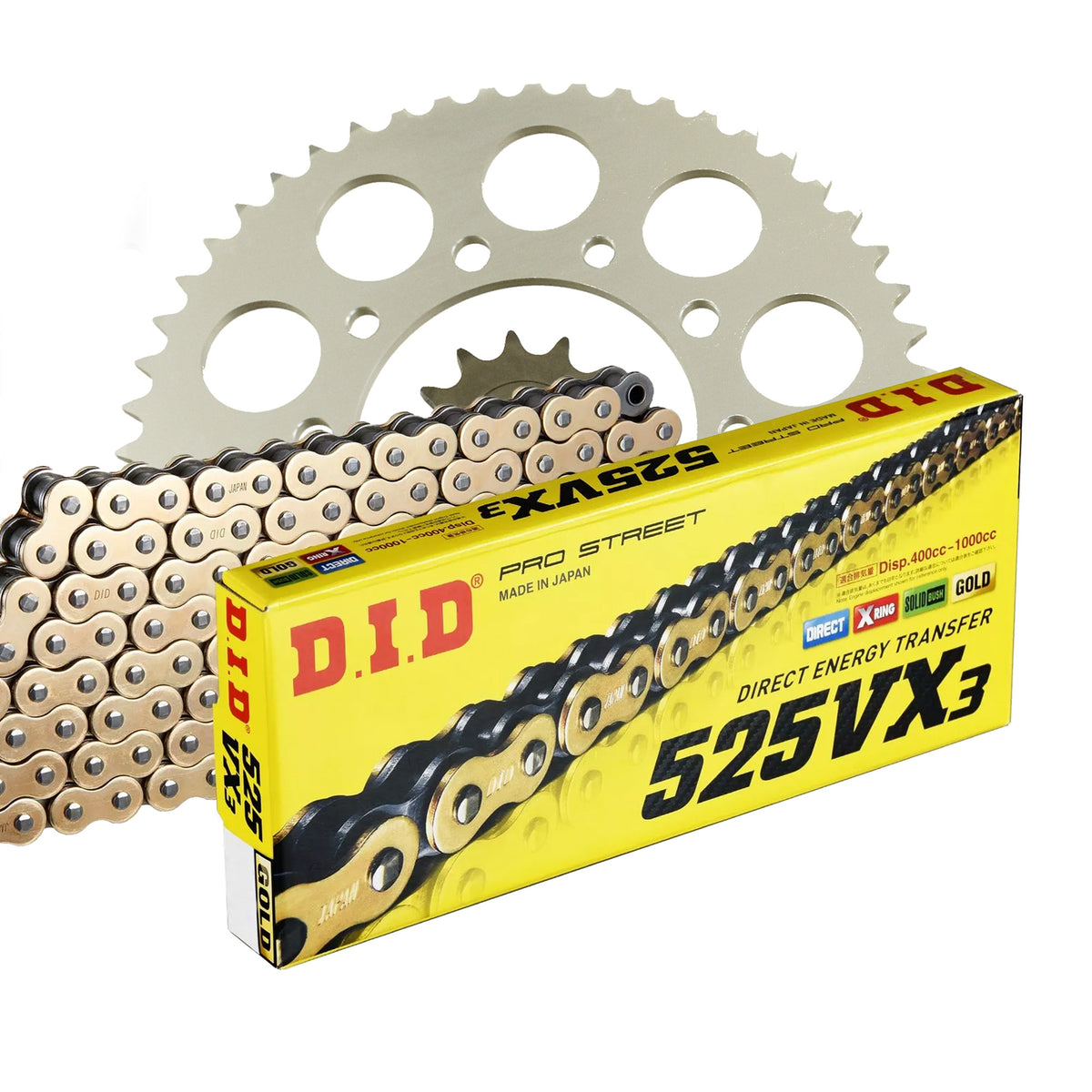

Components of the Aprilia RSV4 1100 2025-2025 chain kit

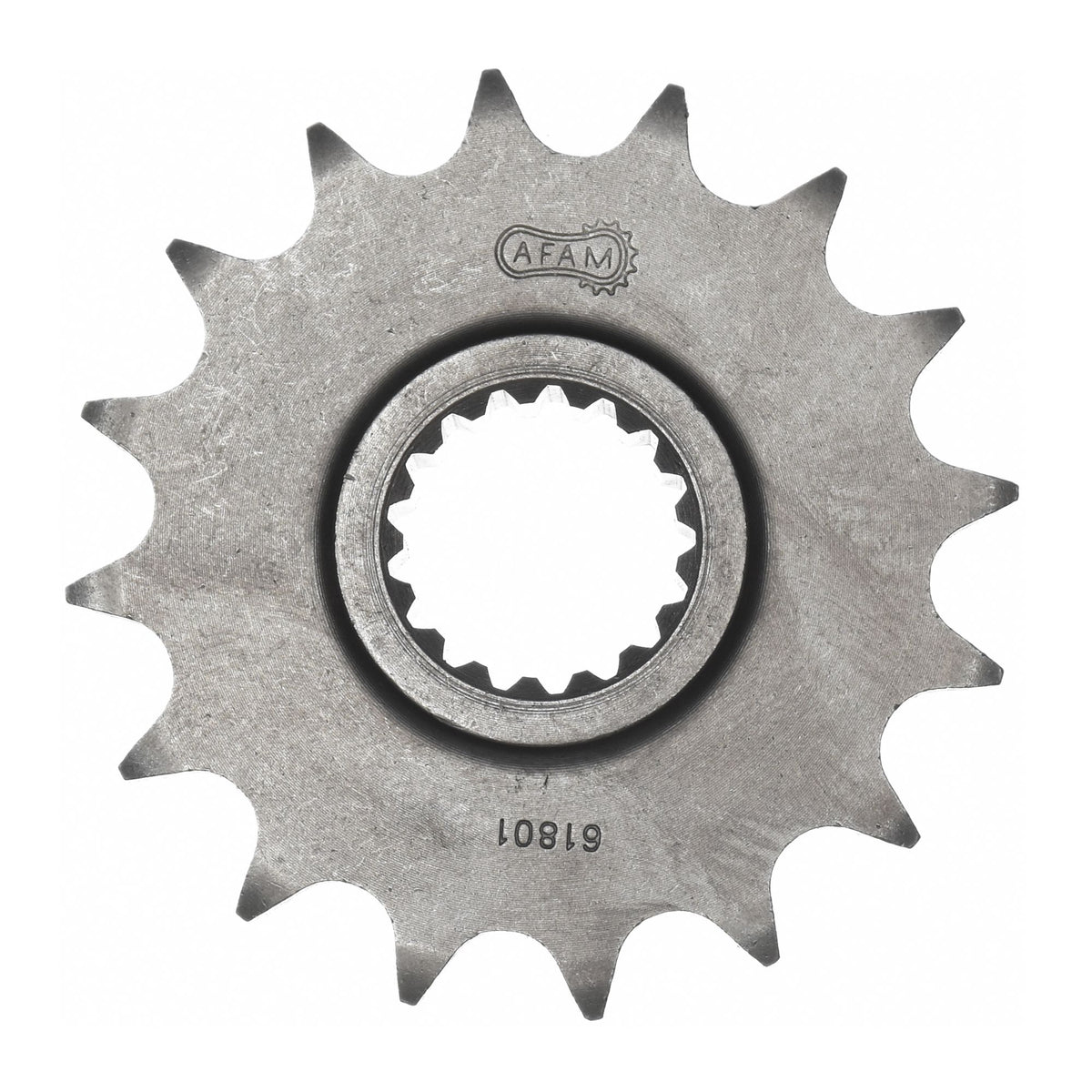

• Sprocket: AFAM sprocket #525 16 teeth - a61801.16

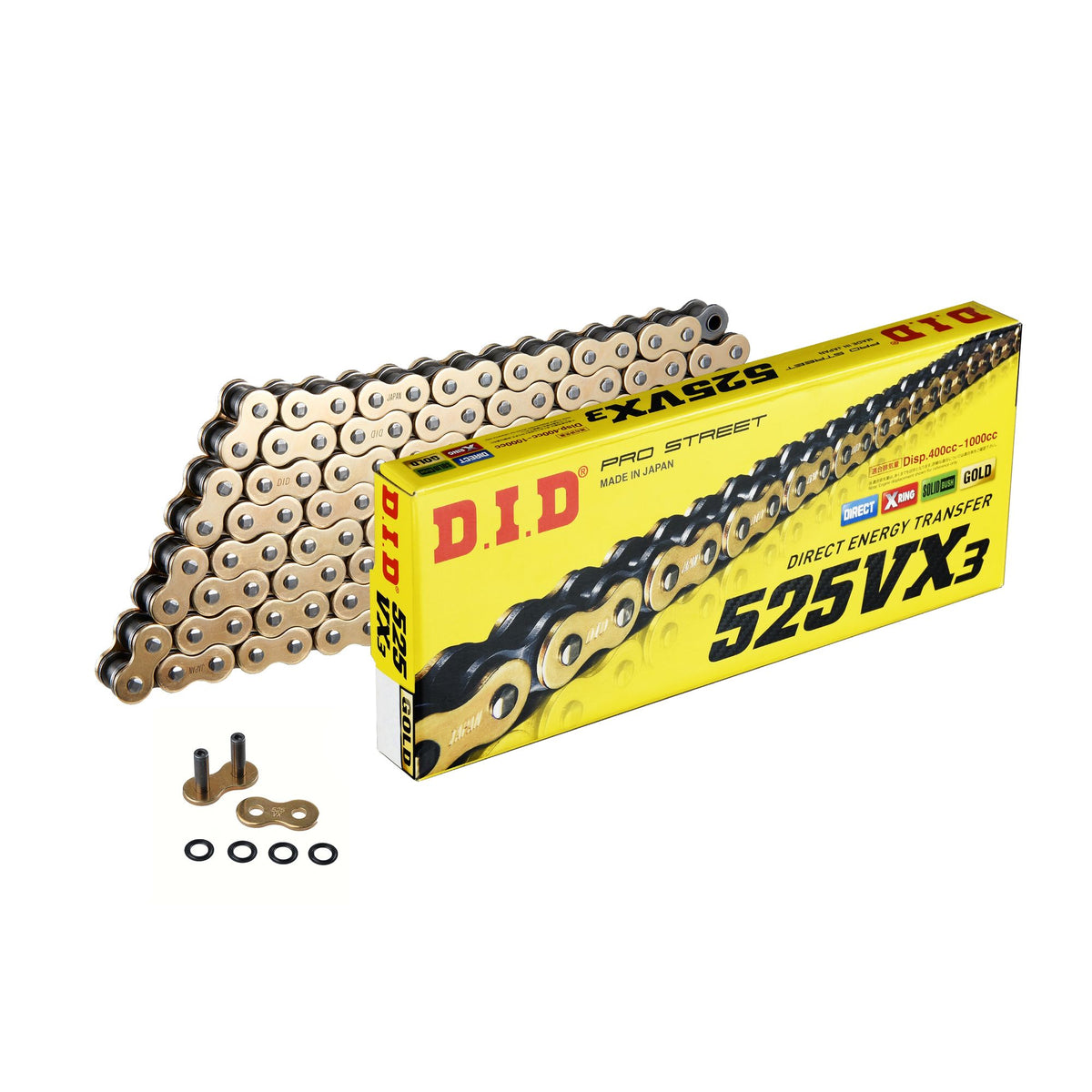

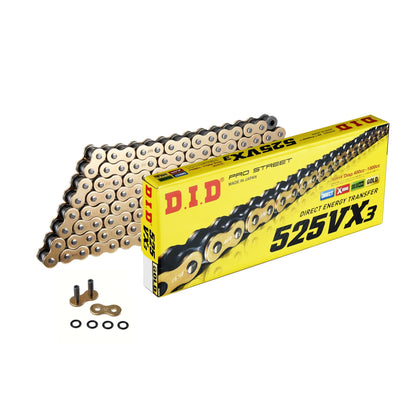

• Chain: DID chain 525 VX3 G&B 110 with rivet link - d525vx3.g-110

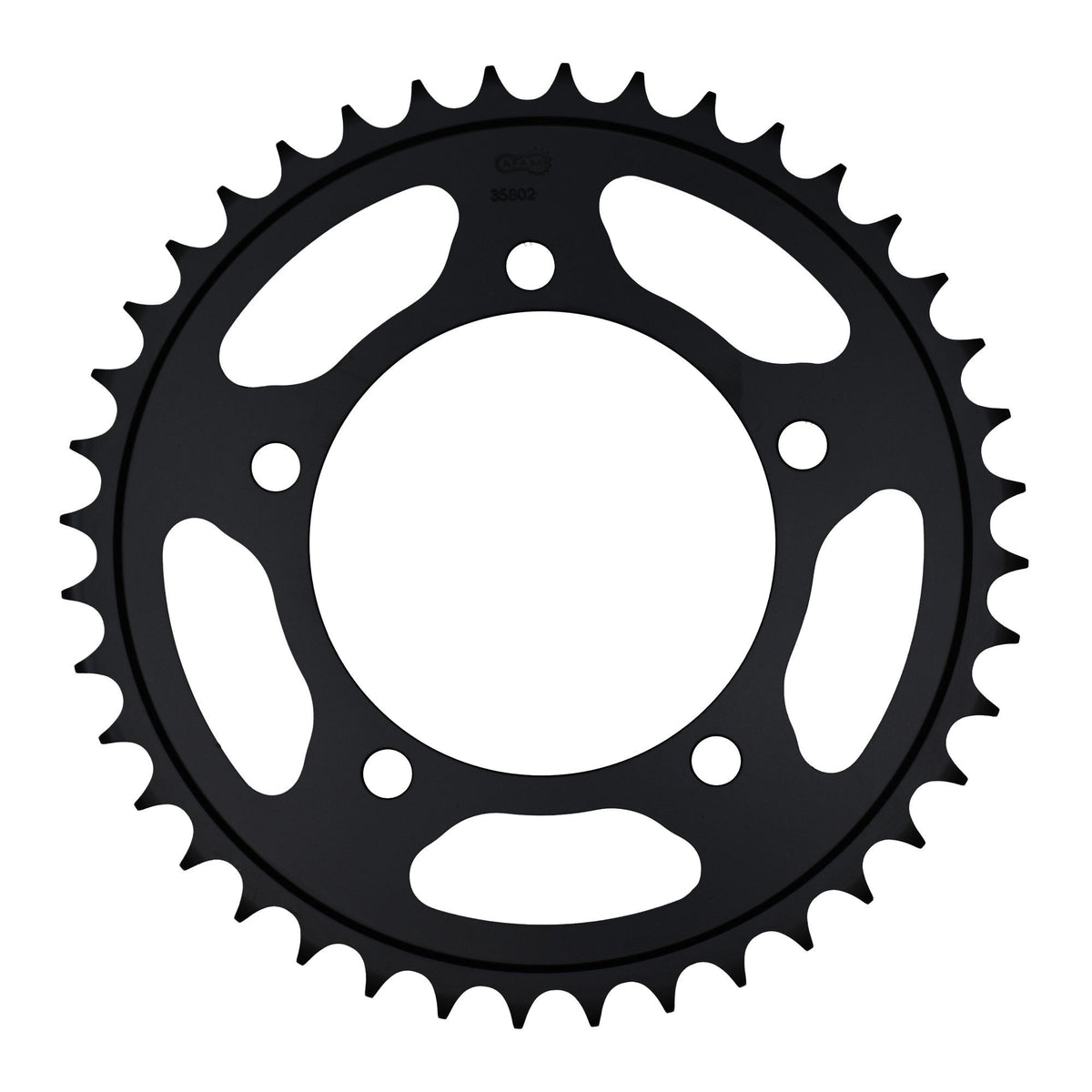

• Chain wheel: AFAM chain wheel STEEL #525 41 teeth - a35802.41
• Gear ratio sprocket-chain-chain wheel: 16-110-41

DID 525 VX3

Successor to the proven 525 VX
X-ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical data:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-78600

Suitable for

Aprilia over 1001 cc RSV4 1100 2025
