DID chain kit for Aprilia RSV4 1100 2025 525 ZVM-X2 chain kit

DID chain set for Aprilia RSV4 1100 2025 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

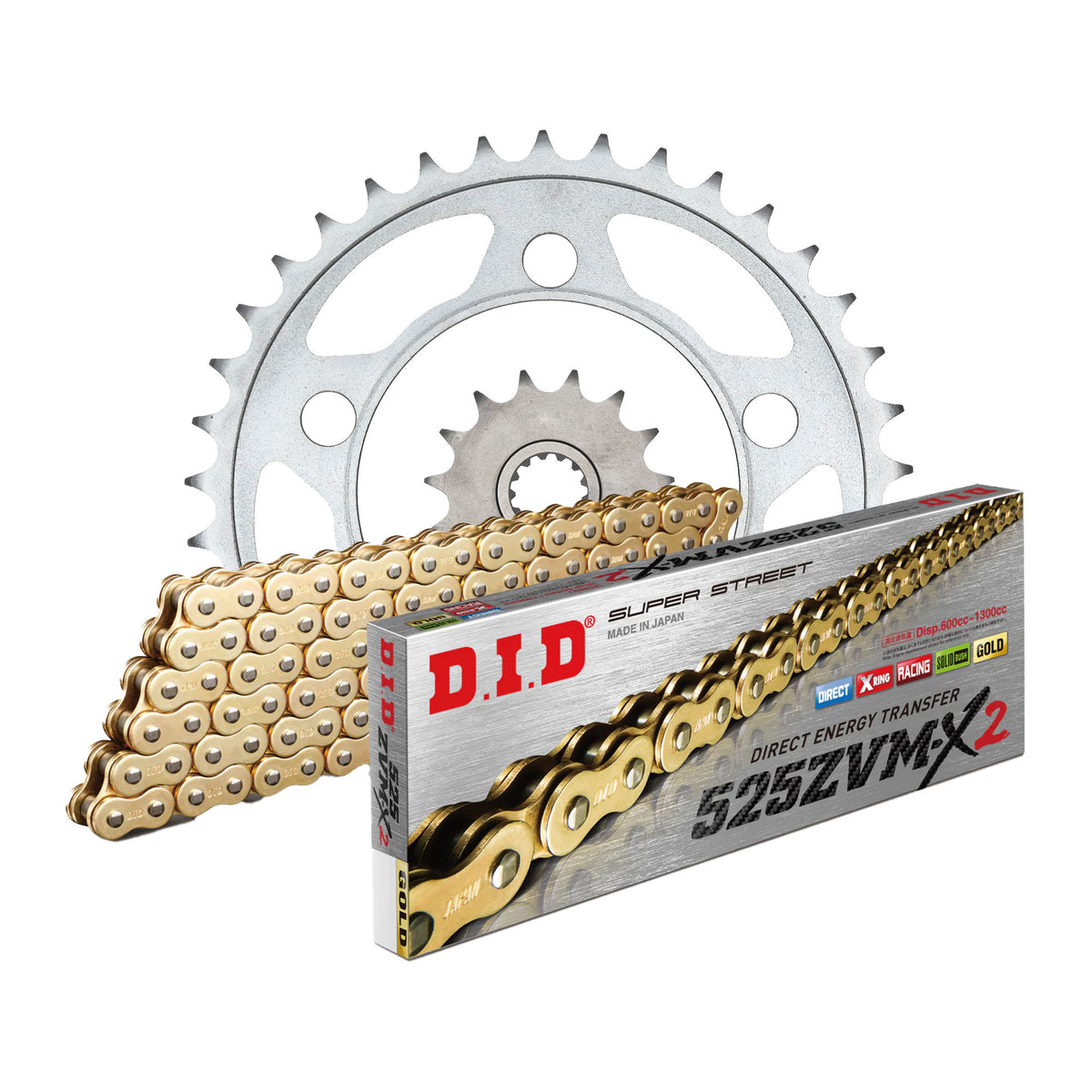

Components of the chain kit Aprilia RSV4 1100 2025-2025

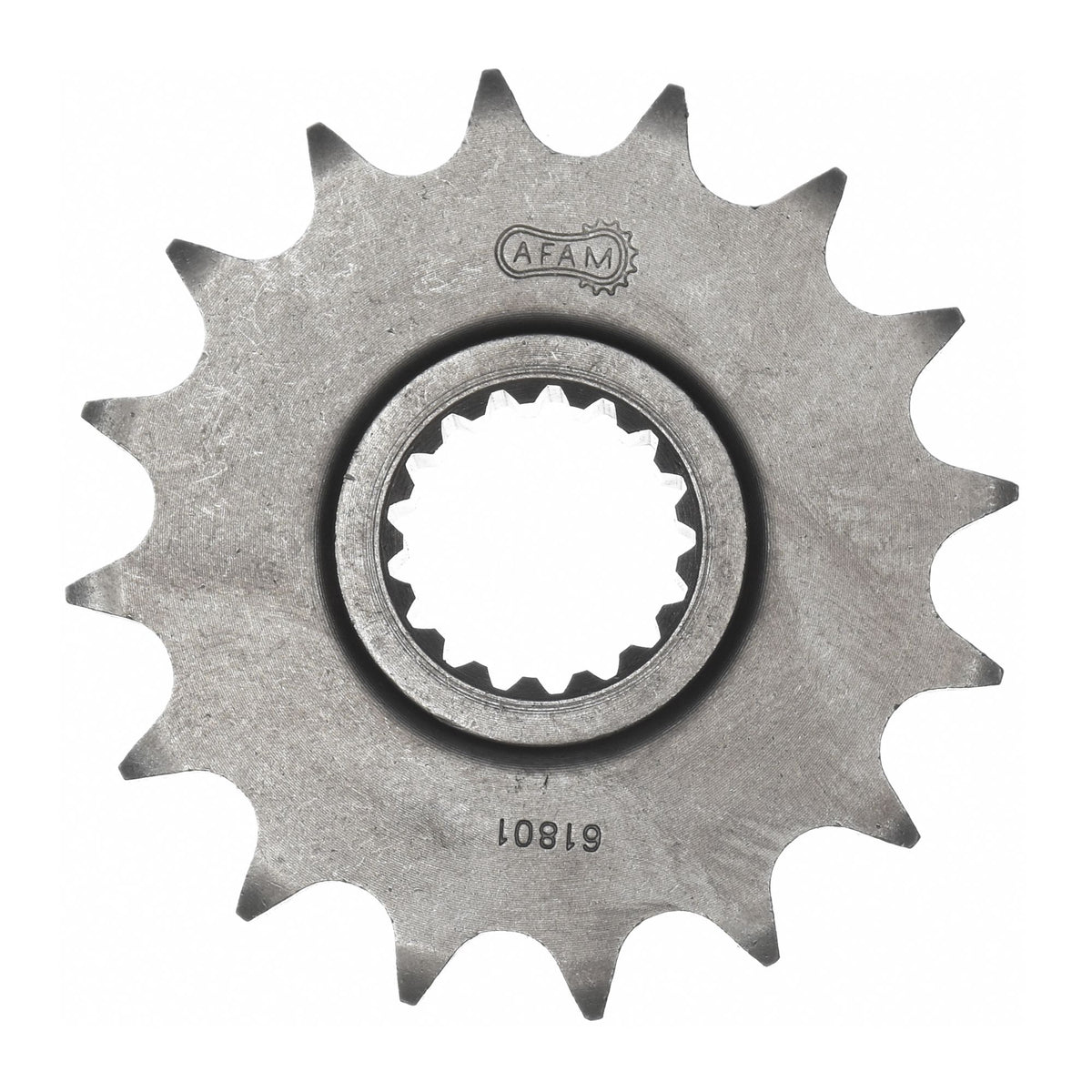

• Sprocket: AFAM sprocket #525 16 teeth - a61801.16

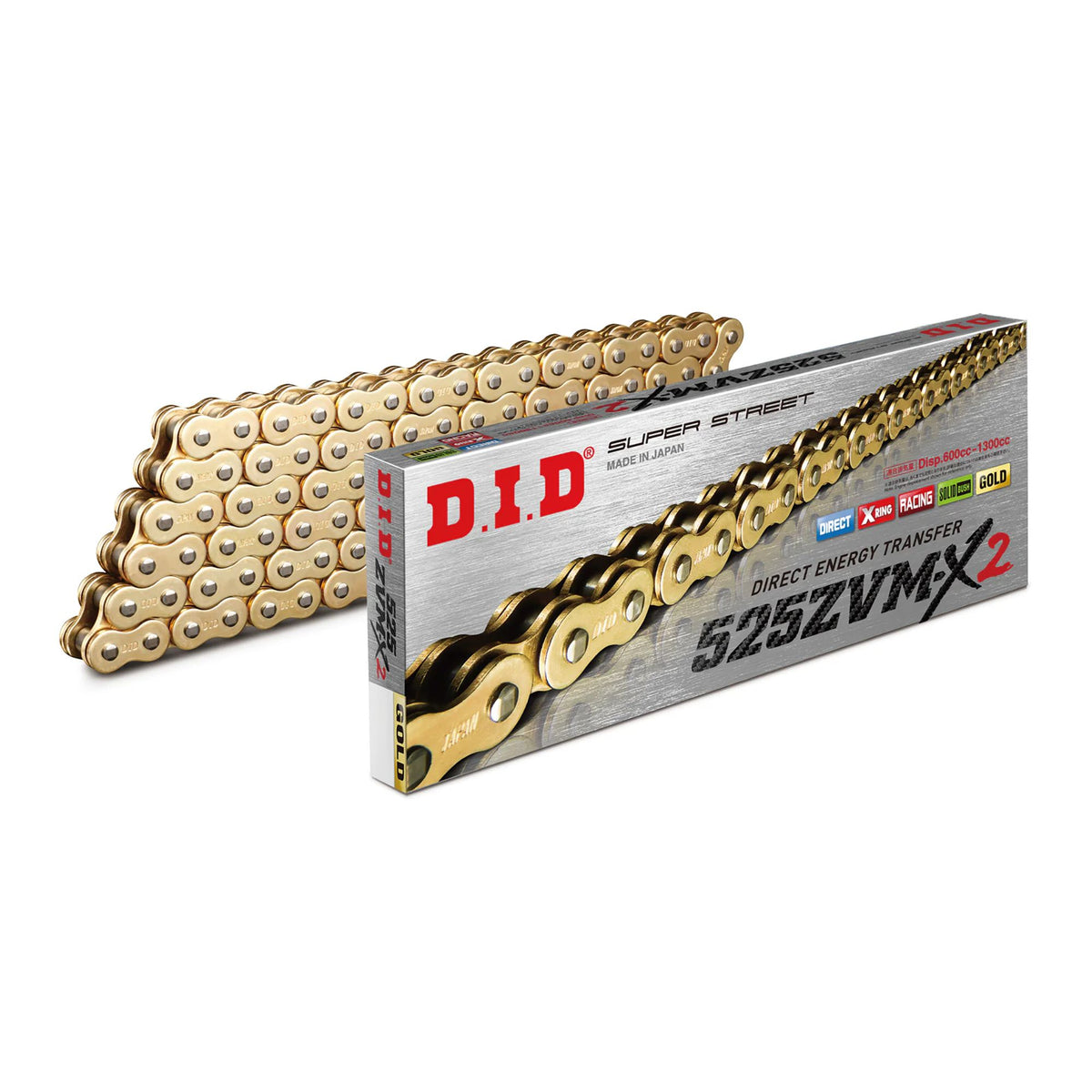

• Chain: DID chain 525 ZVM-X2 G&G 110 with rivet link - d525zvmx2.gg.110

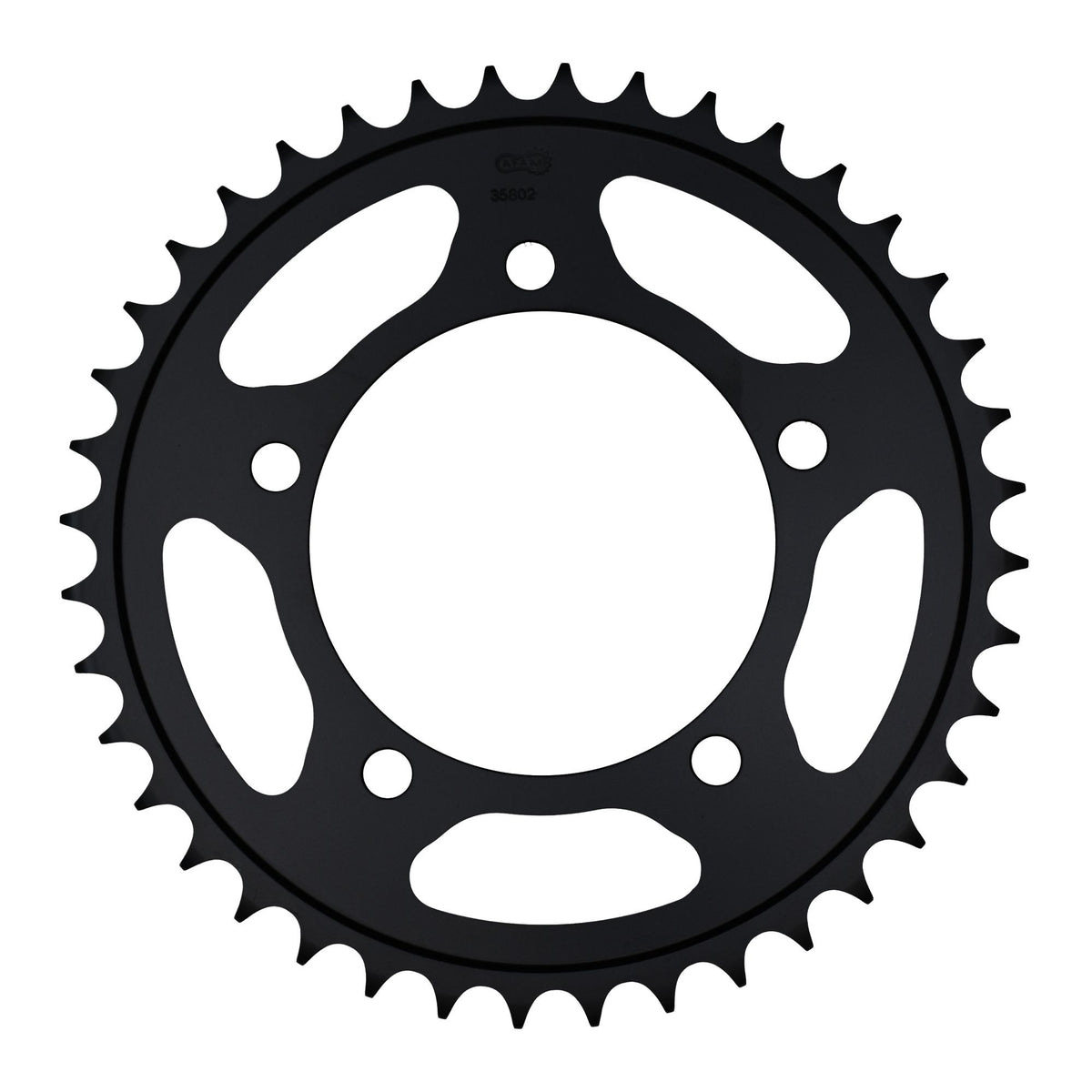

• Rear sprocket: AFAM rear sprocket STEEL #525 41 teeth - a35802.41
• Gear ratio sprocket-chain-rear sprocket: 16-110-41

DID 525 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 ccm

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-78608

Fits

Aprilia over 1001 ccm RSV4 1100 2025
