DID chain kit for Aprilia RSV4 1100 21-24 525 ZVM-X2 chain kit

DID chain kit for Aprilia RSV4 1100 21-24 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

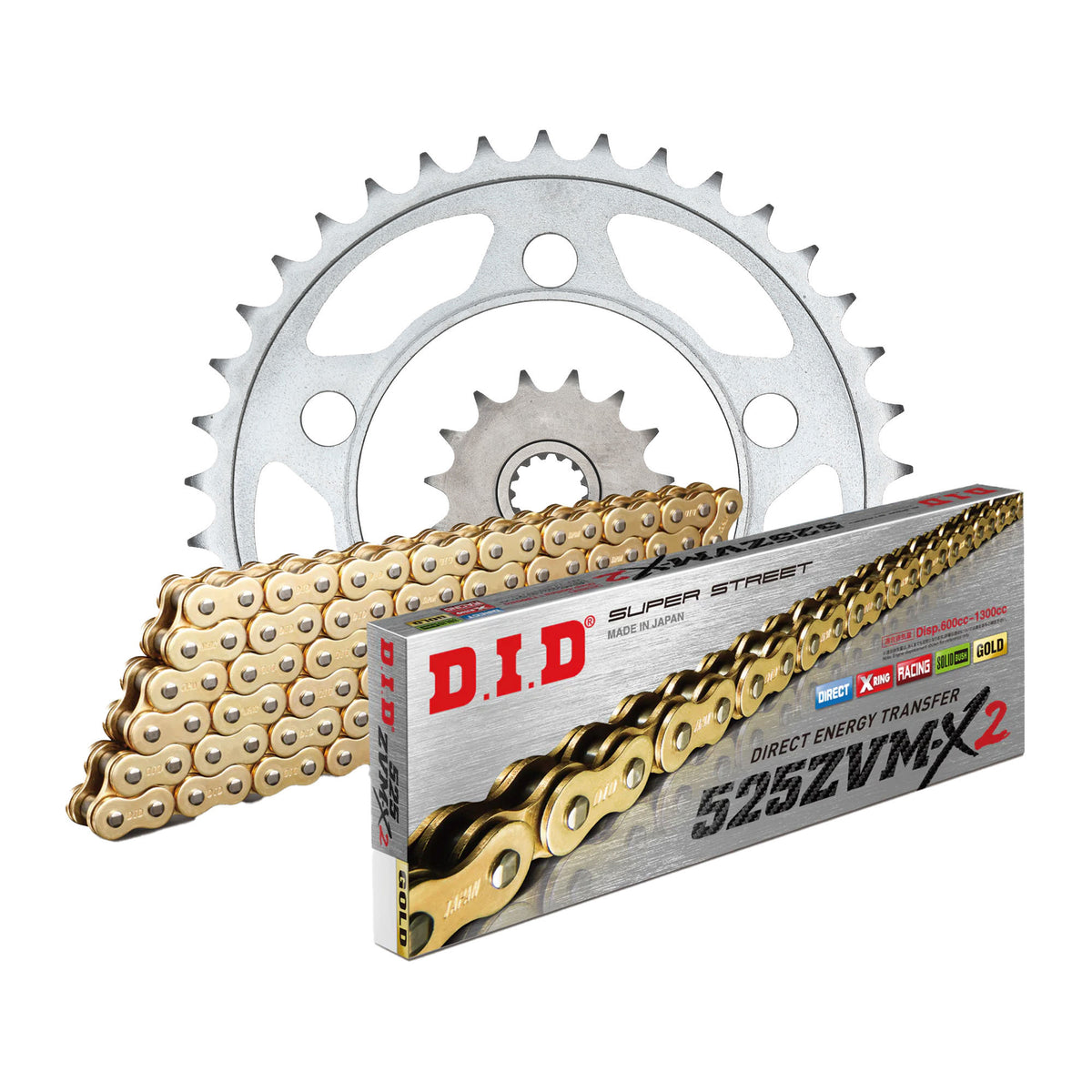

Components of the chain kit Aprilia RSV4 1100 KYA00 2021-2024

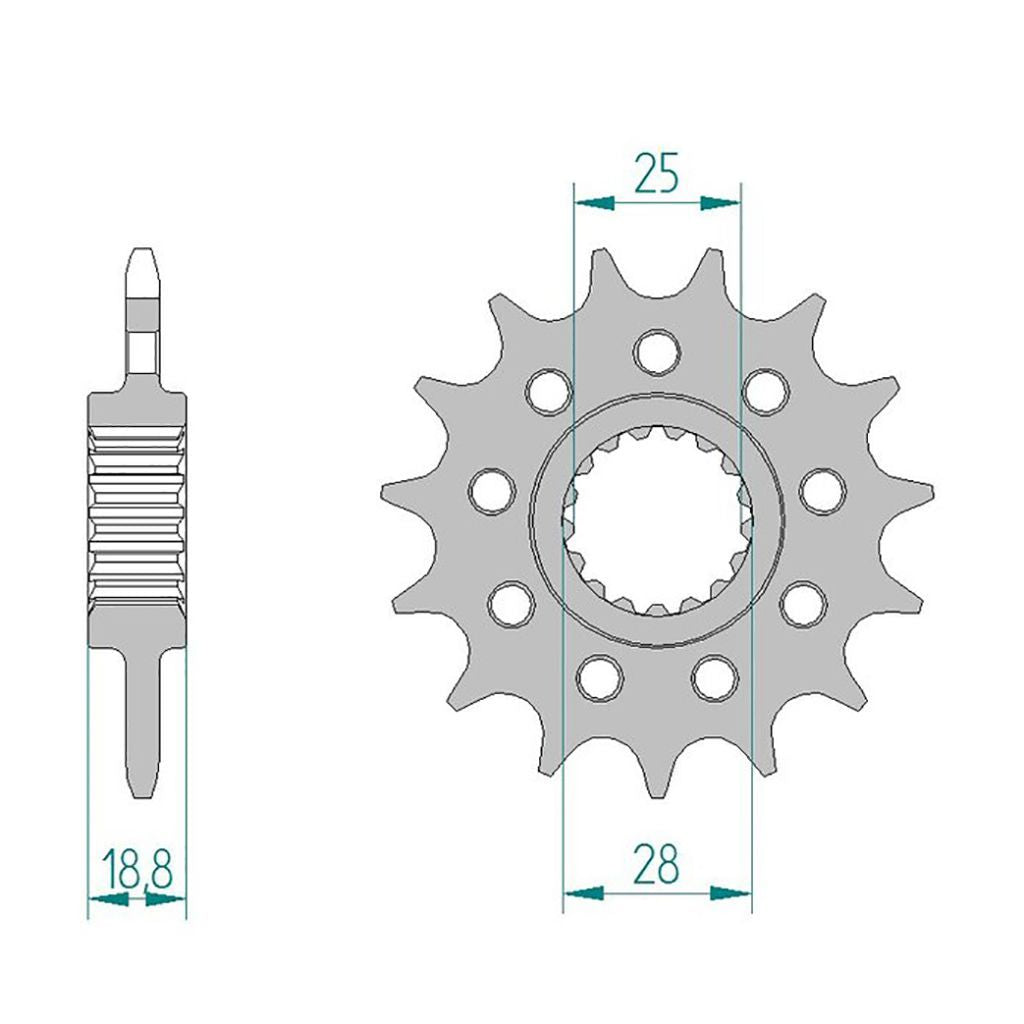

• Sprocket: AFAM sprocket #520 16 teeth - a61802.16
• Chain: DID chain 525 ZVM-X2 G&G 110 w. rivet link - d525zvmx2.gg.110

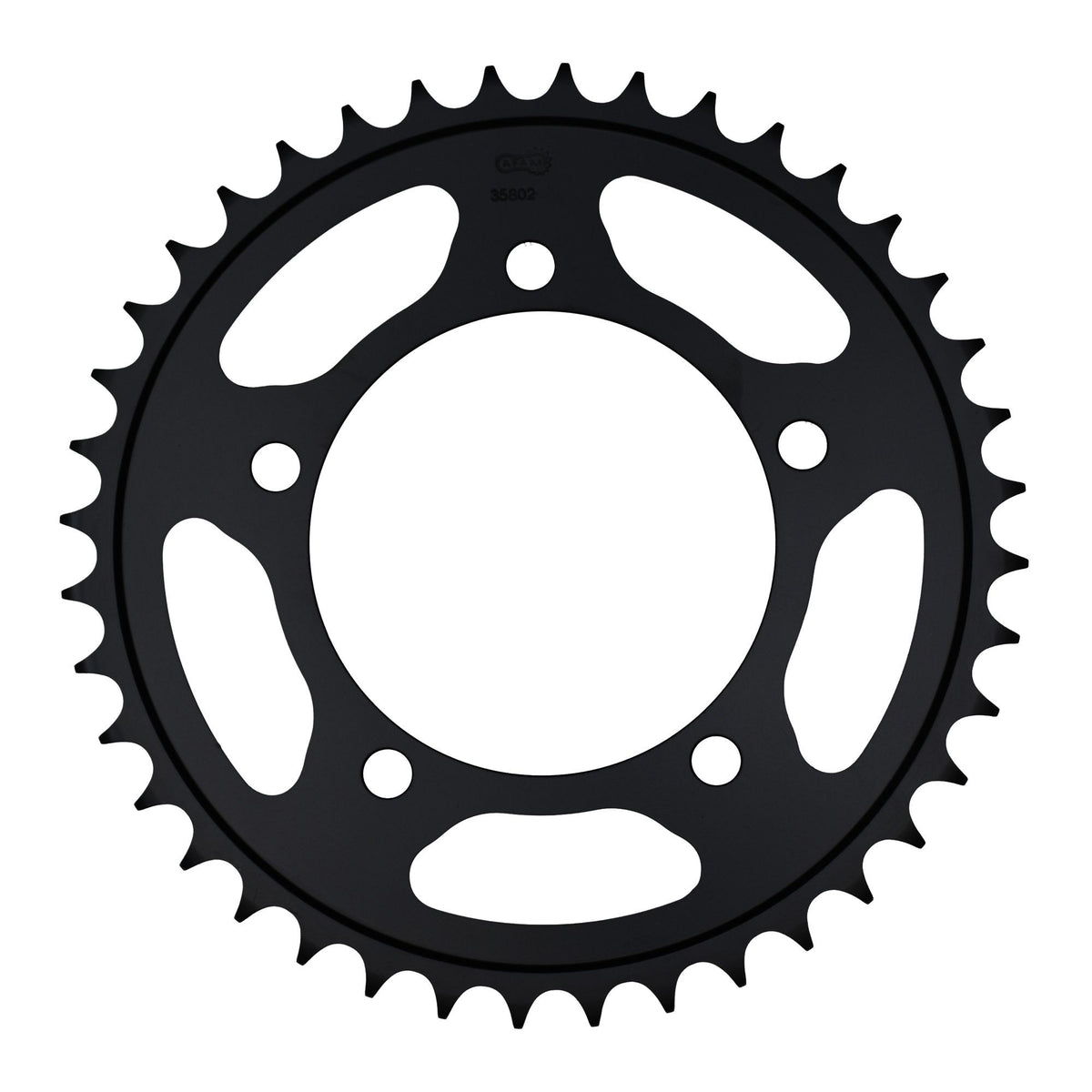

• Rear sprocket: AFAM rear sprocket STEEL #525 41 teeth - a35802.41
• Gear ratio sprocket-chain-rear sprocket: 16-110-41

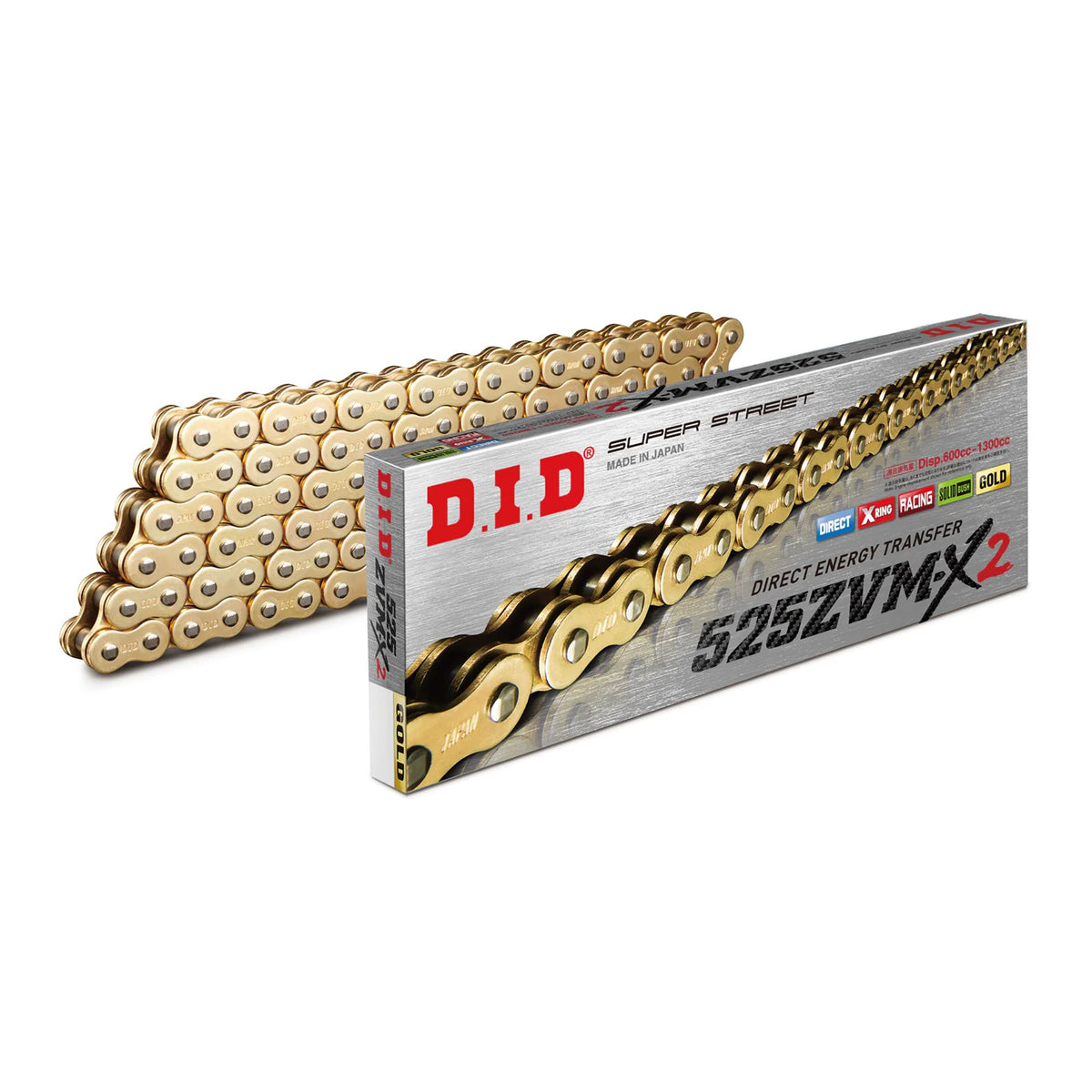

DID 525 ZVM-X2

Extra reinforced chain, versatile field of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Article number	KKF-78586

Suitable for

Aprilia over 1001 cc RSV4 1100 KYA00 2021
Aprilia over 1001 cc RSV4 1100 KYA00 2022
Aprilia over 1001 cc RSV4 1100 KYA00 2023
Aprilia over 1001 cc RSV4 1100 KYA00 2024
