DID chain kit for Aprilia RSV4 1100 21-24 525 ZVMX chain kit

DID chain set for Aprilia RSV4 1100 21-24 525 ZVMX chain kit

Chain kit or chain set for the specified model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

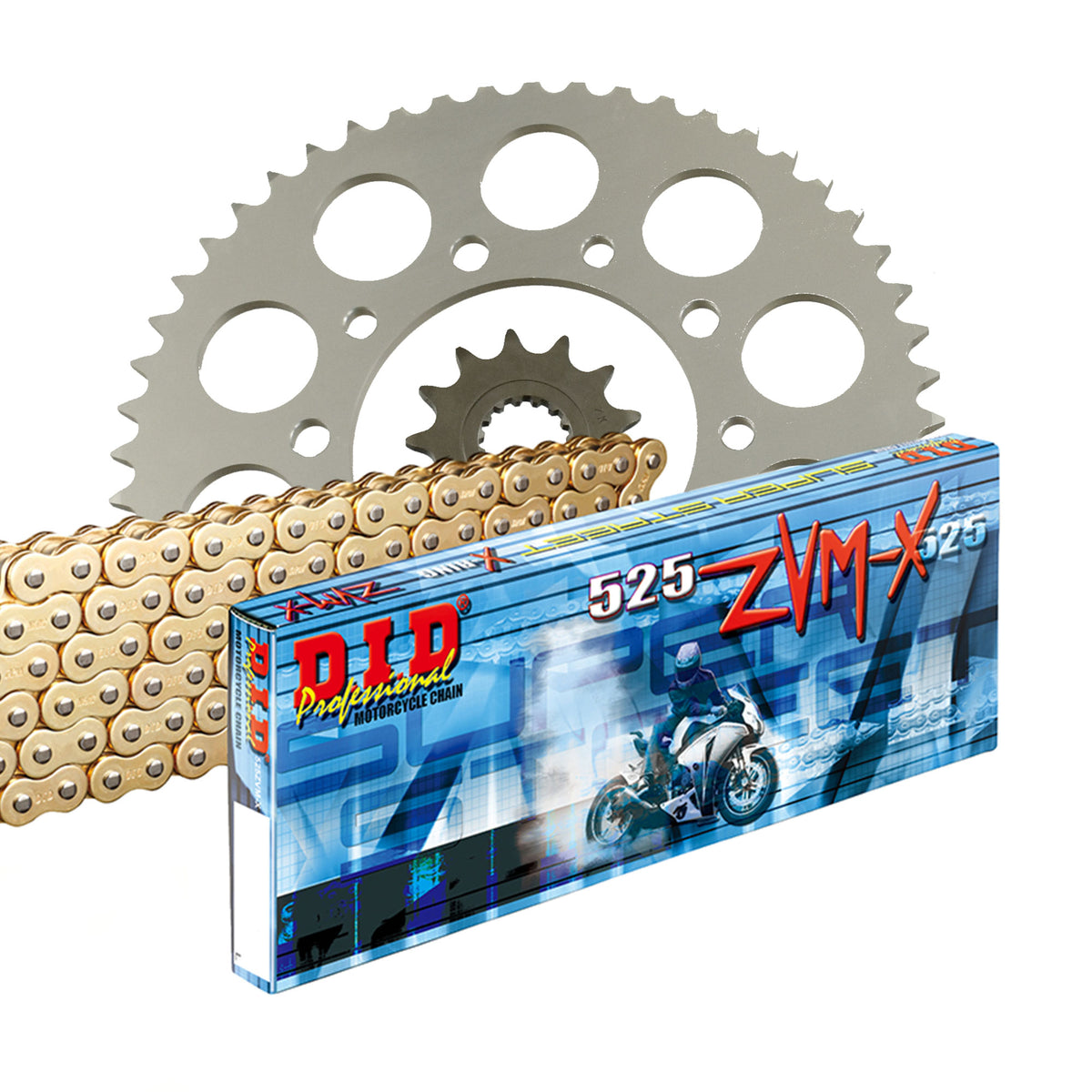

Components of the Aprilia RSV4 1100 KYA00 2021-2024 chain kit

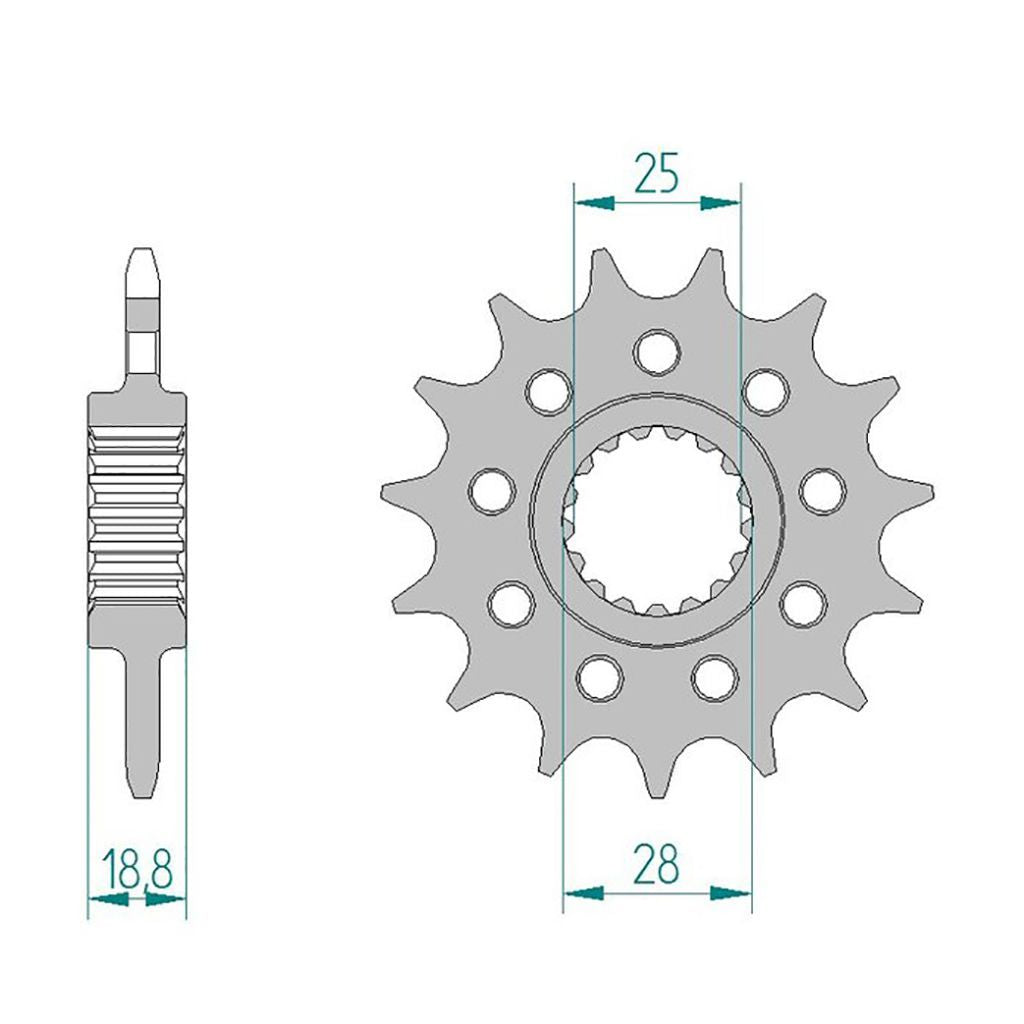

• Sprocket: AFAM sprocket #520 16 teeth - a61802.16

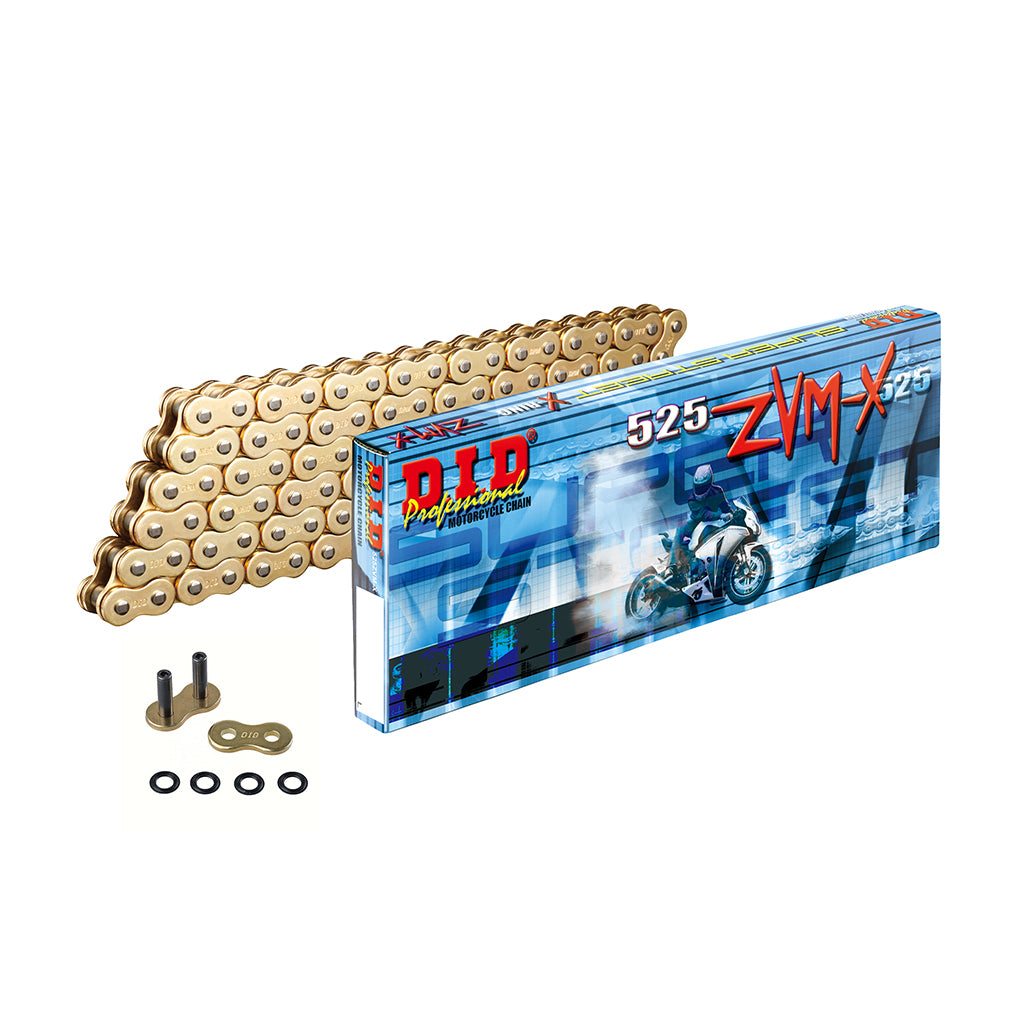

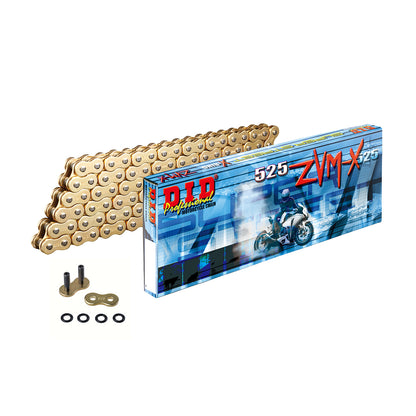

• Chain: DID chain 525 ZVM-X G&G 110 w. rivet link - d6252529110

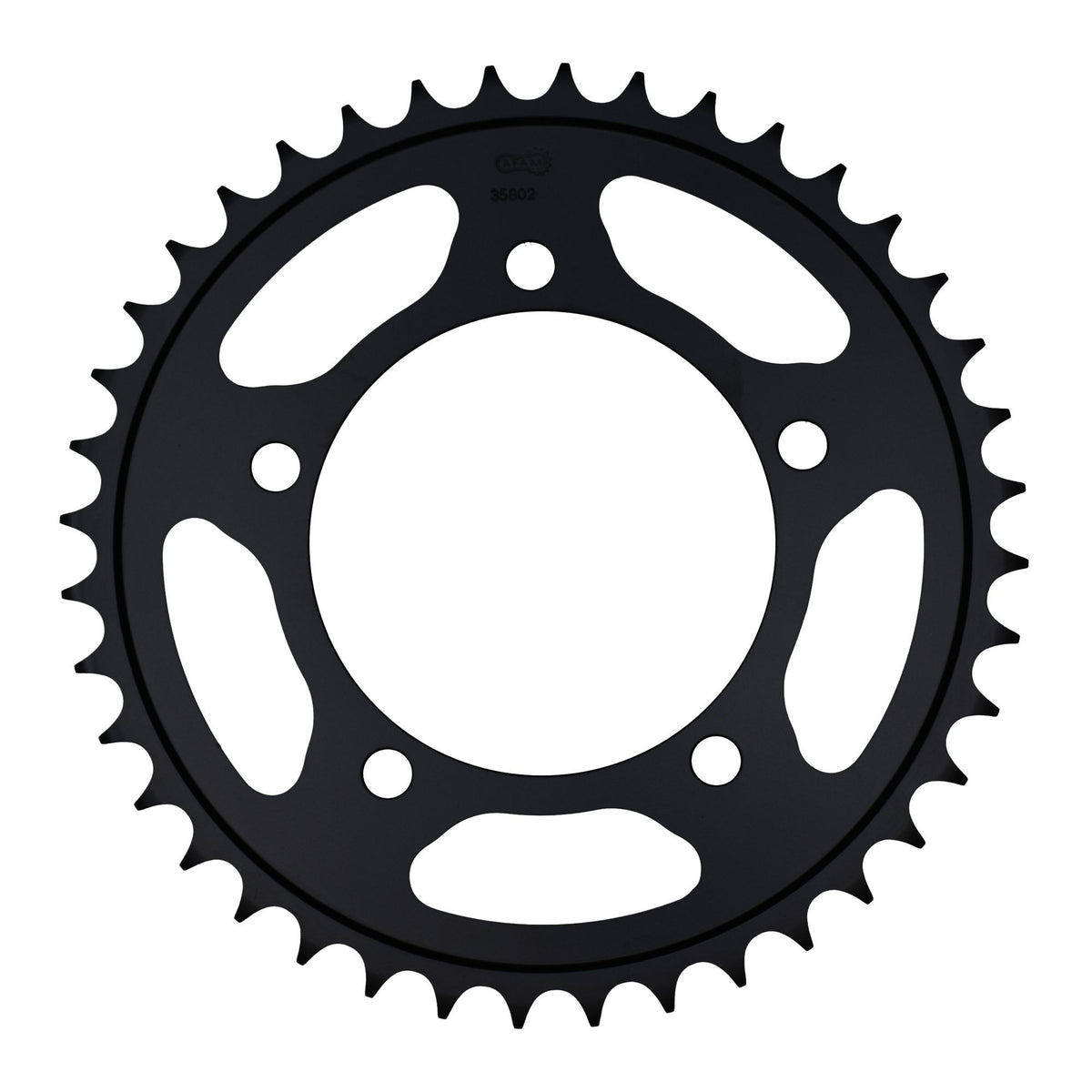

• Chainwheel: AFAM chainwheel STEEL #525 41 teeth - a35802.41
• Gear ratio sprocket-chain-chainwheel: 16-110-41

DID 525 ZVM-X

Extra reinforced chain, versatile application area
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 46.30 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-78541

Suitable for

Aprilia over 1001 cc RSV4 1100 KYA00 2021
Aprilia over 1001 cc RSV4 1100 KYA00 2022
Aprilia over 1001 cc RSV4 1100 KYA00 2023
Aprilia over 1001 cc RSV4 1100 KYA00 2024
