DID chain kit for Aprilia RSV4 1100 Factory ABS 2024 525 ZVMX chain kit

DID chain kit for Aprilia RSV4 1100 Factory ABS 2024 525 ZVMX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

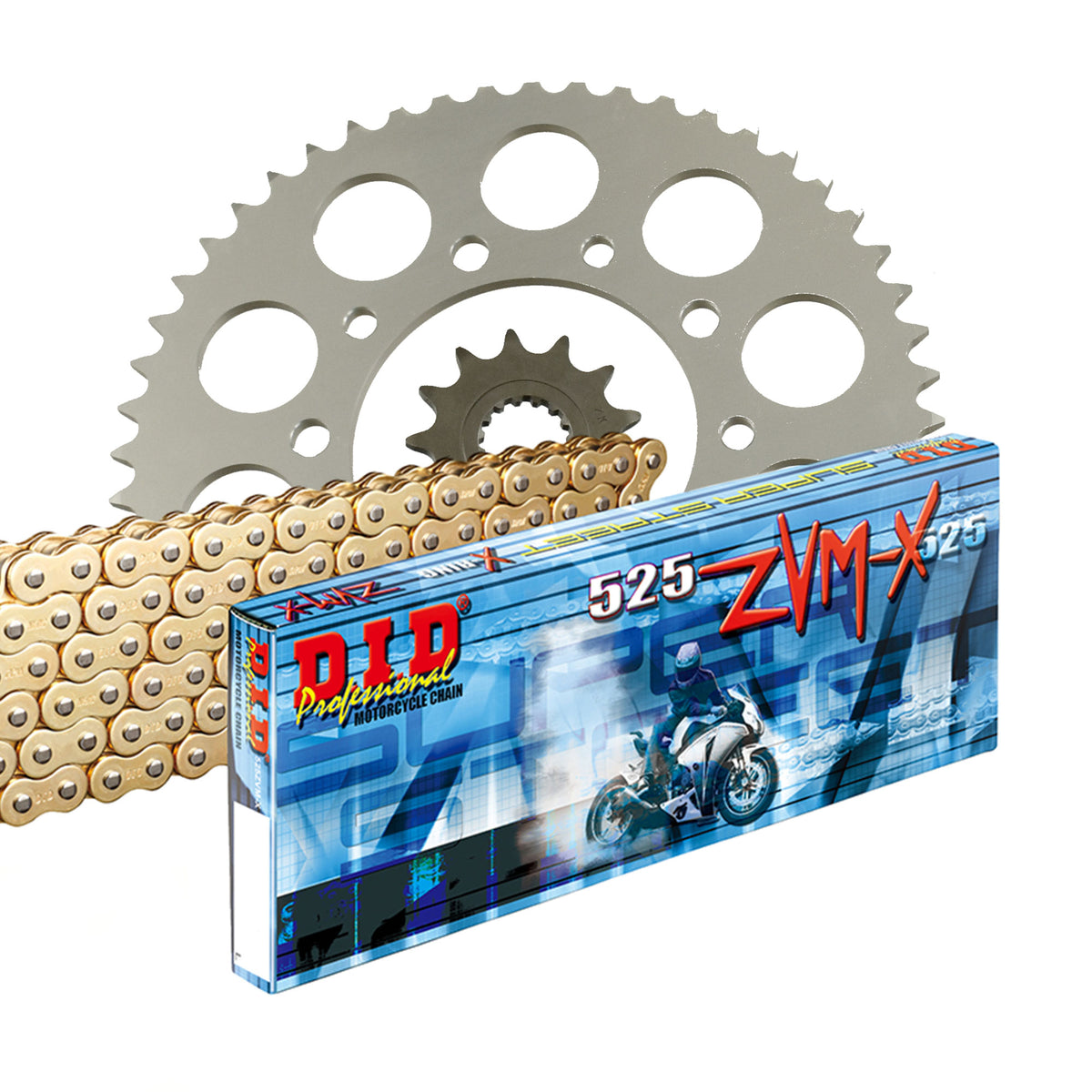

Components of the chain kit Aprilia RSV4 1100 Factory ABS KYB00 2024-2024

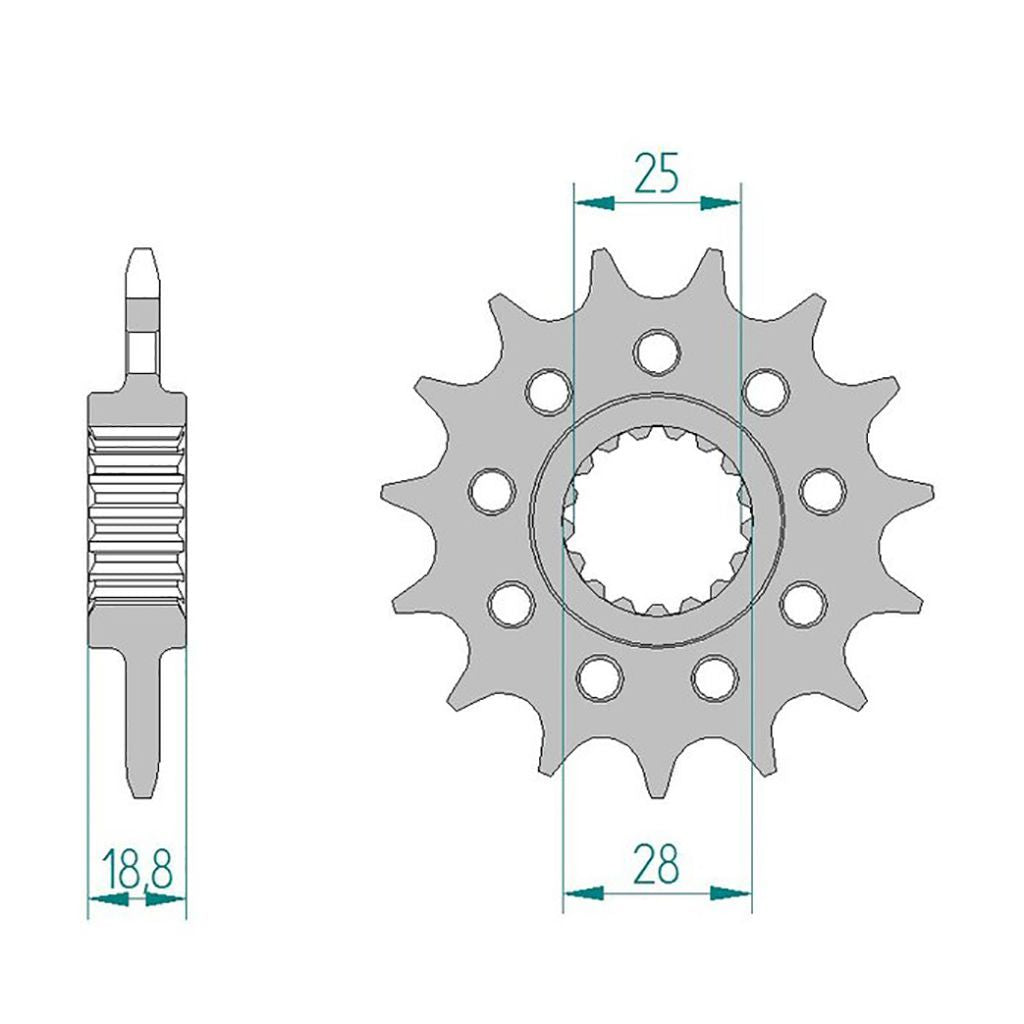

• Sprocket: AFAM sprocket #520 16 teeth - a61802.16
• Chain: DID chain 525 ZVM-X G&G 110 w. rivet link - d6252529110

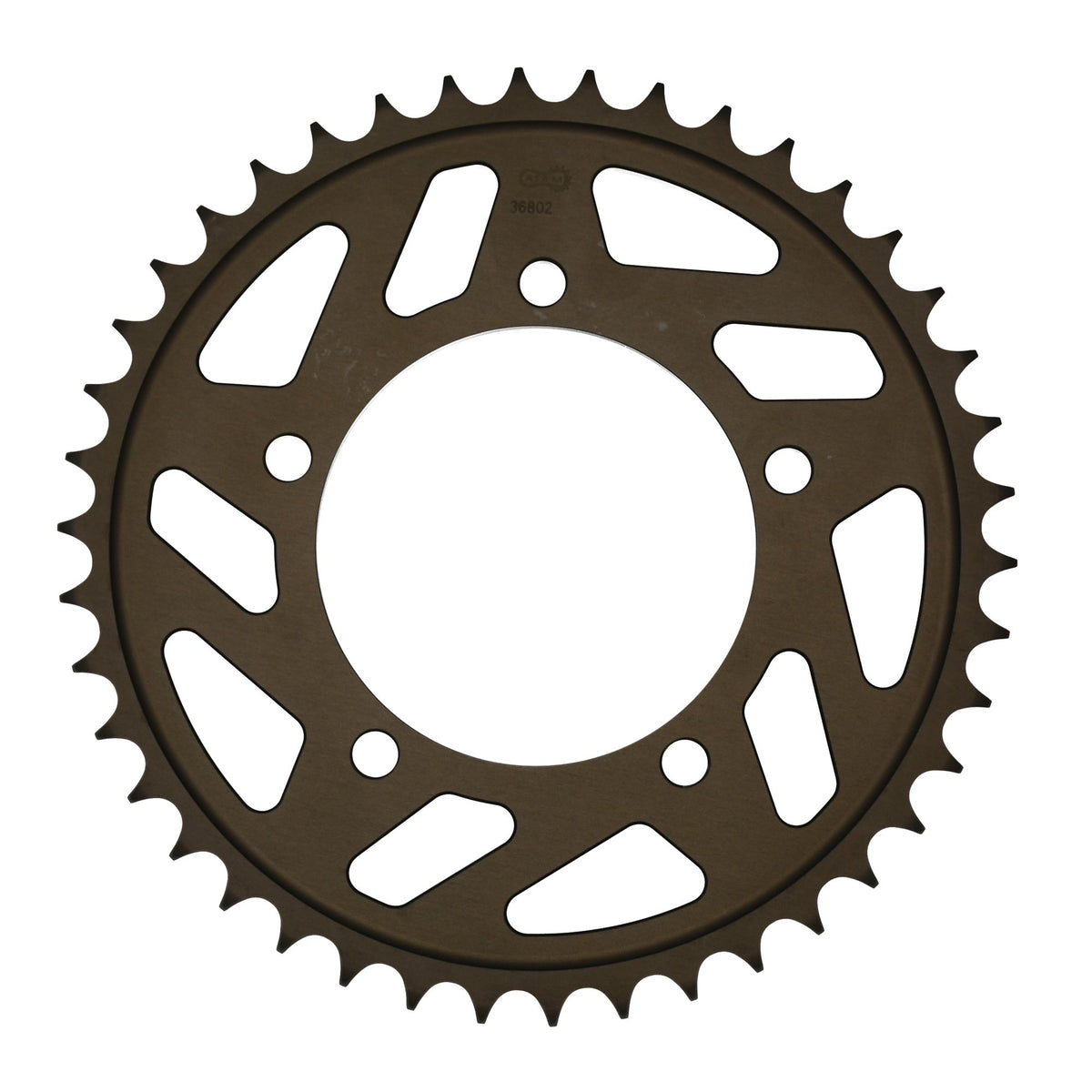

• Rear sprocket: AFAM rear sprocket ALU #525 41 teeth - a36802.41
• Transmission ratio sprocket-chain-rear sprocket: 16-110-41

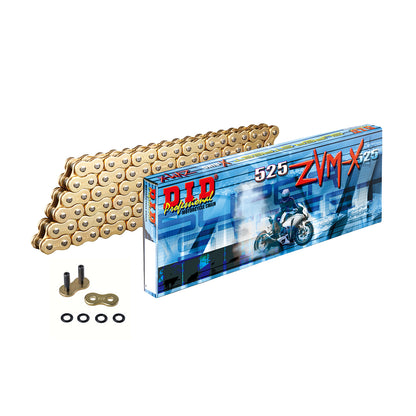

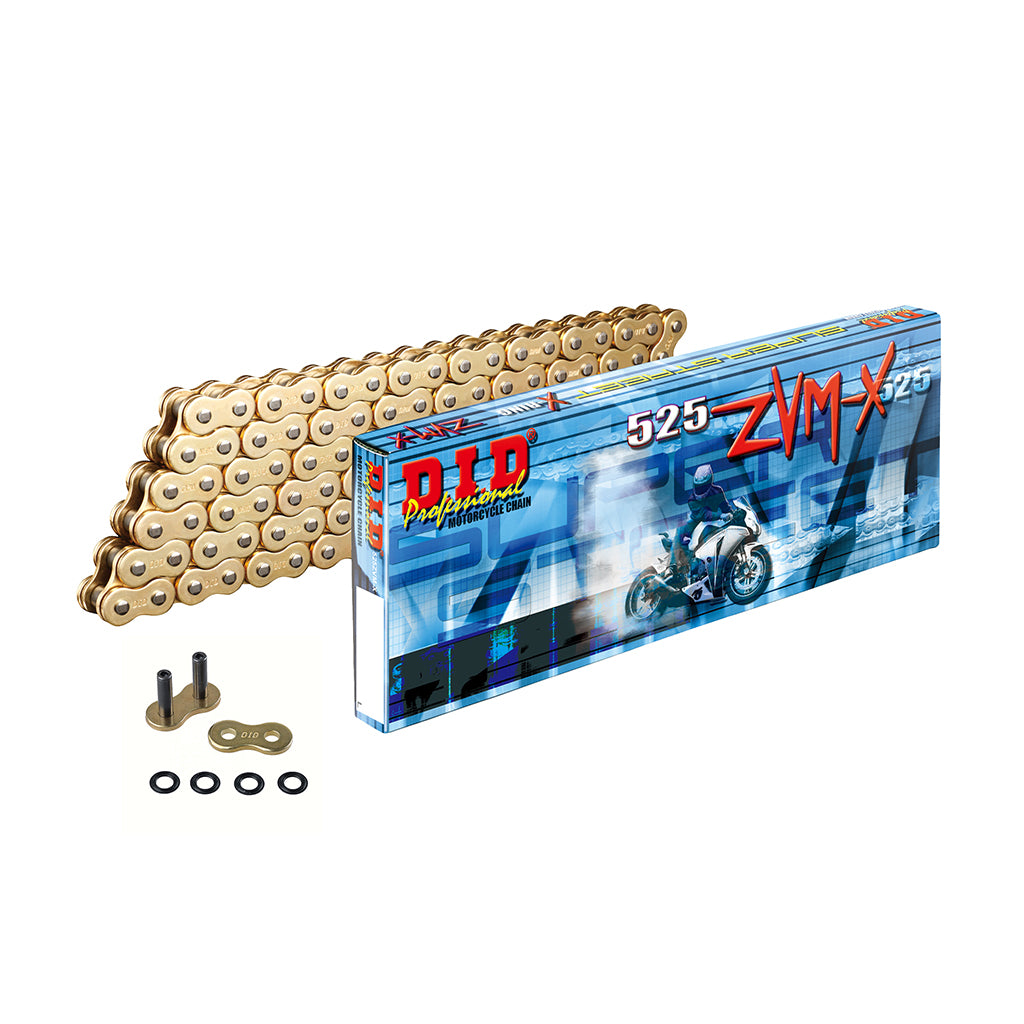

DID 525 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 ccm

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear index: 4000
Tensile strength: 46.30 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-78556

Suitable for

Aprilia over 1001 ccm RSV4 1100 Factory ABS KYB00 2024
