DID chain set for Aprilia RSV4 1100 Factory ABS 2025 525 ZVM-X2 chain kit

DID chain kit for Aprilia RSV4 1100 Factory ABS 2025 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

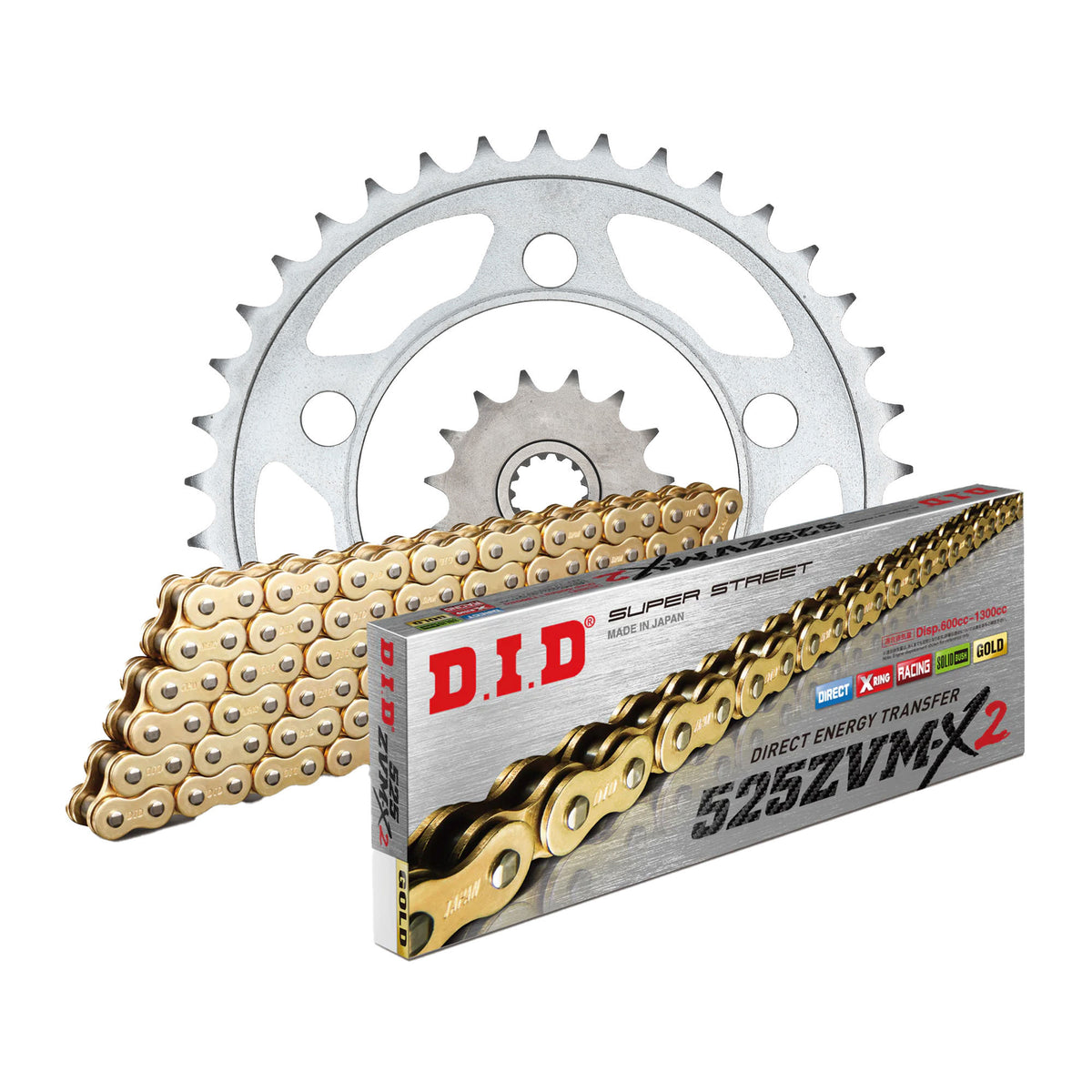

Components of the chain kit Aprilia RSV4 1100 Factory ABS XPB00 2025-2025

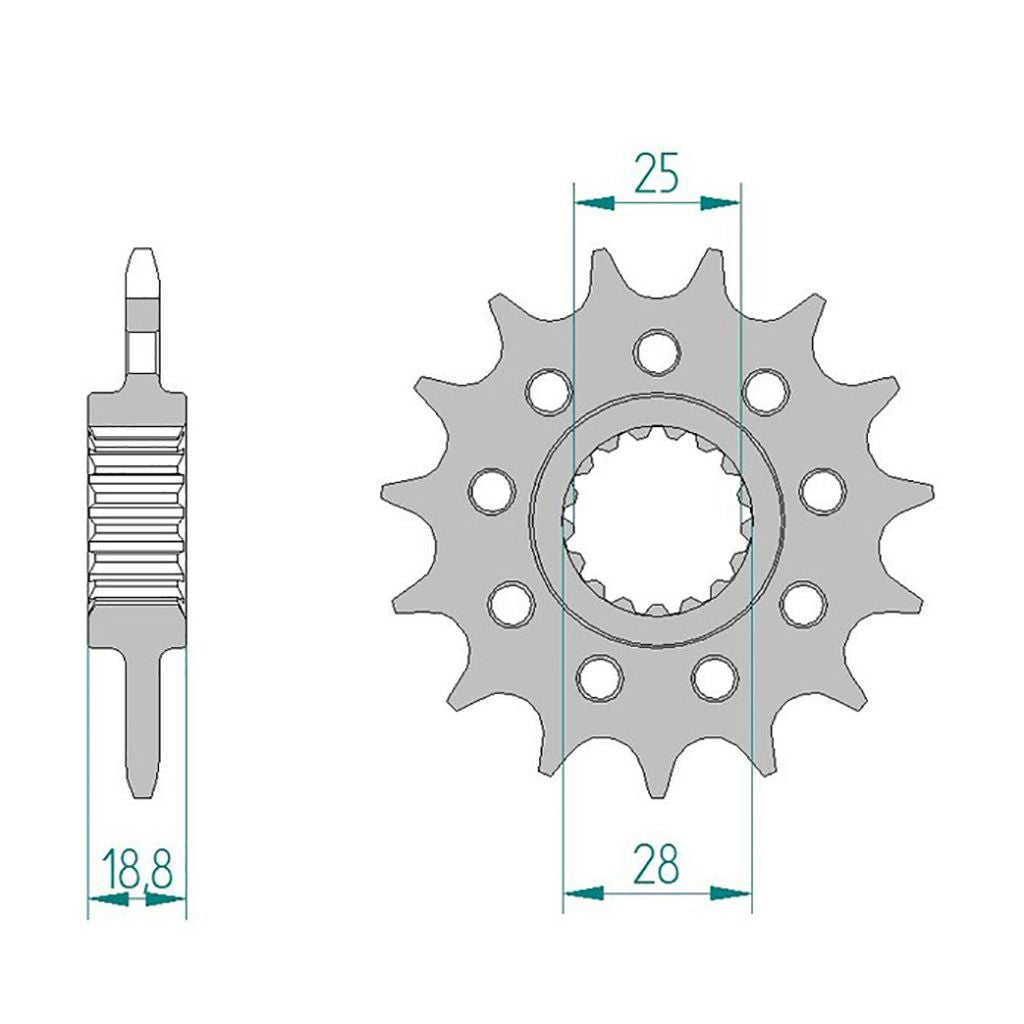

• Sprocket: AFAM sprocket #520 16 teeth - a61802.16
• Chain: DID chain 525 ZVM-X2 G&G 110 w. rivet link - d525zvmx2.gg.110

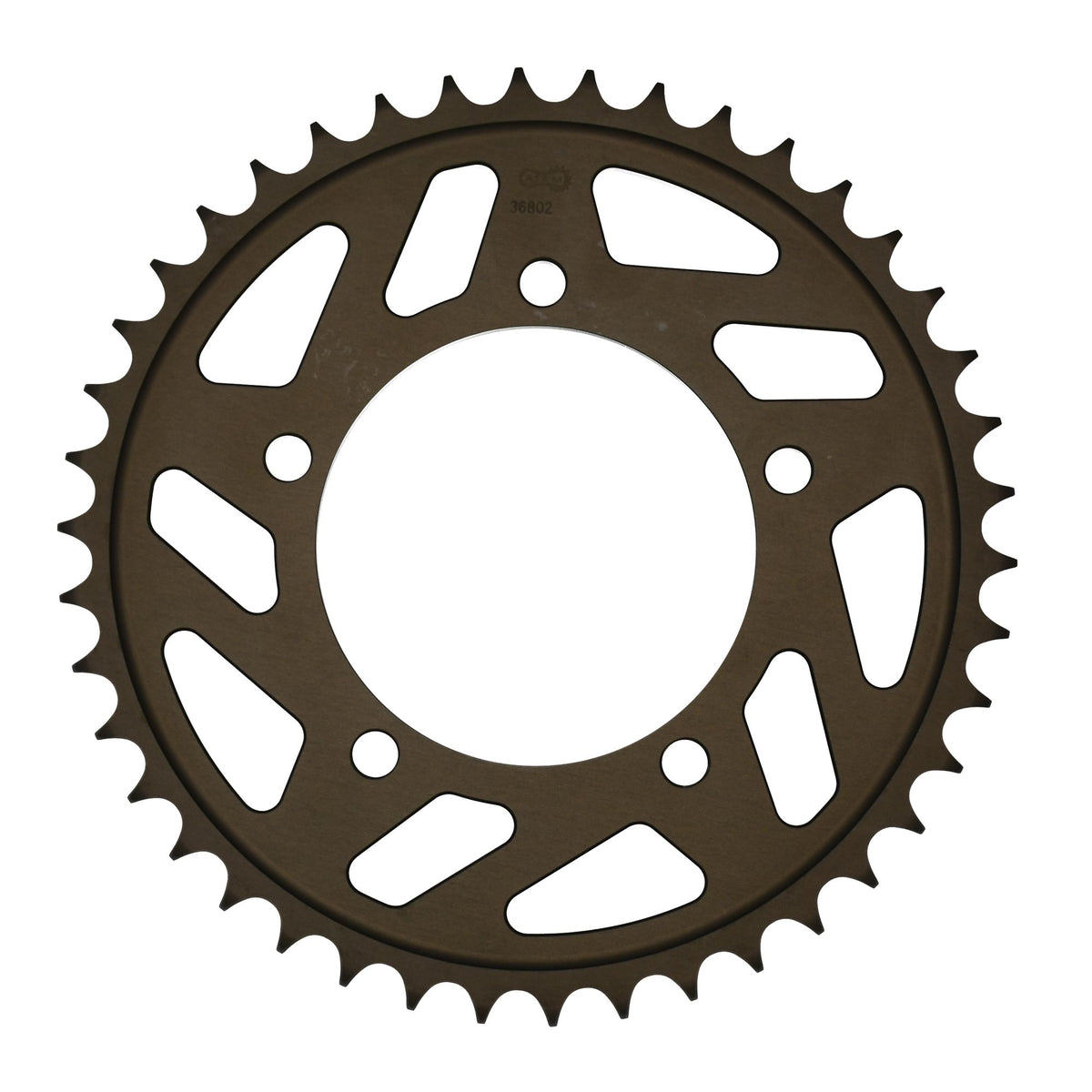

• Rear sprocket: AFAM sprocket ALU #525 41 teeth - a36802.41
• Gear ratio sprocket-chain-rear sprocket: 16-110-41

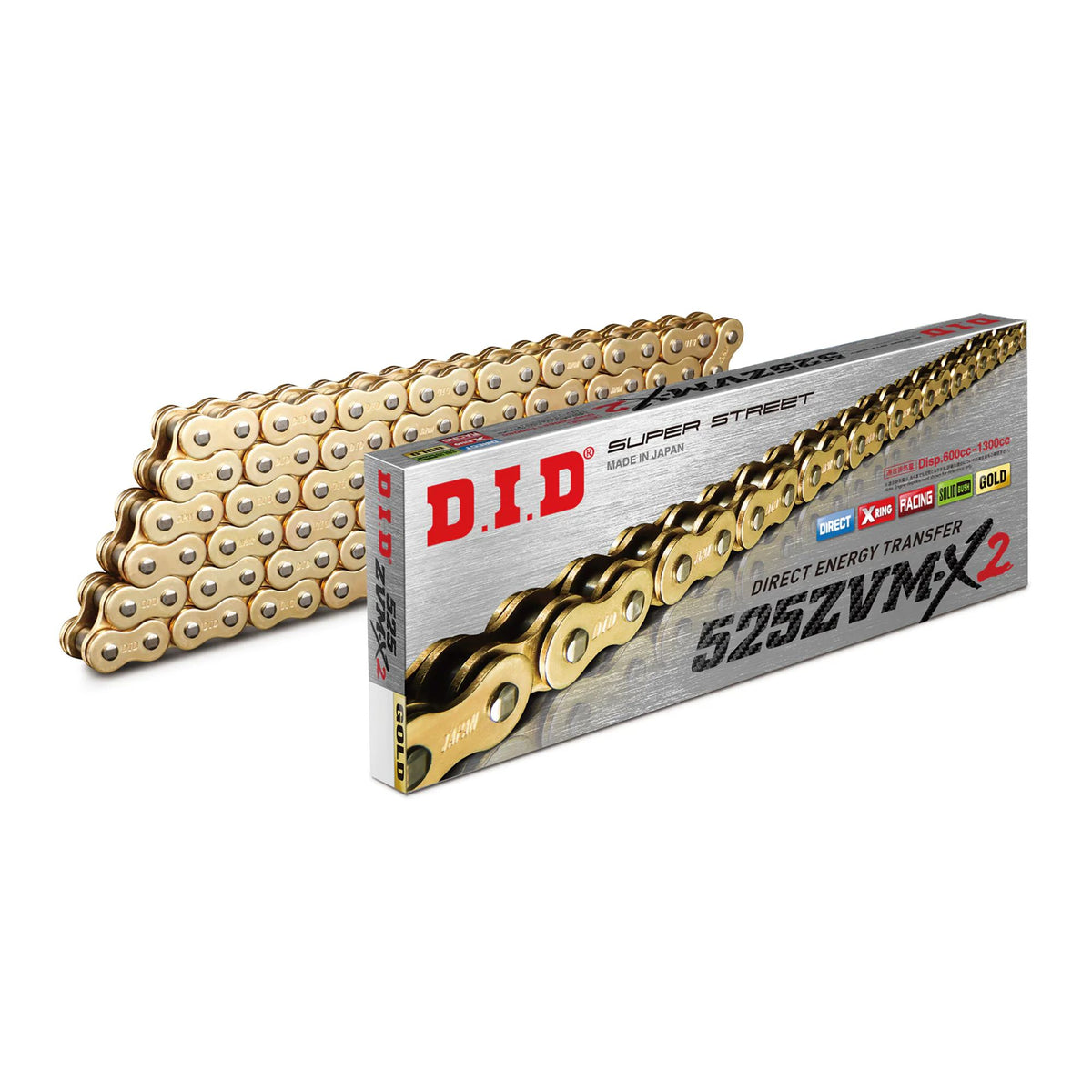

DID 525 ZVM-X2

Extra reinforced chain, versatile area of application
X-ring chain
Color: Gold/Gold
Application by engine displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-78532

Suitable for

Aprilia over 1001 cc RSV4 1100 Factory ABS XPB00 2025
