DID chain kit for Aprilia RSV4 1100 Factory ABS 22-23 525 VX3 chain kit

DID Chain Kit for Aprilia RSV4 1100 Factory ABS 22-23 525 VX3 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Aprilia RSV4 1100 Factory ABS 4KYB 2022-2023

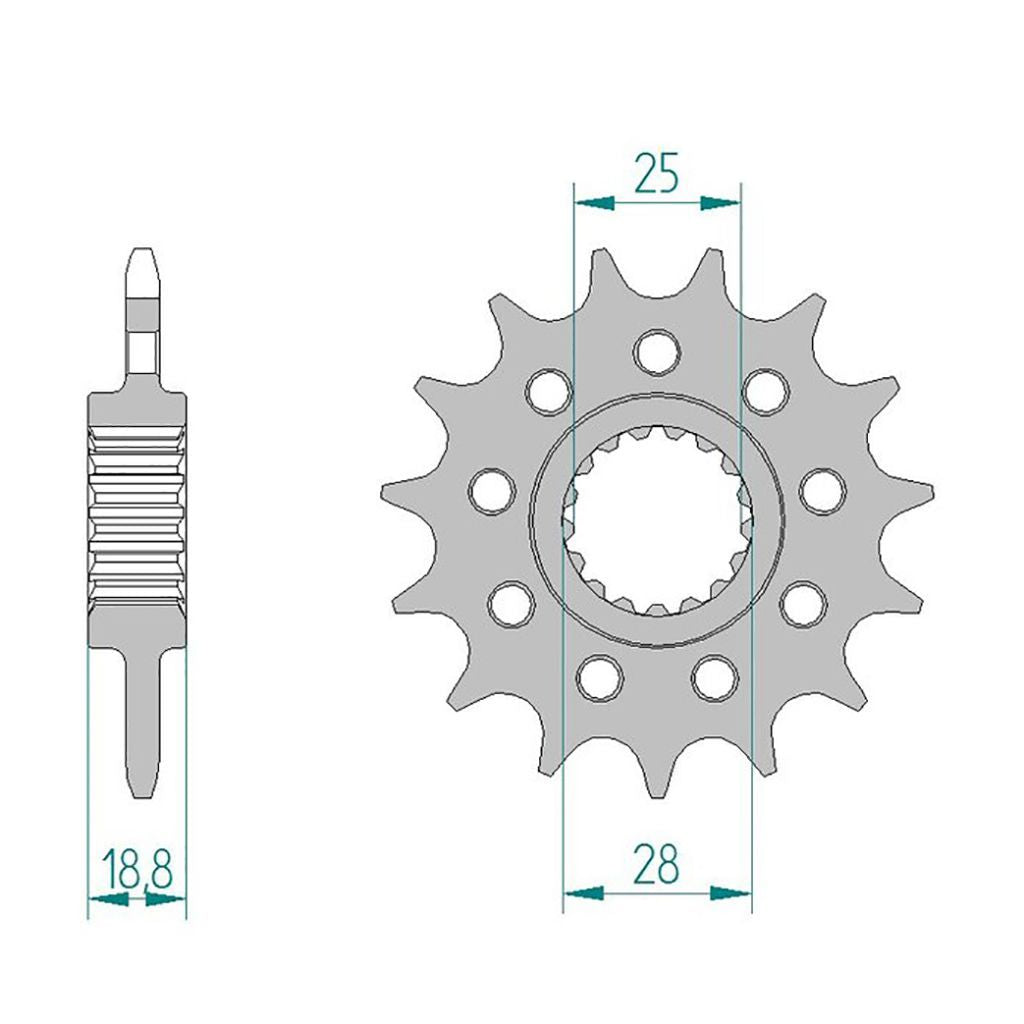

• Front sprocket: AFAM front sprocket #520 16 teeth - a61802.16
• Chain: DID chain 525 VX3 G&B 110 with rivet link - d525vx3.g-110

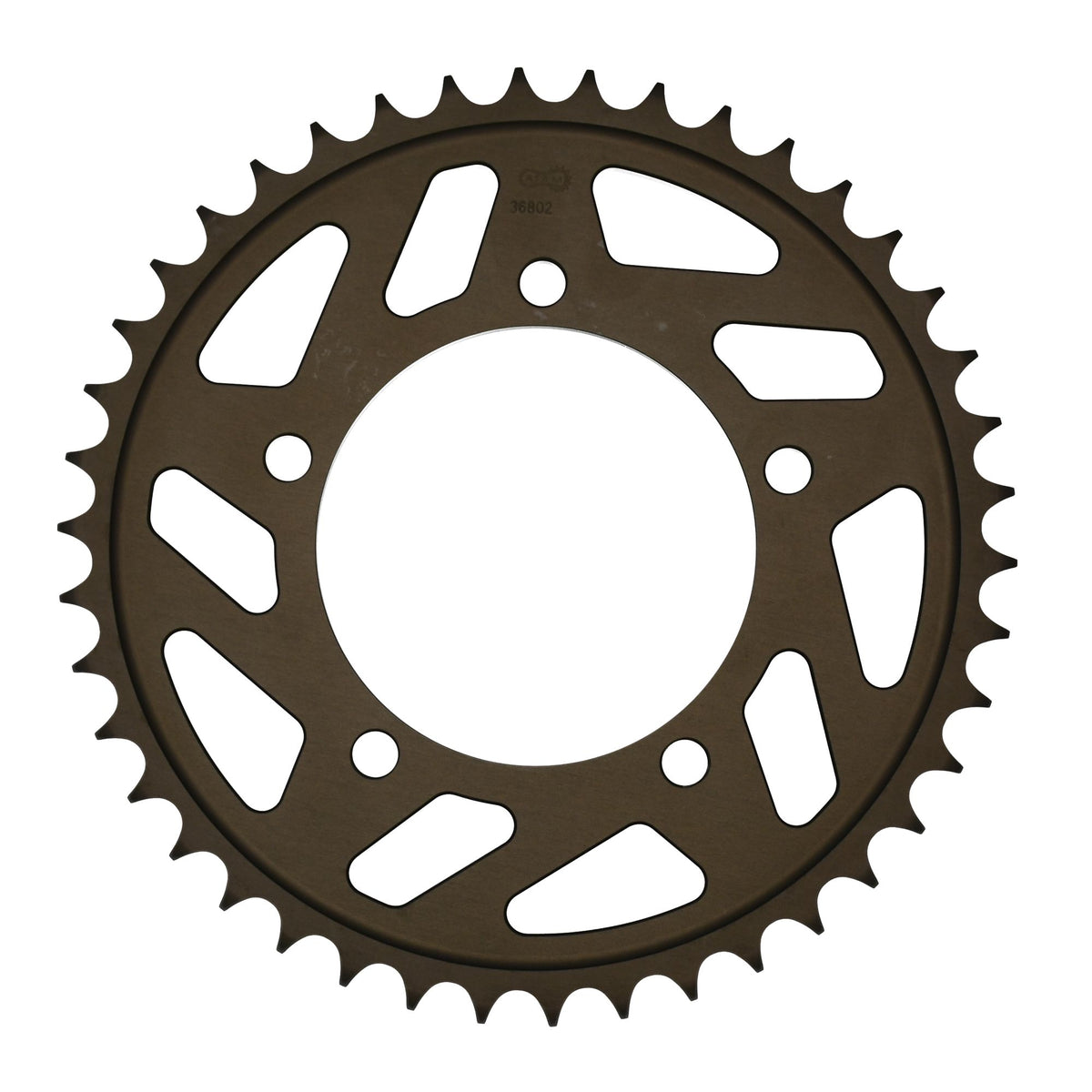

• Rear sprocket: AFAM rear sprocket ALU #525 41 teeth - a36802.41
• Transmission ratio front sprocket-chain-rear sprocket: 16-110-41

DID 525 VX3

Successor to the proven 525 VX
X-ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical specifications:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear life index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-78508

Suitable for

Aprilia over 1001 cc RSV4 1100 Factory ABS 4KYB 2022
Aprilia over 1001 cc RSV4 1100 Factory ABS 4KYB 2023
