DID chain kit for Aprilia RSV4 1100 Factory ABS 22-23 525 ZVMX chain kit

DID Chain Kit for Aprilia RSV4 1100 Factory ABS 22-23 525 ZVMX Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer name mentioned only to indicate compatibility!

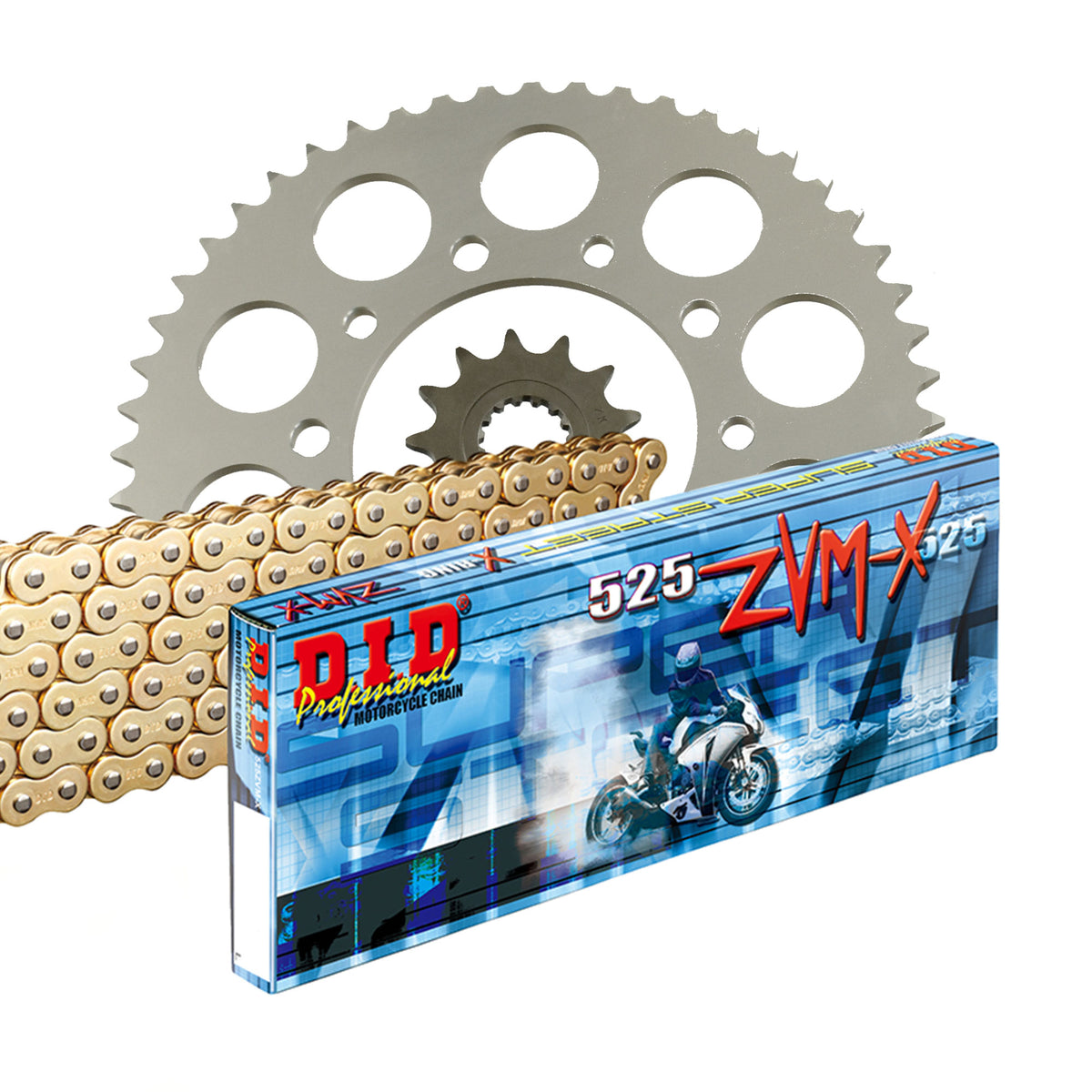

Components of the chain kit Aprilia RSV4 1100 Factory ABS 4KYB 2022-2023

• Sprocket: AFAM sprocket #520 16 teeth - a61802.16

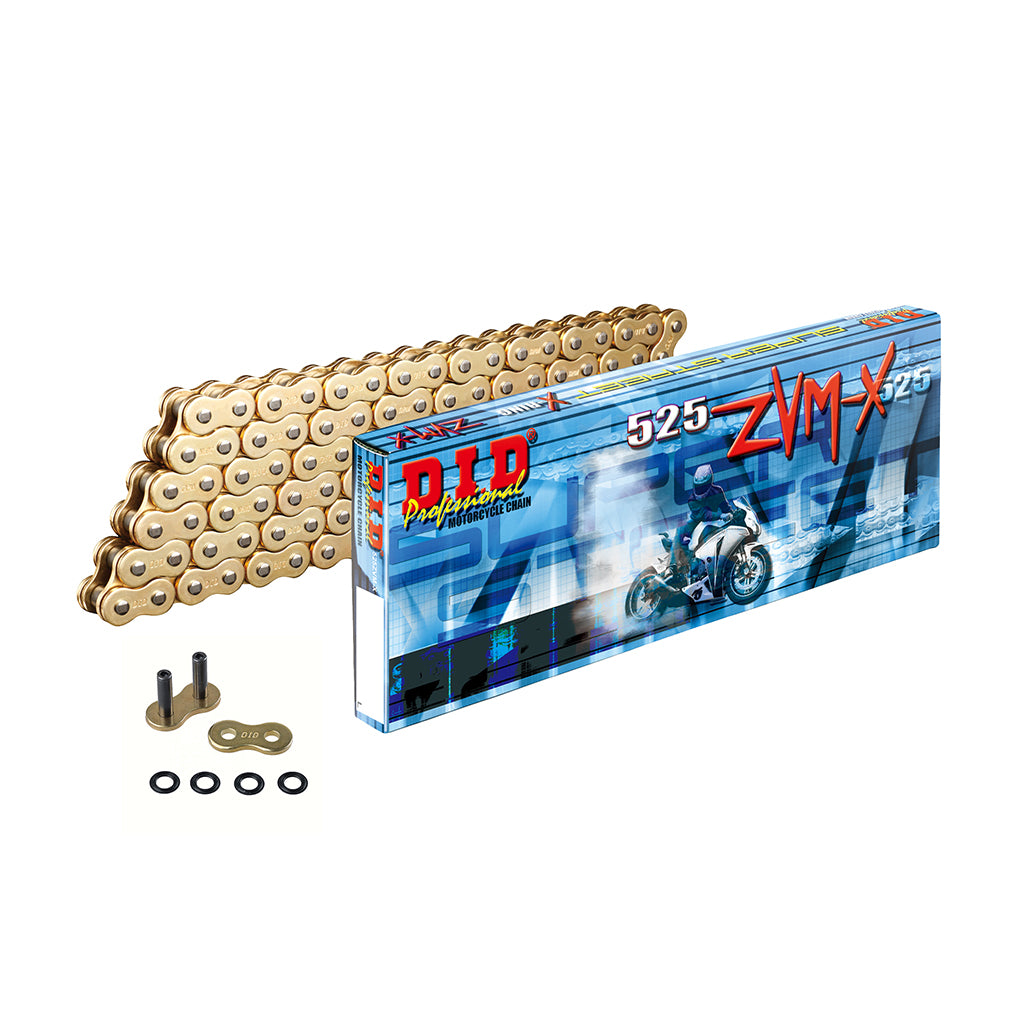

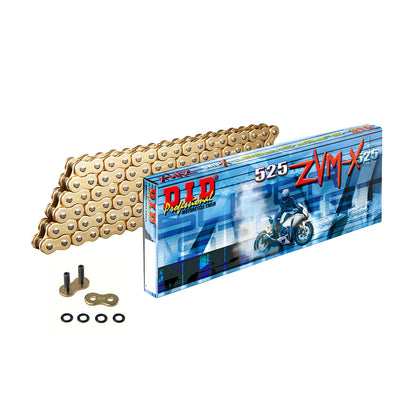

• Chain: DID chain 525 ZVM-X G&G 110 with rivet link - d6252529110

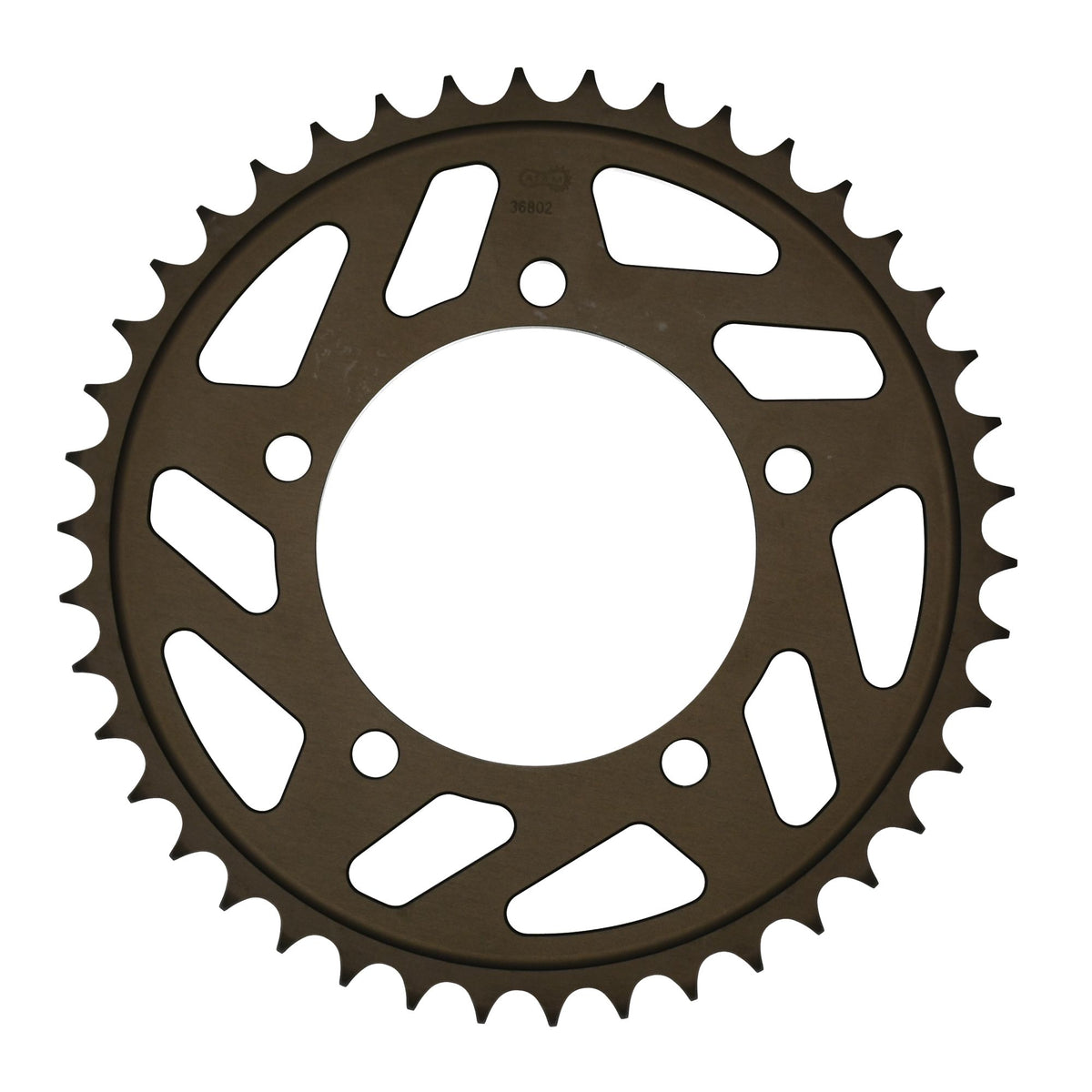

• Chain wheel: AFAM chain wheel ALU #525 41 teeth - a36802.41
• Gear ratio sprocket-chain-chain wheel: 16-110-41

DID 525 ZVM-X

Extra reinforced chain, versatile range of use
X-Ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 46.30 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is mentioned solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Part number	KKF-78569

Suitable for

Aprilia over 1001 cc RSV4 1100 Factory ABS 4KYB 2022
Aprilia over 1001 cc RSV4 1100 Factory ABS 4KYB 2023
