DID chain set for Aprilia Tuareg 660 22-24 520 ZVMX chain kit

DID chain kit for Aprilia Tuareg 660 22-24 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility illustration only!

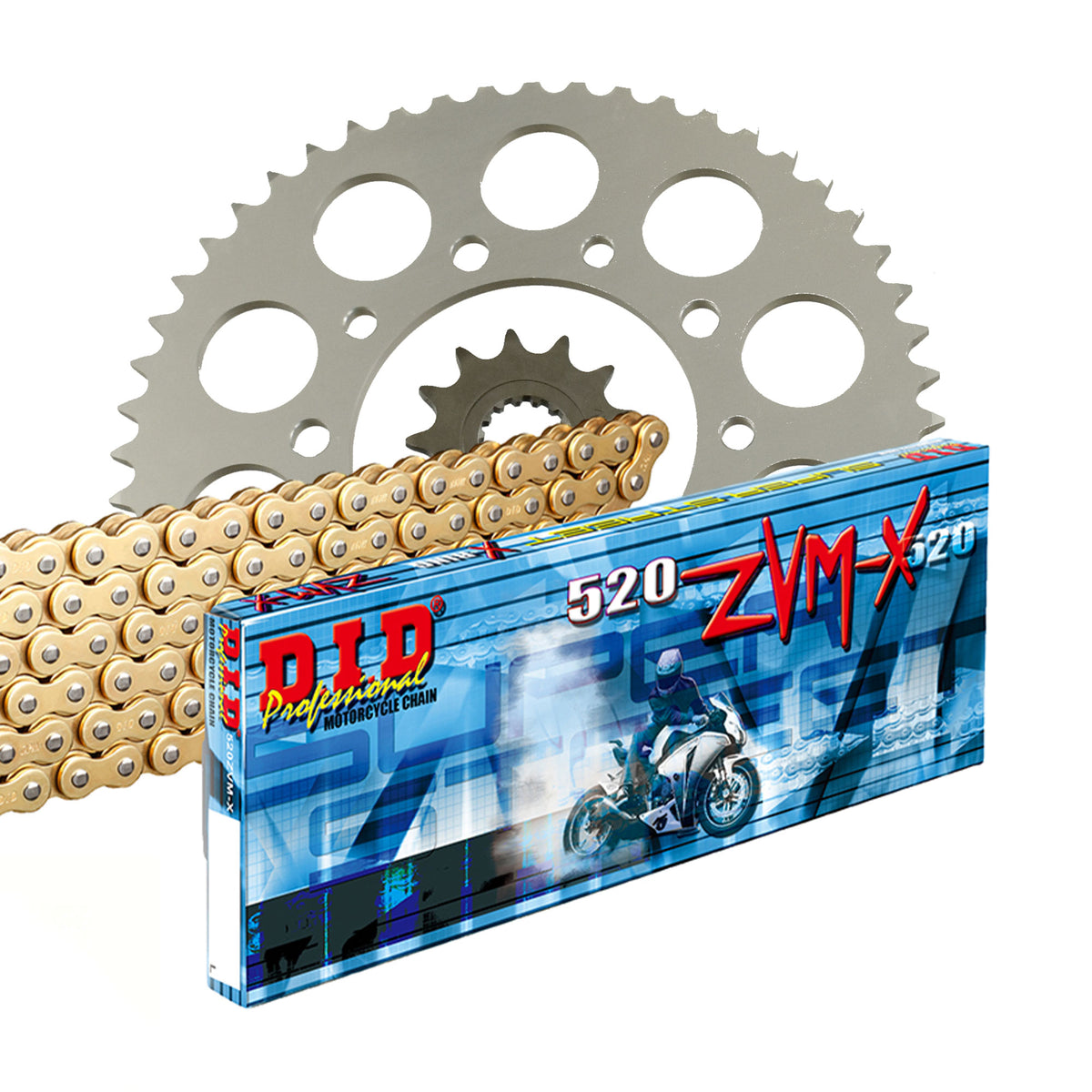

Components of the Aprilia Tuareg 660 4XBA00 2022-2024 chain kit

• Sprocket: AFAM sprocket #520 15 teeth - a37500.15
• Chain: DID chain 520 ZVM-X G&G 120 with rivet link - d6252029120

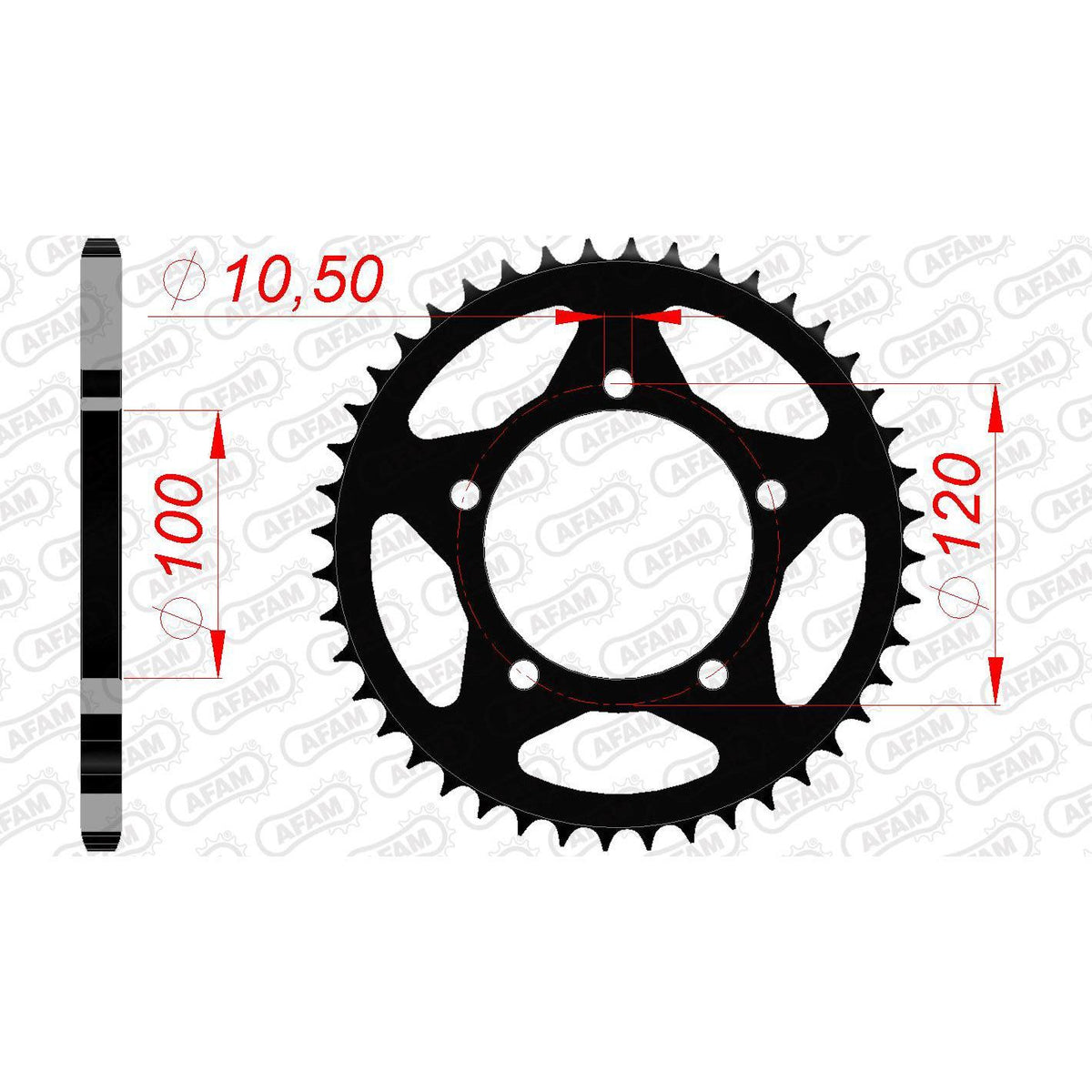

• Rear sprocket: Esjot rear sprocket 35801-42 STEEL #520 42 teeth - a35801.42
• Sprocket-chain-rear sprocket gear ratio: 15-120-42

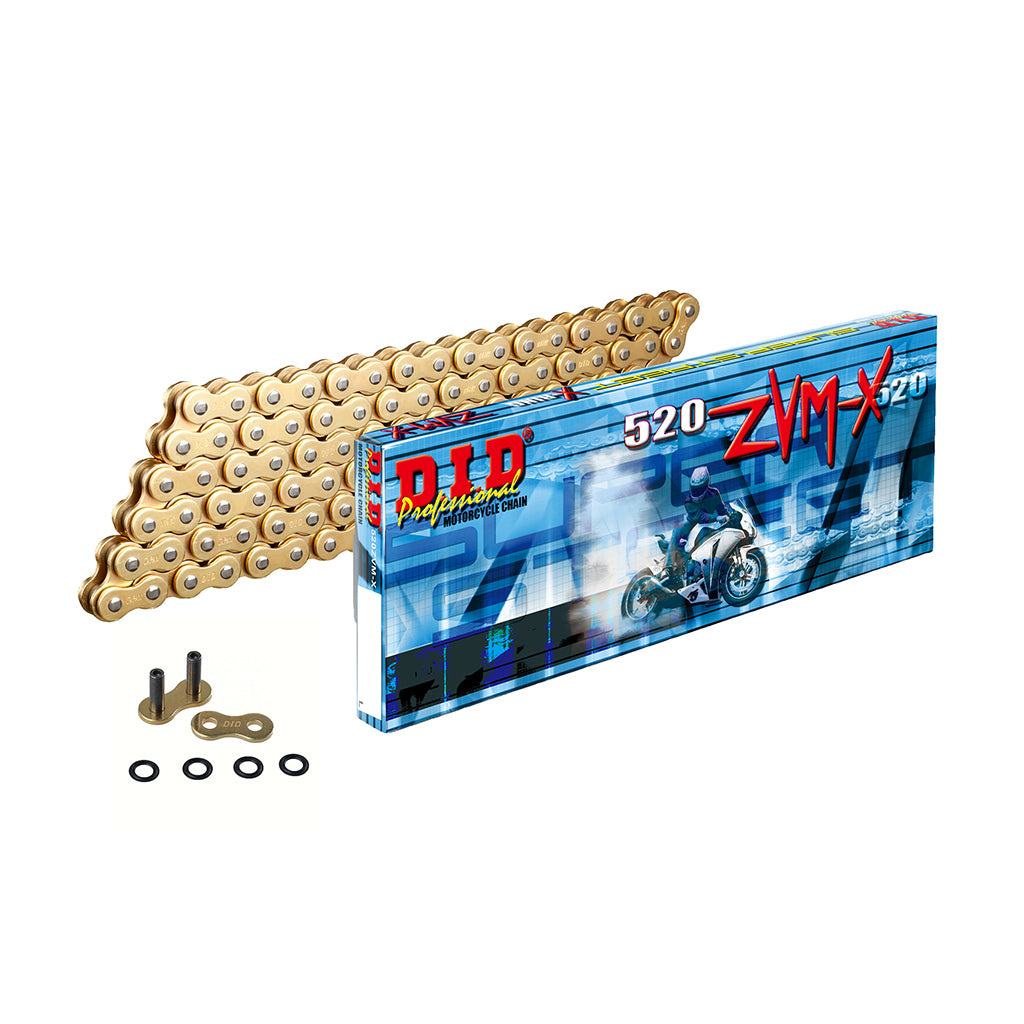

DID 520 ZVM-X

Extra reinforced chain, versatile area of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-78639

Fits

Aprilia 501 - 750 cc Tuareg 660 4XBA00 2022
Aprilia 501 - 750 cc Tuareg 660 4XBA00 2023
Aprilia 501 - 750 cc Tuareg 660 4XBA00 2024
