DID chain kit for Ducati 1098 07-08 525 ZVM-X2 chain kit

DID chain kit for Ducati 1098 07-08 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Ducati 1098 H7 2007-2008 conversion #520 for PCD3 sprocket adapter

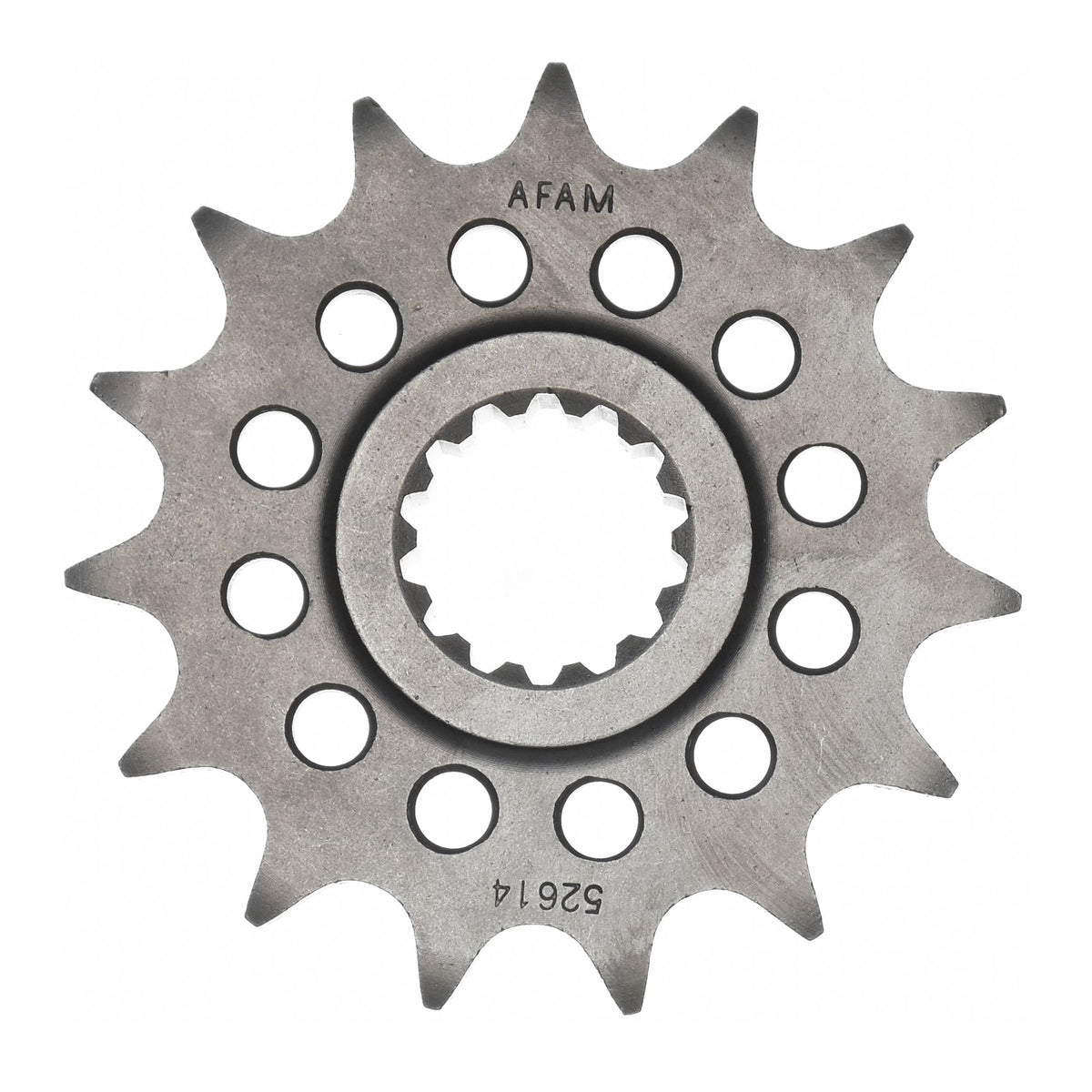

• Front sprocket: AFAM front sprocket #520 15 teeth - a52614.15
• Chain: DID chain 525 ZVM-X2 G&G 98 with rivet link - d525zvmx2.gg.98

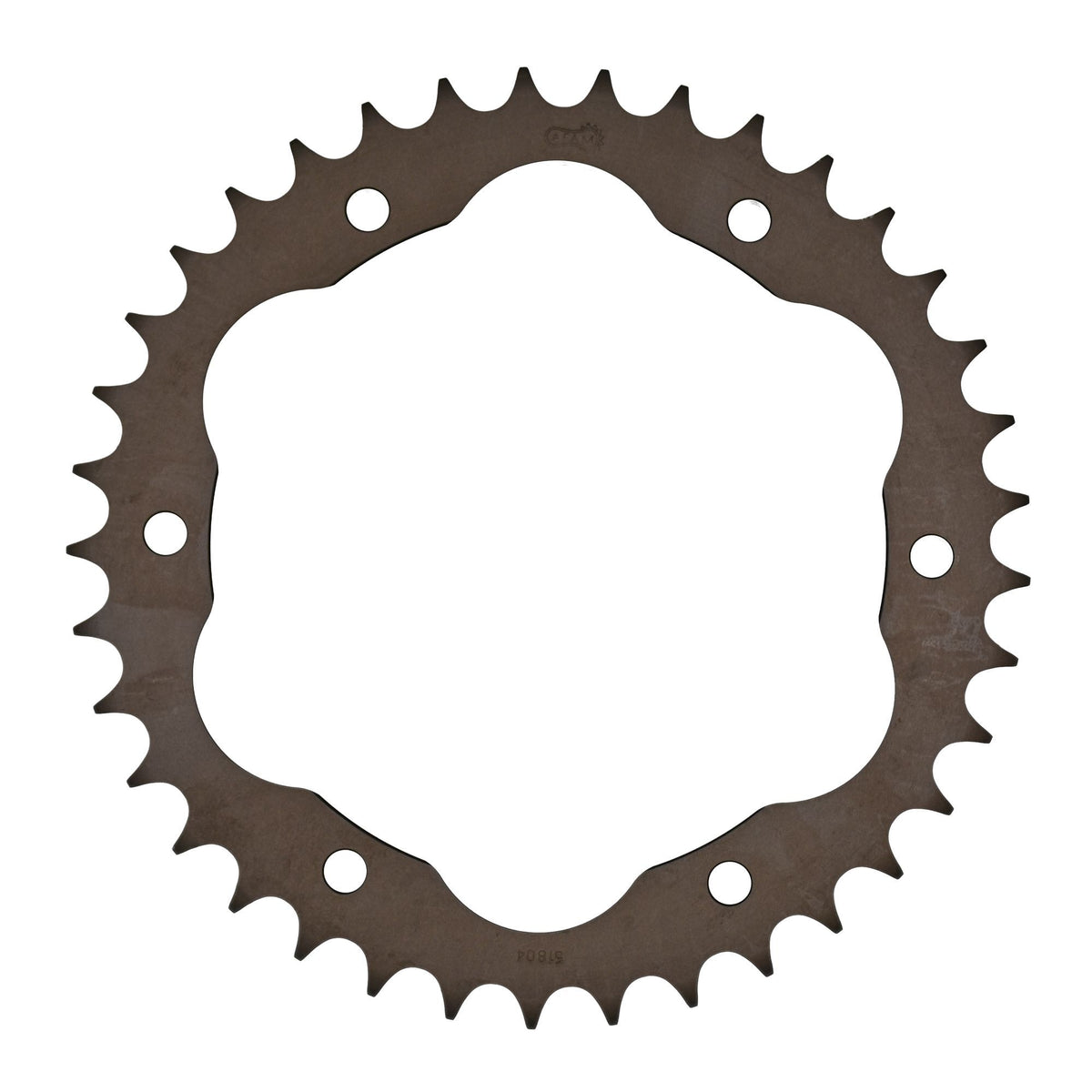

• Rear sprocket: AFAM aluminum sprocket #520 PCD 38 teeth - a51804.38
• Gear ratio front sprocket-chain-rear sprocket: 15-98-38 conversion #520 for PCD3 sprocket adapter

DID 525 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-77777

Fits

Ducati over 1001 cc 1098 H7 2007
Ducati over 1001 cc 1098 H7 2008
