DID chain set for Ducati 1198 09-10 525 ZVM-X2 chain kit

DID chain kit for Ducati 1198 09-10 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

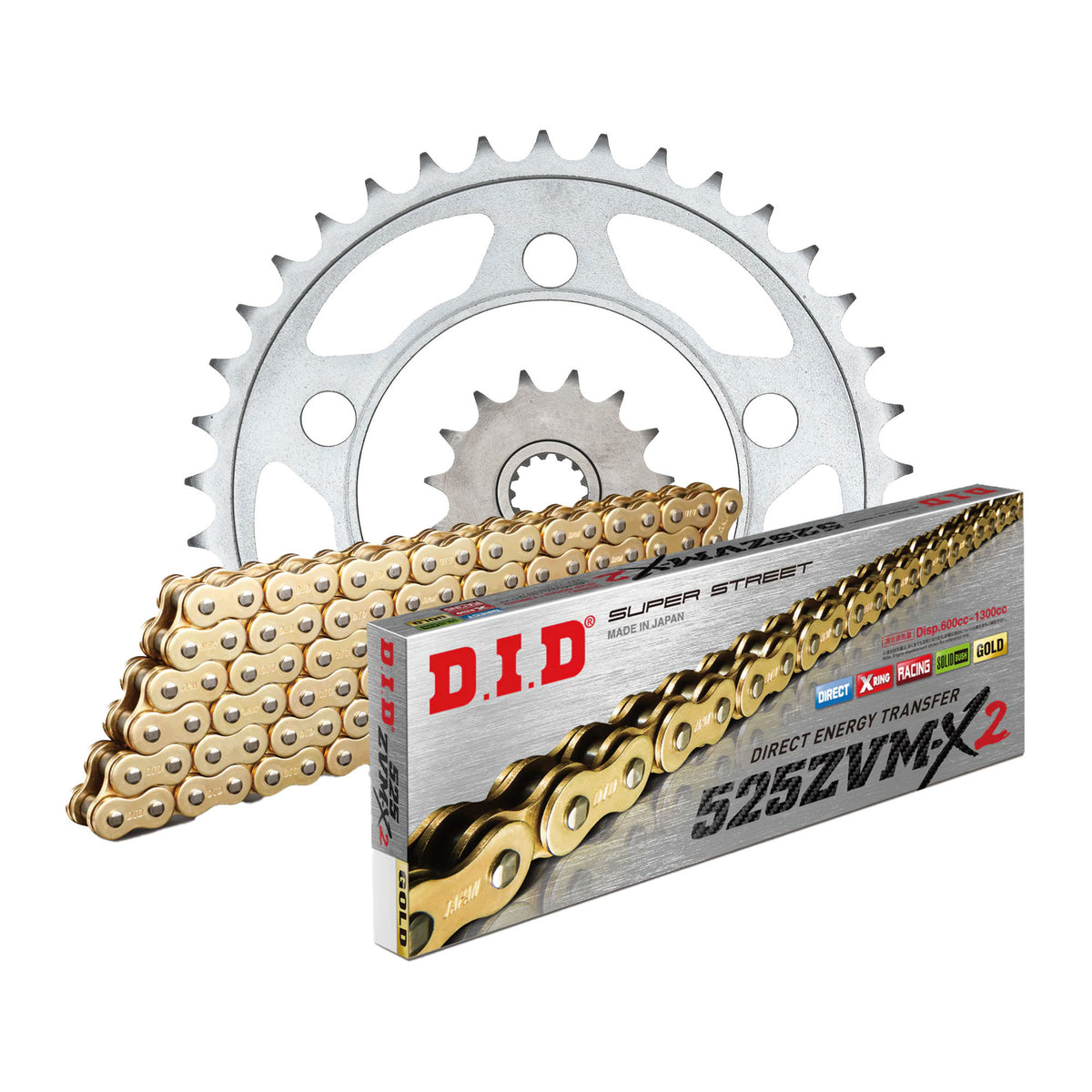

Components of the chain kit Ducati 1198 H7 2009-2010

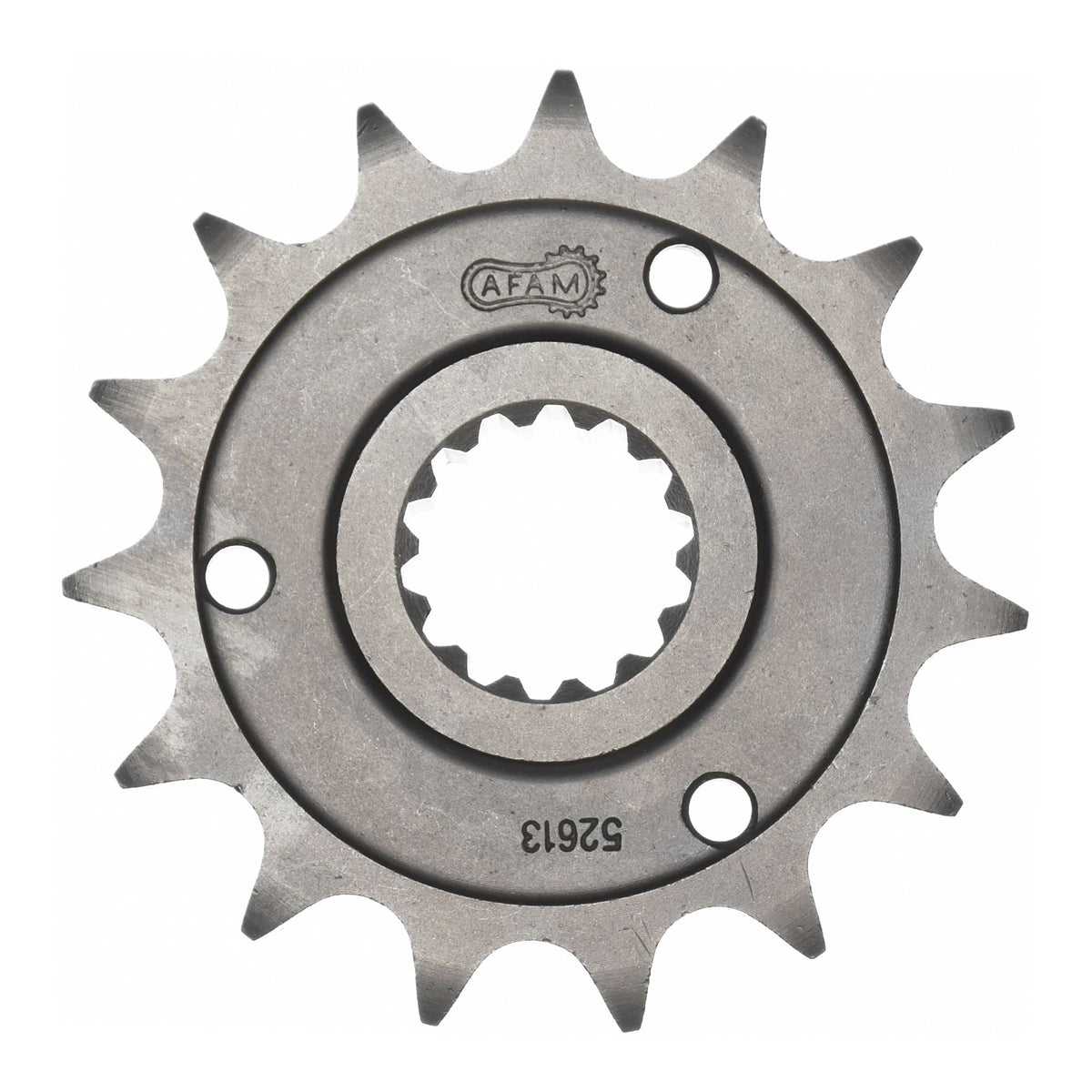

• Front sprocket: AFAM front sprocket #525 Sport 15 teeth - a52613.15

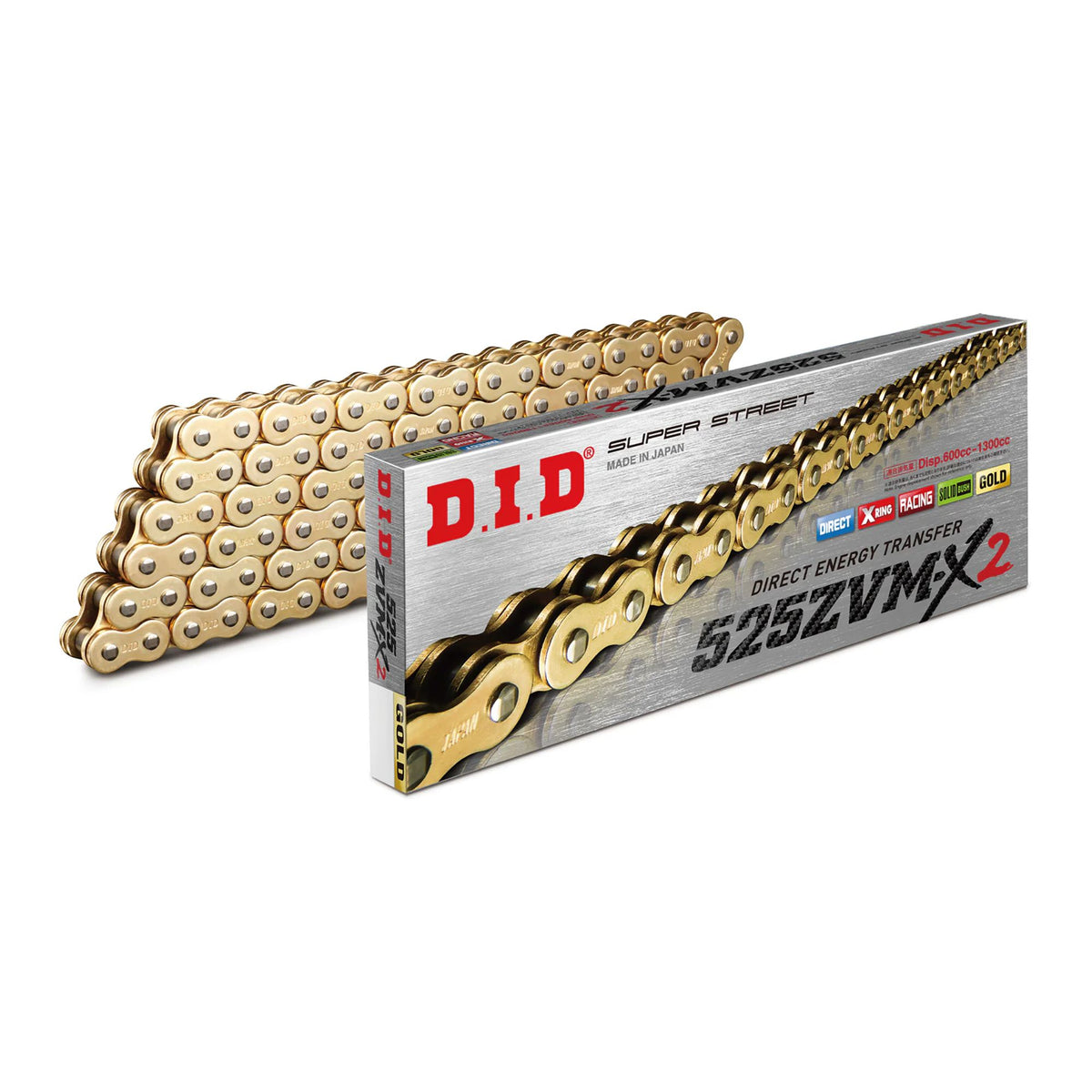

• Chain: DID chain 525 ZVM-X2 G&G 98 with rivet link - d525zvmx2.gg.98

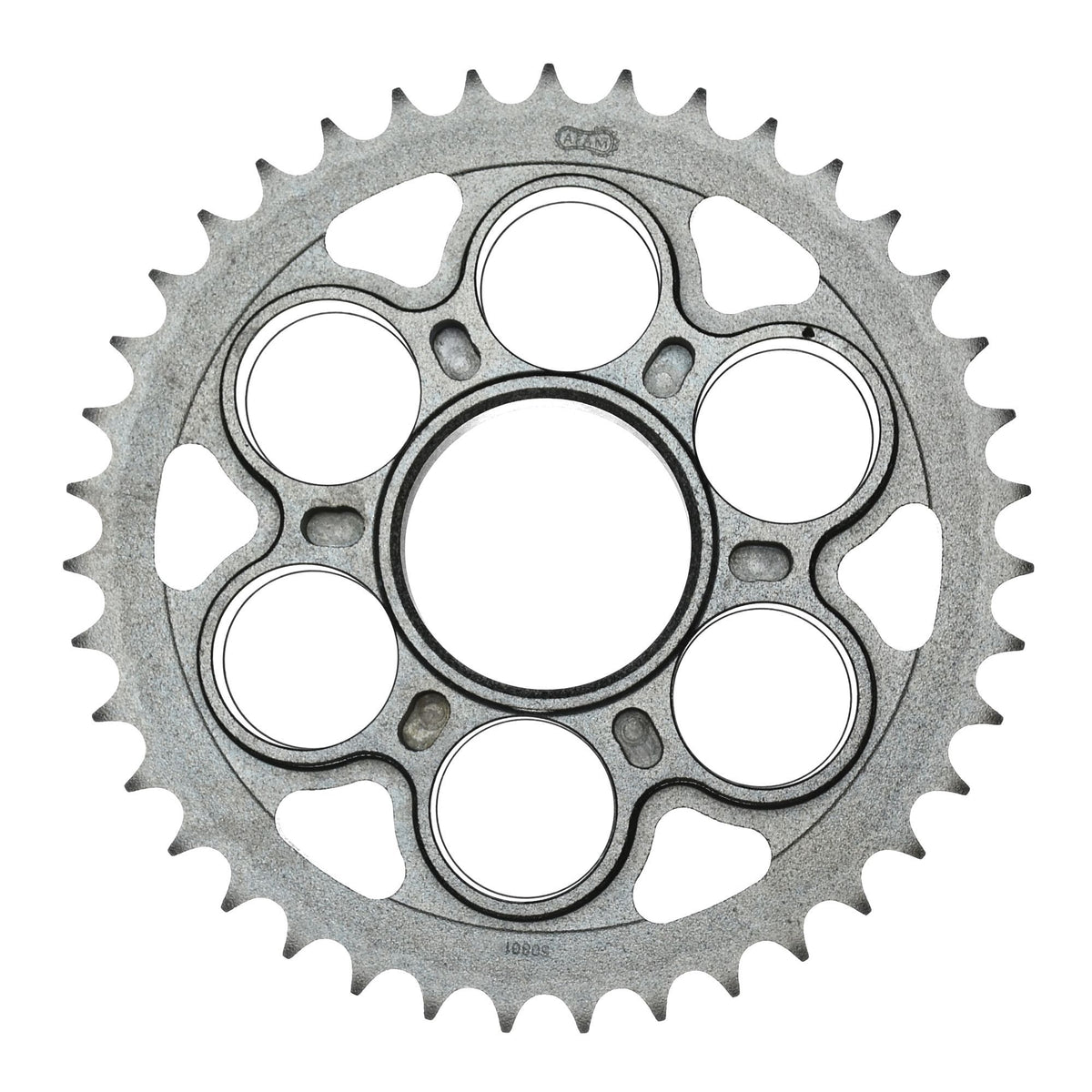

• Rear sprocket: AFAM rear sprocket STEEL #525 38 teeth - a50801.38
• Gear ratio front sprocket-chain-rear sprocket: 15-98-38

DID 525 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Article number	KKF-77859

Suitable for

Ducati over 1001 cc 1198 H7 2009
Ducati over 1001 cc 1198 H7 2010
