DID chain set for Ducati 1198 09-11 520 ZVMX chain kit

DID chain set for Ducati 1198 09-11 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Ducati 1198 H7 2009-2011 conversion #520 for PCD3 sprocket adapter

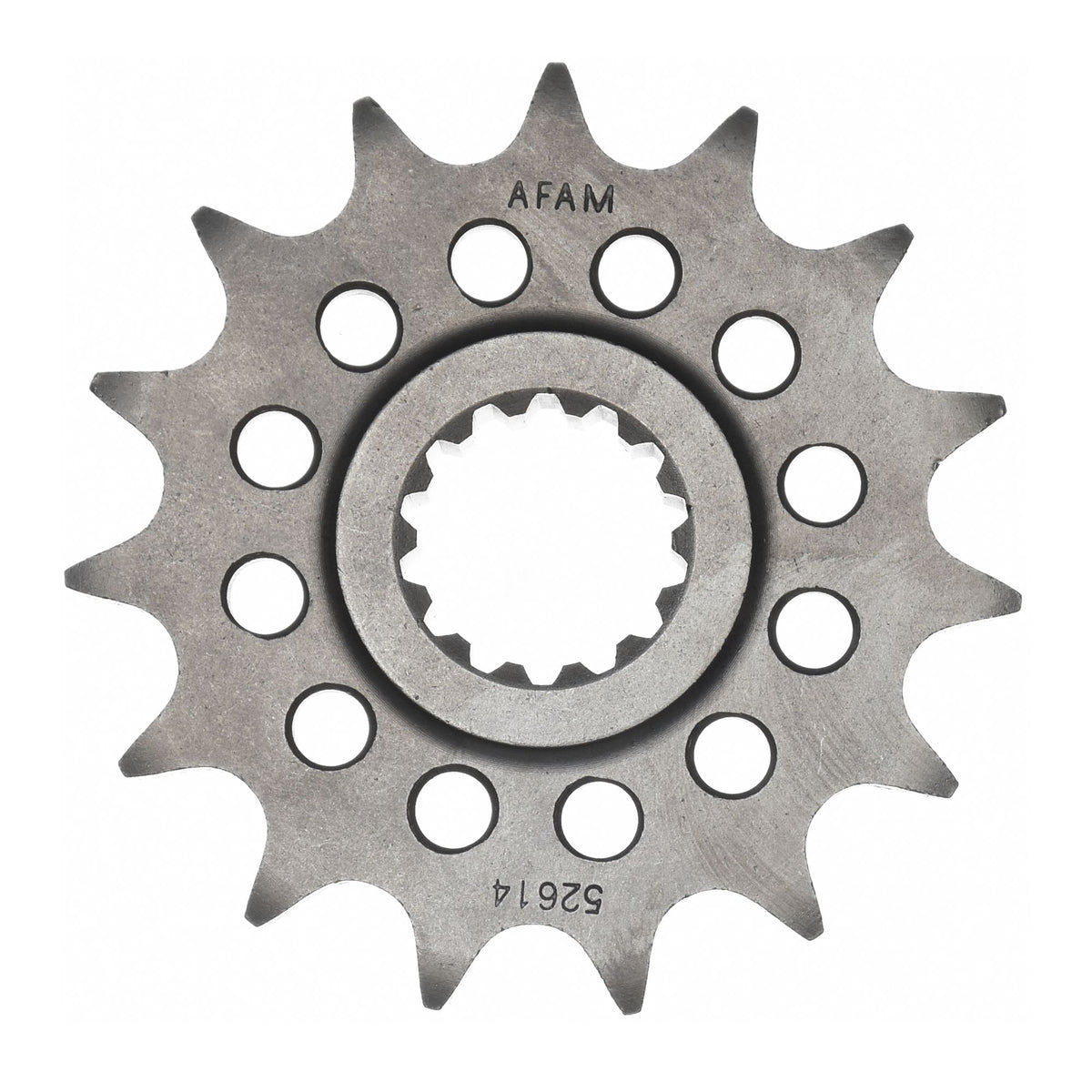

• Front sprocket: AFAM front sprocket #520 15 teeth - a52614.15
• Chain: DID chain 520 ZVM-X G&G 98 with rivet link - d6252029098

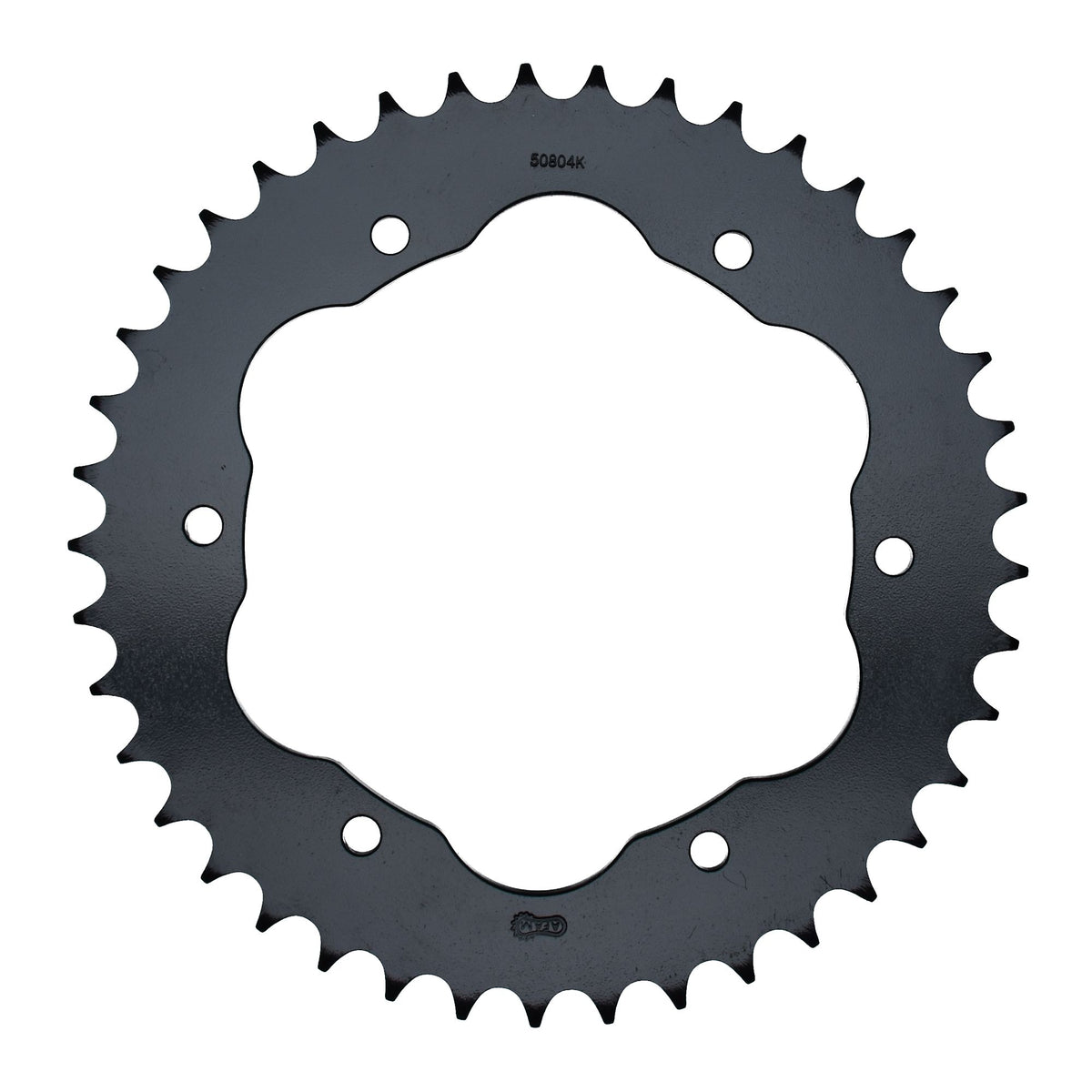

• Rear sprocket: AFAM rear sprocket STEEL #520 PCD 38 teeth - a50804k.38
• Gear ratio front sprocket-chain-rear sprocket: 15-98-38 conversion #520 for PCD3 sprocket adapter

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-77902

Suitable for

Ducati over 1001 cc 1198 H7 2009
Ducati over 1001 cc 1198 H7 2010
Ducati over 1001 cc 1198 H7 2011
