DID chain set for Ducati Hypermotard 1100 2008 525 VX3 chain kit

DID chain set for Ducati Hypermotard 1100 2008 525 VX3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Ducati Hypermotard 1100 B1 2008-2008 conversion #525 for PCD2 sprocket adapter

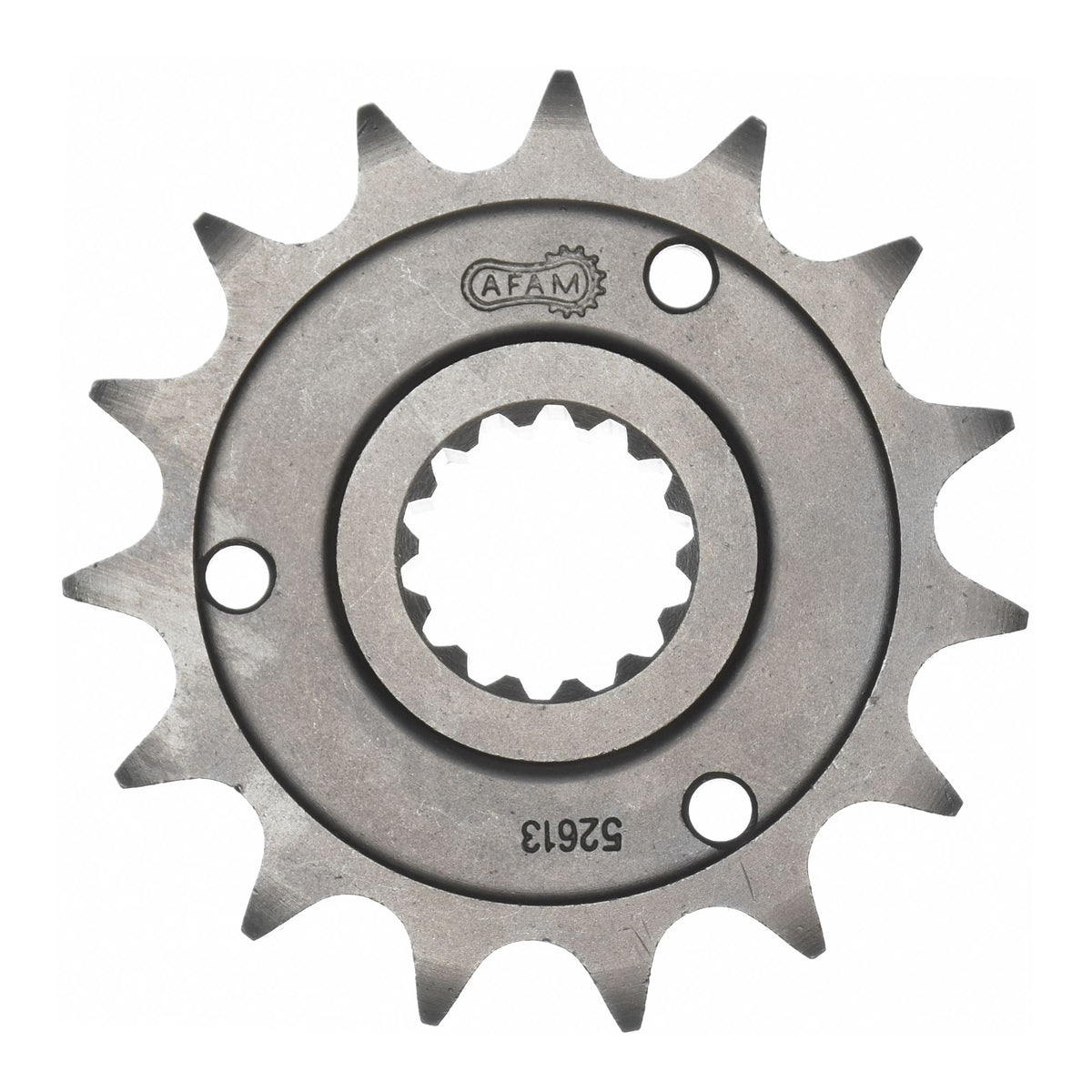

• Front sprocket: AFAM front sprocket #525 Sport 15 teeth - a52613.15
• Chain: DID chain 525 VX3 G&B 104 with rivet link - d525vx3.g-104

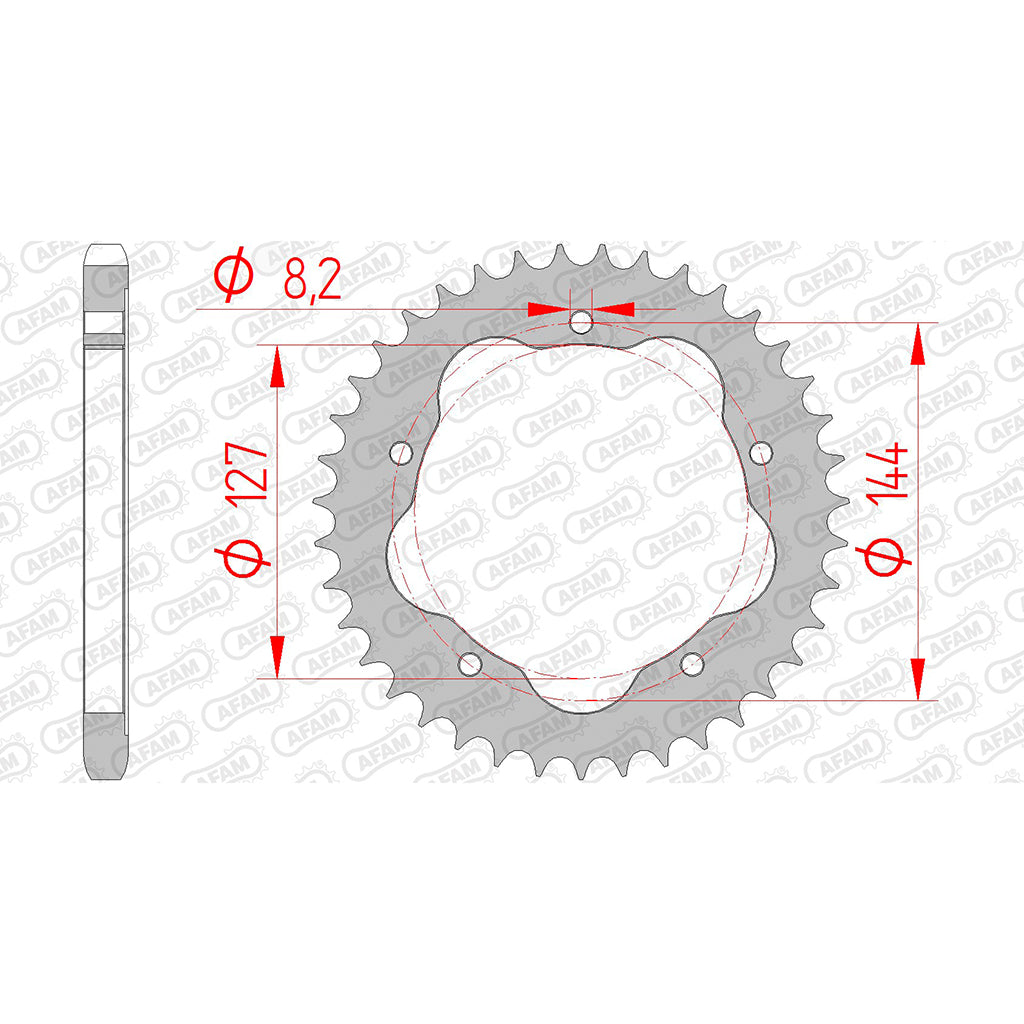

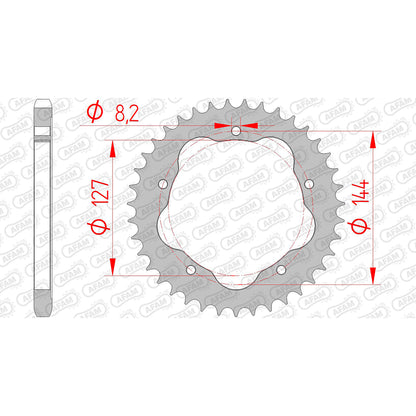

• Rear sprocket: AFAM steel sprocket #525 PCD 42 teeth - a50608k.42sc
• Gear ratio front sprocket-chain-rear sprocket: 15-104-42 conversion #525 for PCD2 sprocket adapter

DID 525 VX3

Successor to the proven 525 VX
X-ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical specifications:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-77815

Suitable for

Ducati over 1001 cc Hypermotard 1100 B1 2008
